Home >> Toyota >> 2010 >> Corolla L4-1.8L (2ZR-FE) >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - HVAC >> Blower Motor Switch >> Locations

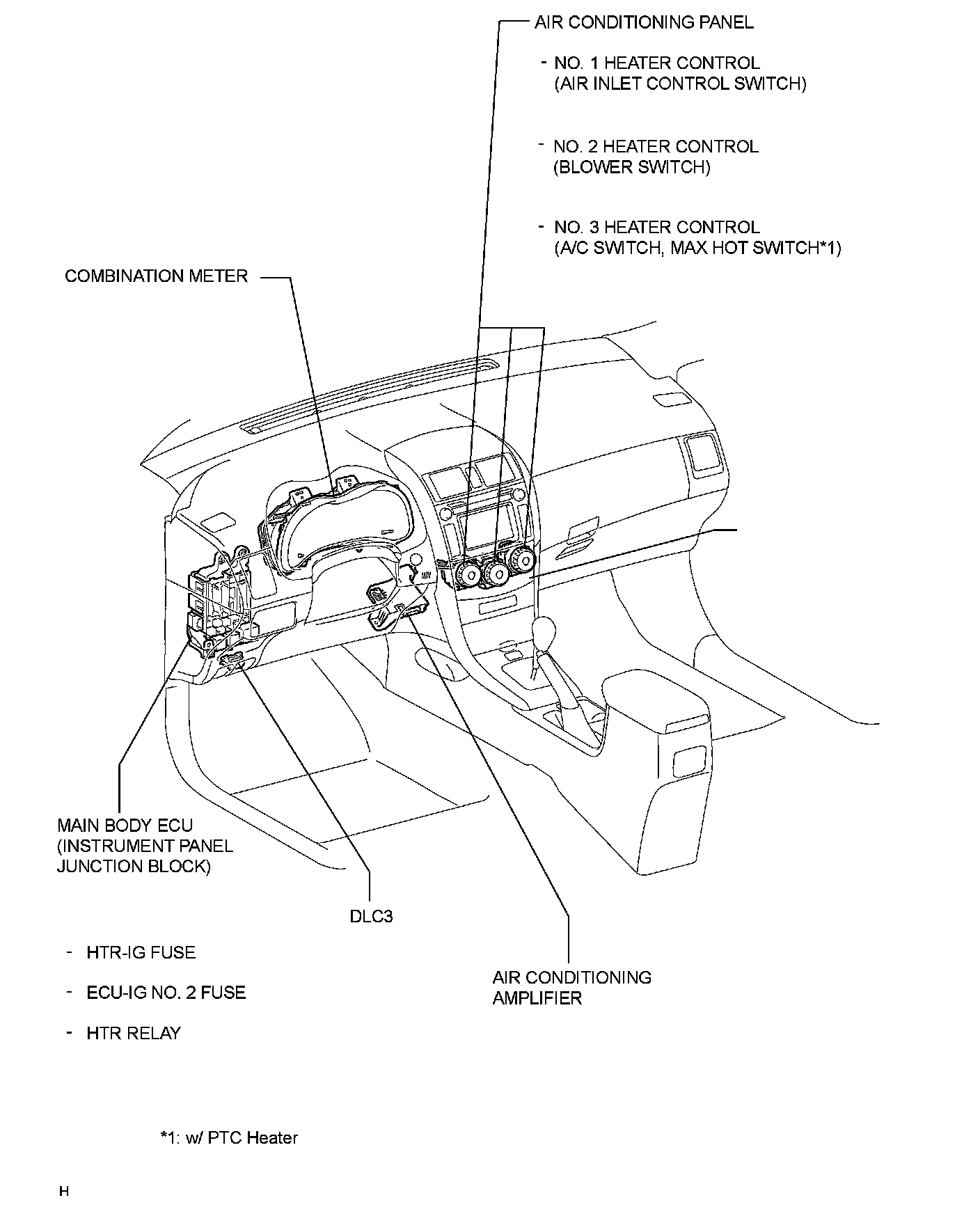

Blower Motor Switch: Locations





HEATING / AIR CONDITIONING: AIR CONDITIONING SYSTEM (for Manual Air Conditioning System): PARTS LOCATION
