Home >> Toyota >> 2010 >> Corolla L4-1.8L (2ZR-FE) >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Instrument Panel >> Door Switch >> Locations

Door Switch: Locations

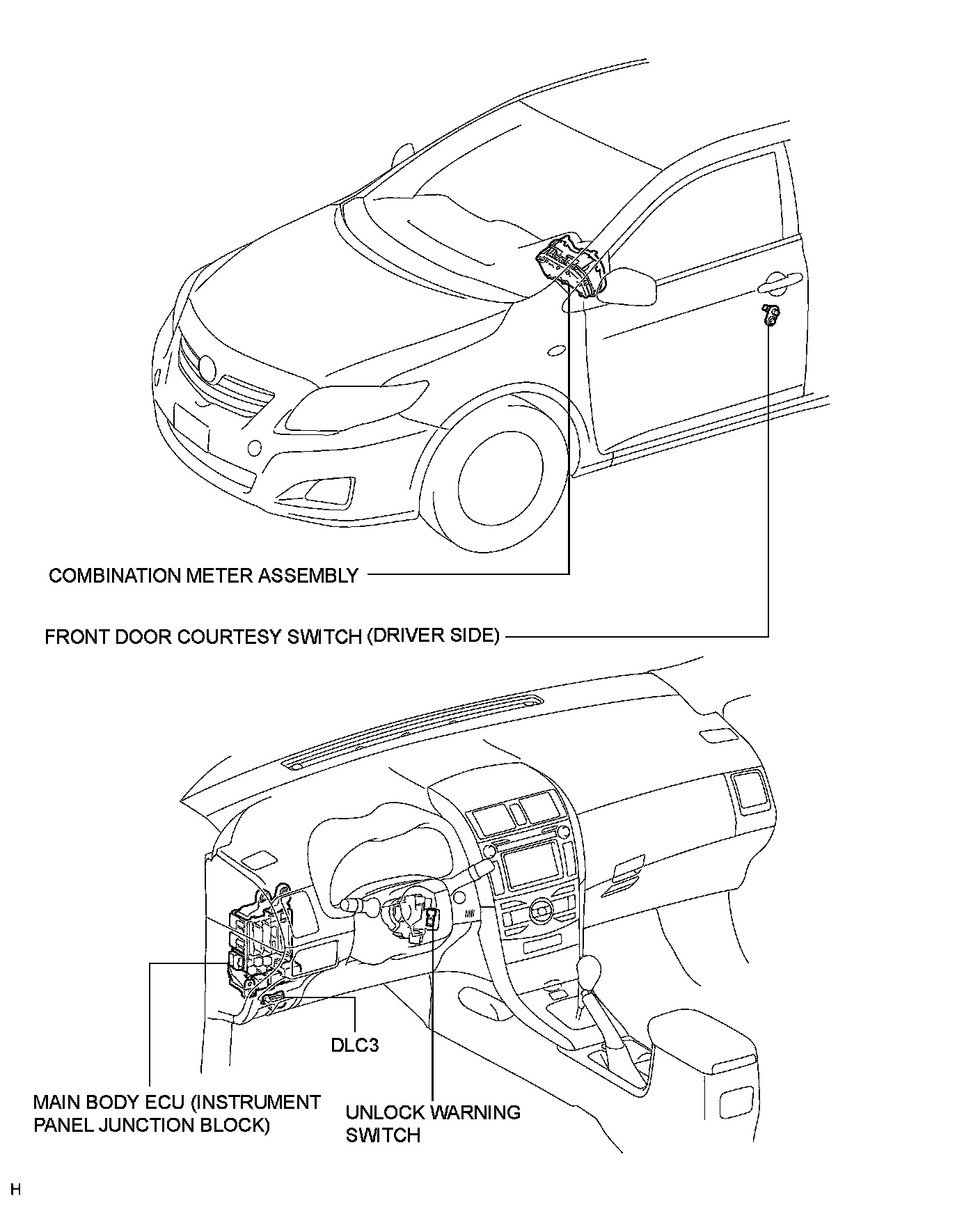

DOOR LOCK: KEY REMINDER WARNING SYSTEM: PARTS LOCATION
