Torque Specifications








SPECIFICATIONS: SEAT: TORQUE SPECIFICATIONS

TORQUE SPECIFICATIONS

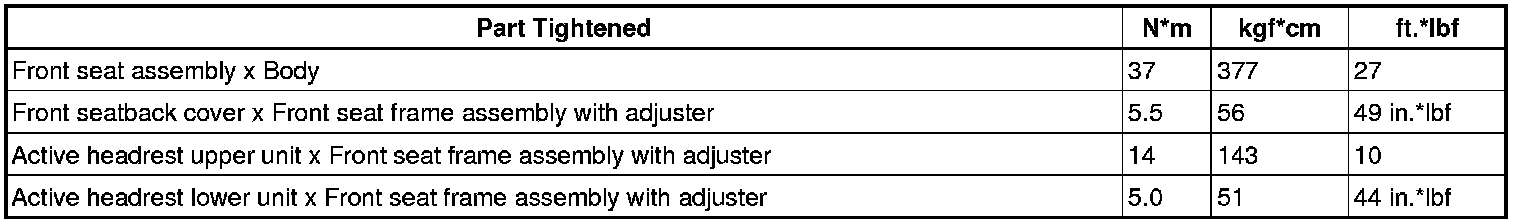

FRONT SEAT ASSEMBLY (for Manual Seat)





FRONT SEAT ASSEMBLY (for Power Seat)

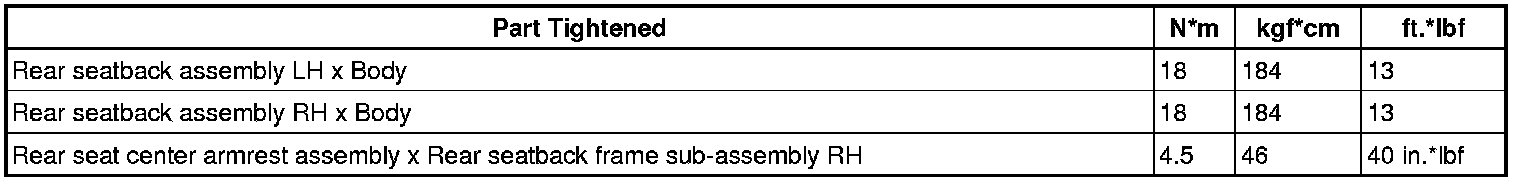

REAR SEAT ASSEMBLY
