Cylinder Head Assembly

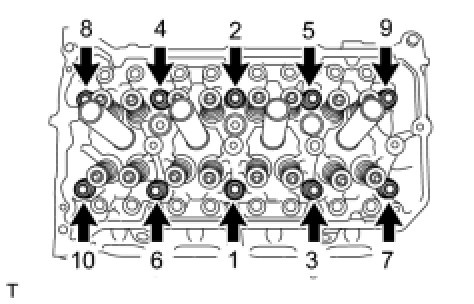

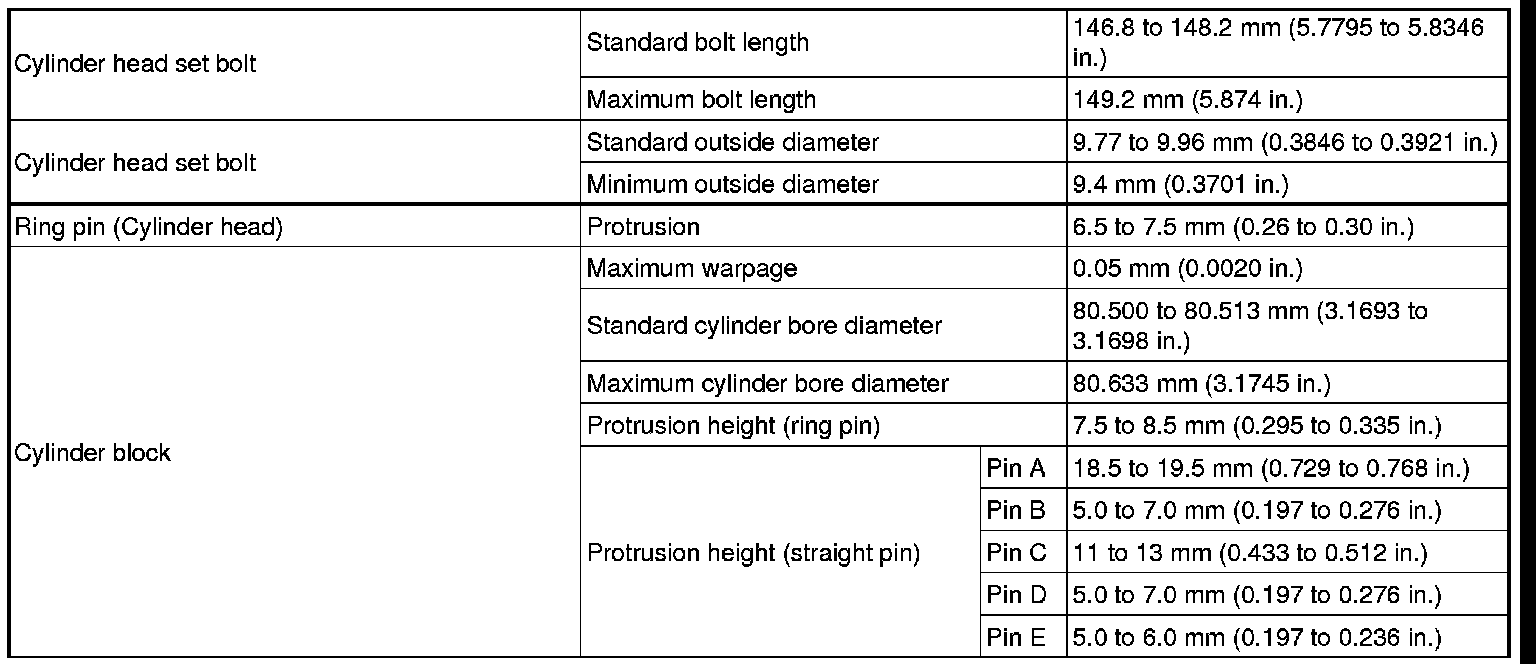

CYLINDER HEAD SUB-ASSEMBLYUsing several passes, uniformly install and tighten the 10 cylinder head set bolts and plate washers with a 10 mm bi-hexagon wrench in the order shown in the illustration.
Torque 49 Nm (500 kgf-cm, 36 ft-lbf)
Mark the front side of the cylinder head bolts with paint.

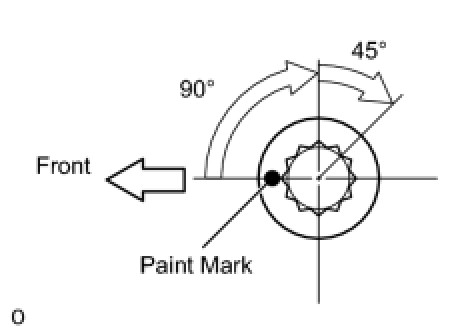

Retighten the cylinder head bolts an additional 90°, then once more 45° as shown in the illustration.
Check that the paint mark is now at a 135° angle to the front.
SURFACE VARIATION

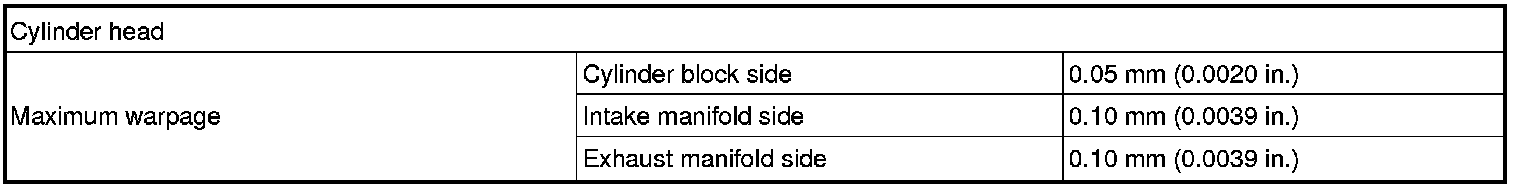

CAMSHAFT BEARING CAP

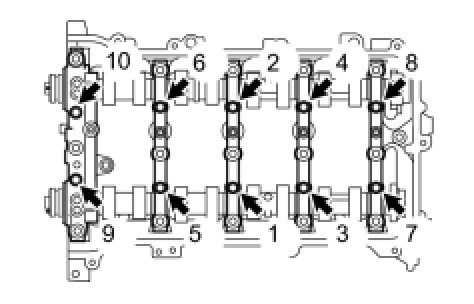

Tighten the 10 bolts in the order shown in the illustration.
Torque 16 Nm (163 kgf-cm, 12 ft-lbf)
CAMSHAFT HOUSING SUB-ASSEMBLY
Set the camshaft and No. 2 camshaft as shown in the illustration.
Install the camshaft housing and tighten the 17 bolts in the order shown in the illustration.
Torque 27 Nm (275 kgf-cm, 20 ft-lbf)
INTAKE MANIFOLD TORQUE & SEQUENCE Specifications
EXHAUST MANIFOLD TORQUE & SEQUENCE Specifications
CAMSHAFT GEAR/SPROCKET TORQUE Specifications
