Removal

2ZR-FE BATTERY / CHARGING: GENERATOR: REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

2. REMOVE ENGINE UNDER COVER RH

3. REMOVE V-RIBBED BELT Removal

4. REMOVE GENERATOR ASSEMBLY

(a) Remove the terminal cap.

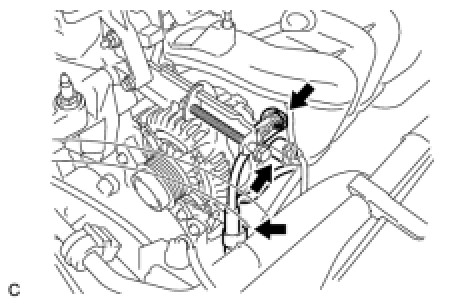

(b) Remove the nut and disconnect the wire harness from terminal B.

(c) Disconnect the connector and harness clamp.

(d) Remove the 2 bolts and generator assembly.





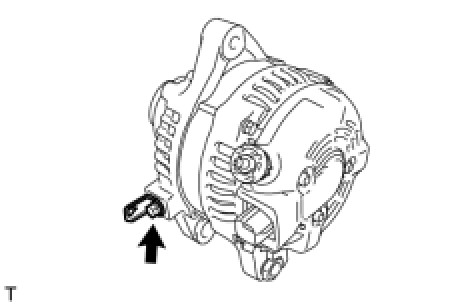

(e) Remove the bolt and wire harness clamp bracket.
