Charging [TMC Made]

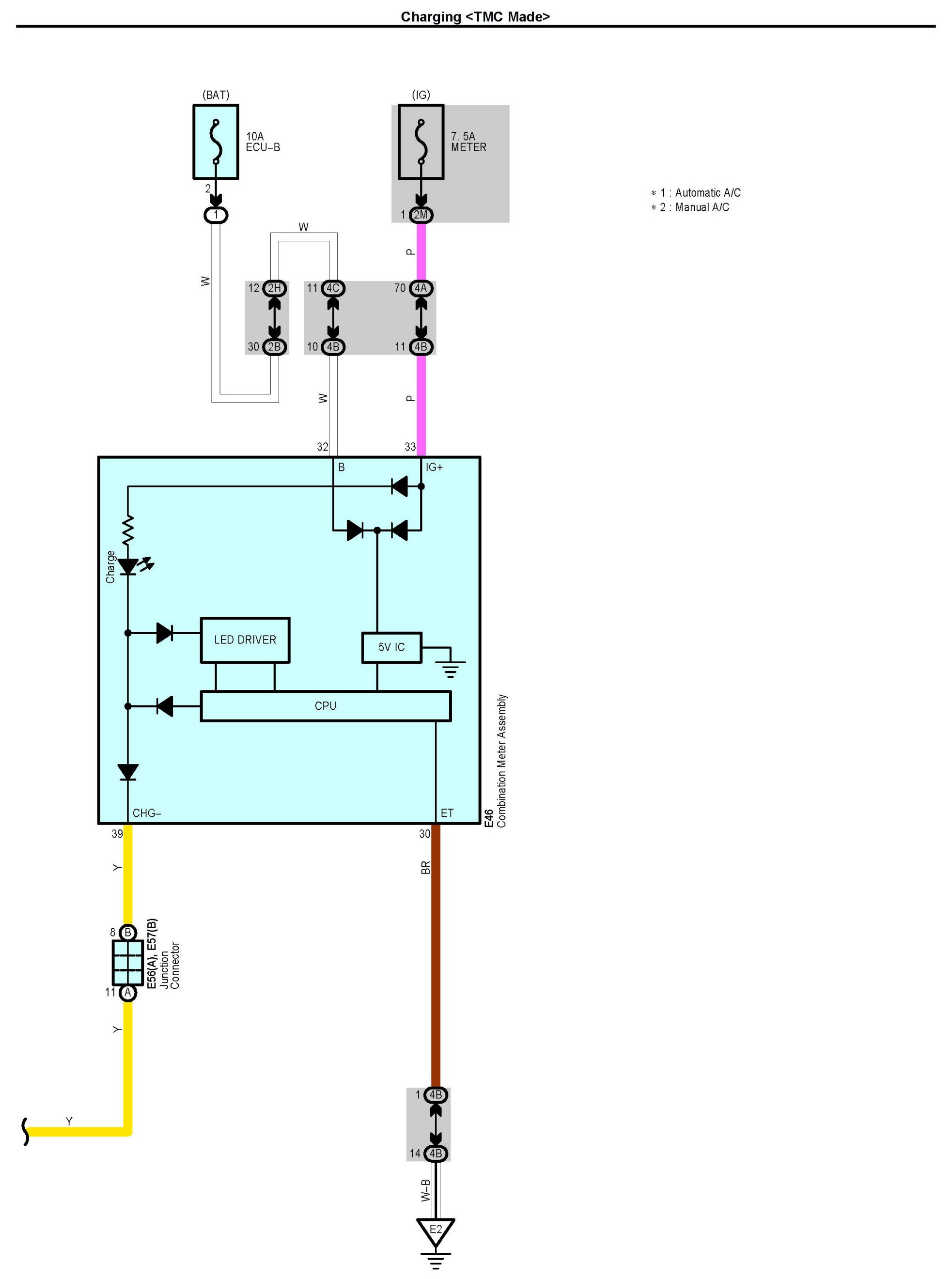

Charging [TMC Made] Part 1:

Charging [TMC Made] Part 2:

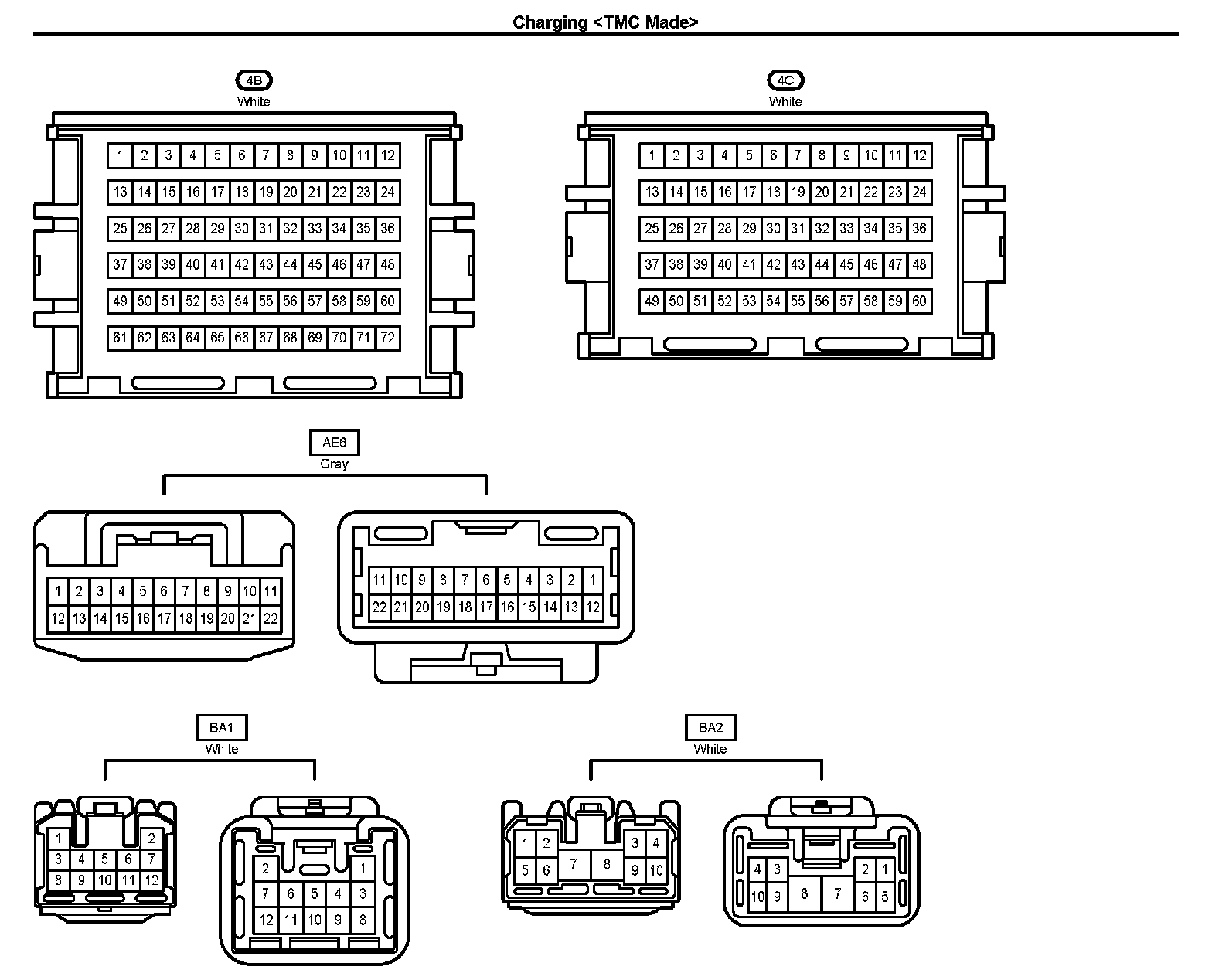

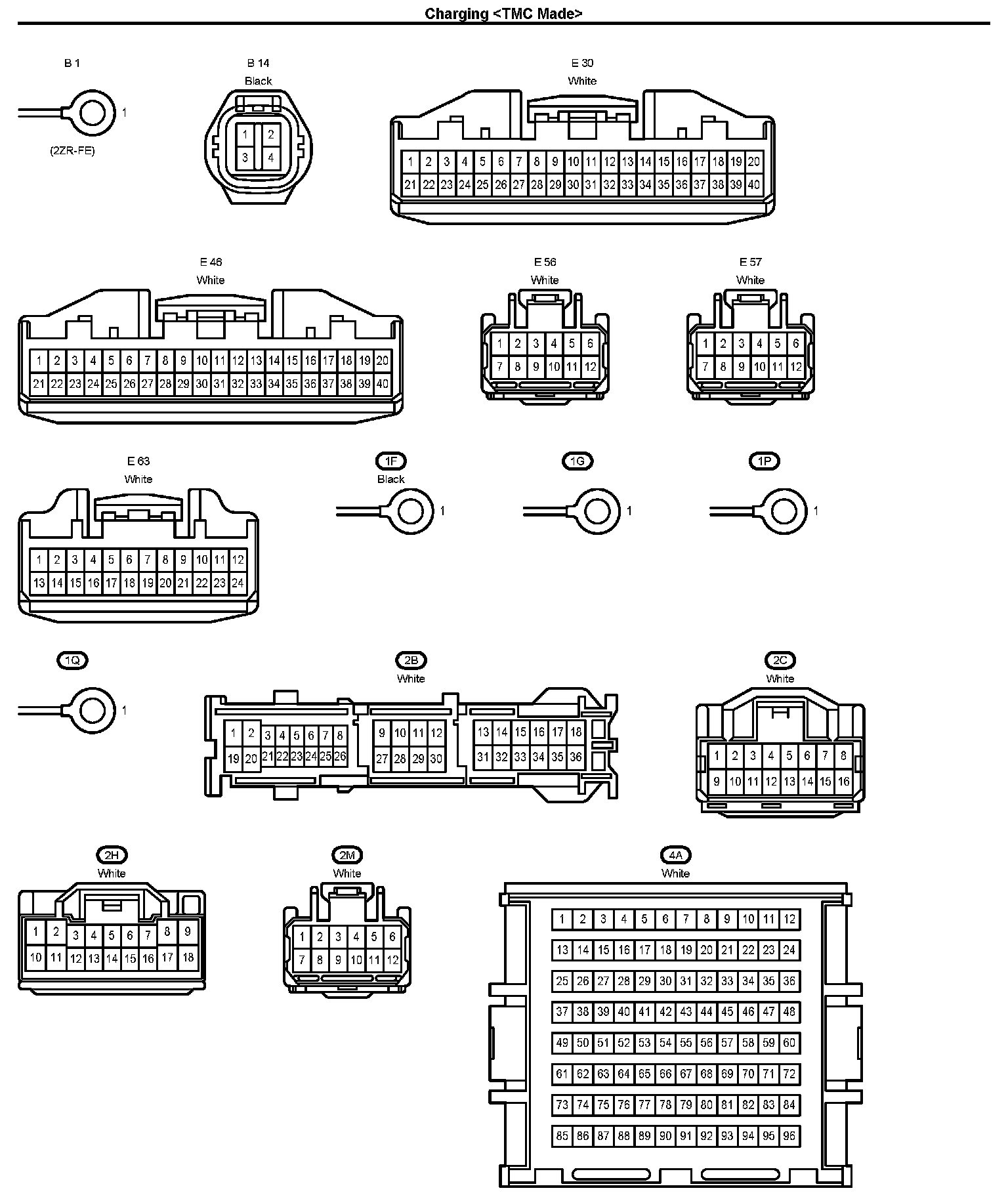

Connectors Part 1:

Connectors Part 2:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
