Charge Warning Light Comes ON while Driving

2ZR-FE BATTERY / CHARGING: CHARGING SYSTEM: Charge Warning Light Comes ON while Driving
- Charge Warning Light Comes ON while Driving

INSPECTION PROCEDURE

PROCEDURE

1. CHECK LOCK FUNCTION OF GENERATOR CLUTCH PULLEY

(a) Check the lock function with the pulley installed in the vehicle.

(1) Visually check that the rotor in the generator operates with the engine running.

(b) Check the lock function with the pulley removed from the vehicle.

(1) Remove the generator pulley cap. Using SST, hold the generator rotor.

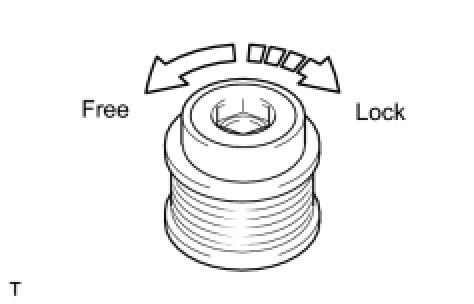

(2) Turn the clutch pulley clockwise and check that the outer ring locks.





OK:

The outer ring locks.

SST : 09820-63021

NG -- REPLACE GENERATOR CLUTCH PULLEY Components
OK -- Continue to next step.

2. CHECK LOCK OF GENERATOR CLUTCH PULLEY

(a) Start the engine and visually check the clutch pulley for looseness.

OK:

The clutch pulley is not loose.

NG -- TIGHTEN GENERATOR CLUTCH PULLEY TO THE SPECIFIED TORQUE

OK -- REPLACE GENERATOR ASSEMBLY Components
