Power Source [Except TMC Made]

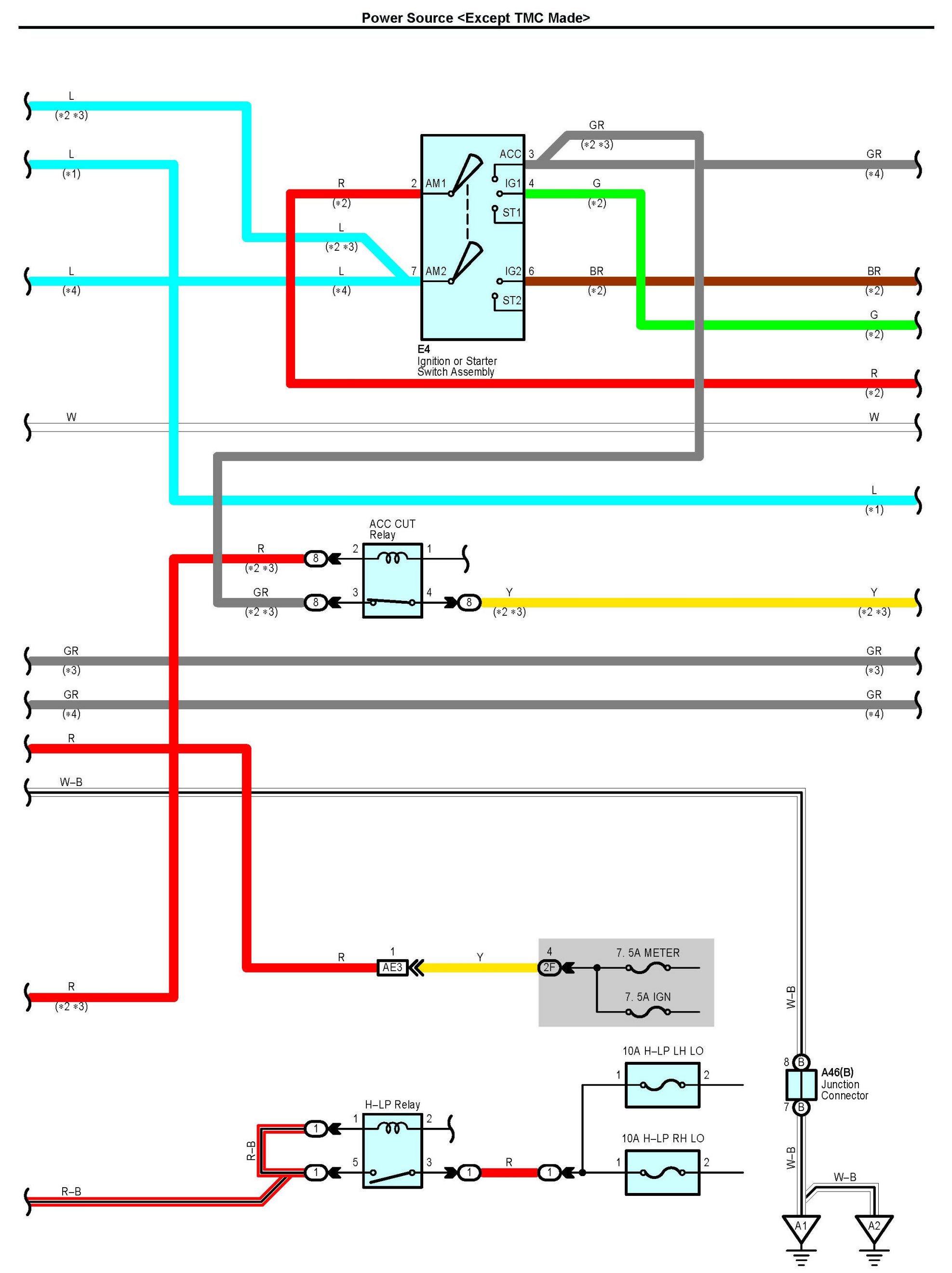

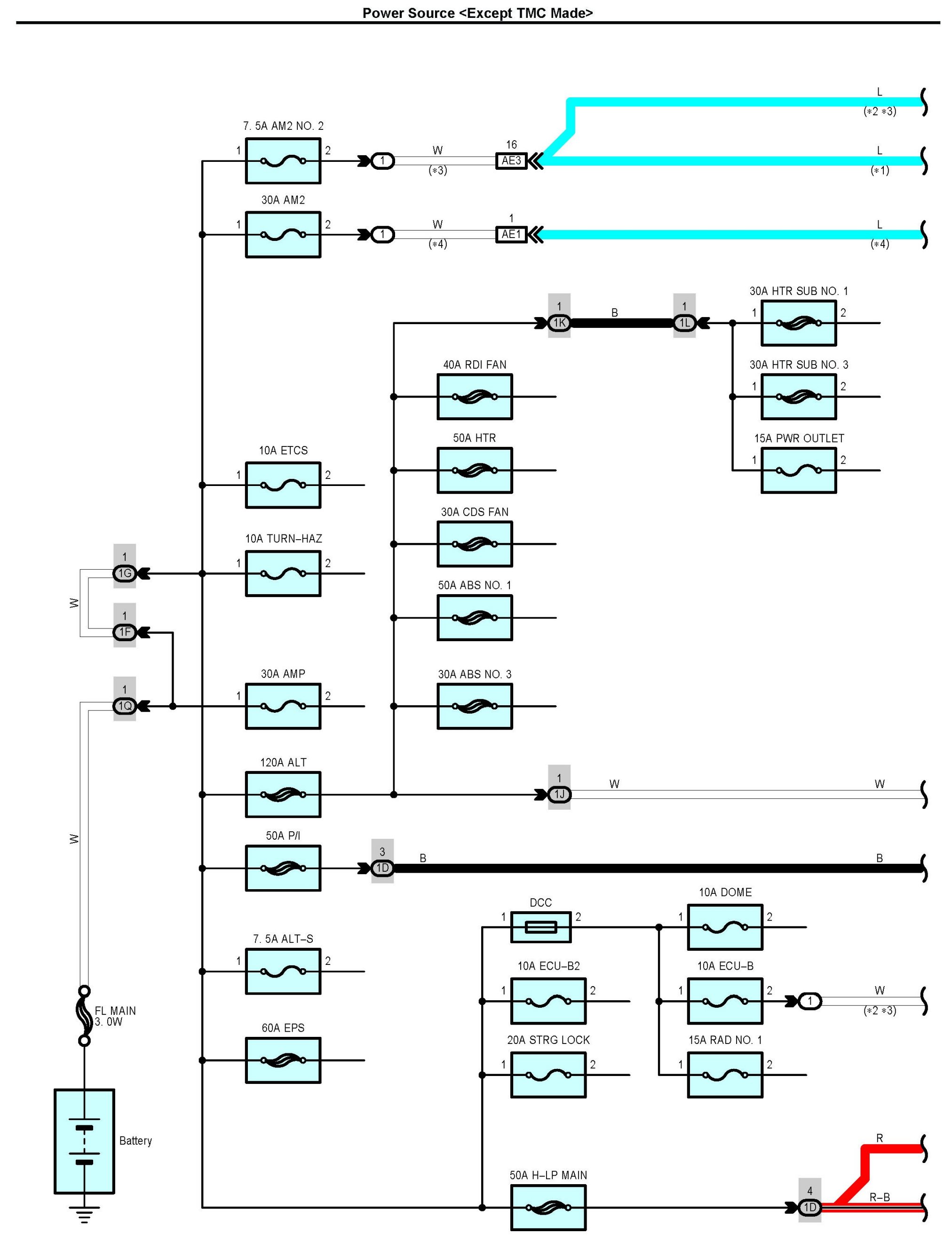

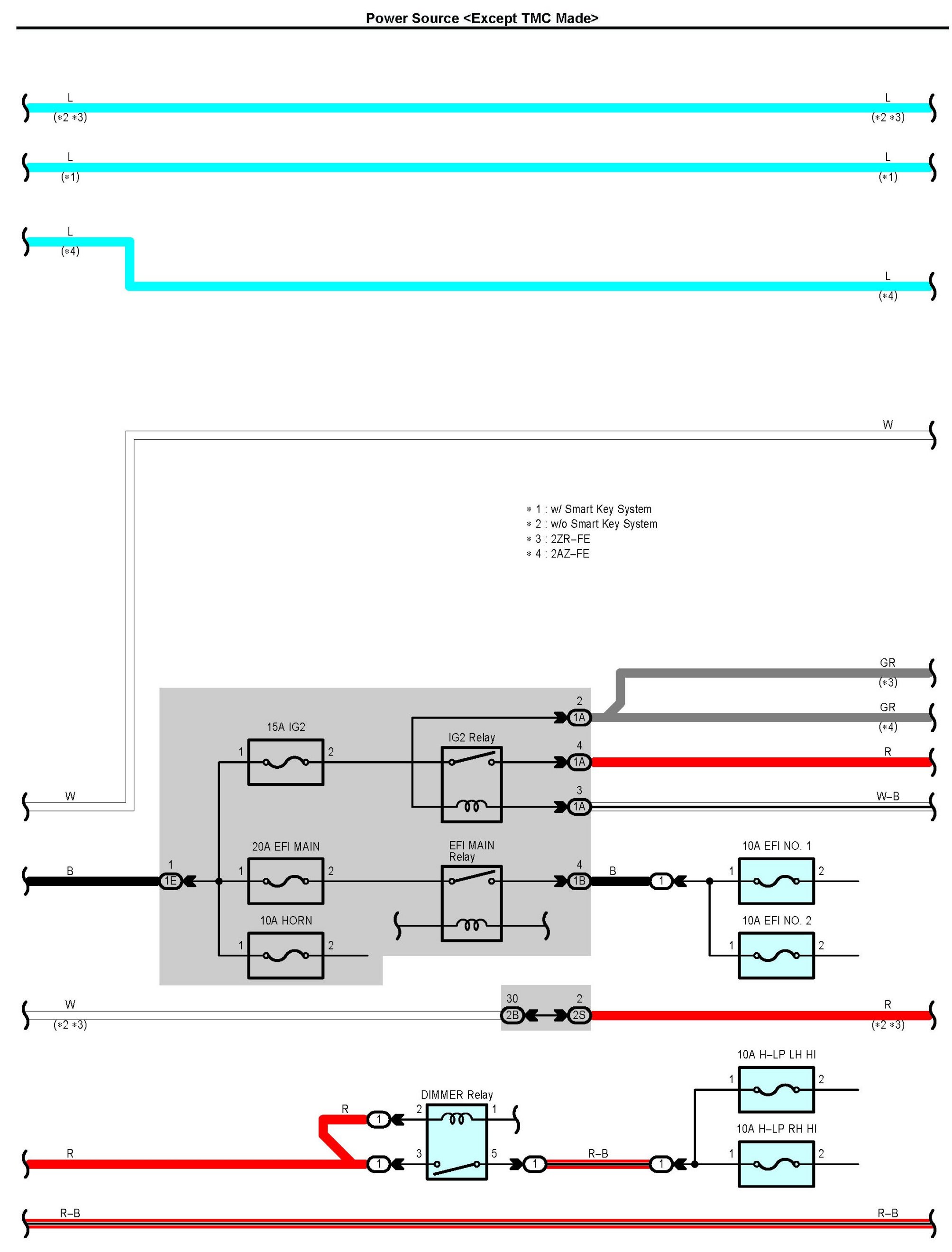

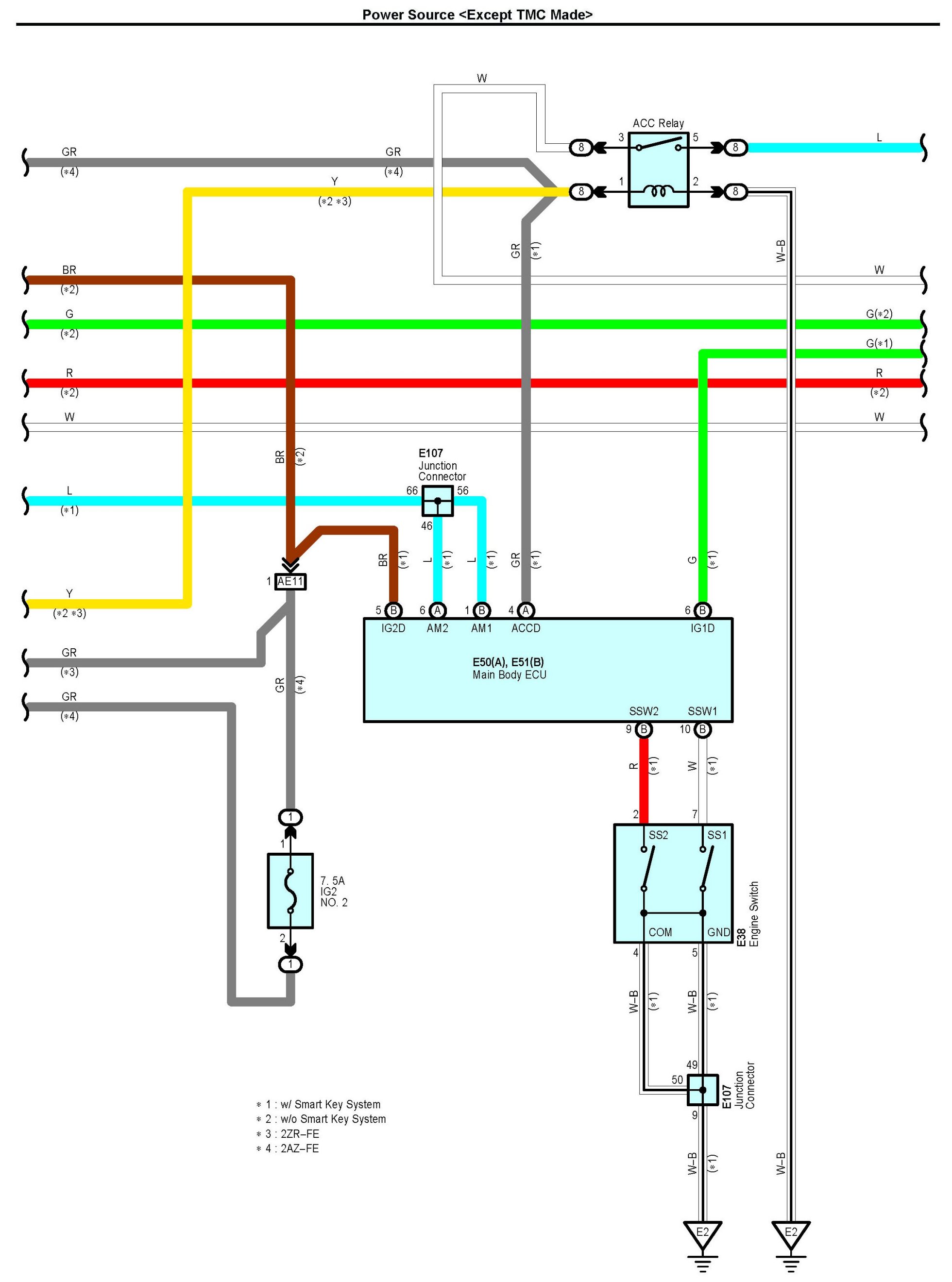

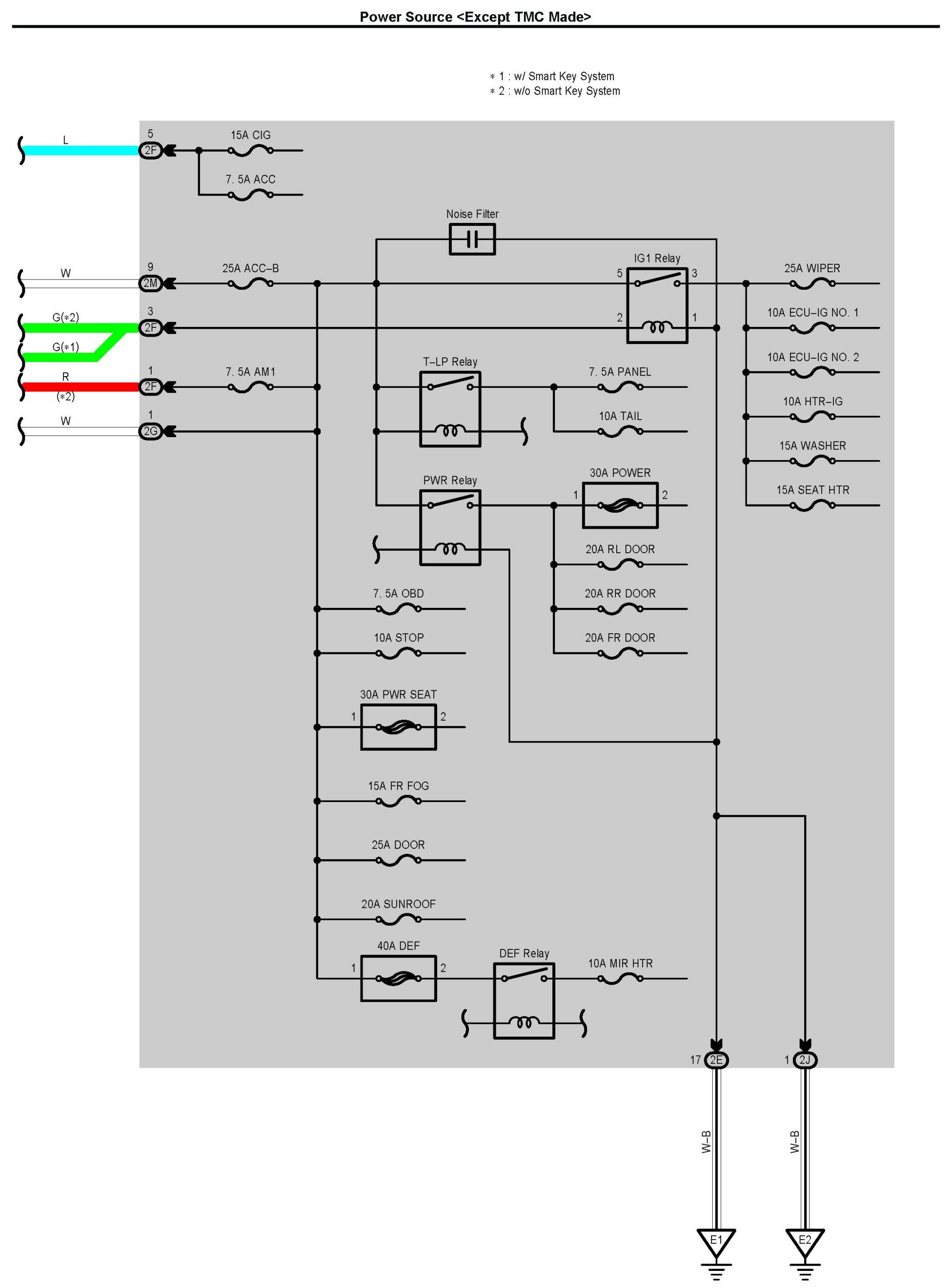

Power Source [Except TMC Made] Part 1:

Power Source [Except TMC Made] Part 2:

Power Source [Except TMC Made] Part 3:

Power Source [Except TMC Made] Part 4:

Power Source [Except TMC Made] Part 5:

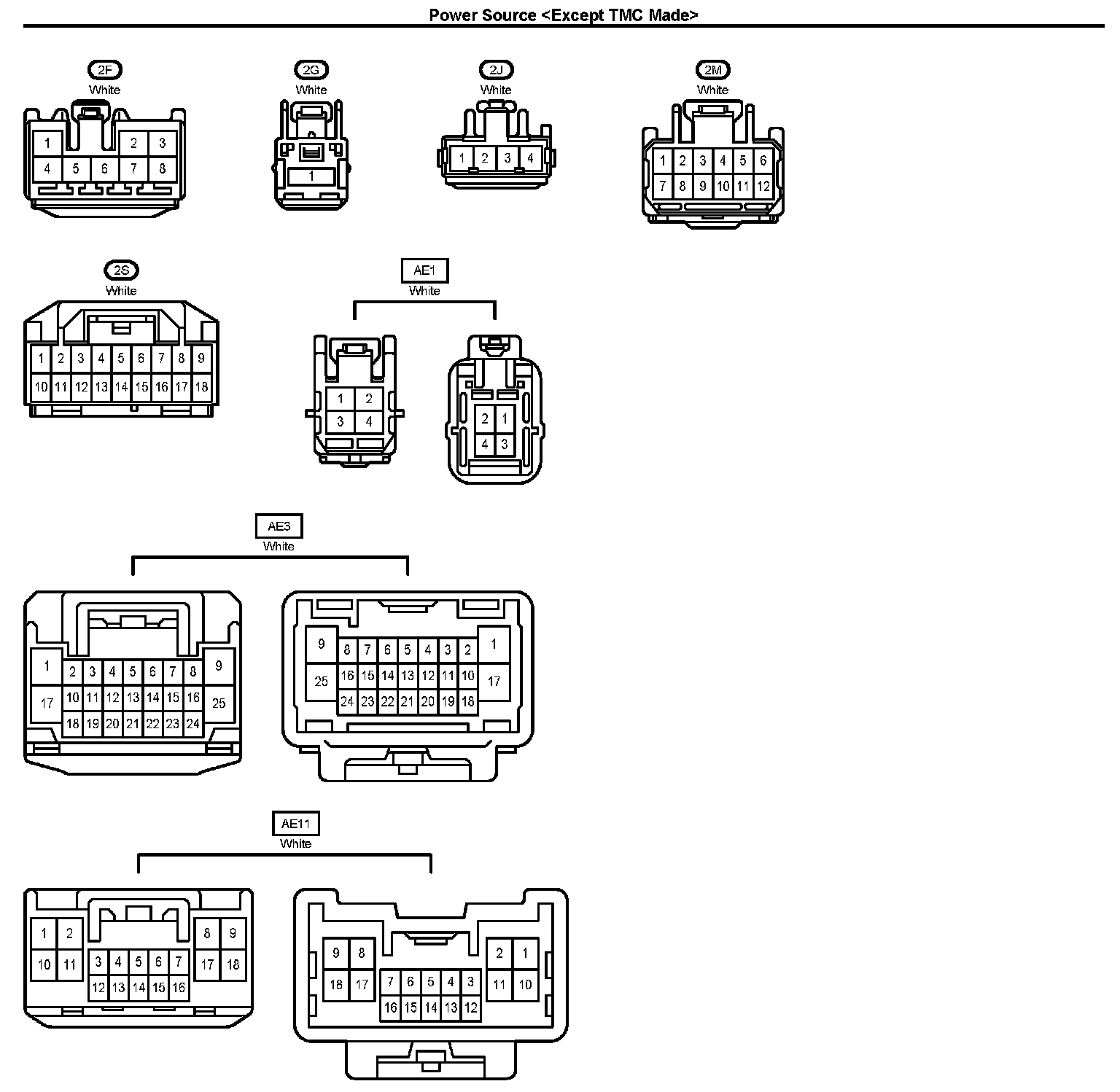

Connectors Part 1:

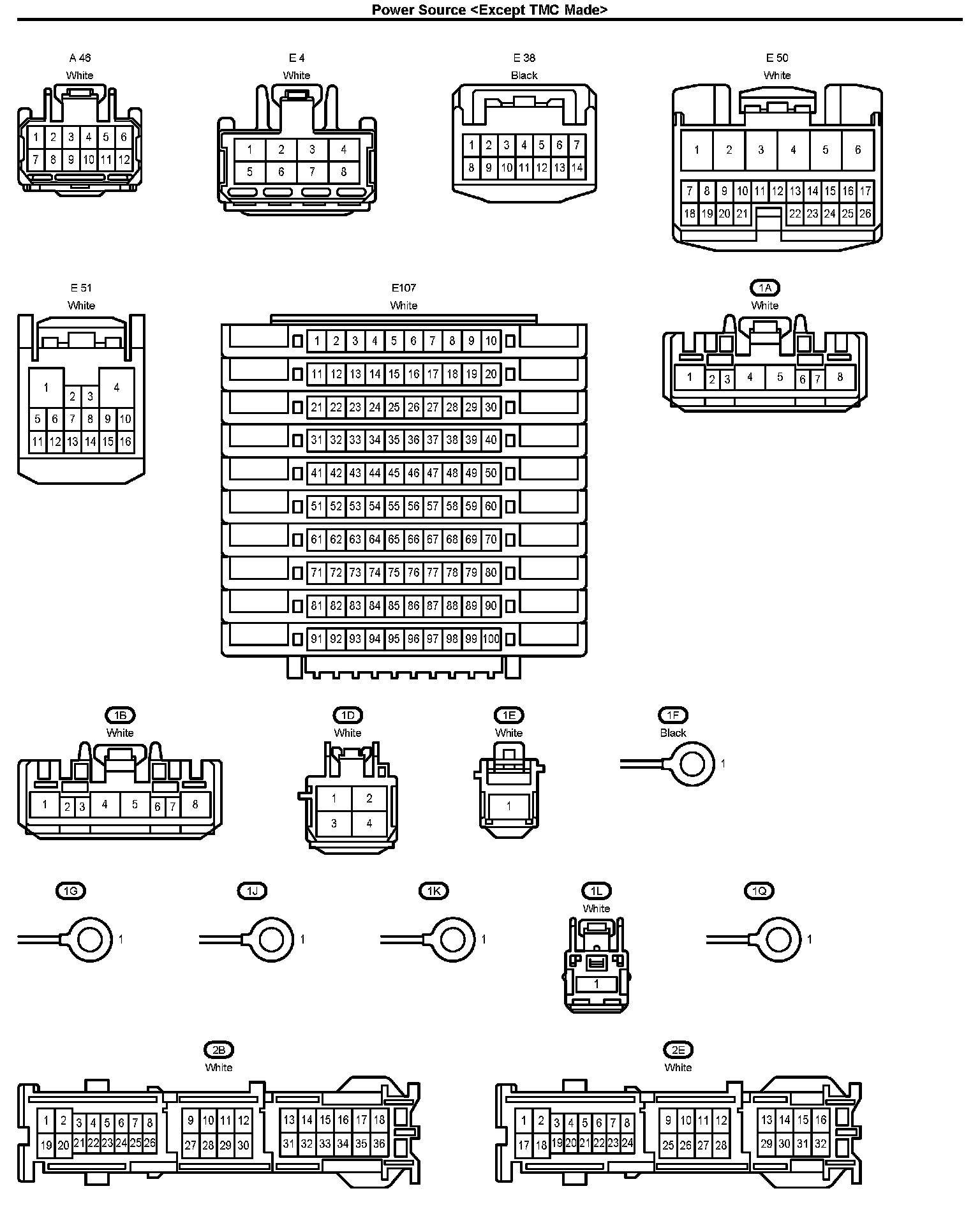

Connectors Part 2:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
