Neutral Safety Switch: Adjustments

U341E AUTOMATIC TRANSMISSION / TRANSAXLE: PARK / NEUTRAL POSITION SWITCH: ADJUSTMENT

1. ADJUST PARK/NEUTRAL POSITION SWITCH ASSEMBLY

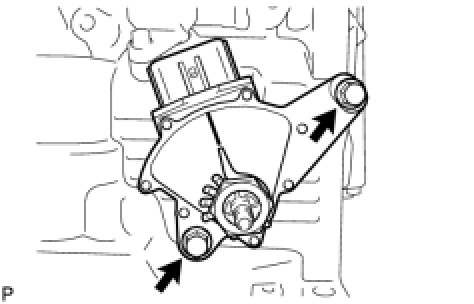

(a) Loosen the bolts of the park/neutral position switch and move the shift lever to N.

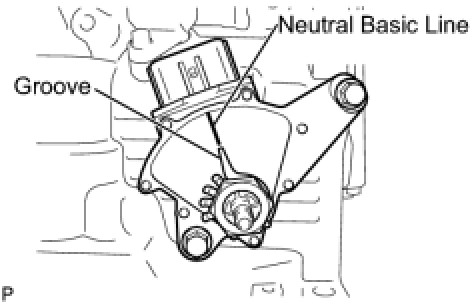

(b) Align the groove with the neutral basic line.





(c) Hold the switch in place and tighten the 2 bolts.





Torque : 5.4 Nm (55 kgf-cm, 48 in-lbf)

(d) After the adjustment, perform the switch operation check On-Vehicle Inspection.
