Clutch Pedal Position Sensor / Switch: Testing and Inspection

CLUTCH: CLUTCH PEDAL SWITCH: INSPECTION

1. INSPECT CLUTCH PEDAL SWITCH ASSEMBLY

(a) Measure the resistance between the terminals when the switch is ON and OFF.

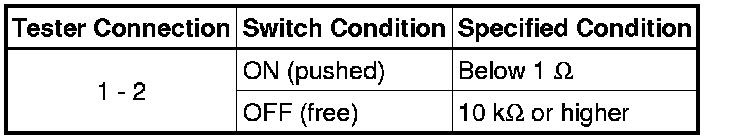

Standard Resistance:
