Power Window [TMC Made]

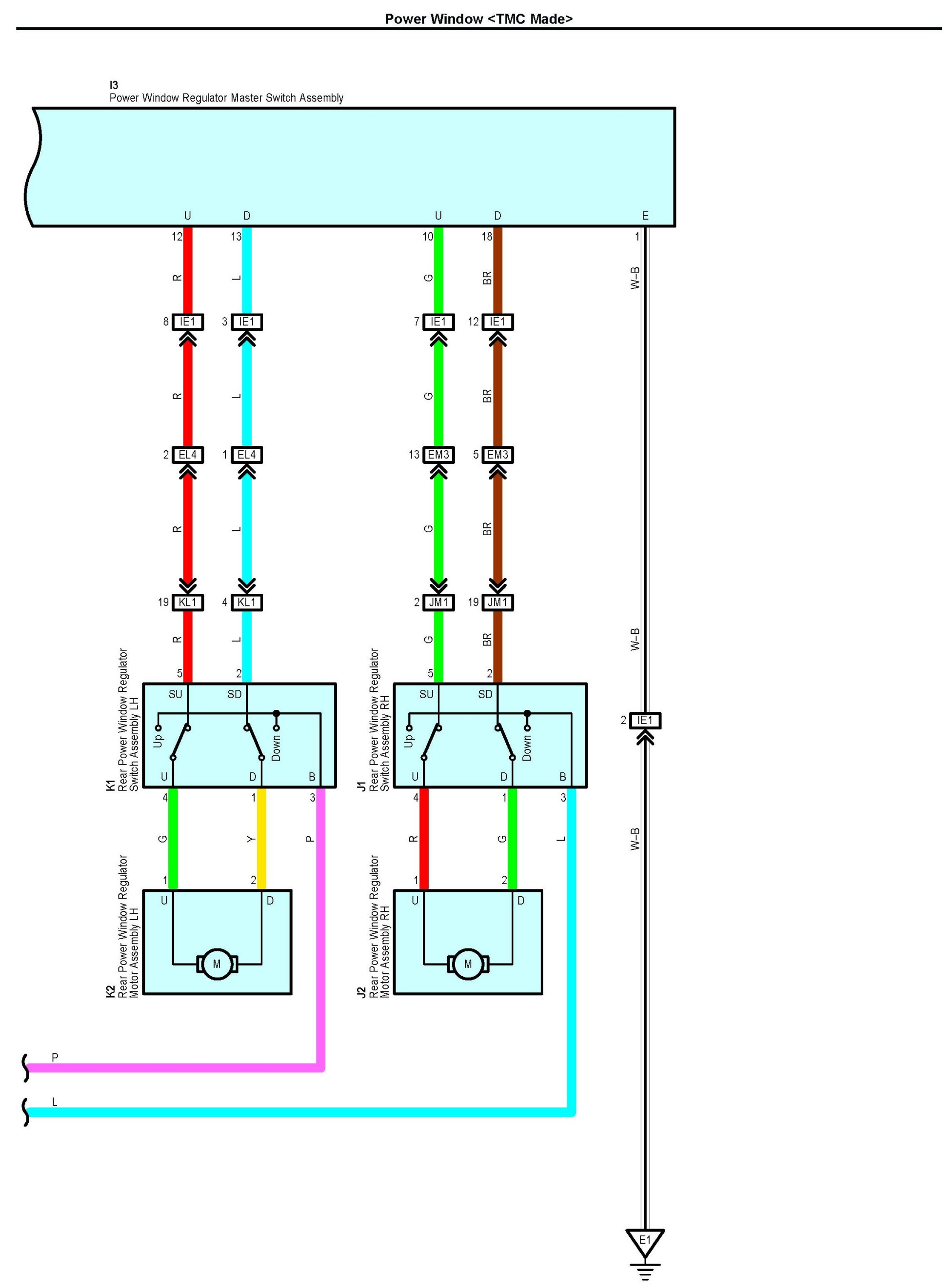

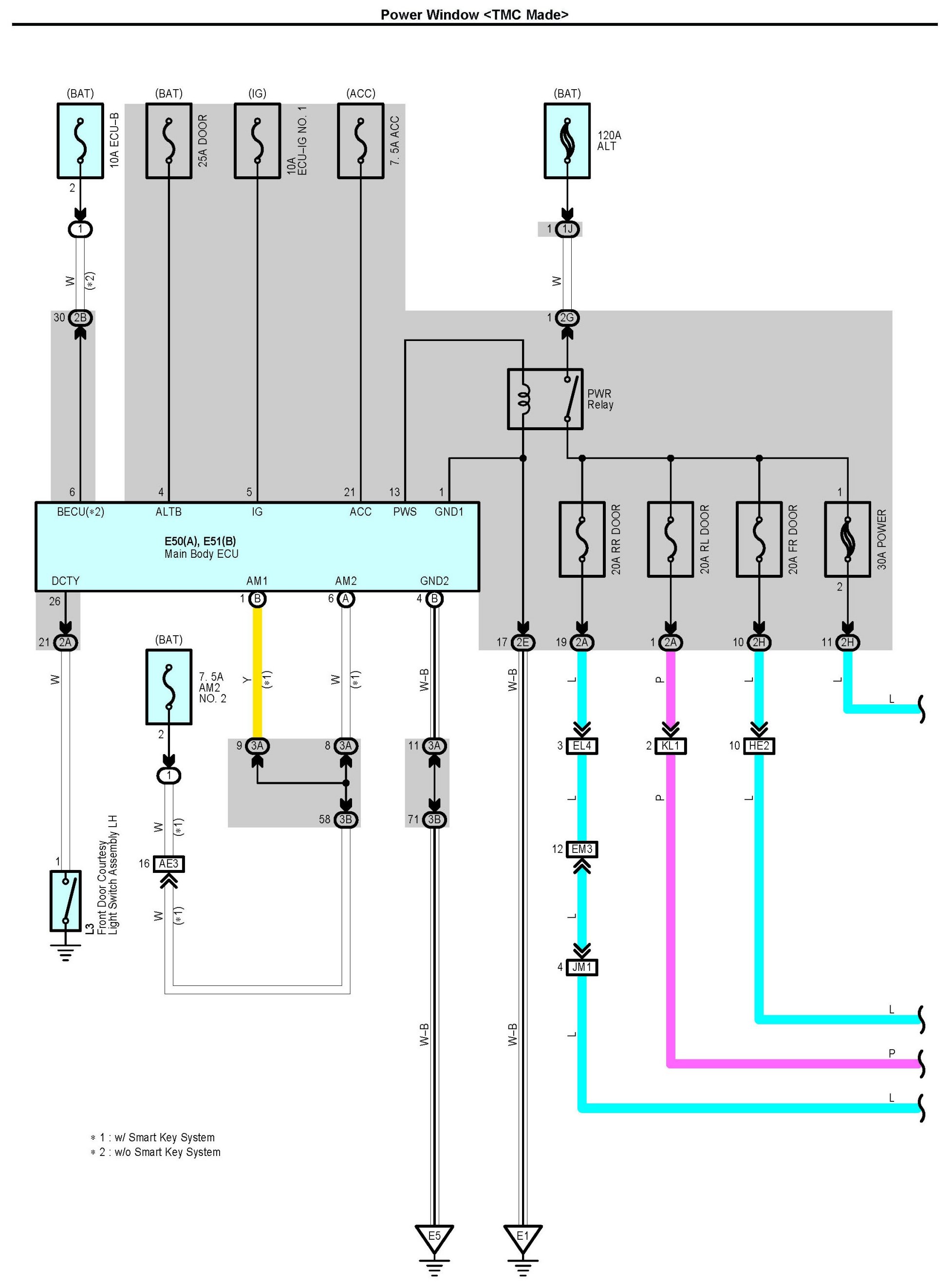

Power Window [TMC Made] Part 1:

Power Window [TMC Made] Part 2:

Power Window [TMC Made] Part 3:

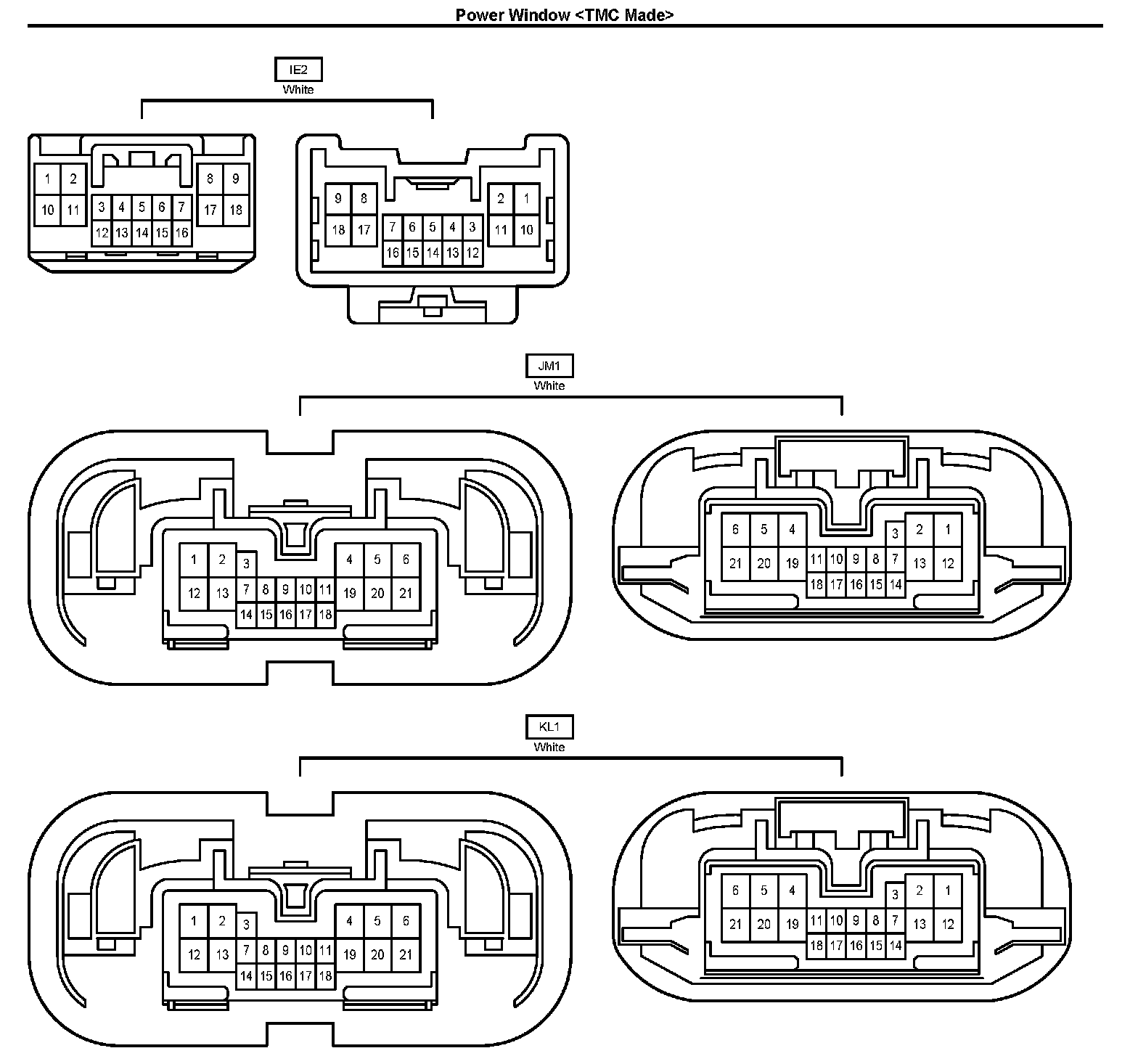

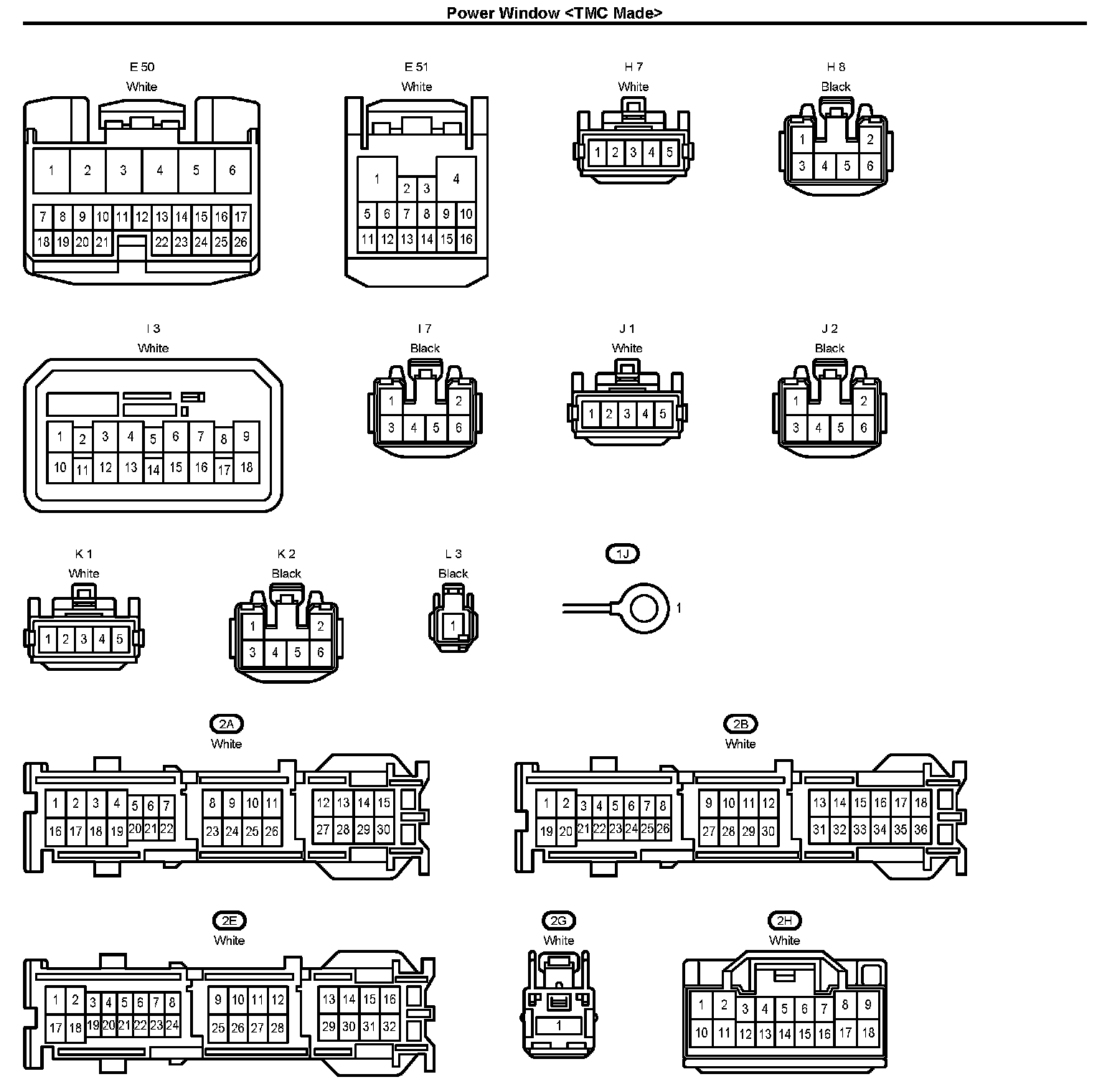

Connectors Part 1:

Connectors Part 2:

Connectors Part 3:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
