Except TMC Made

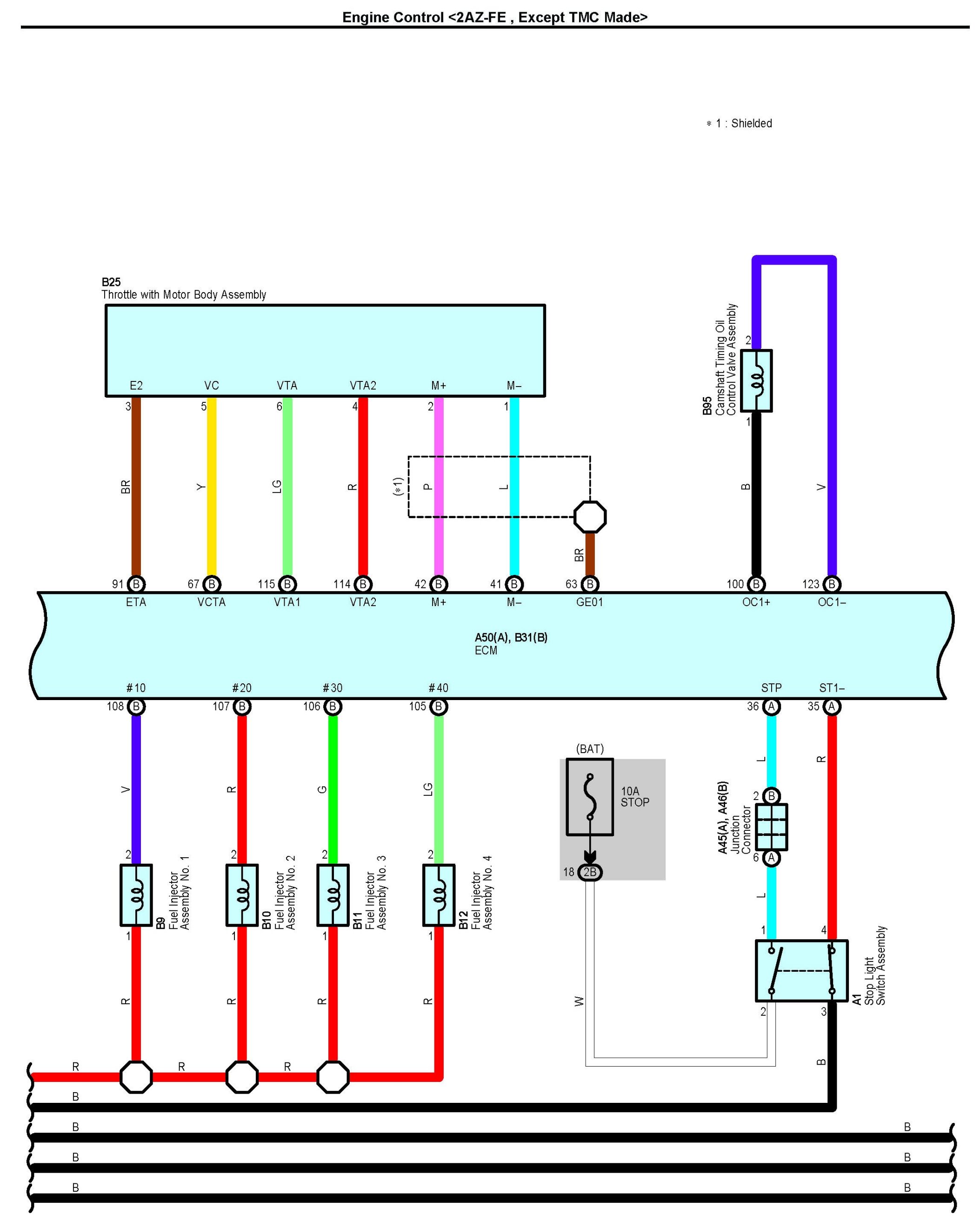

Engine Control [Except TMC Made] Part 4:

Connectors Part 1:

Connectors Part 2:

Connectors Part 3:

Connectors Part 4:

Next Diagram Engine Control Part 5

Previous Diagram Engine Control Part 3

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
