Exhaust Manifold
EXHAUST MANIFOLD CONVERTER SUB-ASSEMBLY

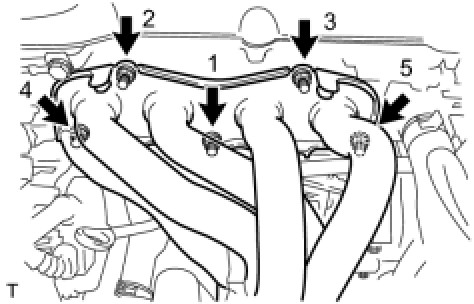

Install the exhaust manifold converter sub-assembly with the 5 nuts in the order shown in the illustration.
Torque 37 Nm (377 kgf-cm, 27 ft-lbf)
Install the exhaust manifold converter sub-assembly with the 5 nuts in the order shown in the illustration.
Torque 37 Nm (377 kgf-cm, 27 ft-lbf)
