Installation

DOOR LOCK: DOOR CONTROL TRANSMITTER: INSTALLATION

1. INSTALL DOOR CONTROL TRANSMITTER

(a) Install the door control transmitter.

2. INSTALL TRANSMITTER HOUSING COVER

(a) Install the transmitter housing cover with the screw.

HINT

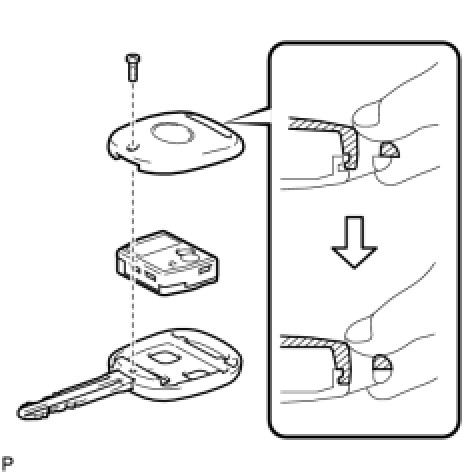

Slide the transmitter housing cover with a finger as shown in the illustration.

NOTICE:
If the screws are loose, it may cause faulty contact between the battery (lithium battery) and the terminals.
