Fuse Block

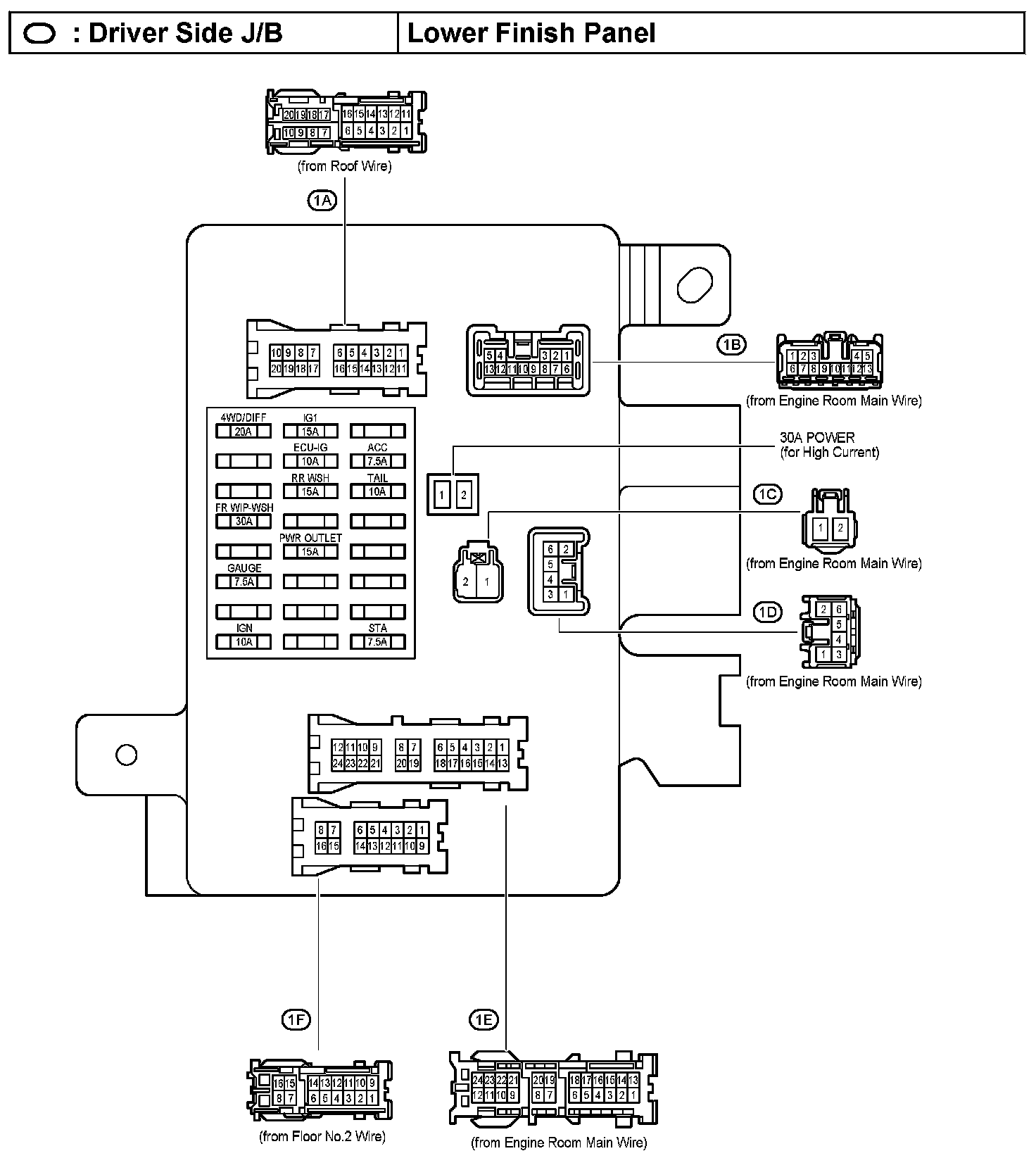

Driver Side J/B - Lower Finish Panel:

Driver Side J/B - Lower Finish Panel:

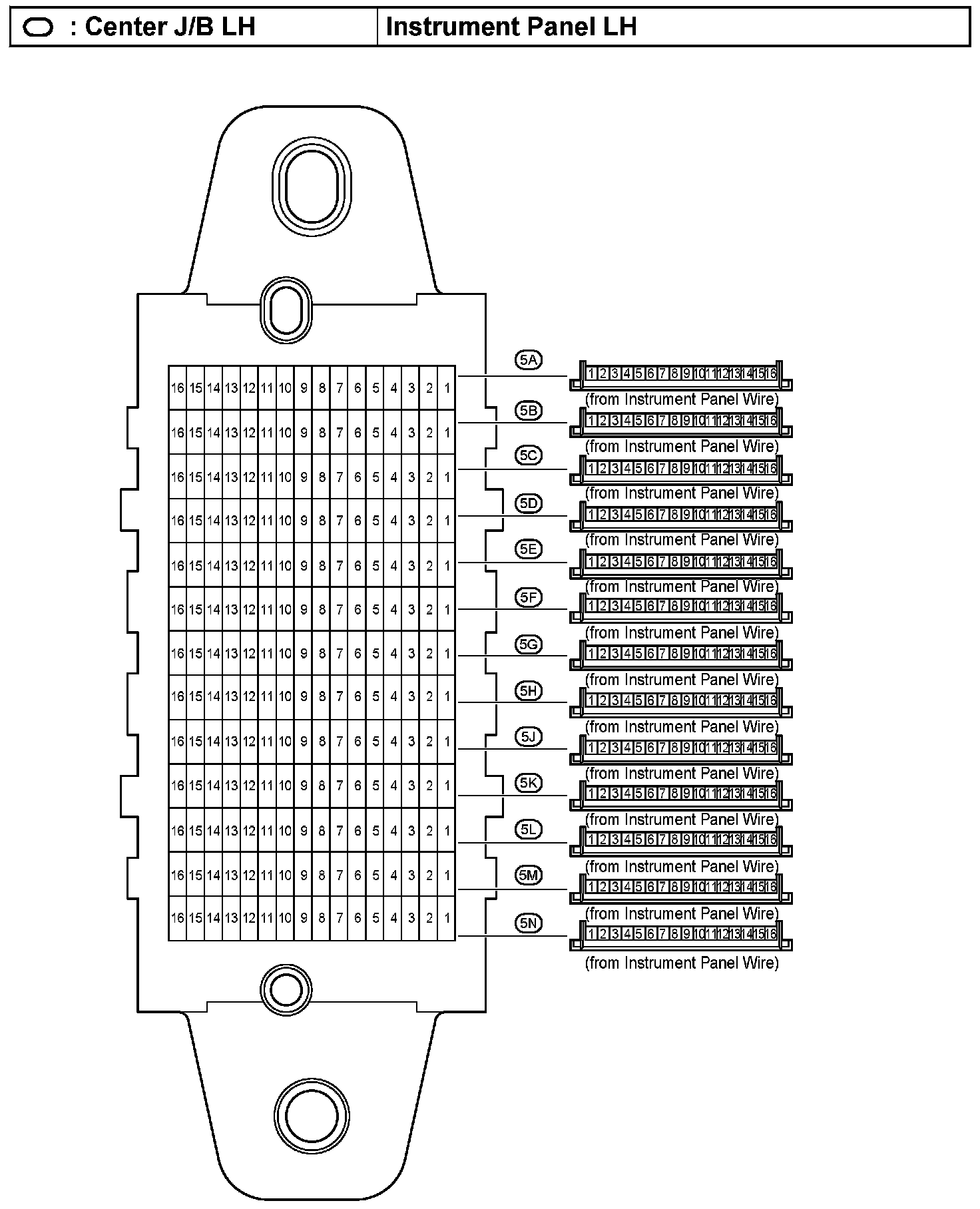

Center J/B LH - Instrument Panel LH:

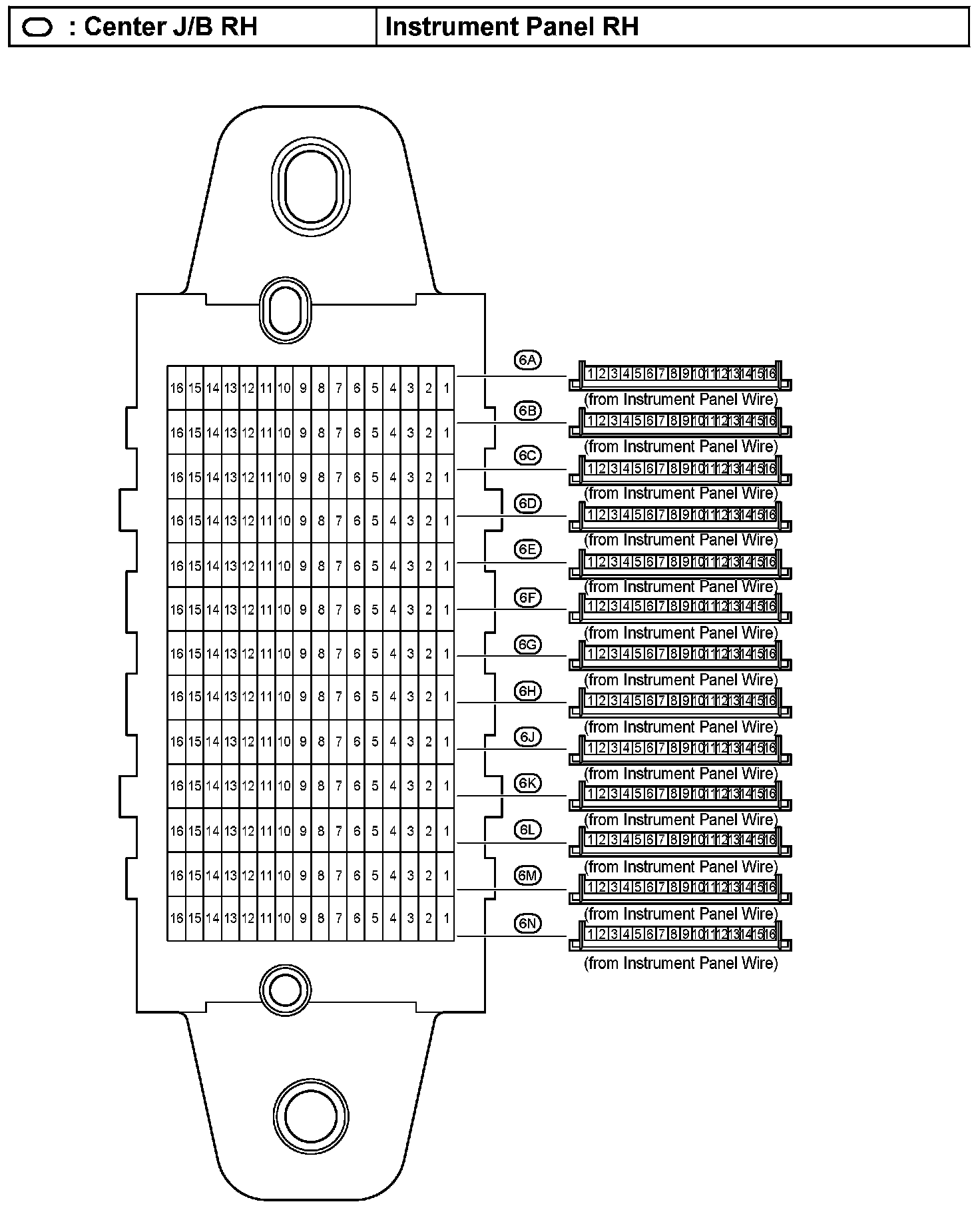

Center J/B RH - Instrument Panel RH:

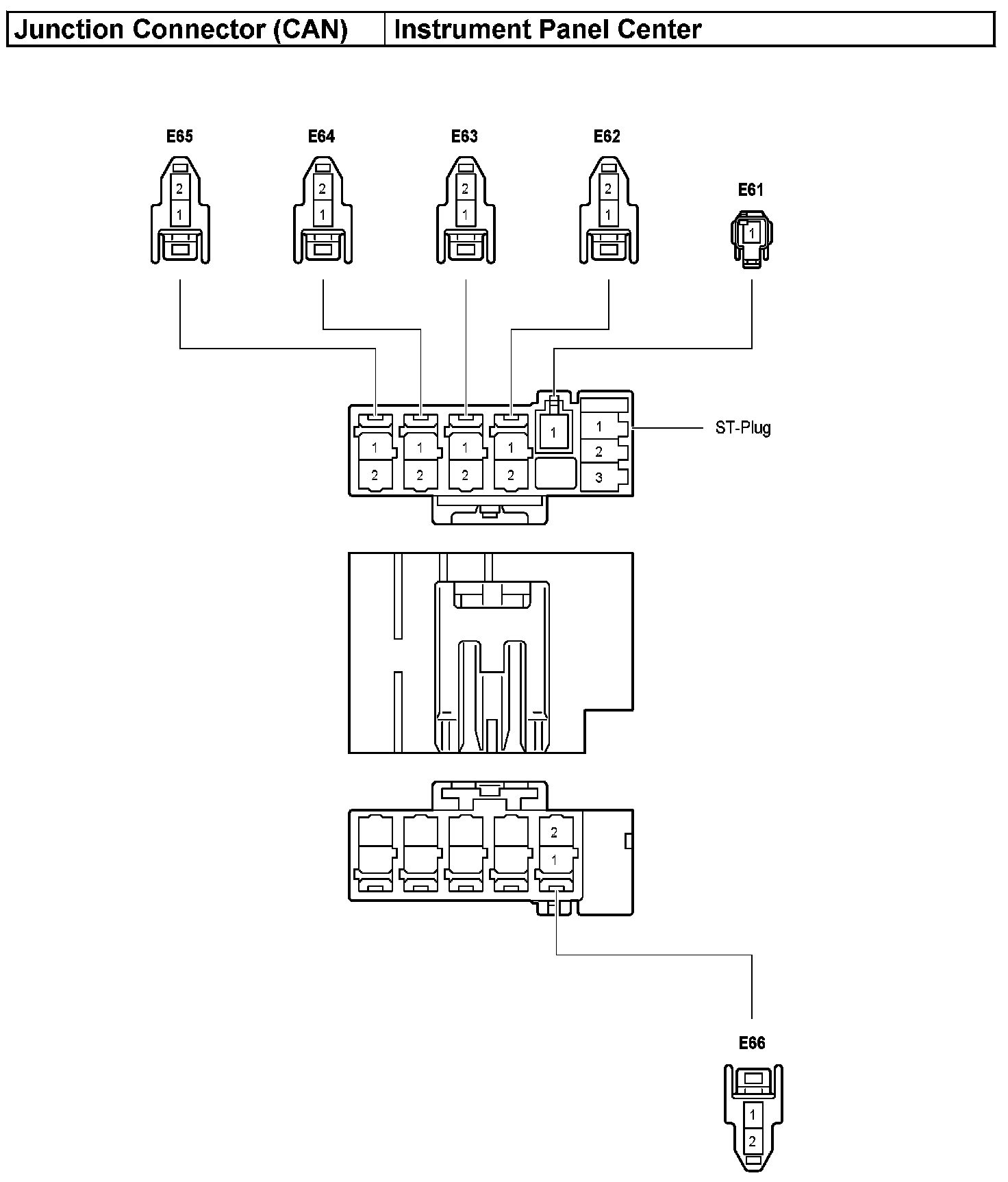

Junction Connector (CAN) - Instrument Panel Center:
