Body Control Module: Locations

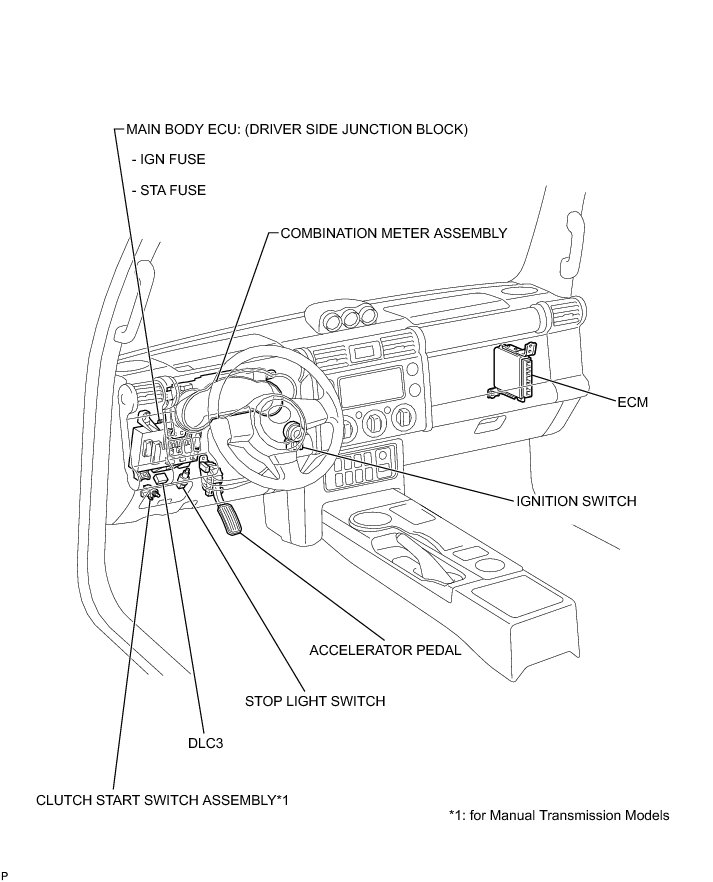

1GR-FE ENGINE CONTROL SYSTEM: SFI SYSTEM: PARTS LOCATION

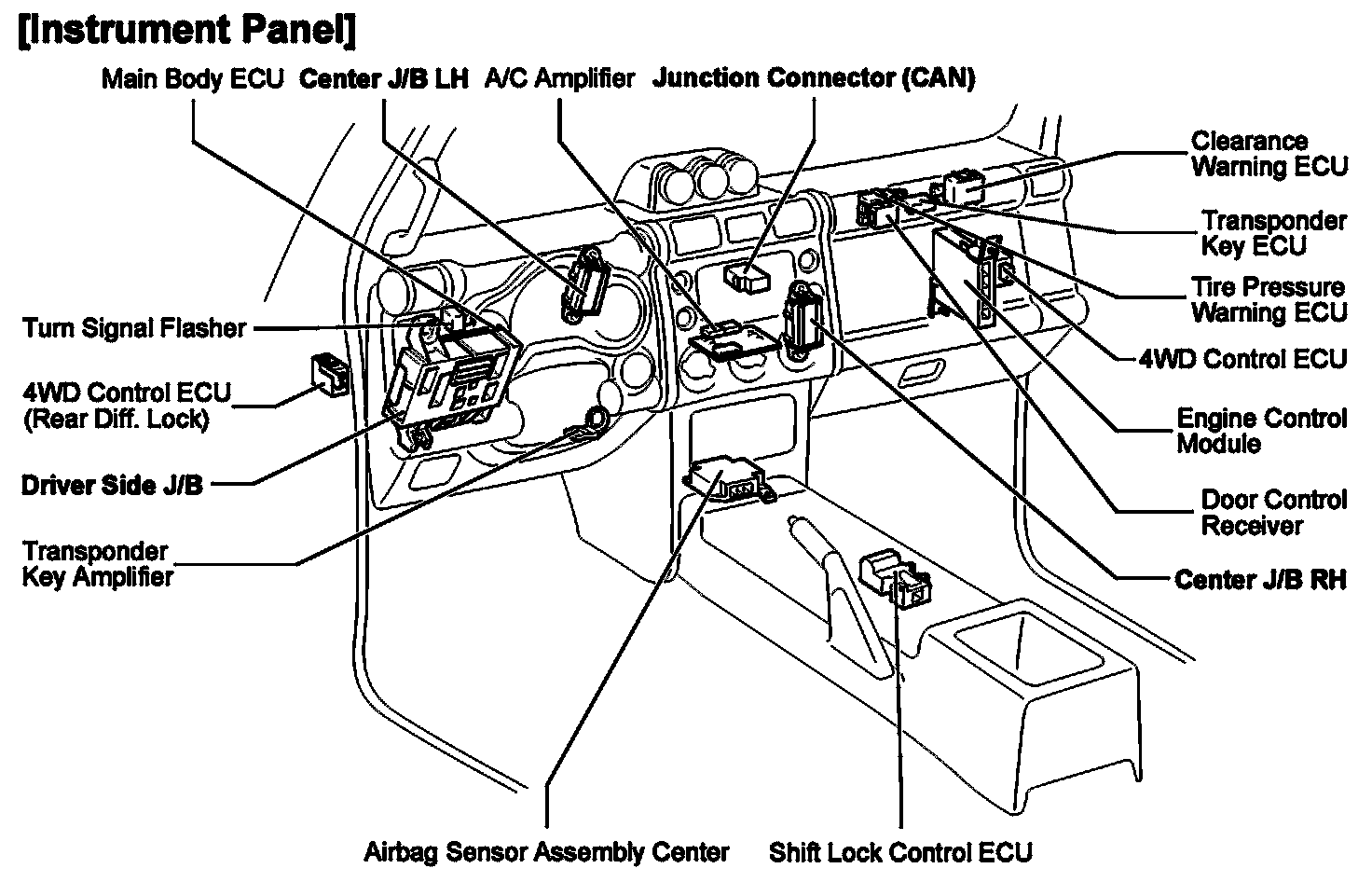

Instrument Panel:

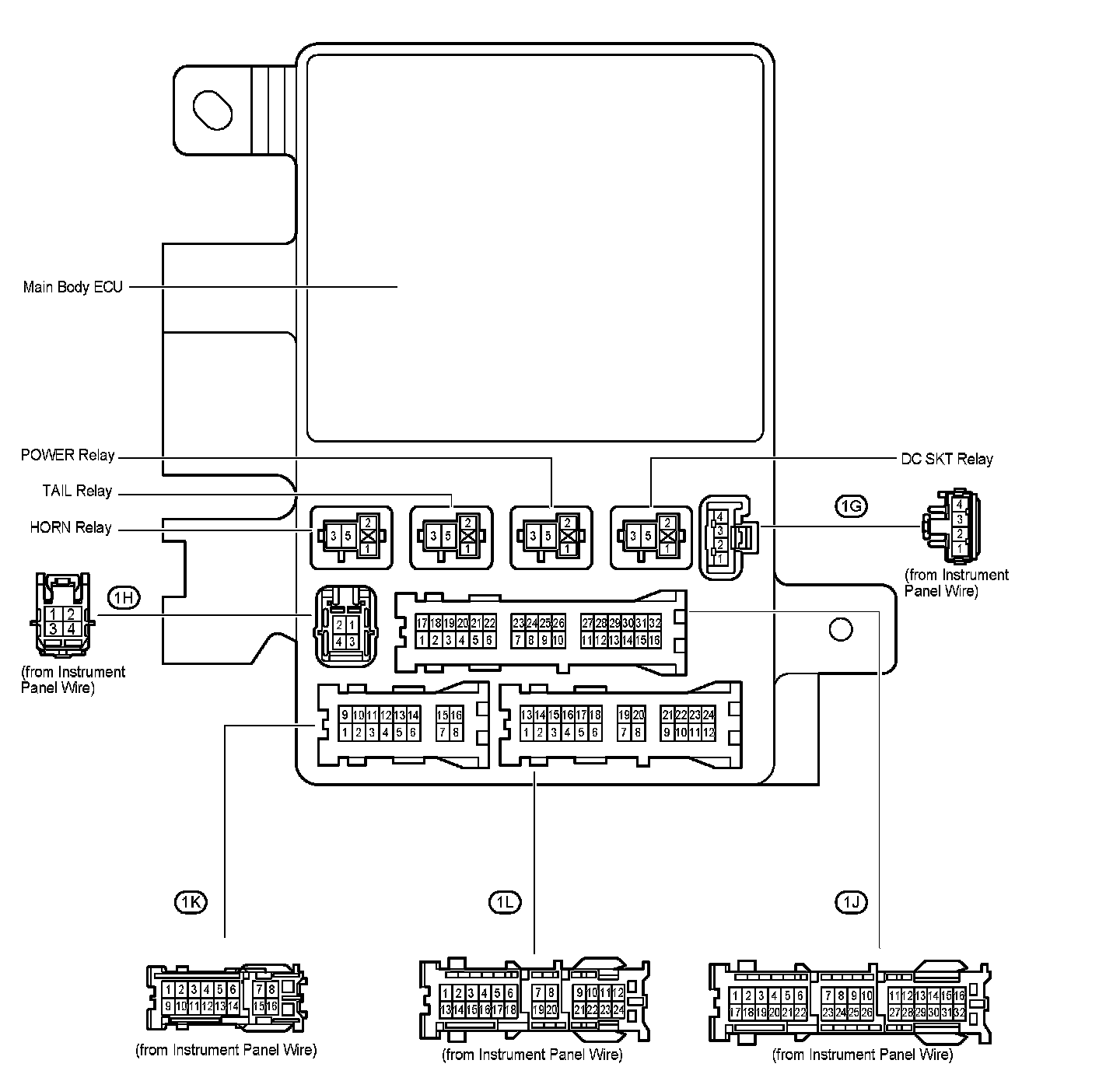

Driver Side J/B - Lower Finish Panel:
