Pinout Values and Diagnostic Parameters

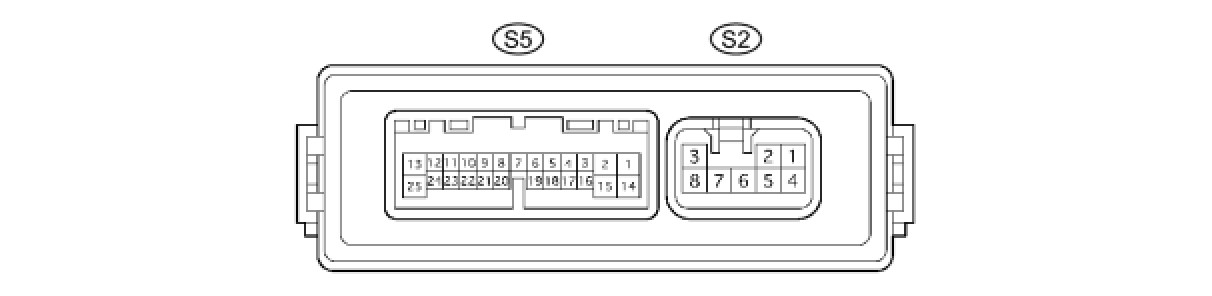

WINDSHIELD / WINDOWGLASS: GLASS HATCH OPENER SYSTEM: TERMINALS OF ECU

1. CHECK BACK DOOR ECU

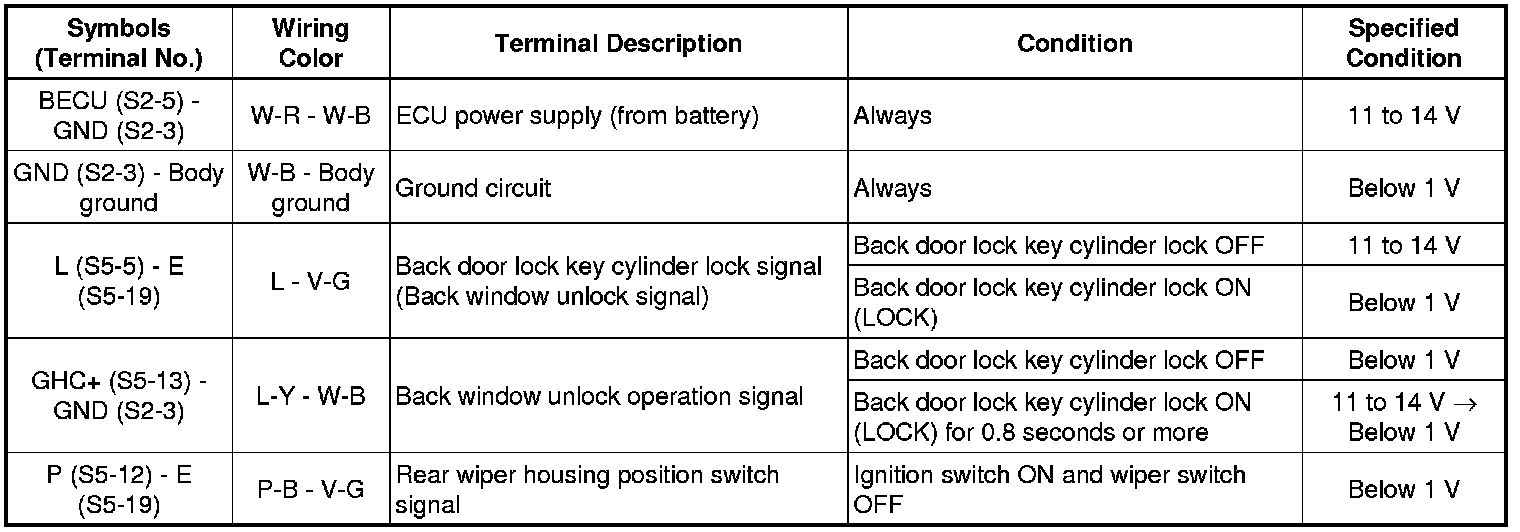

(a) Measure the voltages of the wire harness side connectors.





(b) If the result is not as specified, there may be a malfunction on the wire harness side.
