Torque Specifications

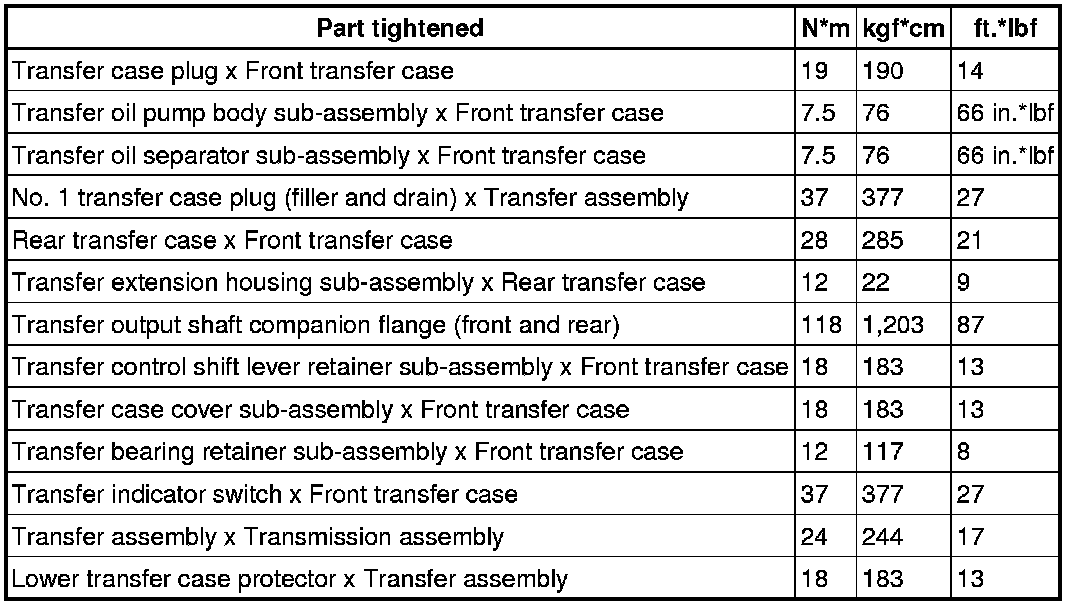

SERVICE SPECIFICATIONS: VF2A TRANSFER: TORQUE SPECIFICATIONS

Transfer oil:





Transfer case oil seal:





Extension housing oil seal:





Transfer assembly:
