Installation

WIPER AND WASHER: REAR WIPER RUBBER: INSTALLATION

1. INSTALL REAR WIPER RUBBER





(a) Install the 2 wiper rubber backing plates onto the wiper rubber.

NOTICE:
Install the backing plates facing the correct direction.

(b) Install the wiper rubber with its head portion (swelled portion) facing the arm bearing.





NOTICE:
Push the wiper blade into the grooves of the wiper rubber to attach it completely.

2. INSTALL REAR WIPER BLADE ASSEMBLY

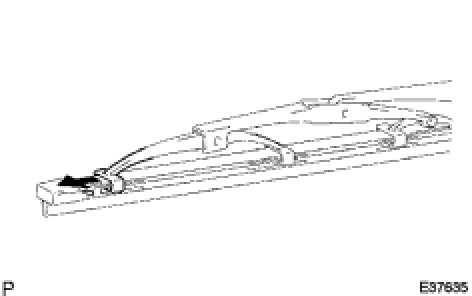

(a) Engage the claw and install the wiper blade.
