Fail-Safe Chart

U760E AUTOMATIC TRANSAXLE: AUTOMATIC TRANSAXLE SYSTEM: FAIL-SAFE CHART

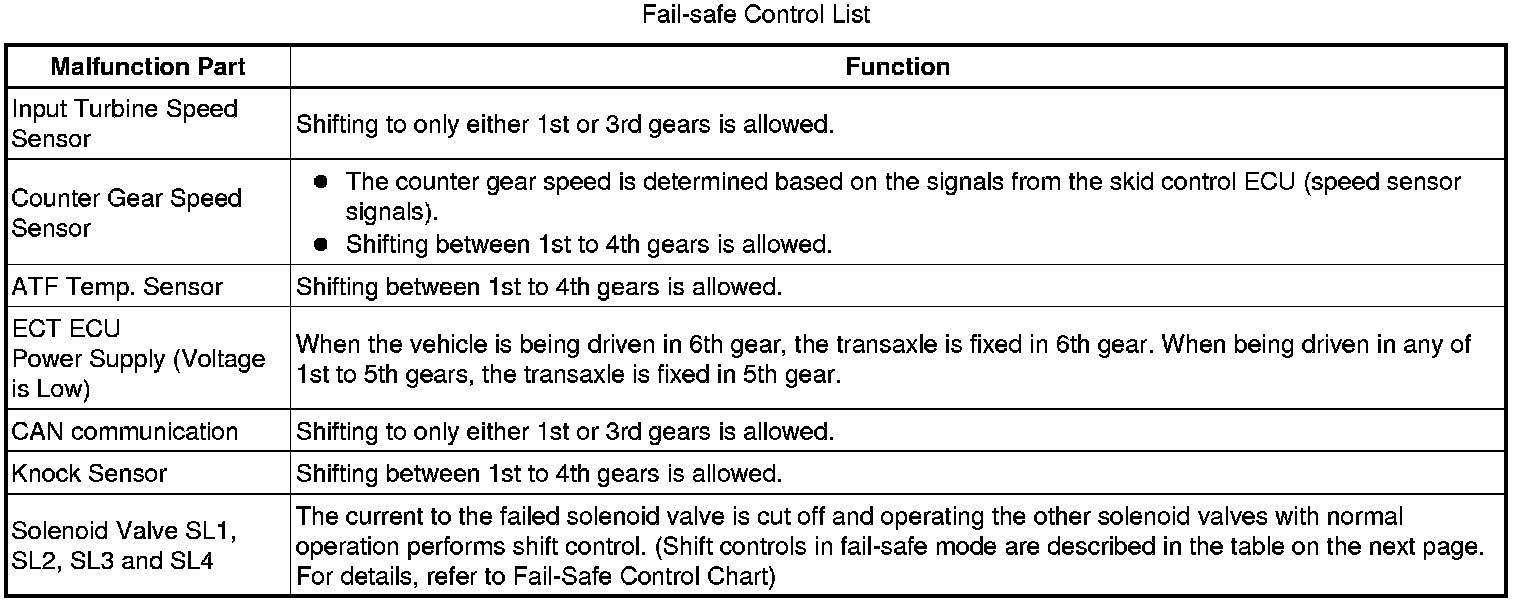

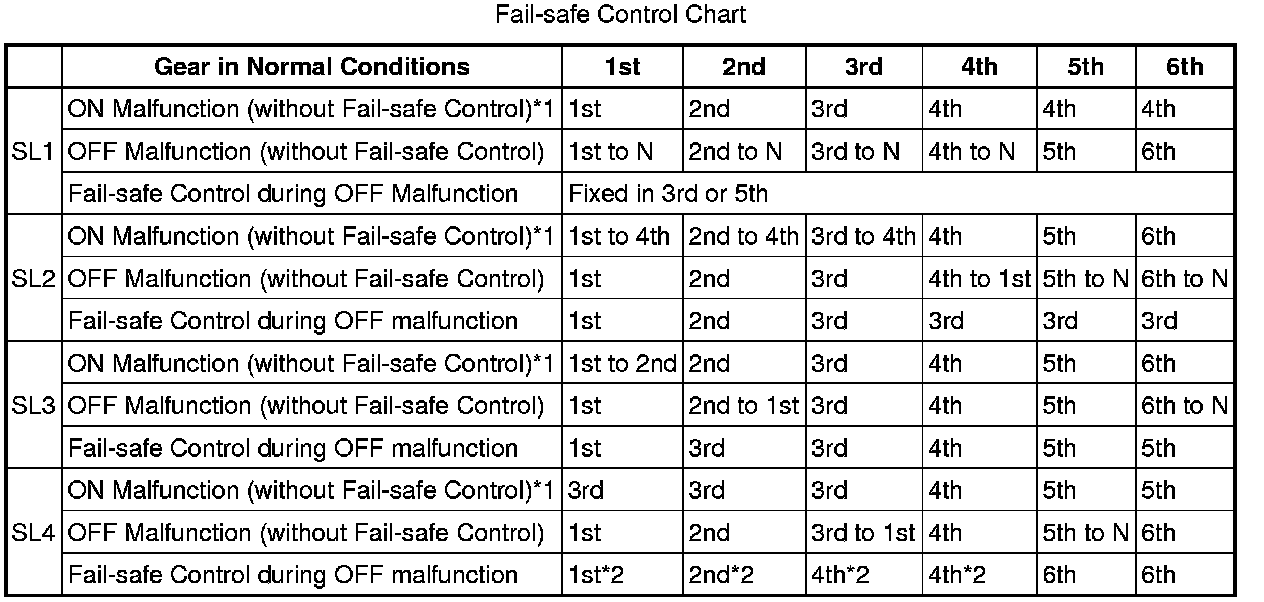

1. Fail-safe

This function minimizes the loss of operation when any abnormality occurs in a sensor or solenoid.













*1: Fail-safe control is not actuated when an ON malfunction occurs.

*2: Shifting to 5th and 6th gears is prohibited.
