Starting System (w/ Smart Key System)
Starting System (w/ Smart Key System)
2GR-FE STARTING:
STARTING SYSTEM

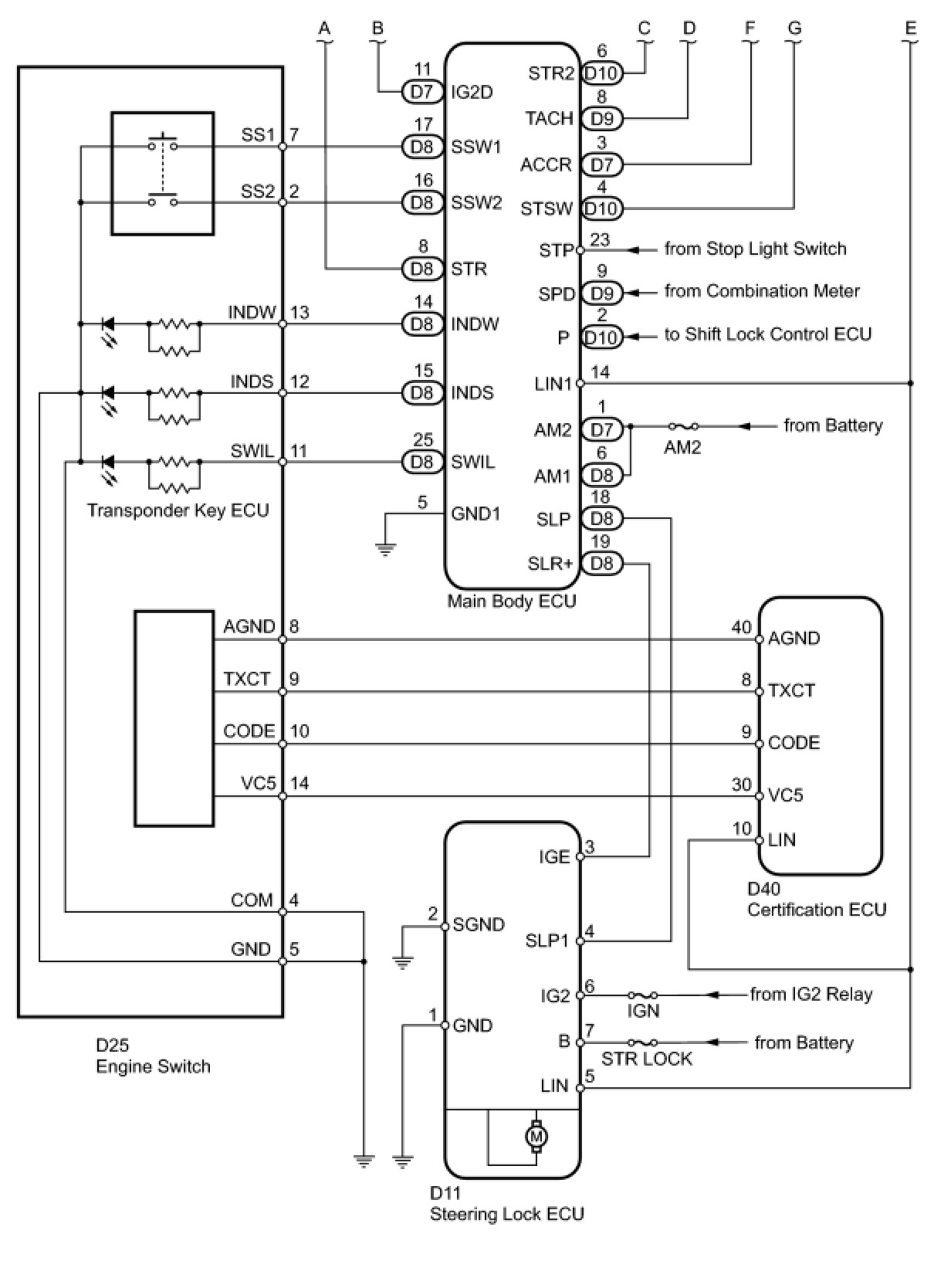

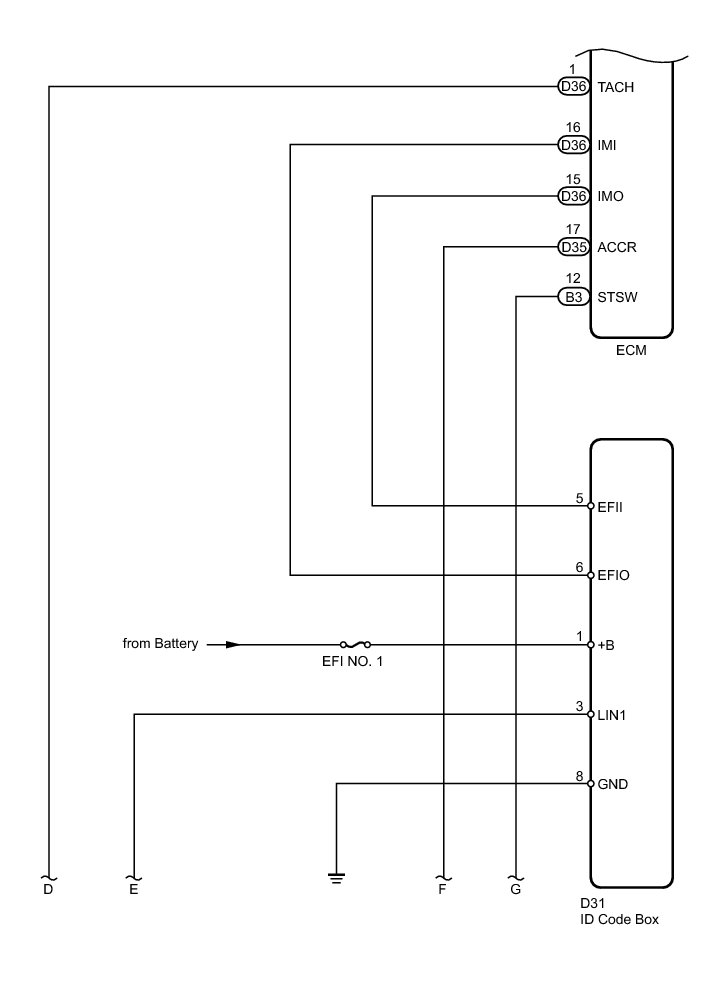

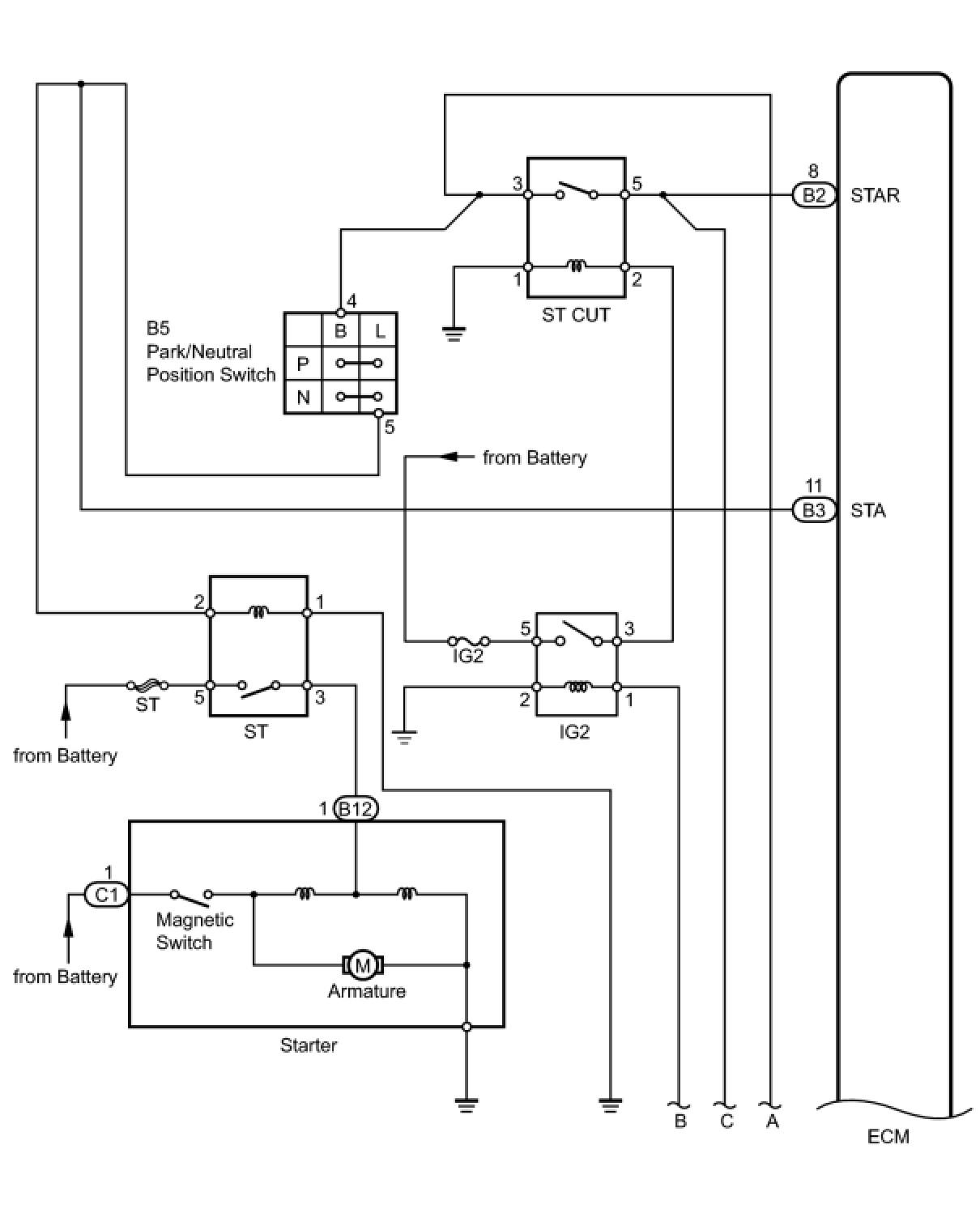

(w/ Smart Key System): SYSTEM DIAGRAM
