Home >> Toyota >> 2010 >> Highlander 4WD V6-3.3L (3MZ-FE) Hybrid >> Repair and Diagnosis >> Body and Frame >> Roof and Associated Components >> Sunroof / Moonroof >> Service and Repair >> Removal and Replacement >> Components

Components

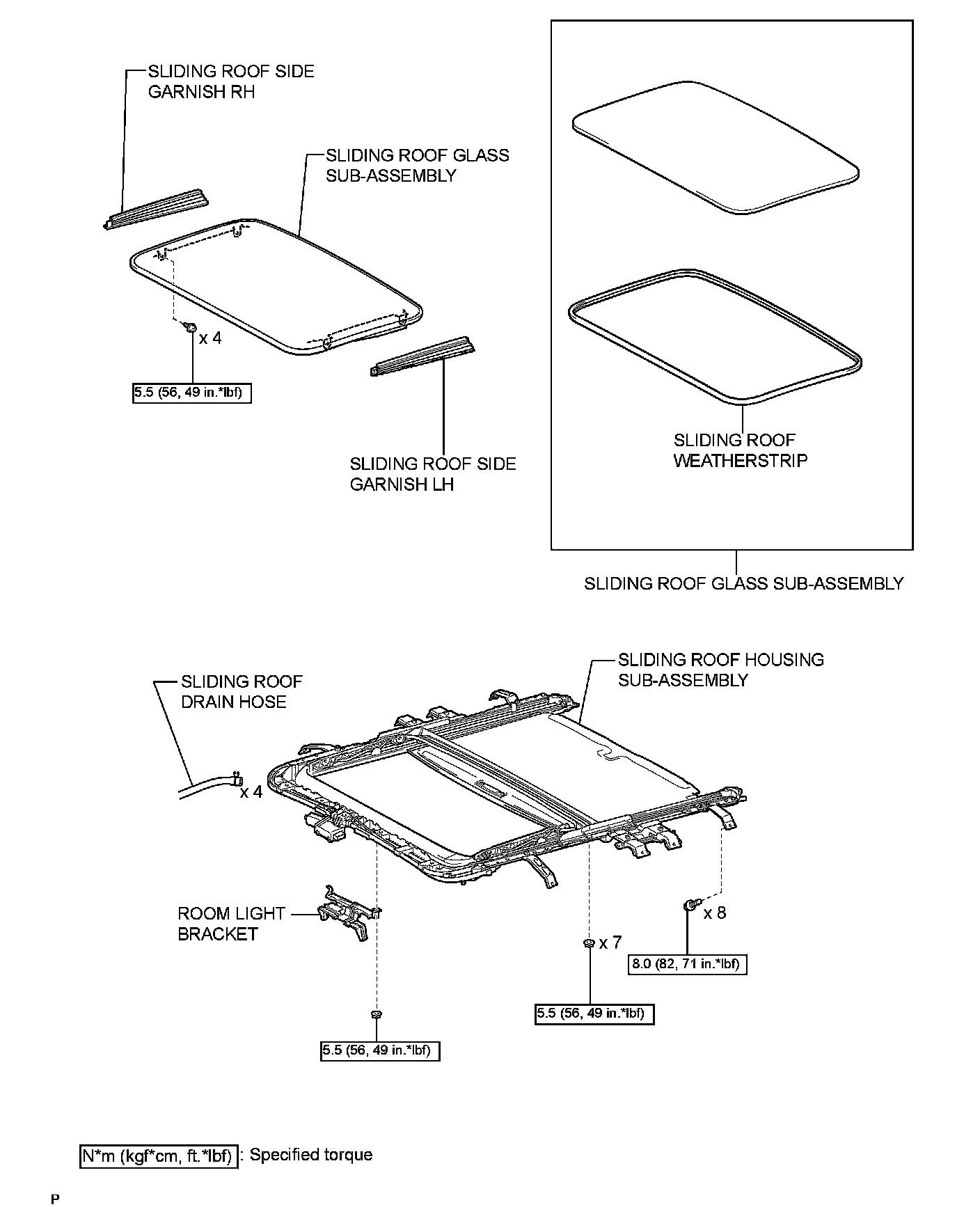

SLIDING ROOF: SLIDING ROOF HOUSING: COMPONENTS
