Collision Avoidance and Parking Assist Systems

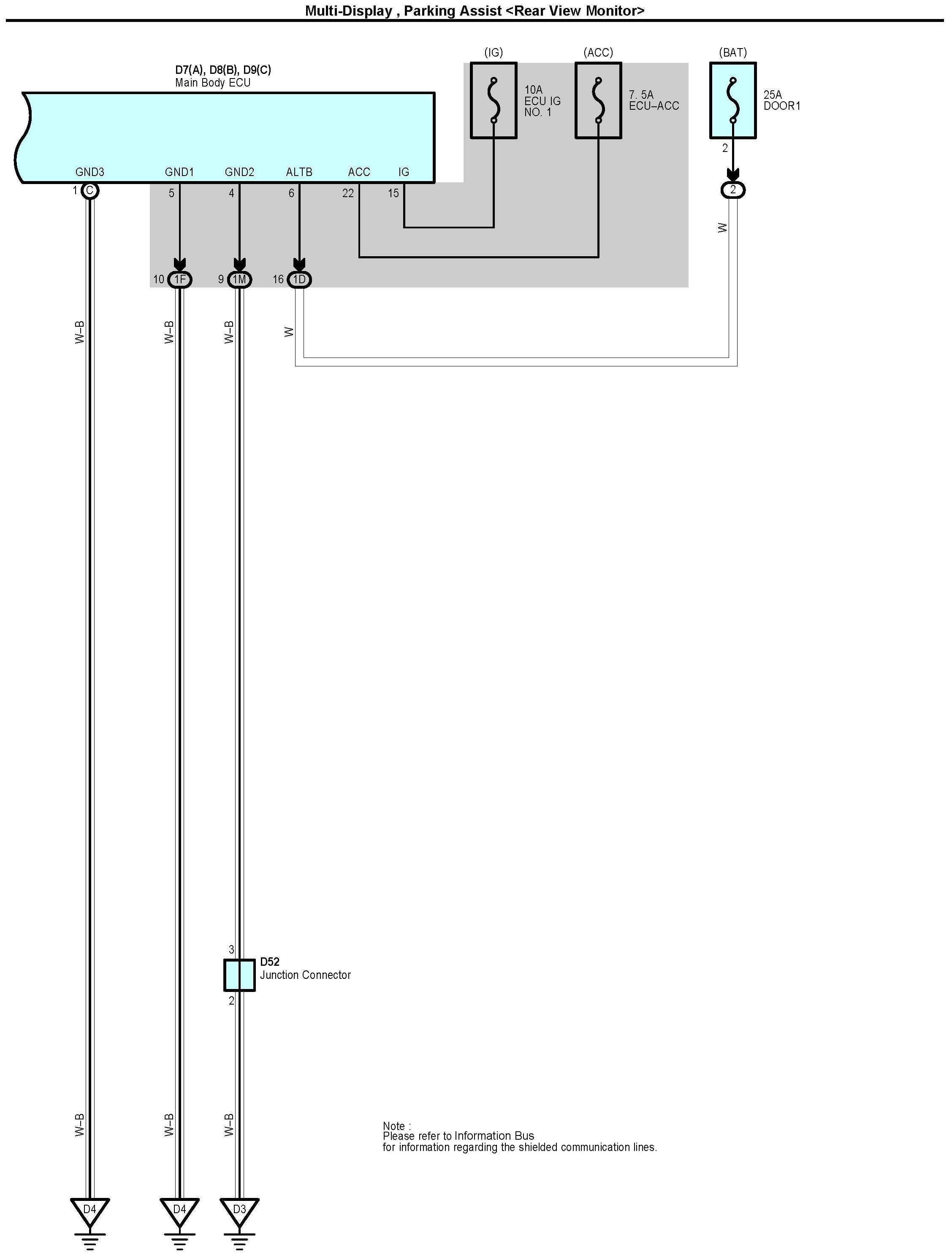

Multi-Display, Parking Assist [Rear View Monitor] Part 1:

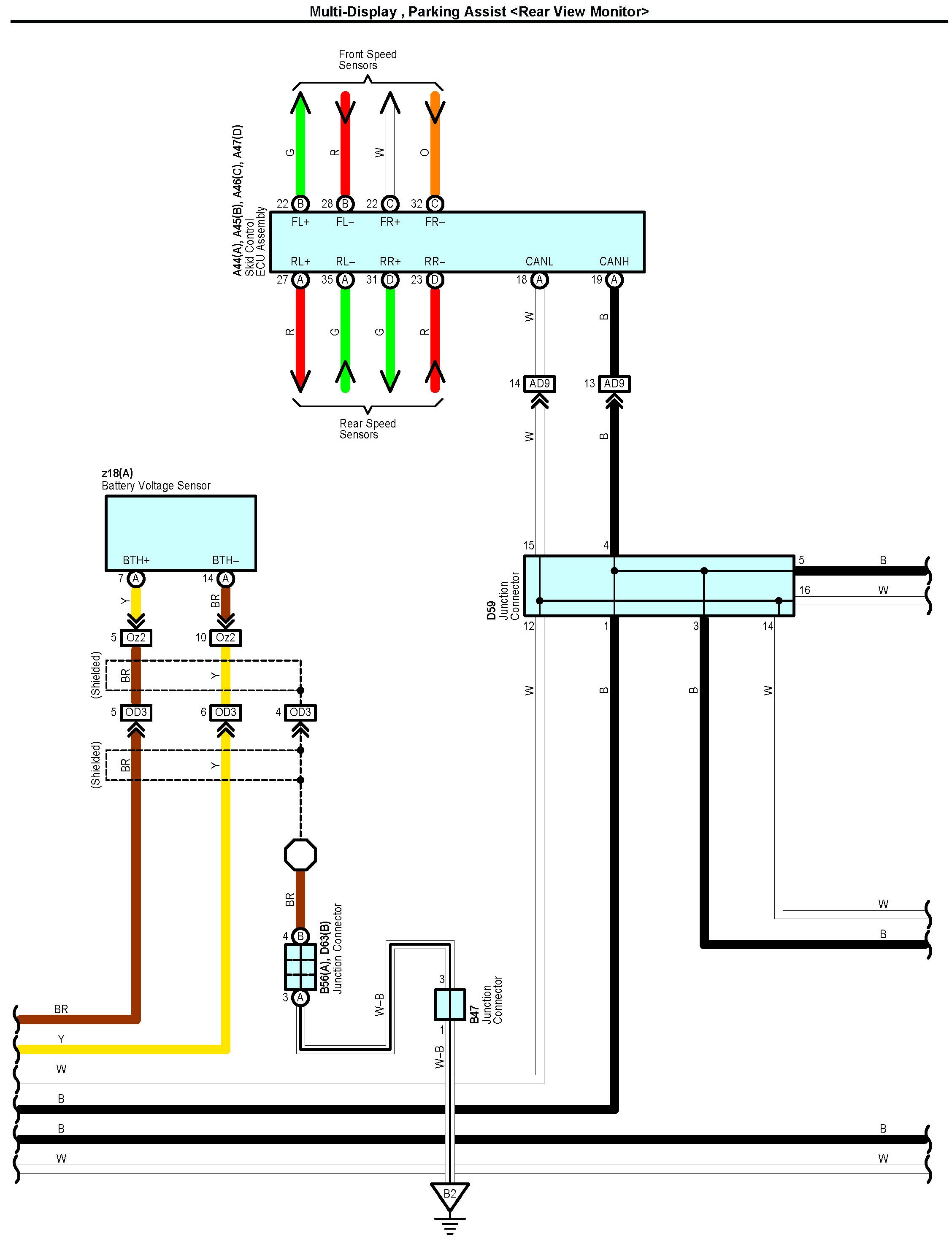

Multi-Display, Parking Assist [Rear View Monitor] Part 2:

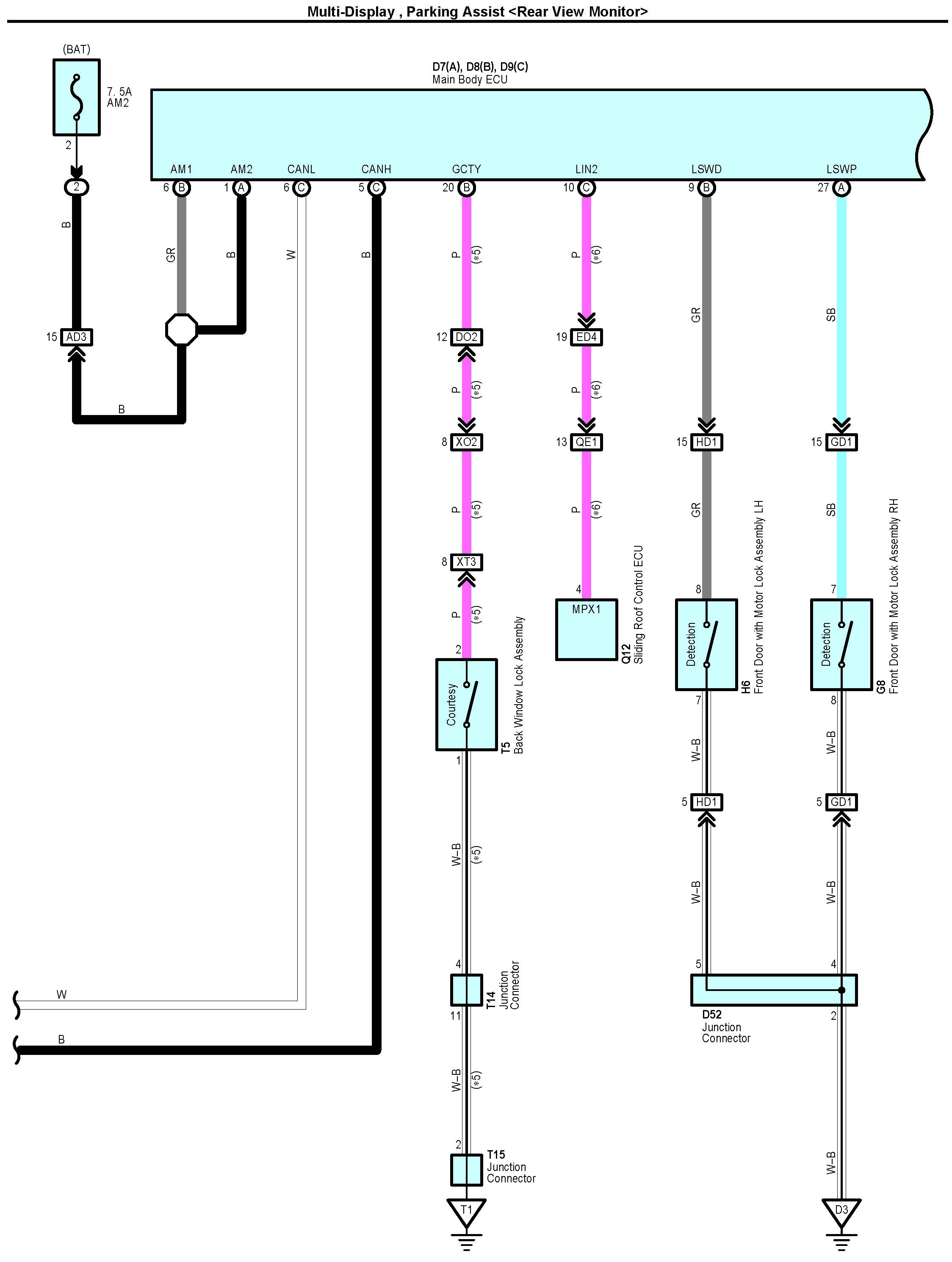

Multi-Display, Parking Assist [Rear View Monitor] Part 3:

Multi-Display, Parking Assist [Rear View Monitor] Part 4:

Multi-Display, Parking Assist [Rear View Monitor] Part 5:

Multi-Display, Parking Assist [Rear View Monitor] Part 6:

Multi-Display, Parking Assist [Rear View Monitor] Part 7:

Multi-Display, Parking Assist [Rear View Monitor] Part 8:

Multi-Display, Parking Assist [Rear View Monitor] Part 9:

Multi-Display, Parking Assist [Rear View Monitor] Part 10:

Multi-Display, Parking Assist [Rear View Monitor] Part 11:

Multi-Display, Parking Assist [Rear View Monitor] Part 12:

Connectors Part 1:

Connectors Part 2:

Connectors Part 3:

Connectors Part 4:

Connectors Part 5:

Connectors Part 6:

Connectors Part 7:

Connectors Part 8:

Connectors Part 9:

Connectors Part 10:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
