Installation

P310 HYBRID VEHICLE CONTROL: HYBRID VEHICLE CONTROL ECU: INSTALLATION

1. INSTALL HYBRID VEHICLE CONTROL ECU

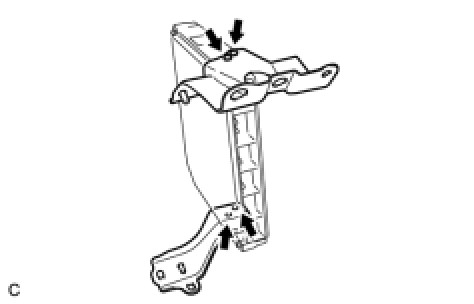

(a) Install the 2 brackets with the 4 screws.





Torque : 3.0 Nm (31 kgf-cm, 27 in-lbf)

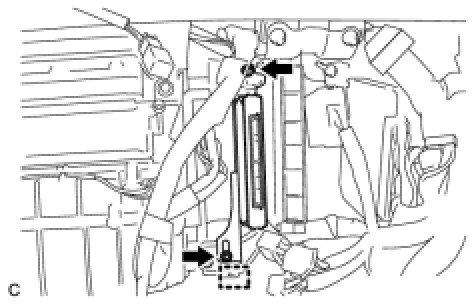

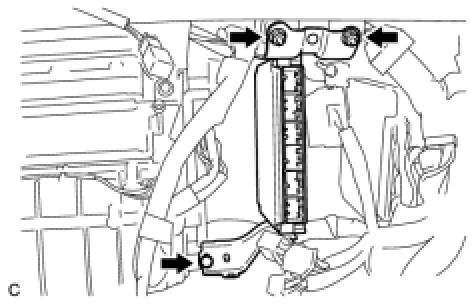

(b) Install the hybrid vehicle control ECU with the 2 nuts and bolt.





Torque : 8.0 Nm (82 kgf-cm, 71 in-lbf)

(c) Connect the 6 connectors to the hybrid vehicle control ECU.

(d) Install the 2 nuts and certification ECU (Smart Key ECU Assembly). (w/ Smart Key System)





Torque : 5.5 Nm (56 kgf-cm, 49 in-lbf)

(e) Connect the clamp. (w/ Smart Key System)

(f) Connect the 2 connectors to the certification ECU (Smart Key ECU Assembly). (w/ Smart Key System)

2. INSTALL LOWER INSTRUMENT PANEL SUB-ASSEMBLY Installation

3. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY Installation

4. INSTALL COWL SIDE TRIM SUB-ASSEMBLY RH Installation

5. INSTALL FRONT DOOR SCUFF PLATE RH Installation

6. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.
