On-Vehicle inspection

METER: METER / GAUGE SYSTEM: ON-VEHICLE INSPECTION

1. INSPECT SPEEDOMETER

(a) Check the operation.

(1) Using a speedometer tester (calibrated chassis dynamometer), check the speedometer indication according to the table below.









NOTICE:
Tire wear as well as over or under inflation will cause errors.

(2) Check the deviation from the acceptable range of the speedometer indication.

Reference:

Less than 0.5 km/h (0.3 mph)

HINT
If the indication is not as specified, go to problem symptoms table Problem Symptoms Table.

2. INSPECT MULTI-INFORMATION DISPLAY

(a) Power switch off.





(b) Press the "DISP" button and hold it down.

(c) Power switch on (READY).

OK:

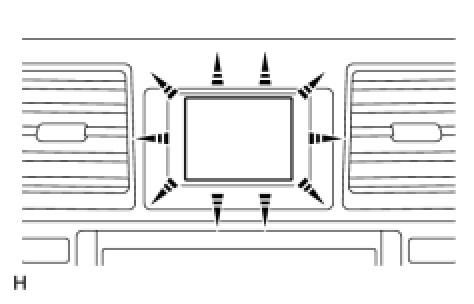

All the dots in the multi-information display come on.

HINT
This test is also available on "Active Test" Scan Tool Testing and Procedures.

(d) Power switch off to finish this test mode.

HINT
If the result is not as specified, replace the clock assembly Removal.
