On-Vehicle Inspection

3MZ-FE ENGINE CONTROL SYSTEM: CAMSHAFT OIL CONTROL VALVE: ON-VEHICLE INSPECTION

1. INSPECT CAM TIMING OIL CONTROL VALVE ASSY RH

(a) Connect the Techstream to the DLC3.

(b) Put the engine in inspection mode Inspection Mode Procedure.

(c) Turn the power switch on (IG) and turn the Techstream on.

(d) Warm up the engine.

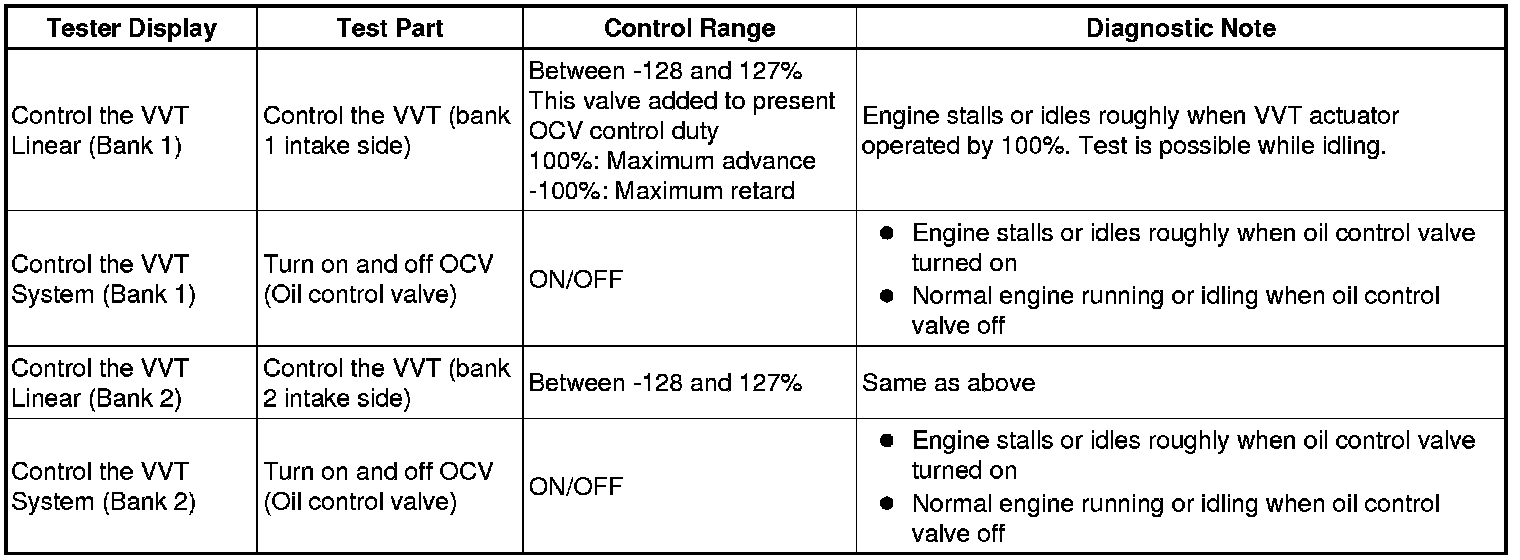

(e) Enter the following menus: Powertrain / Engine / Active Test.

(f) Check the engine speed when the OCV (camshaft timing oil control valve) is operated using the Techstream.
