Crankshaft Position Sensor: Testing and Inspection

3MZ-FE ENGINE CONTROL SYSTEM: CRANKSHAFT POSITION SENSOR: INSPECTION

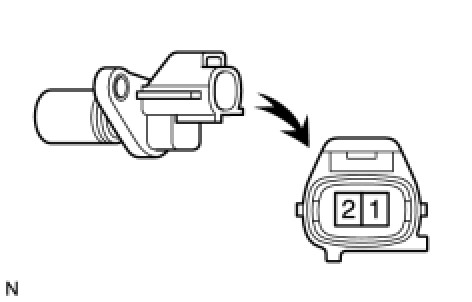

1. INSPECT CRANKSHAFT POSITION SENSOR

(a) Using an ohmmeter, measure the resistance between the terminals.





Standard resistance:





HINT
* "Cold" and "Hot" refer to the temperature of the coils themselves.
* "Cold" is from -10°C (14°F) to 50°C (122°F) and "Hot" is from 50°C (122°F) to 100°C (212°F).
(b) If the resistance is not as specified, replace the sensor.
