Audio System [Except JBL]

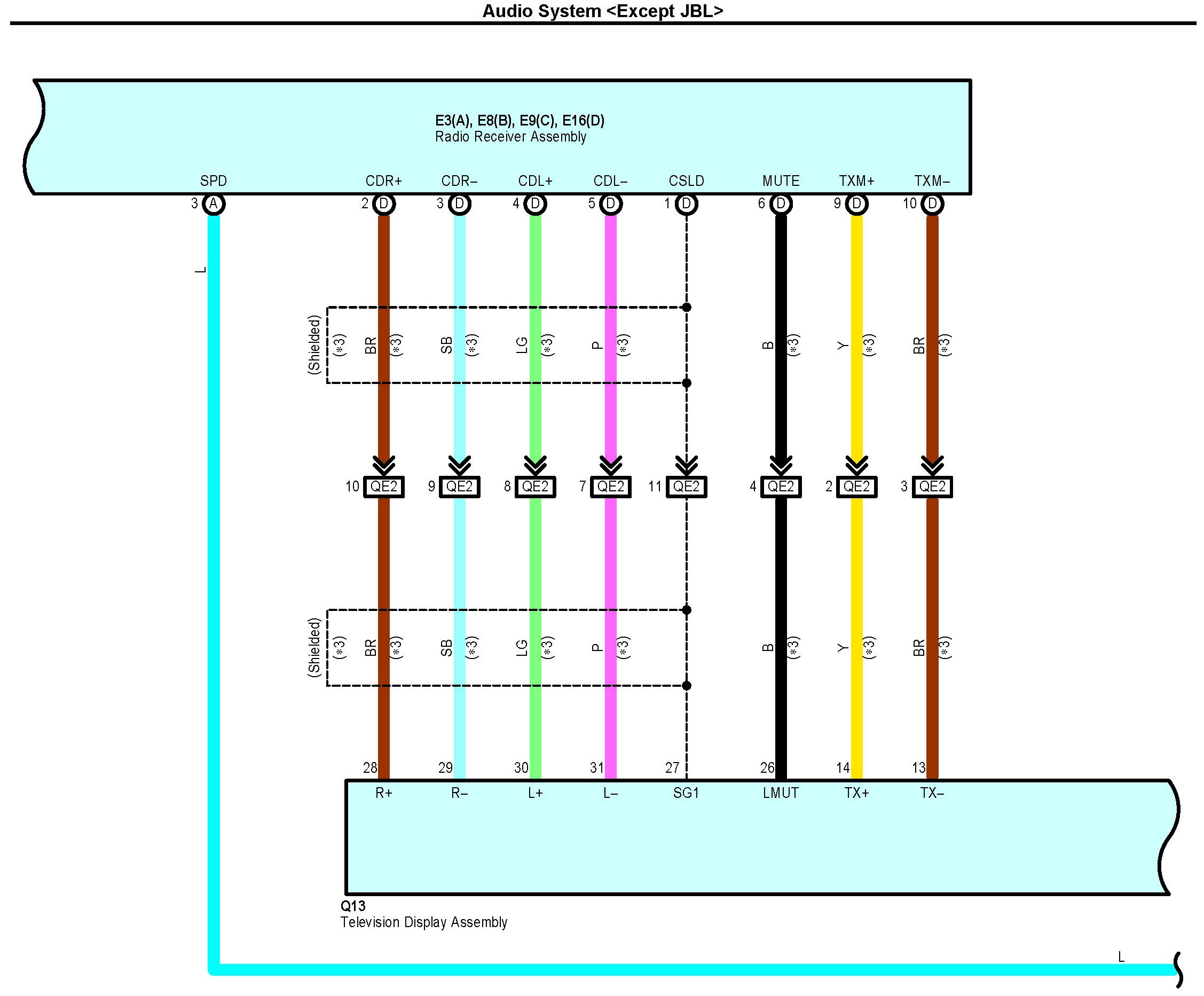

Audio System [Except JBL] Part 1:

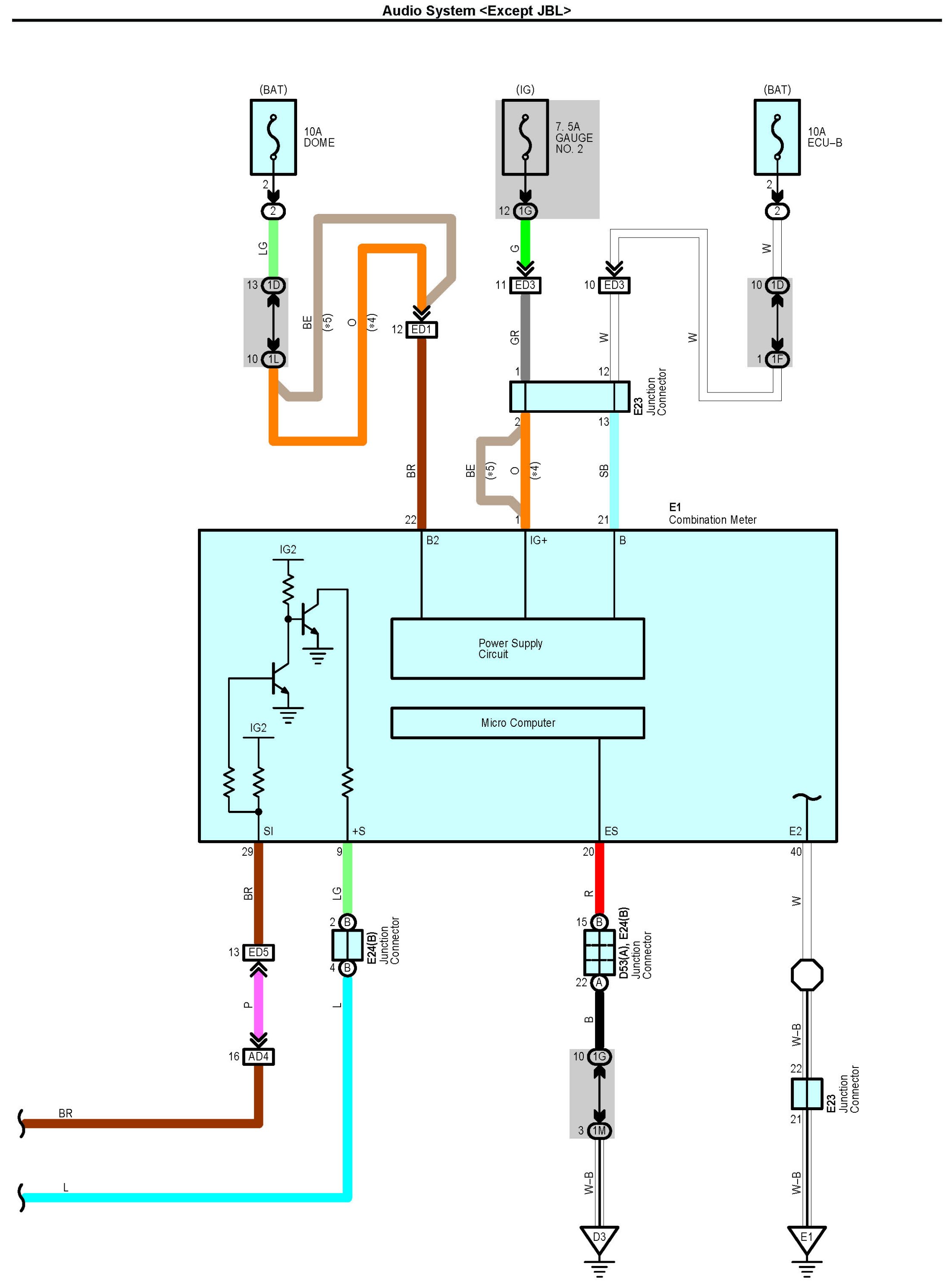

Audio System [Except JBL] Part 2:

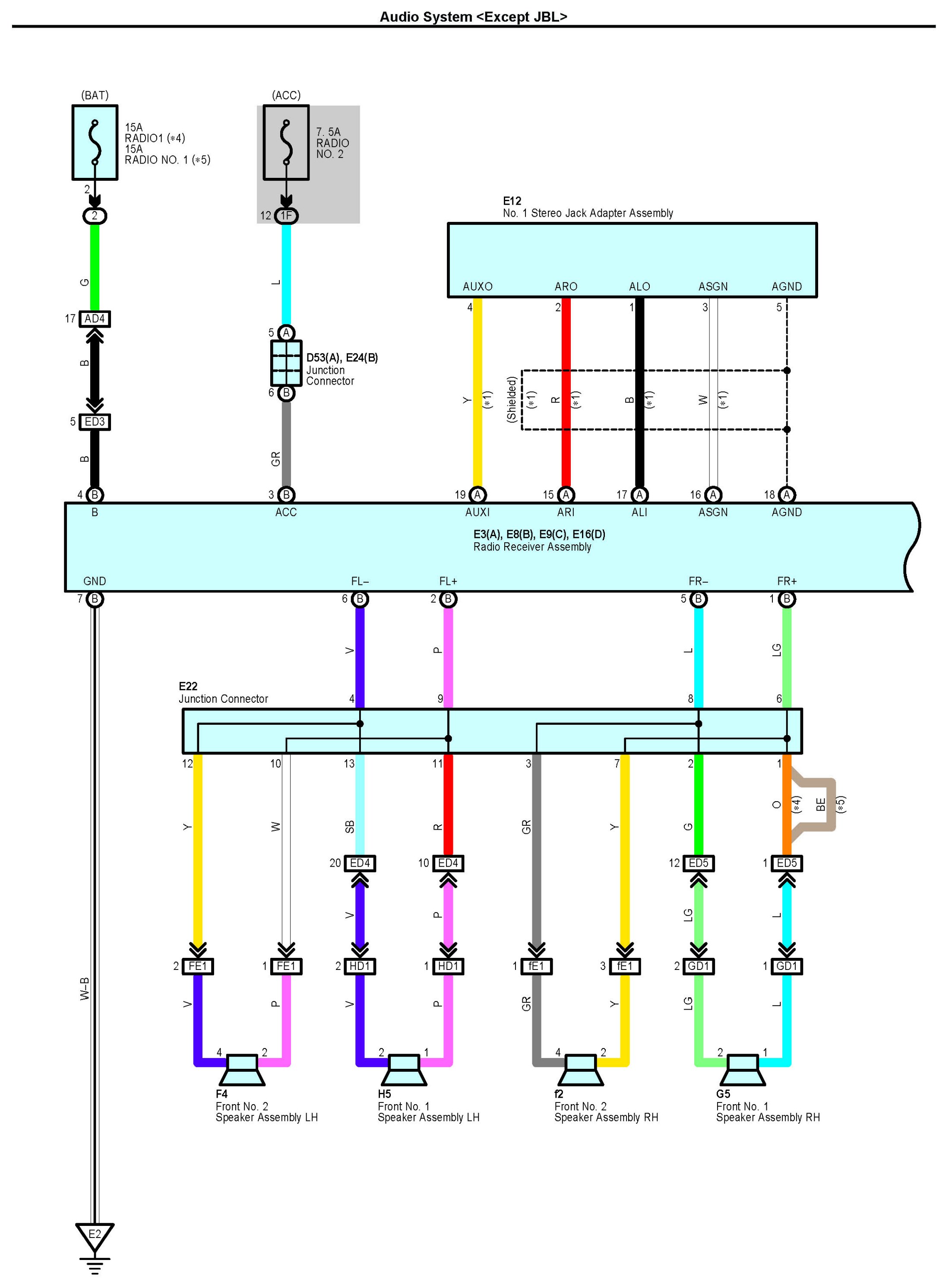

Audio System [Except JBL] Part 3:

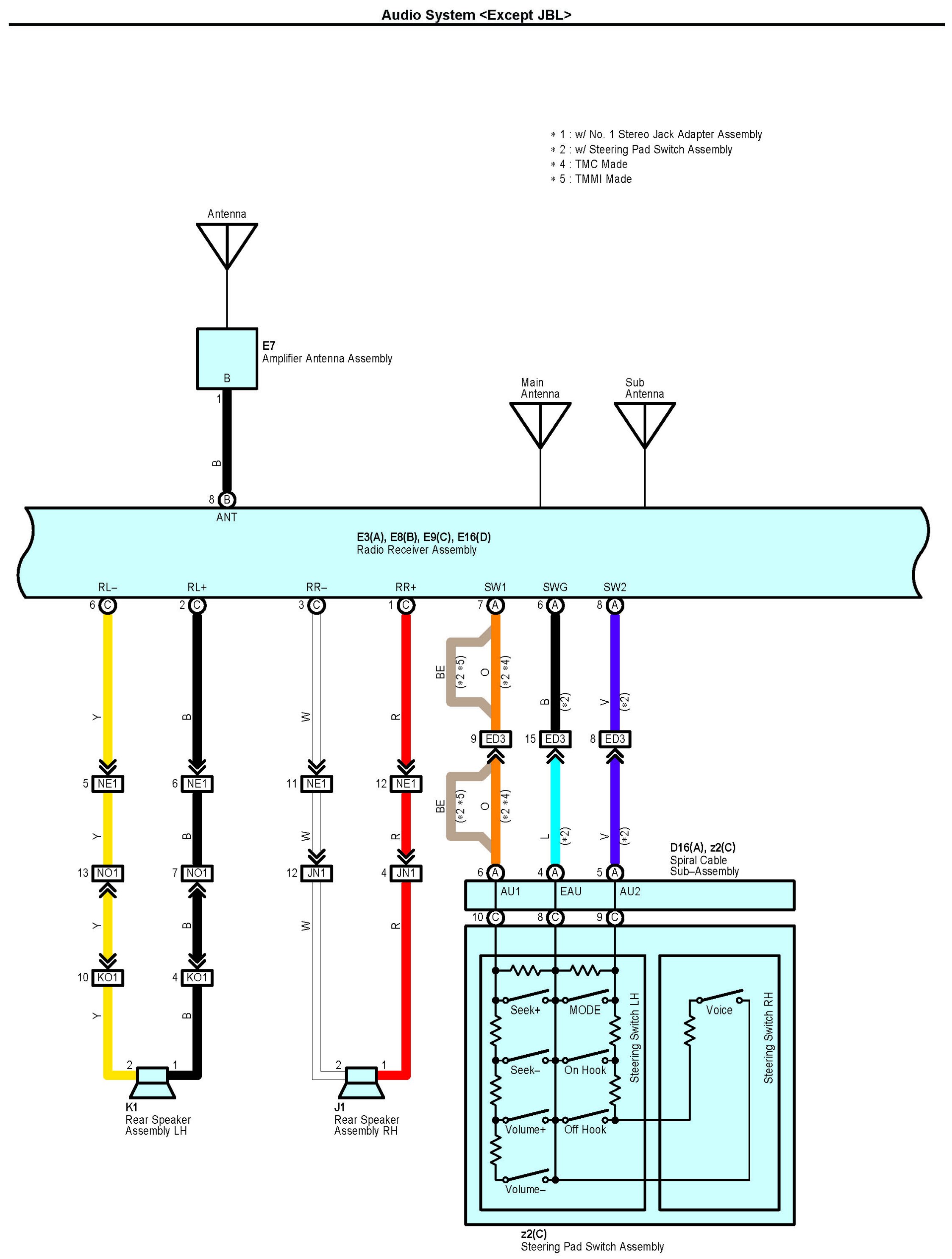

Audio System [Except JBL] Part 4:

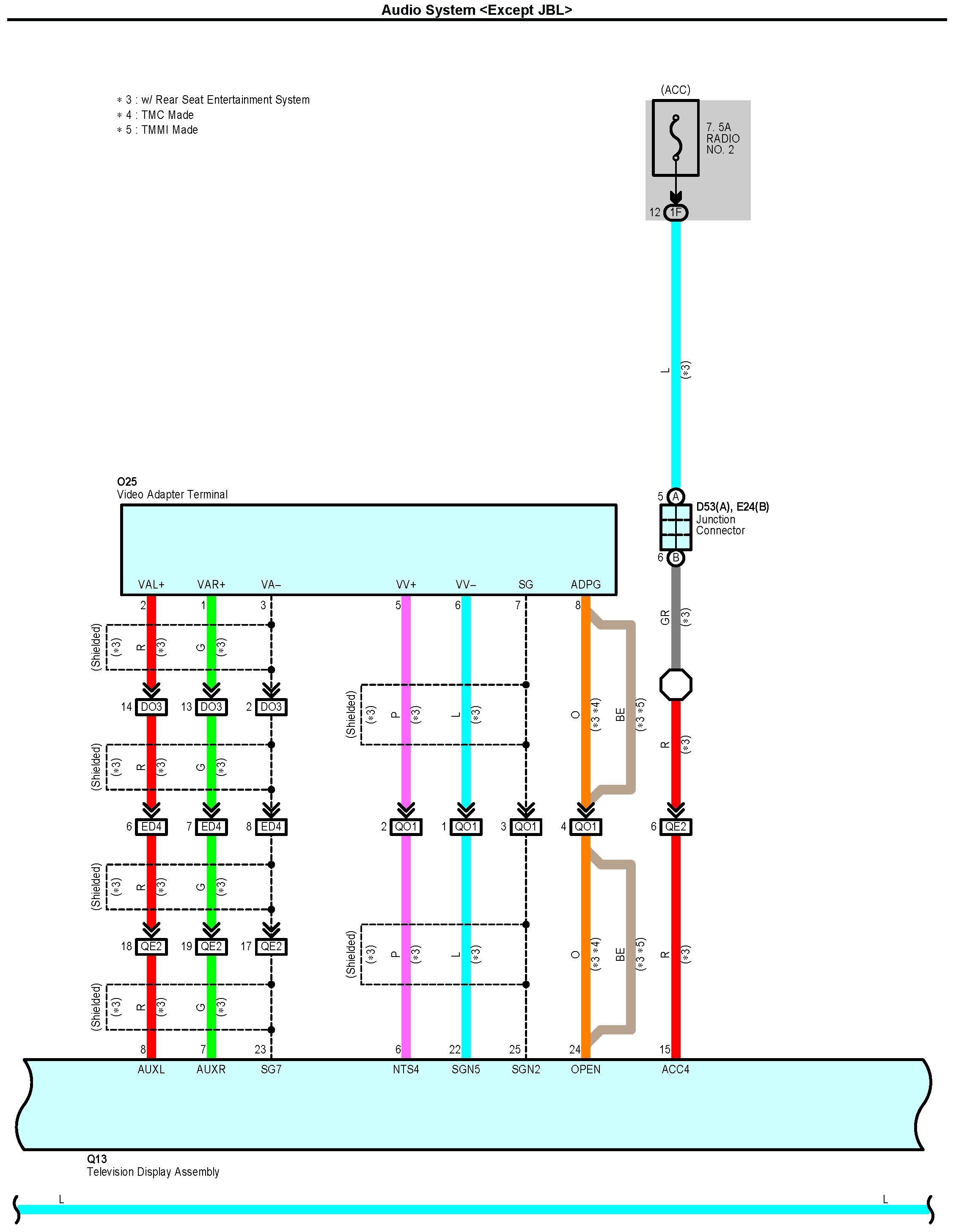

Audio System [Except JBL] Part 5:

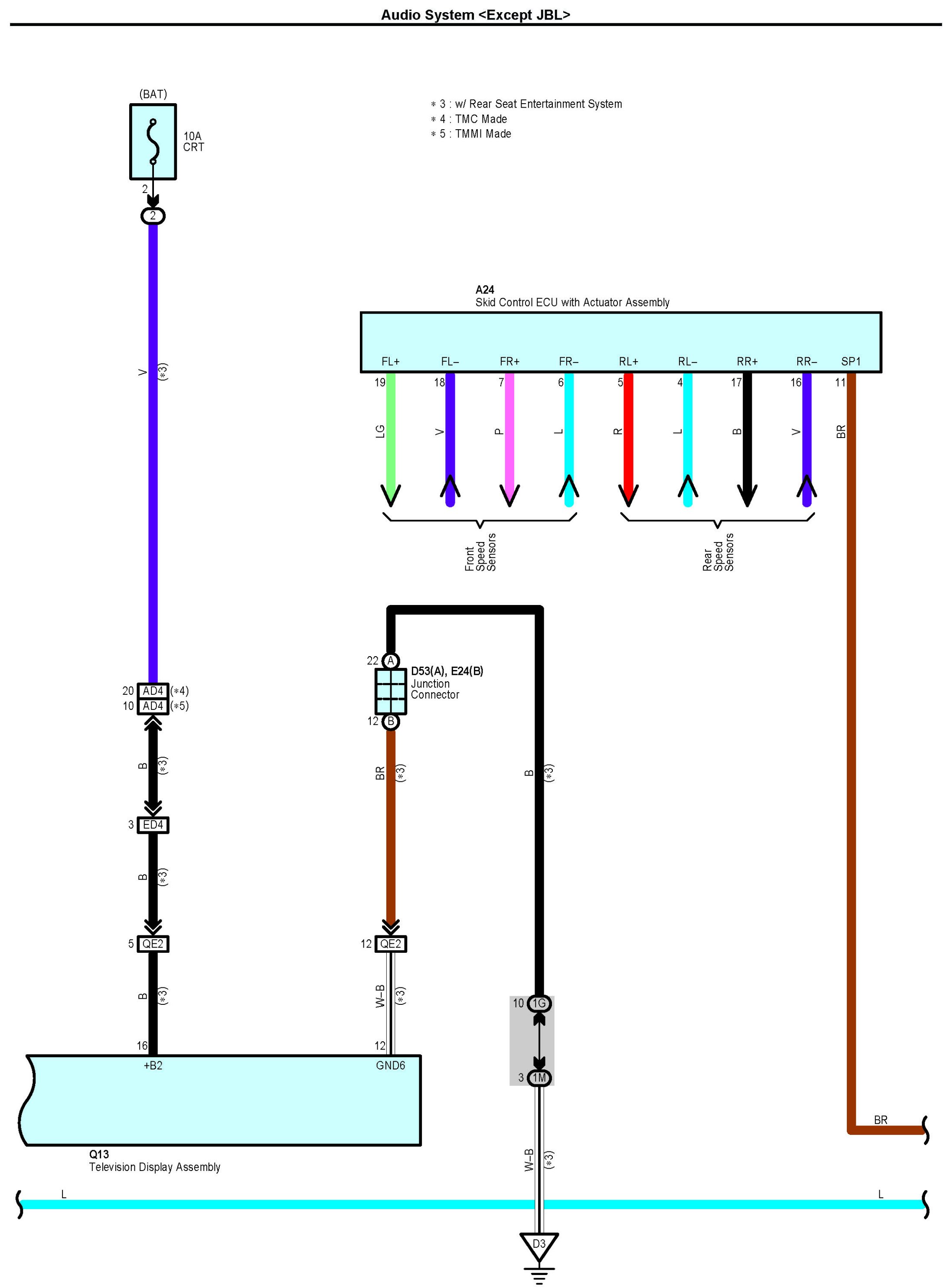

Audio System [Except JBL] Part 6:

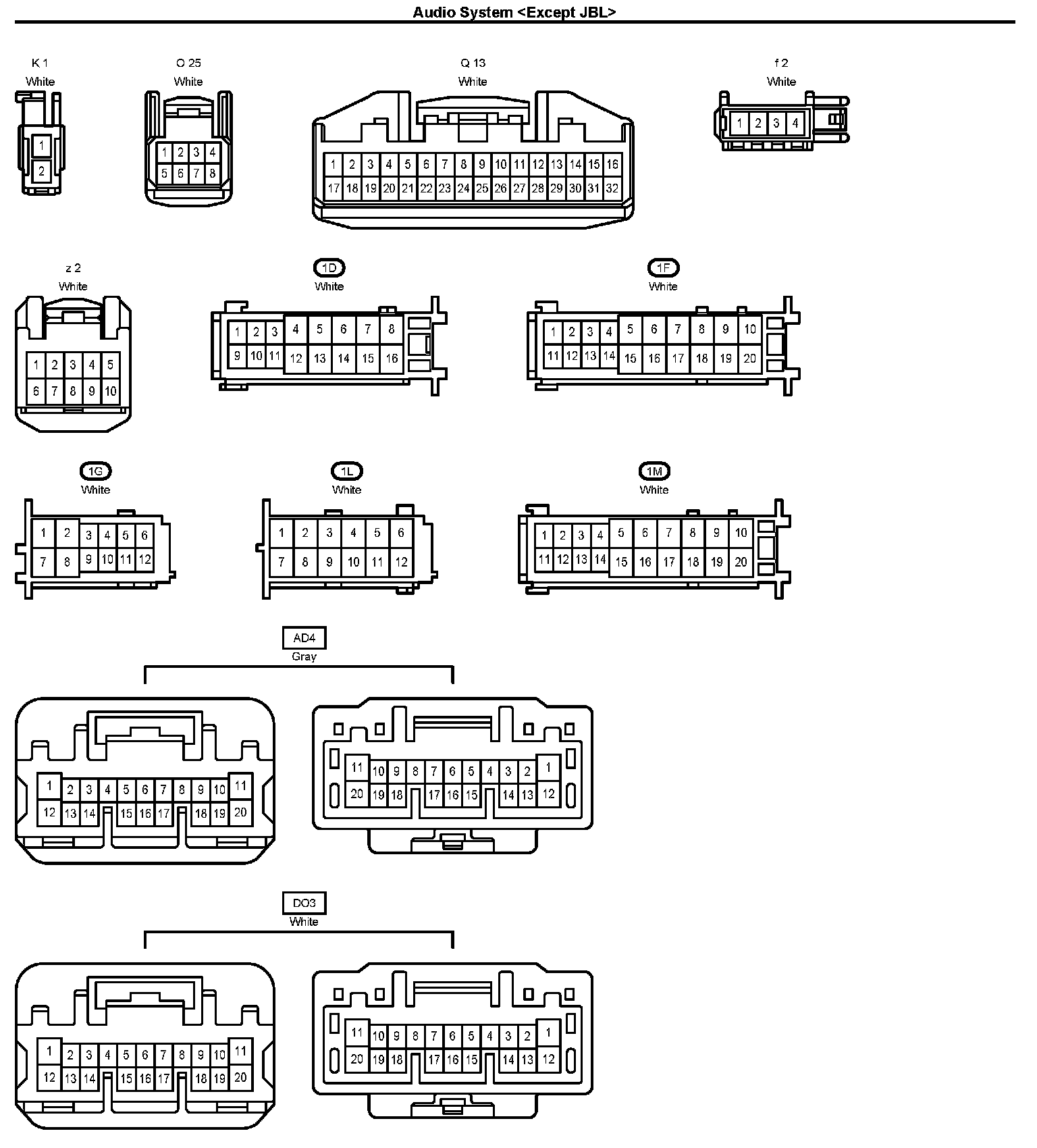

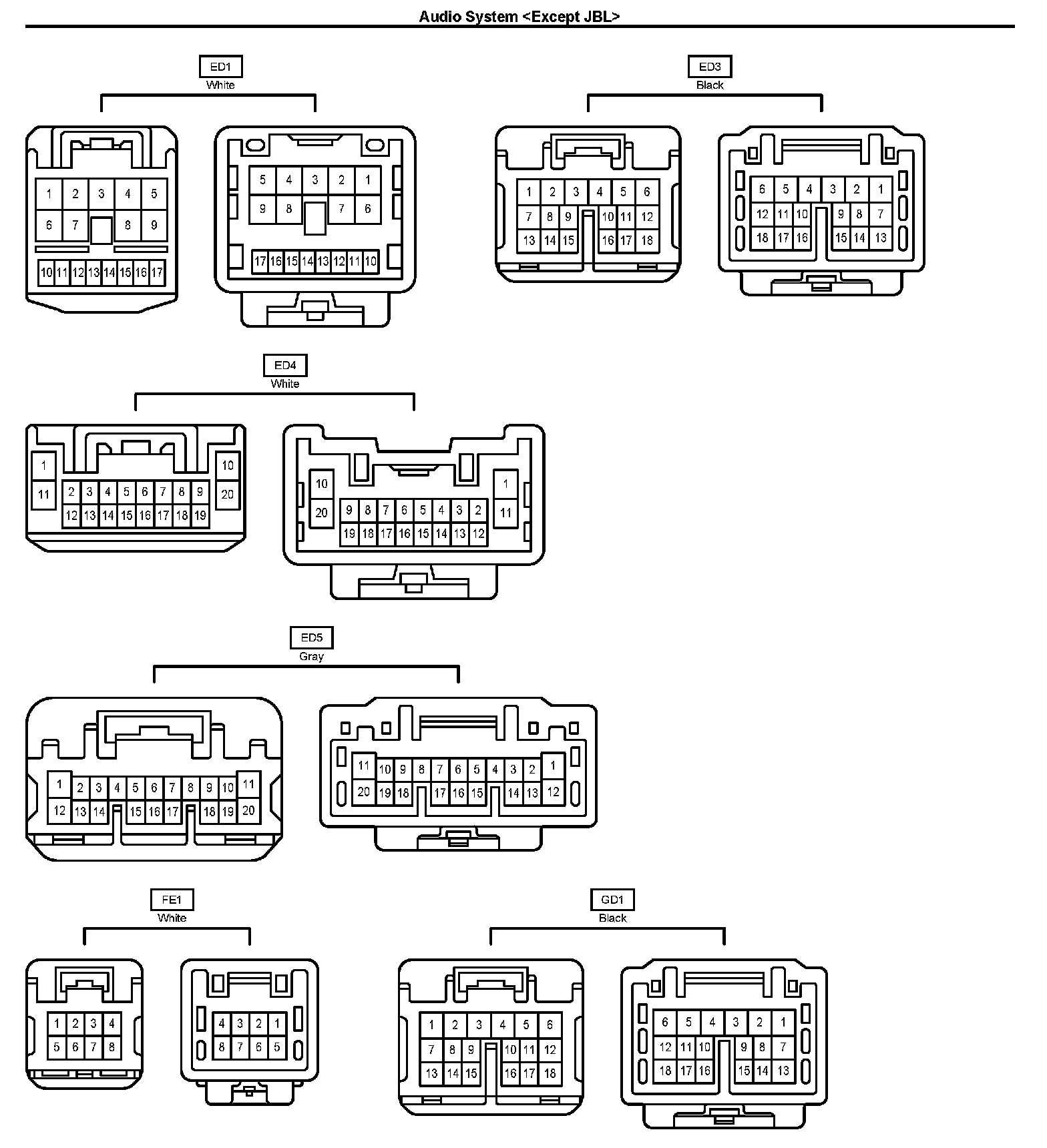

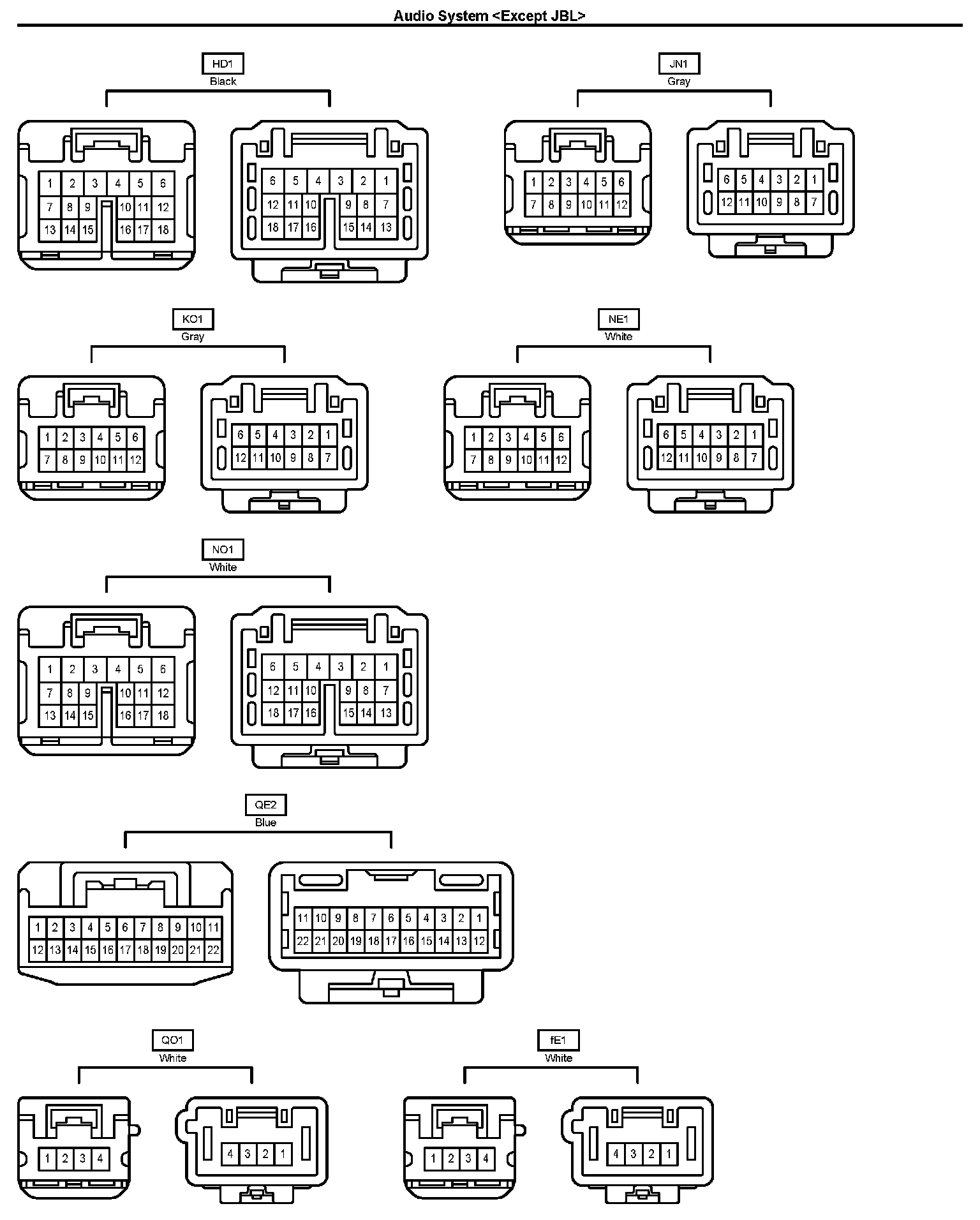

Connectors Part 1:

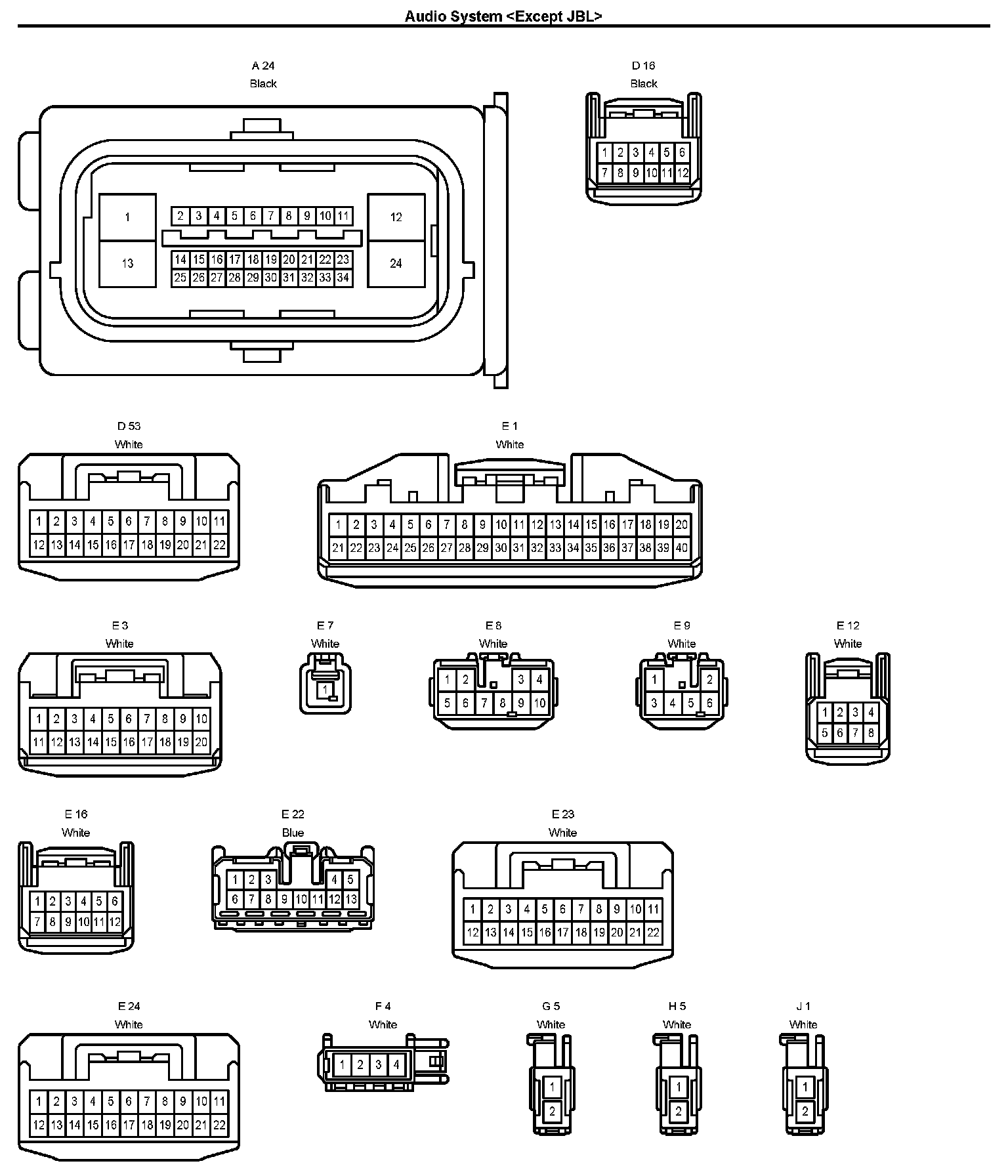

Connectors Part 2:

Connectors Part 3:

Connectors Part 4:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
