Courtesy Lamp

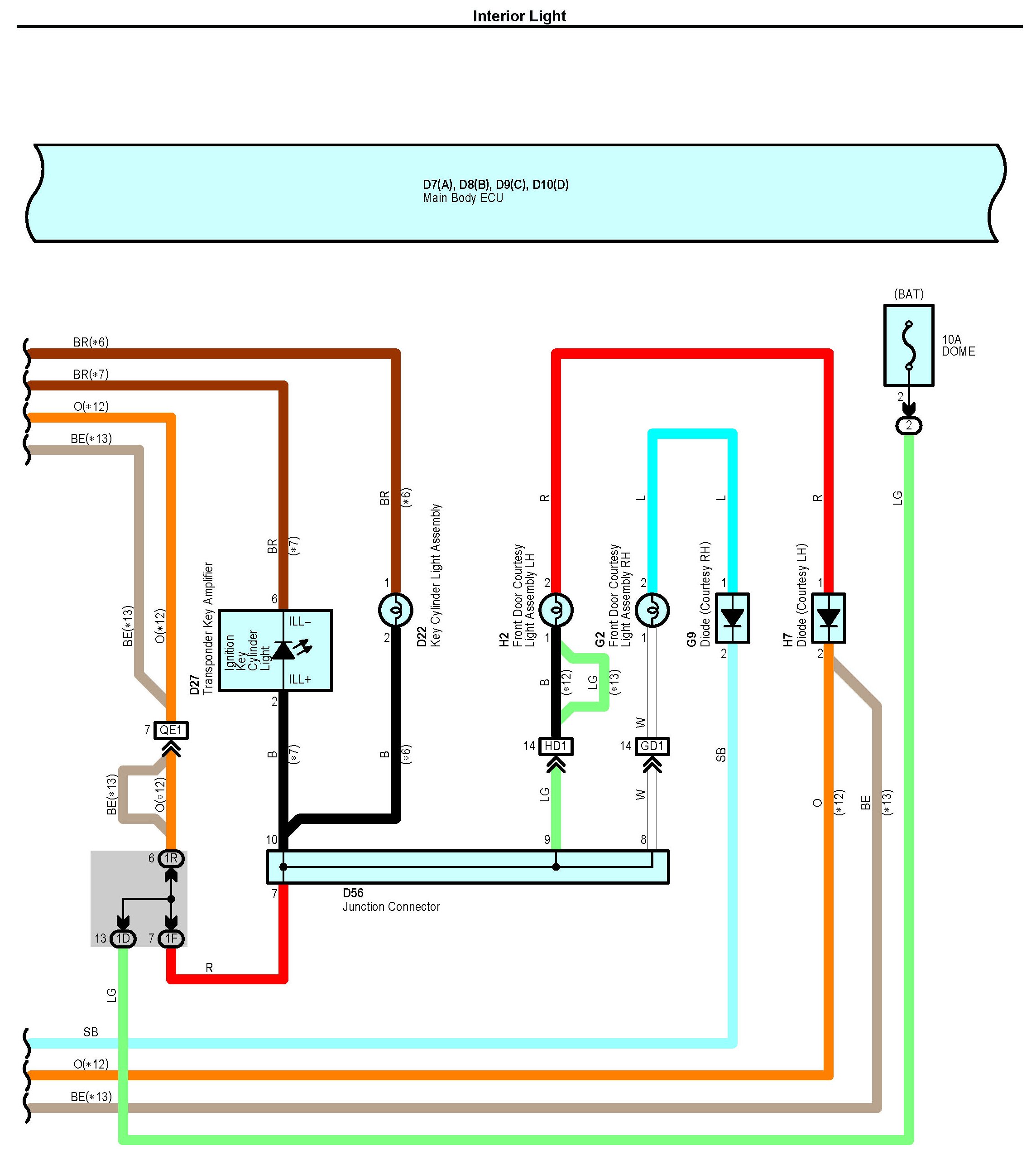

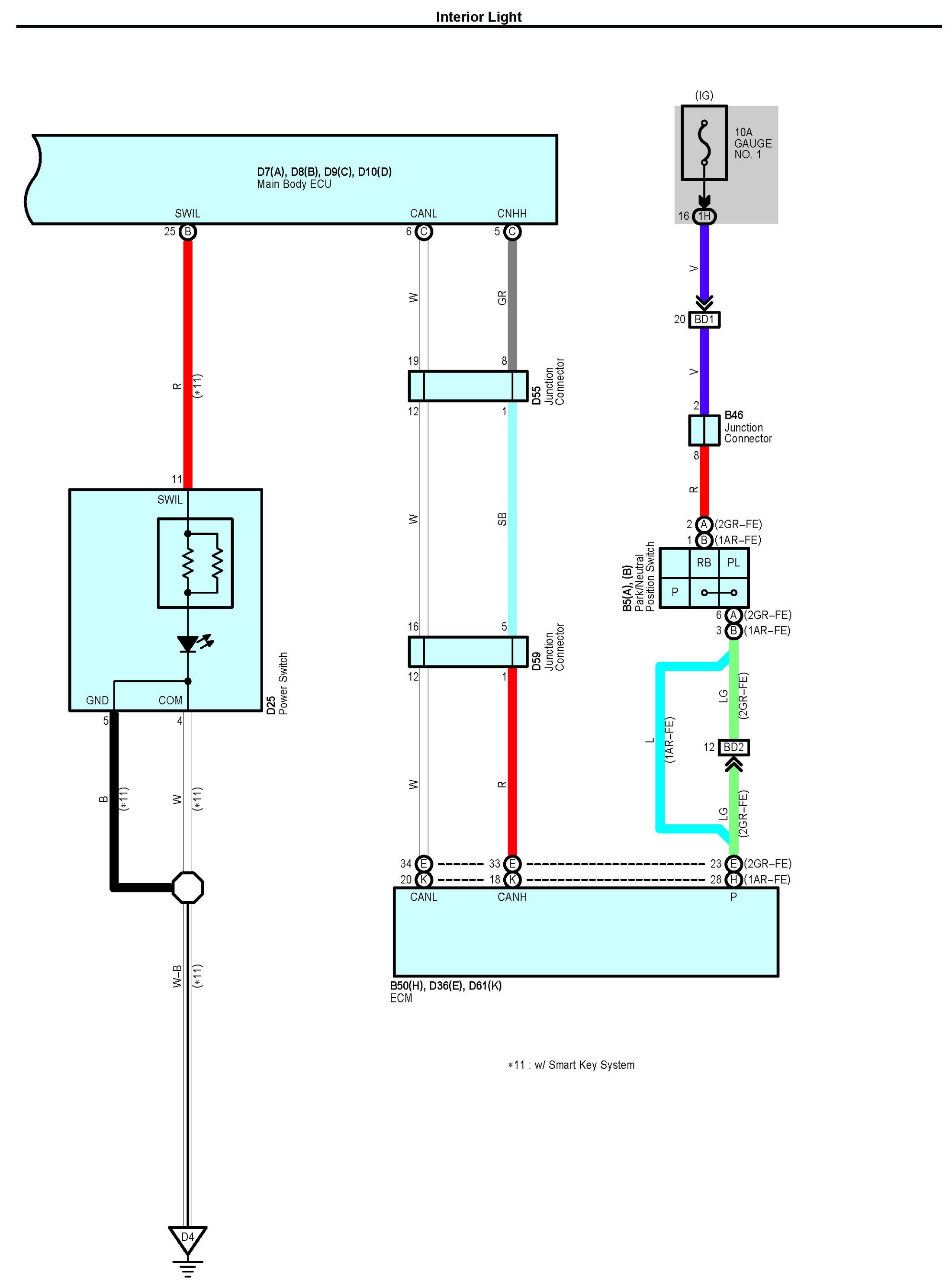

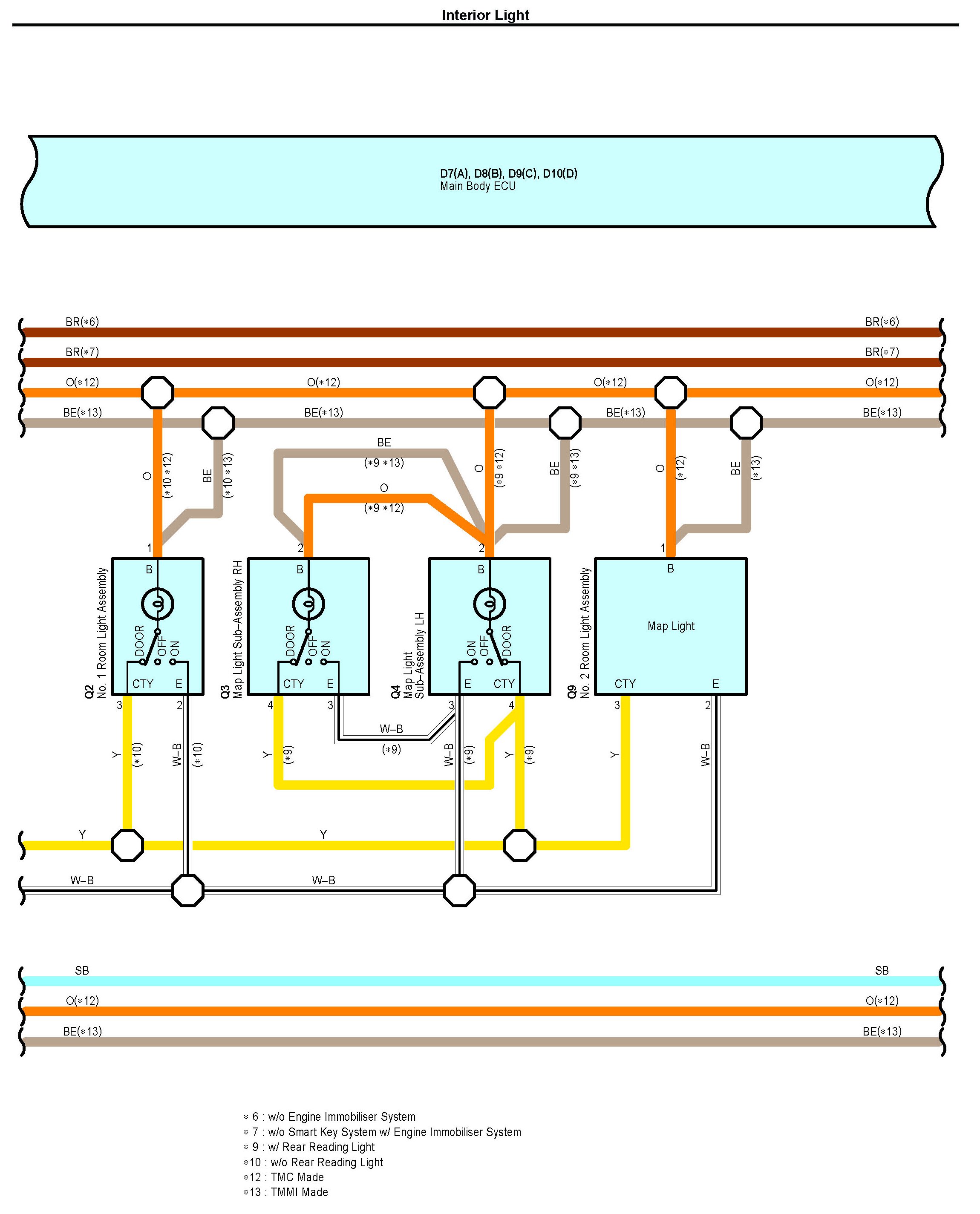

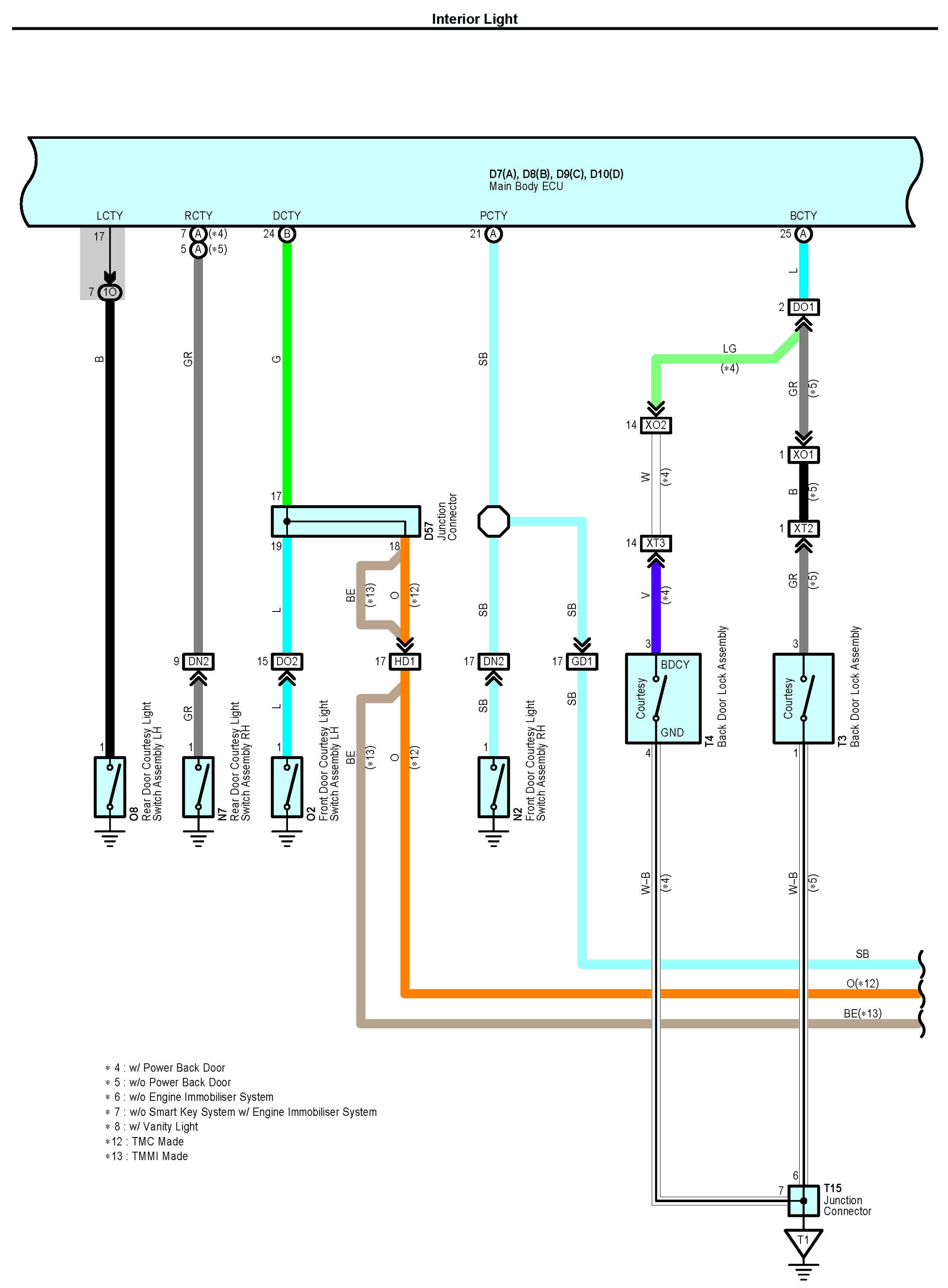

Interior Light Part 1:

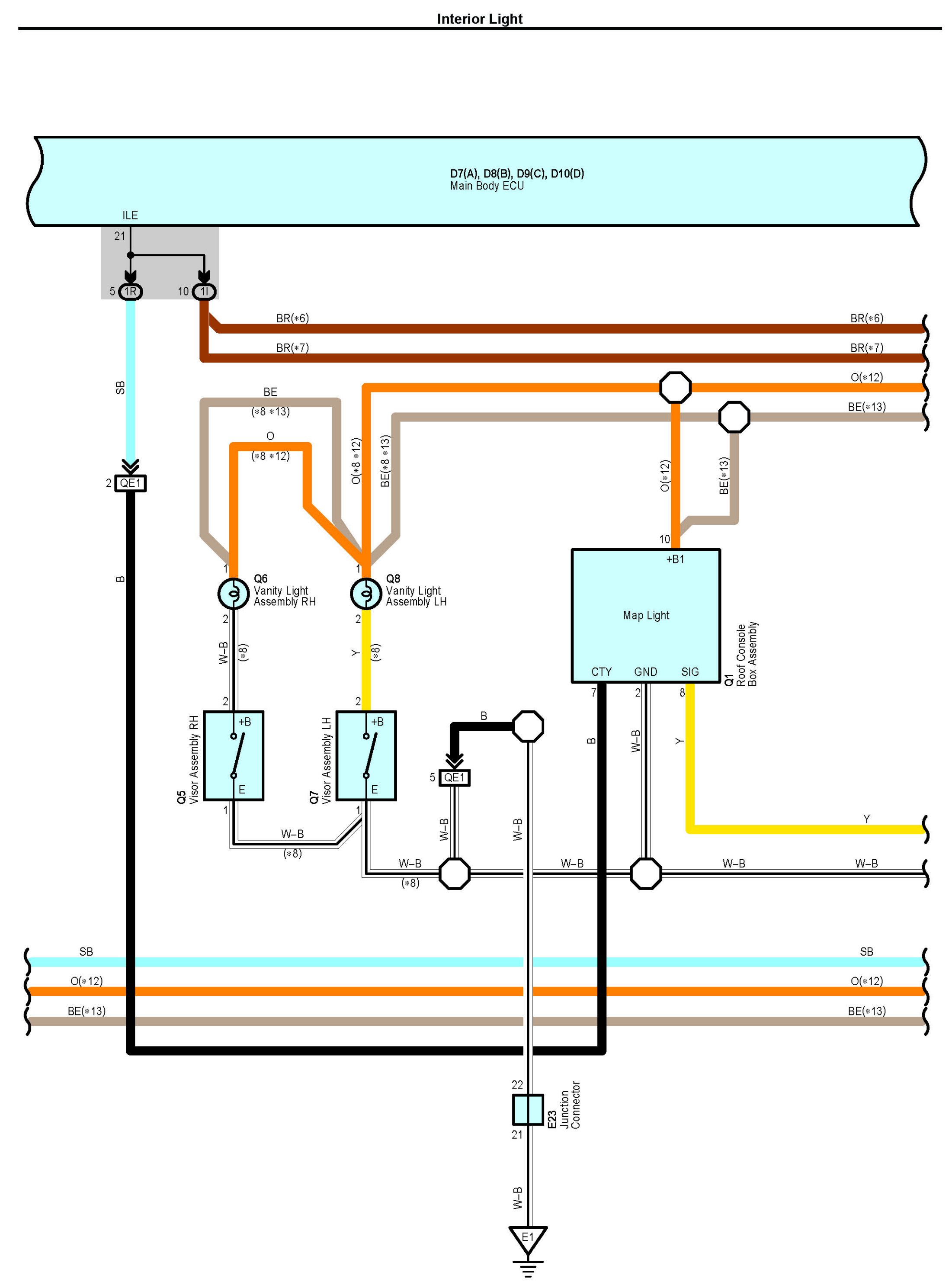

Interior Light Part 2:

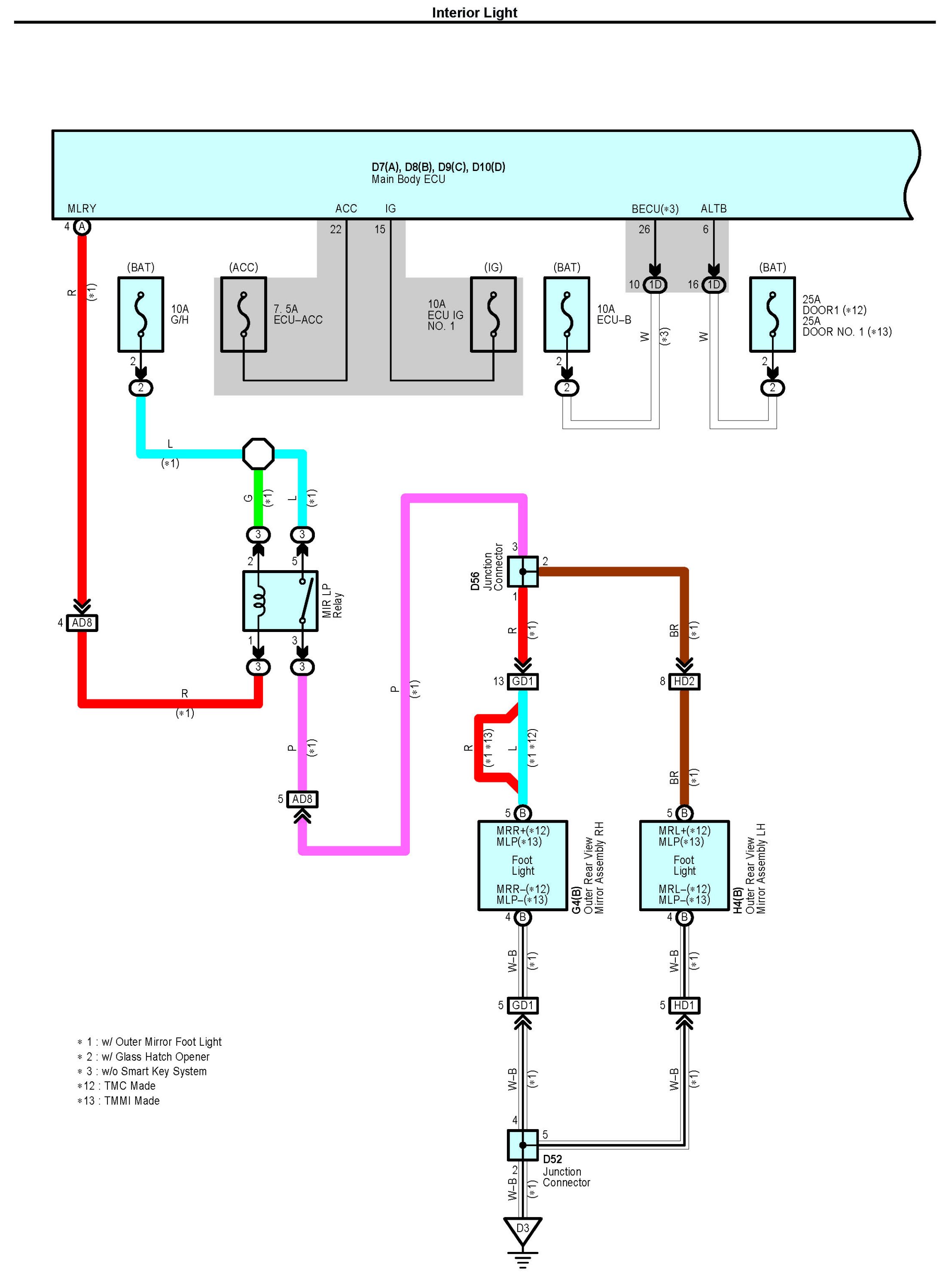

Interior Light Part 3:

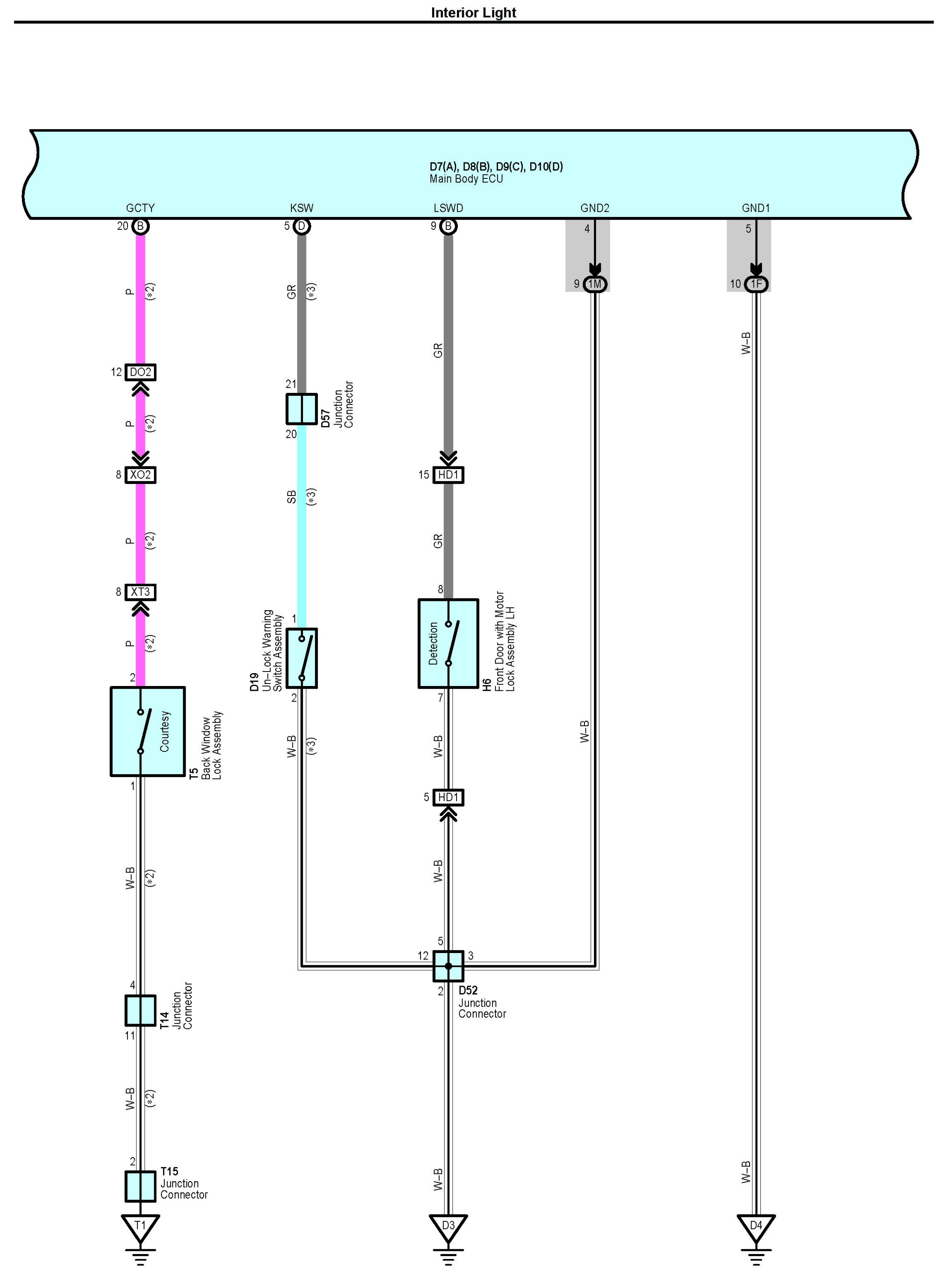

Interior Light Part 4:

Interior Light Part 5:

Interior Light Part 6:

Interior Light Part 7:

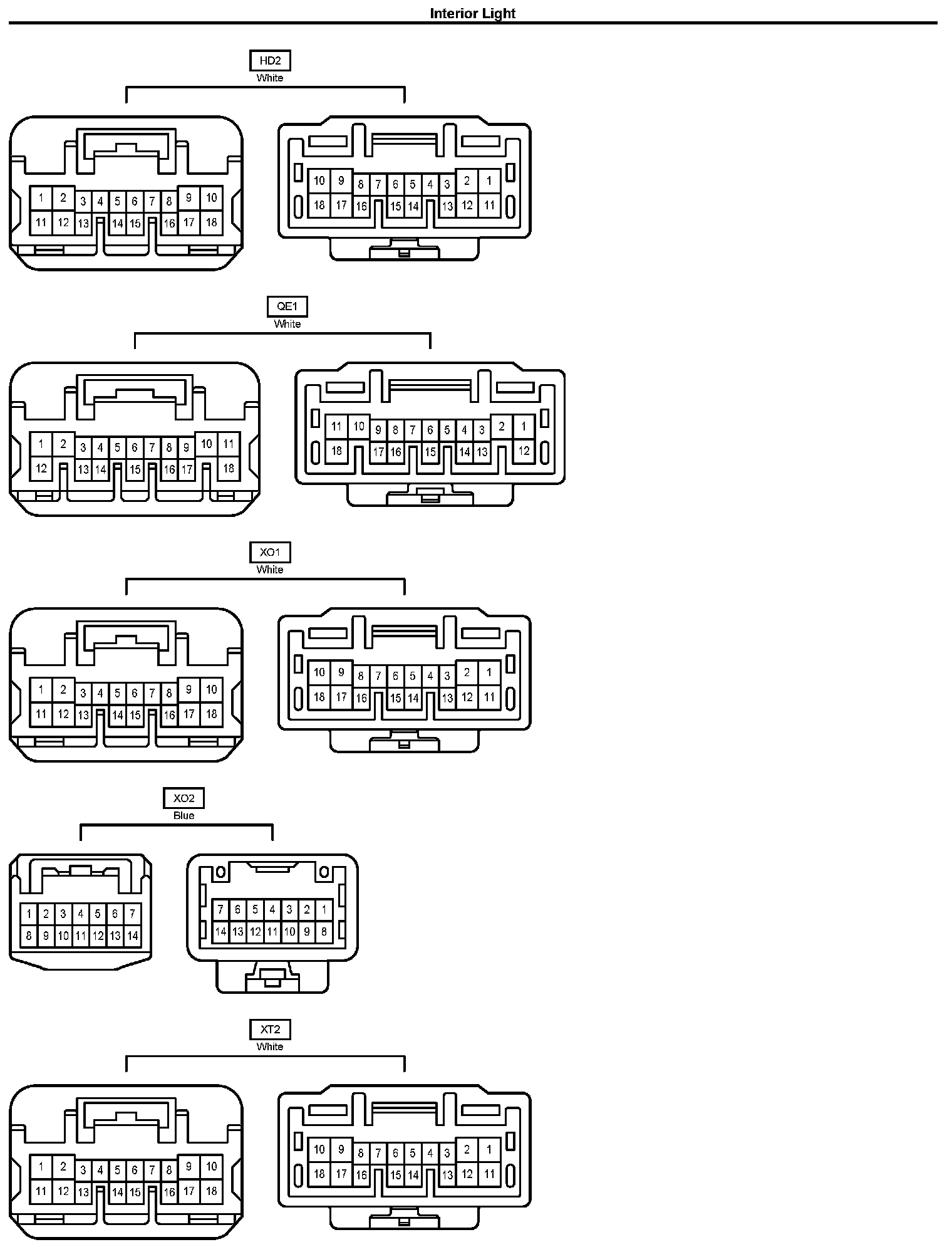

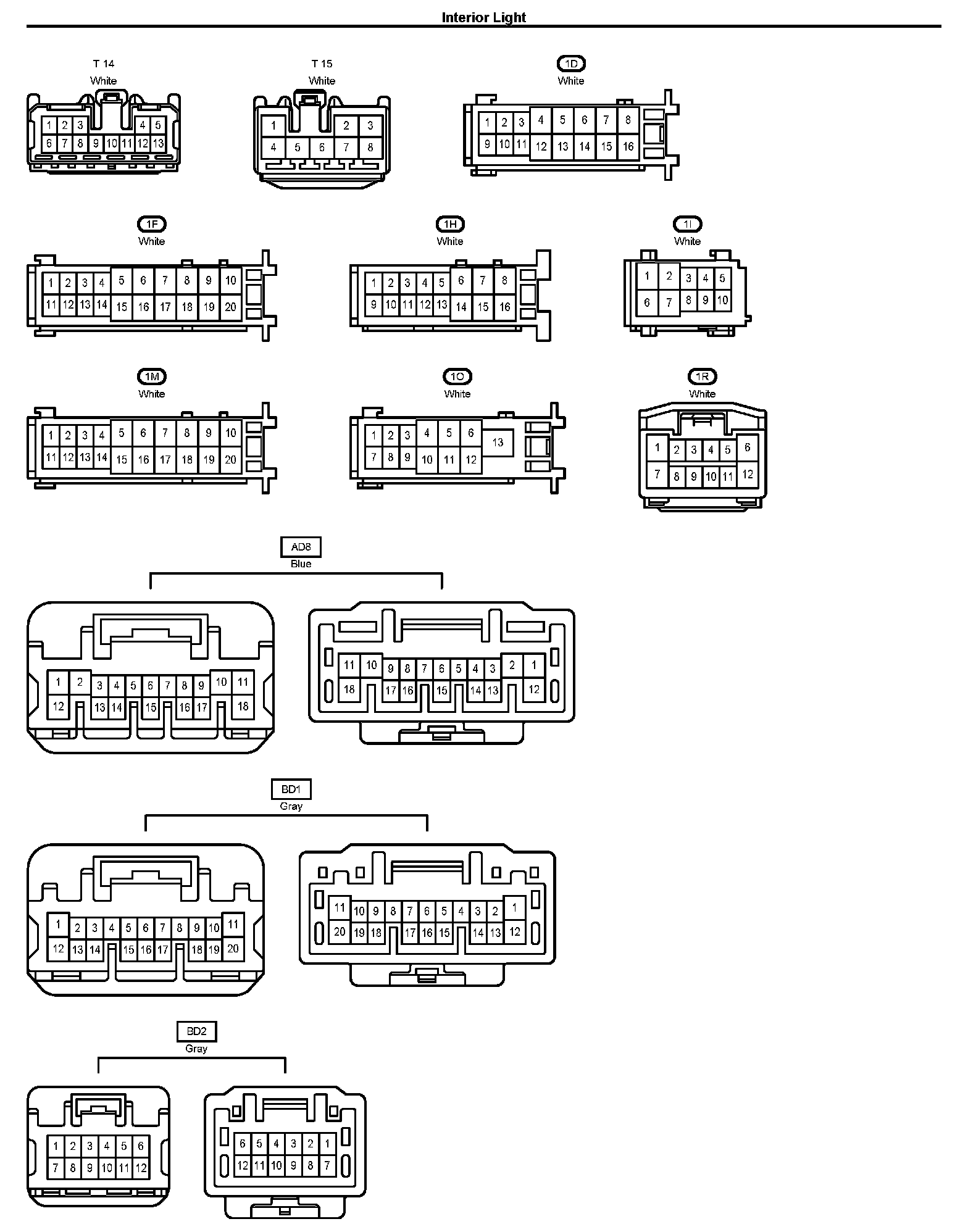

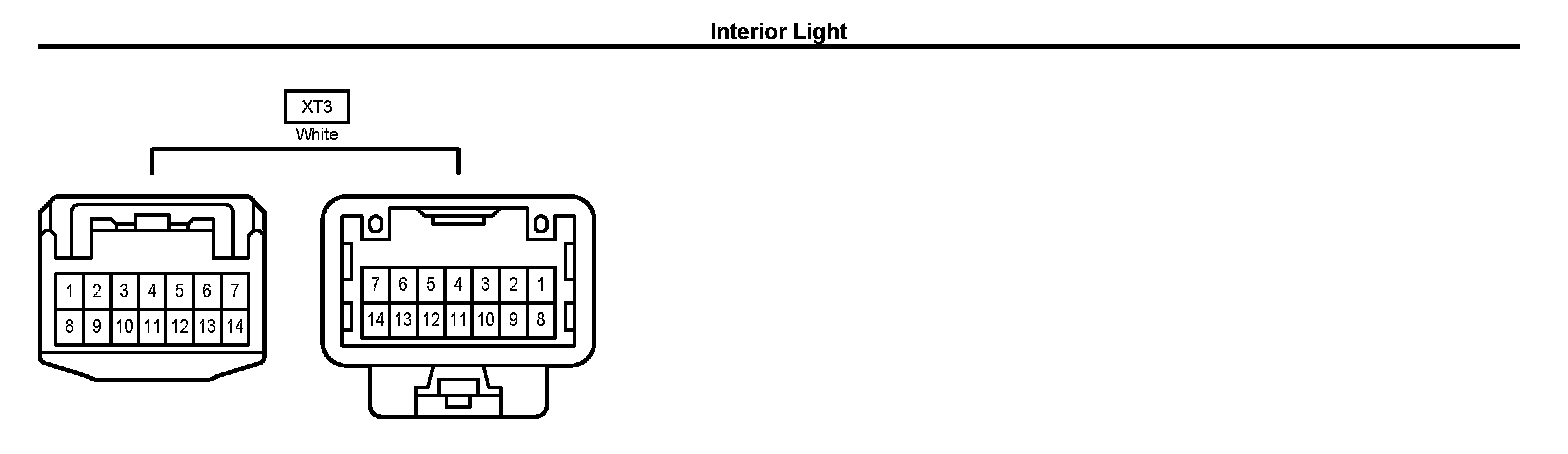

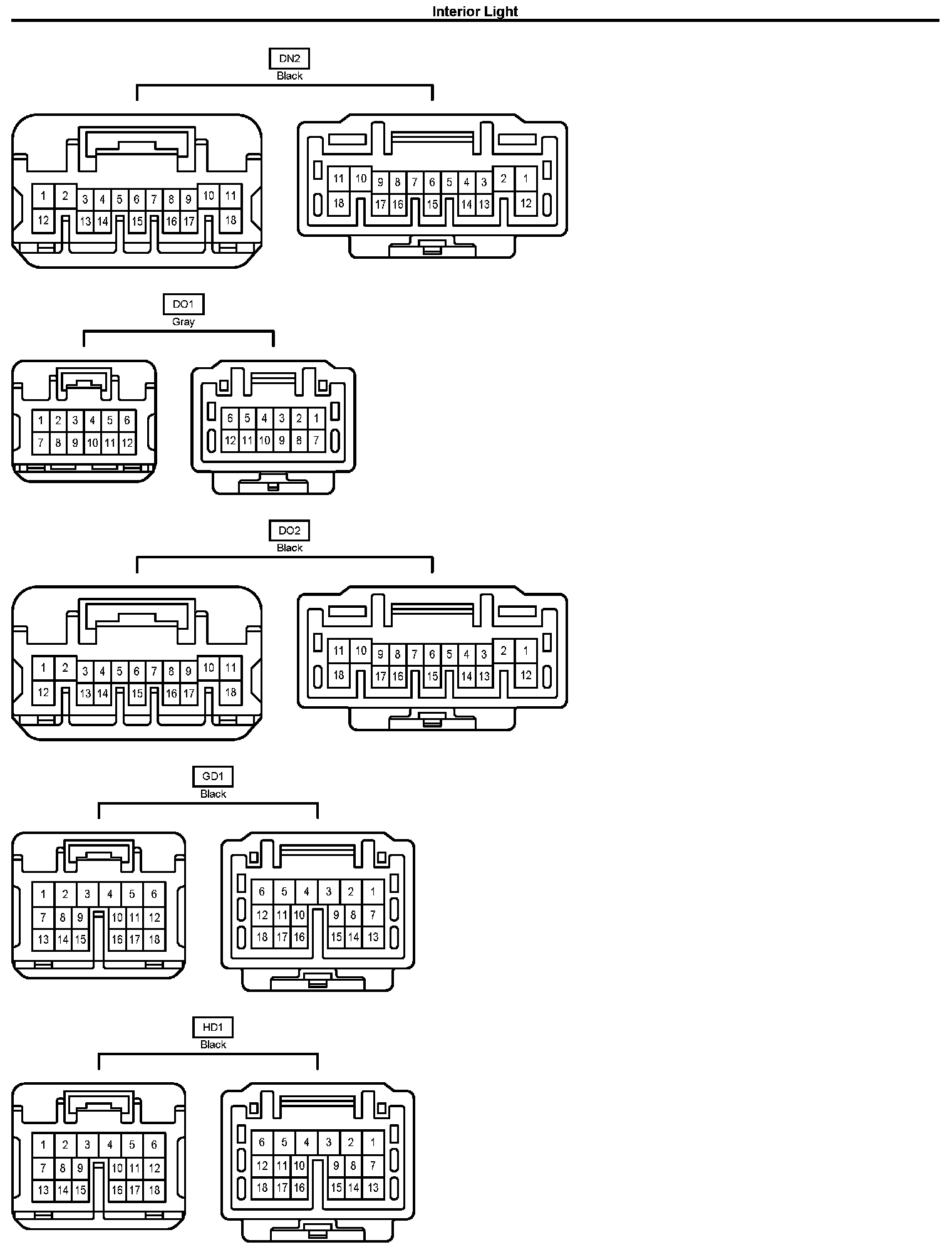

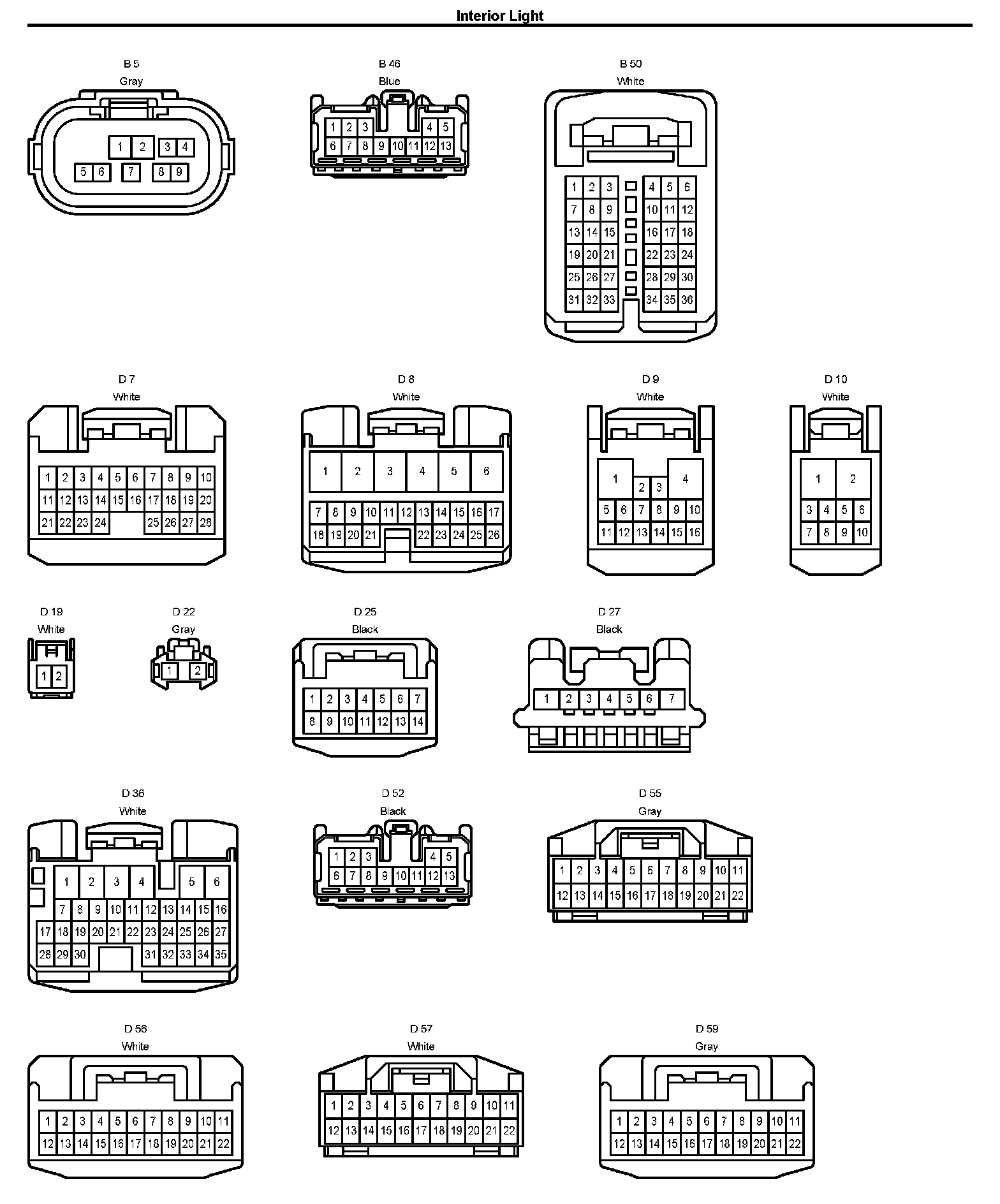

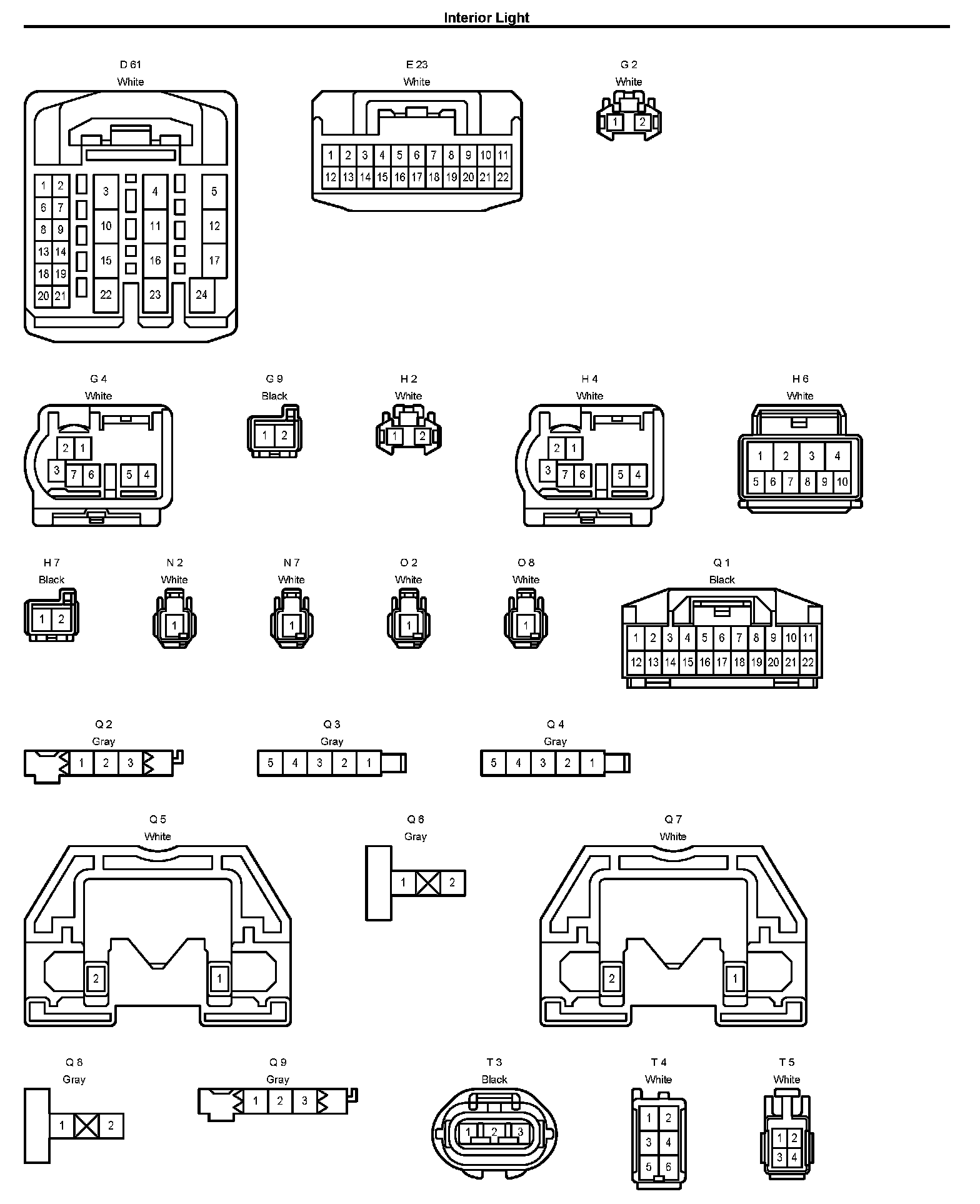

Connectors Part 1:

Connectors Part 2:

Connectors Part 3:

Connectors Part 4:

Connectors Part 5:

Connectors Part 6:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
