Electrical Diagrams

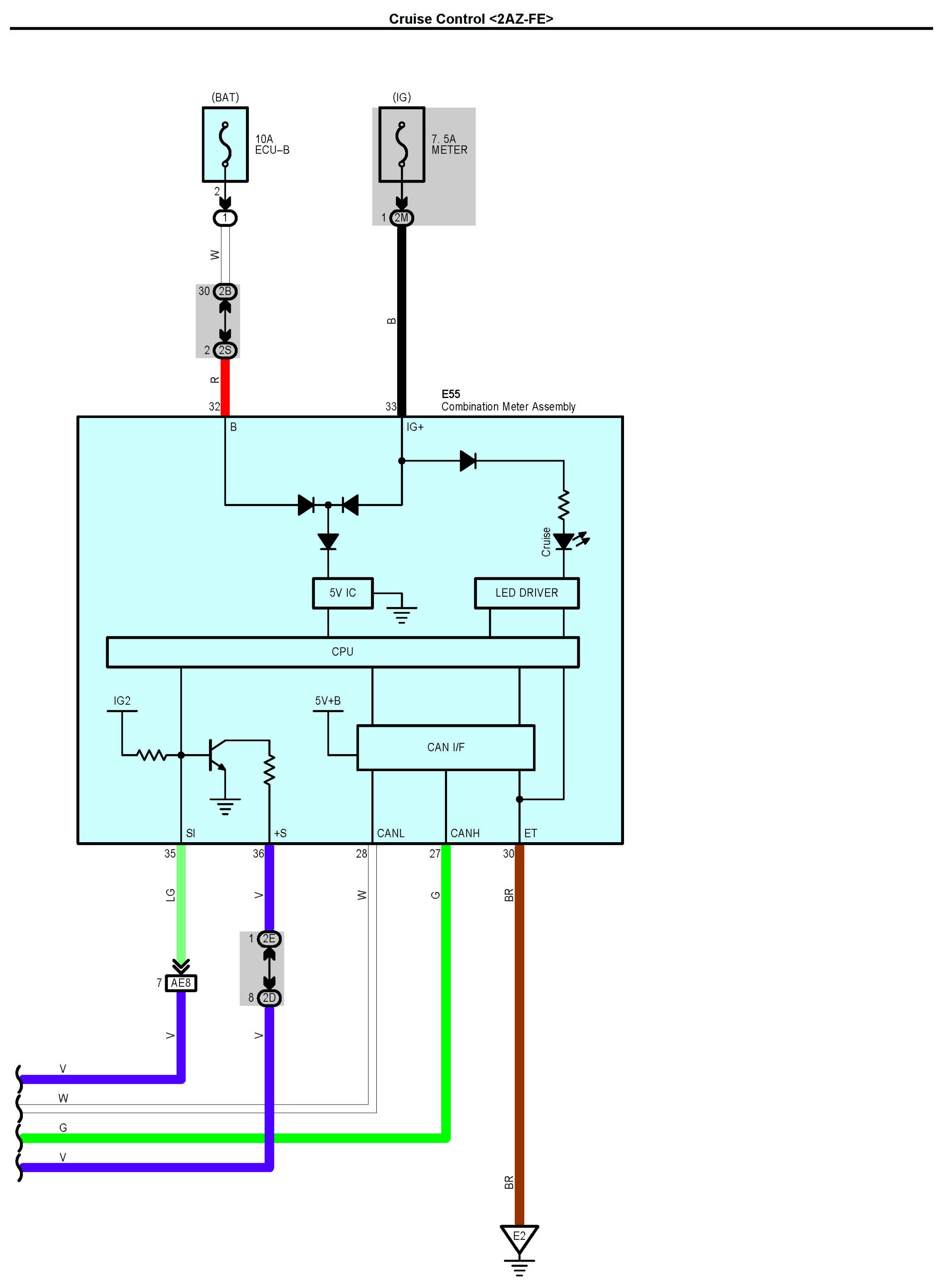

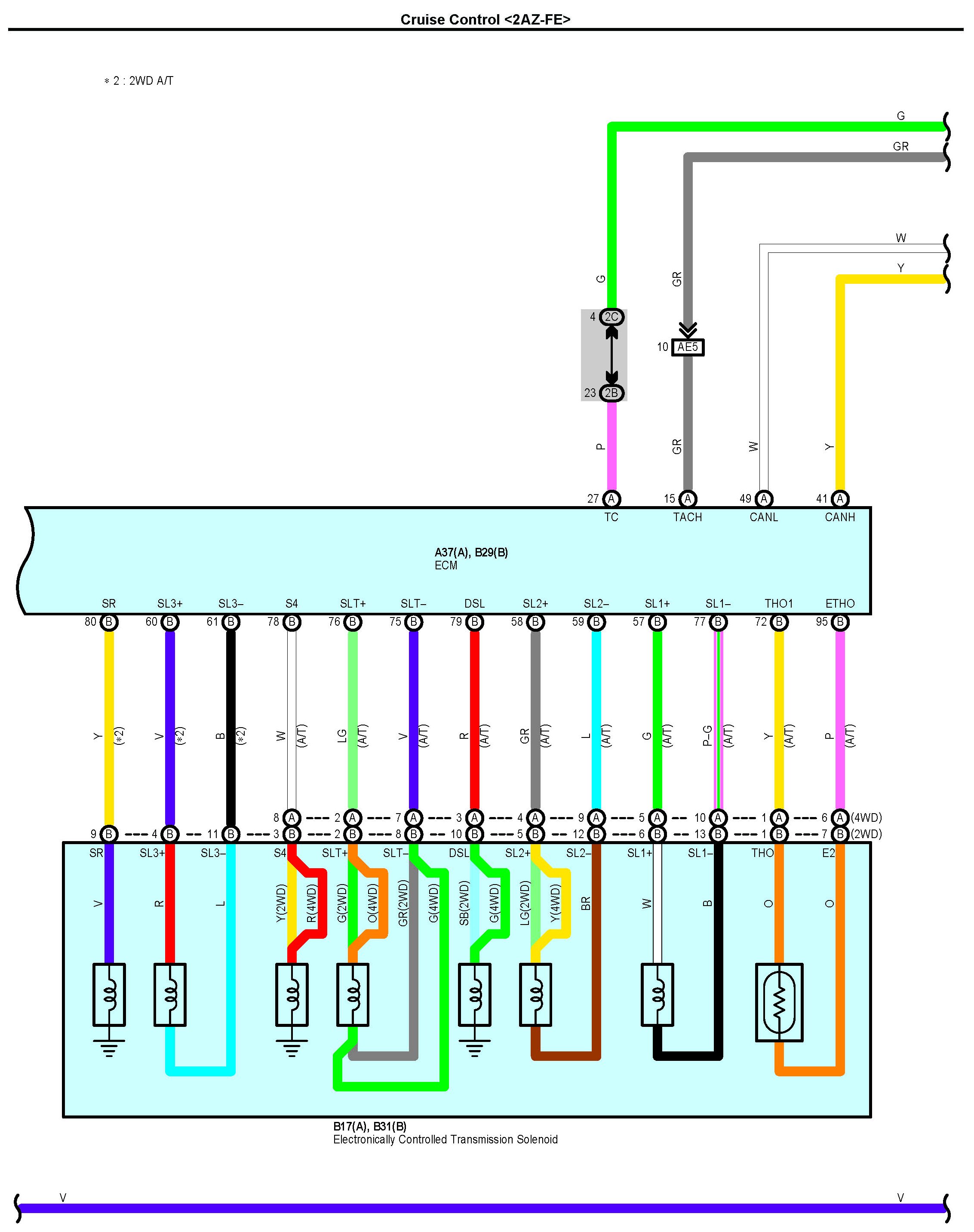

Cruise Control Part 1:

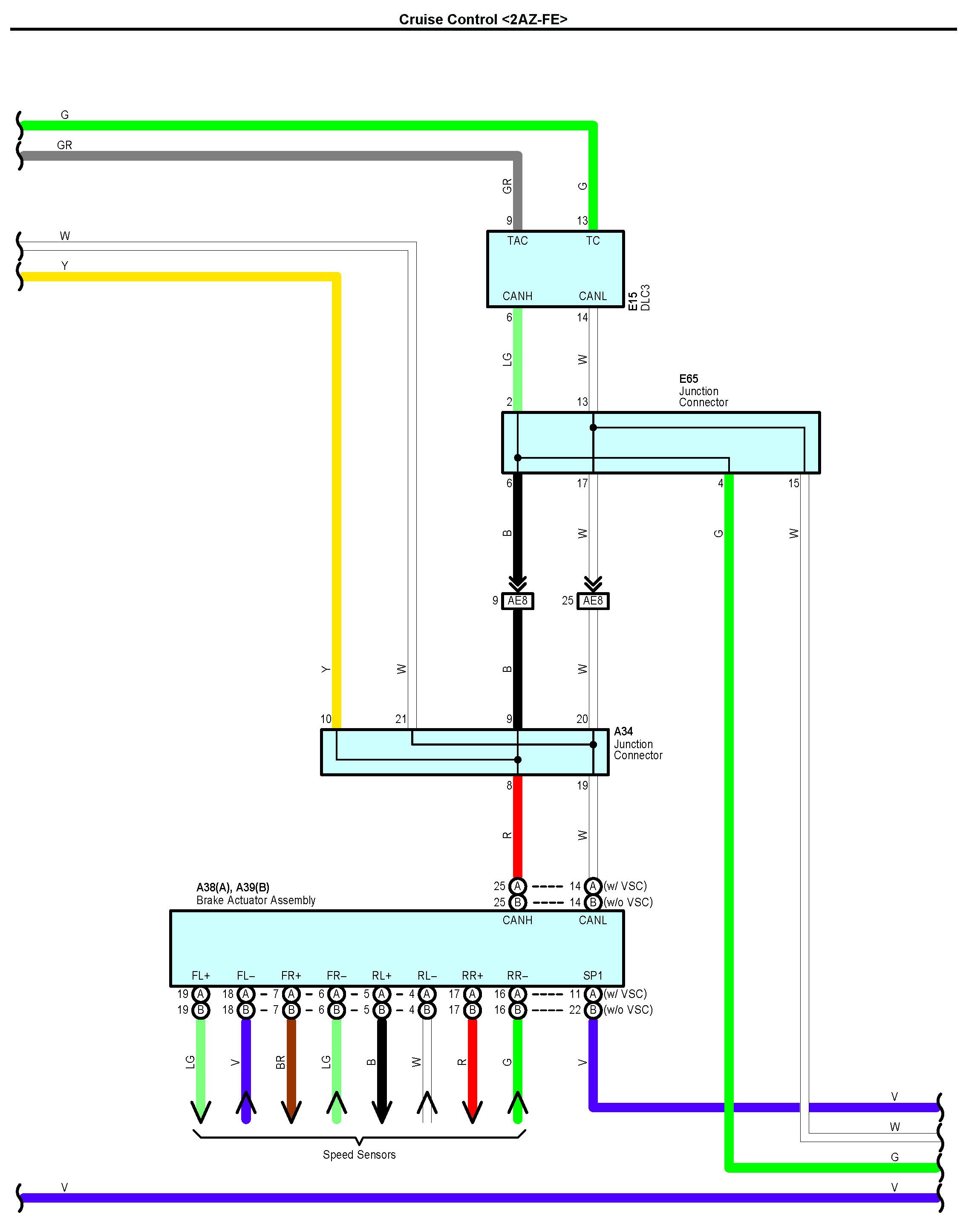

Cruise Control Part 2:

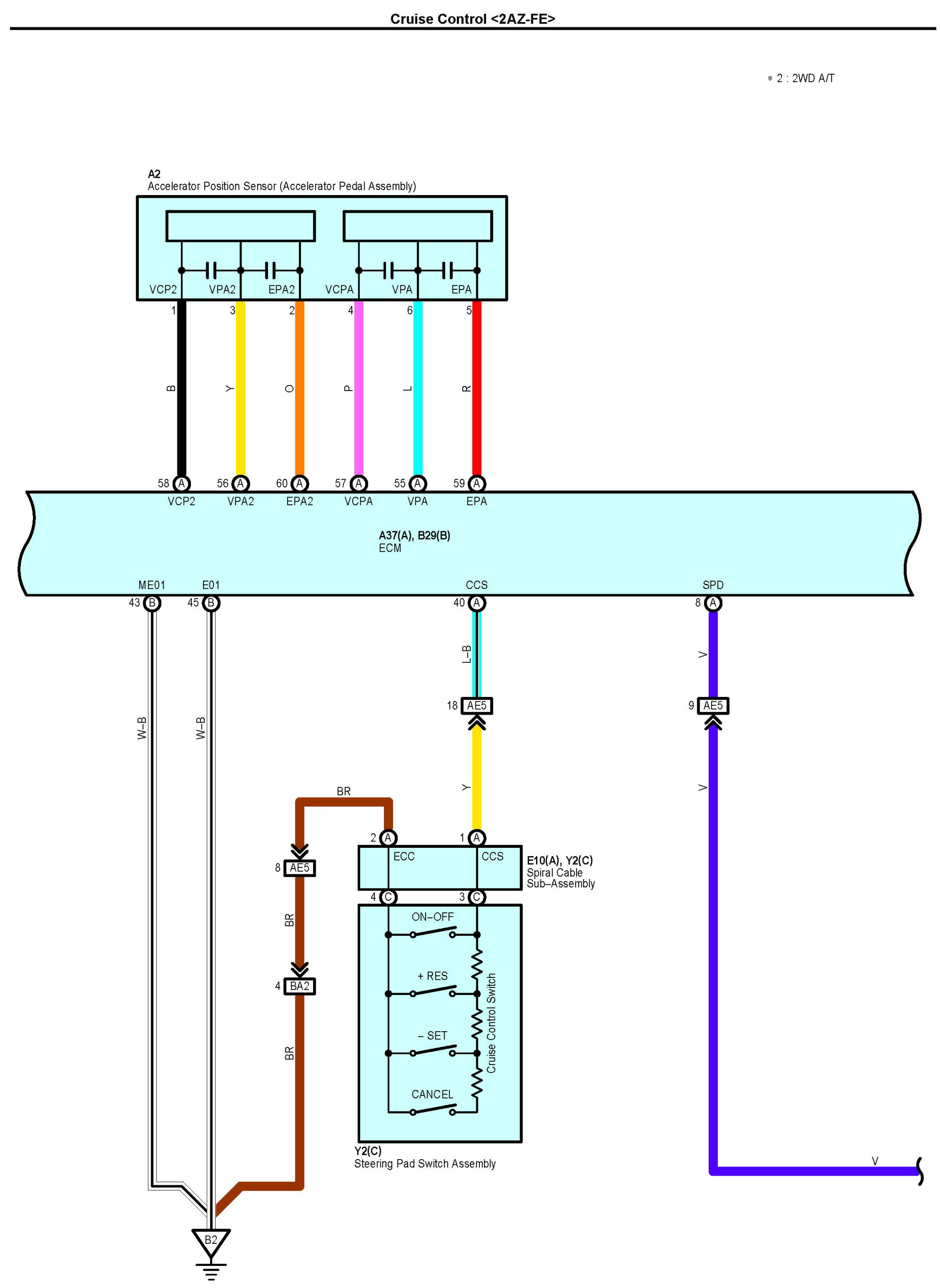

Cruise Control Part 3:

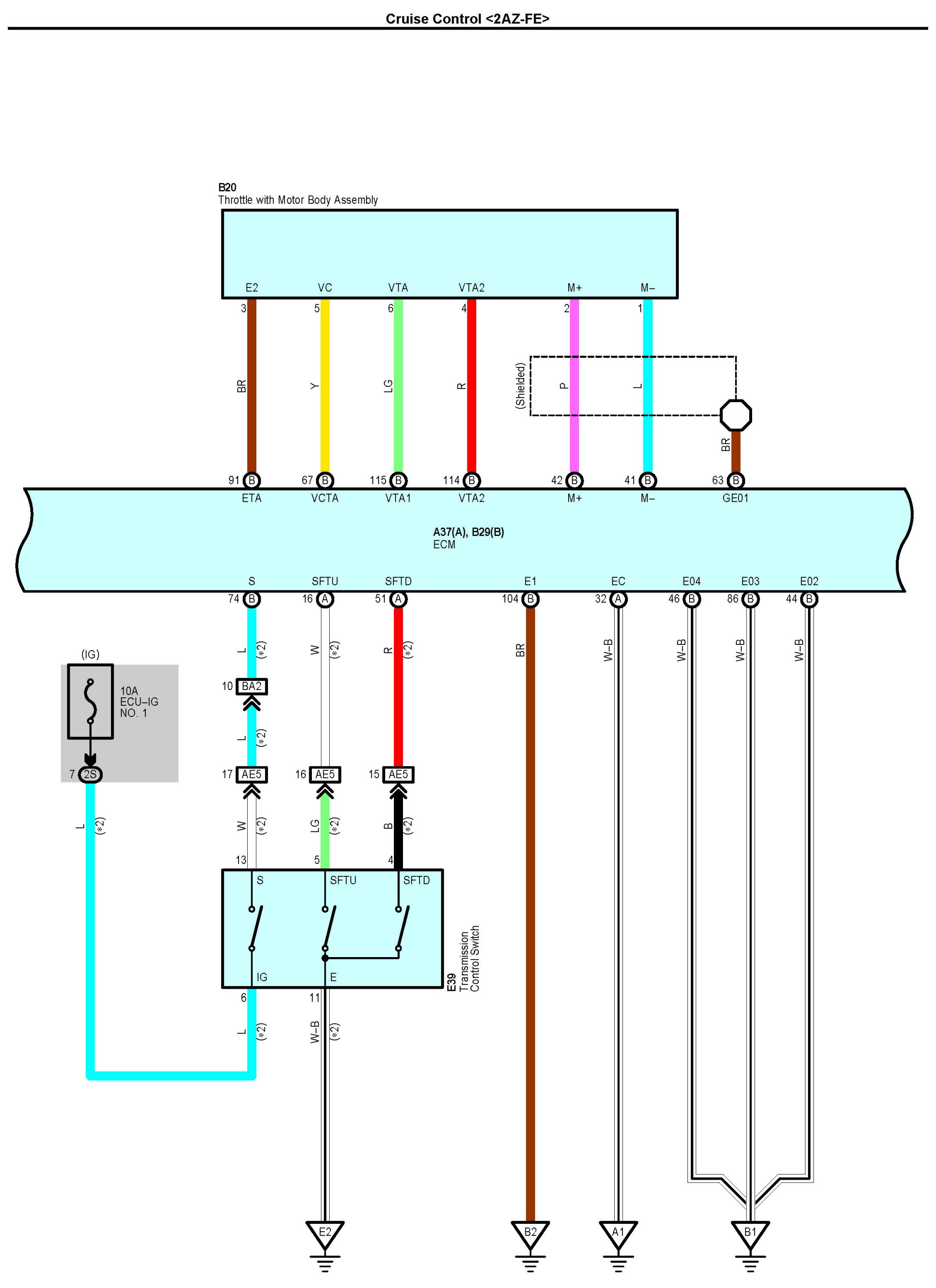

Cruise Control Part 4:

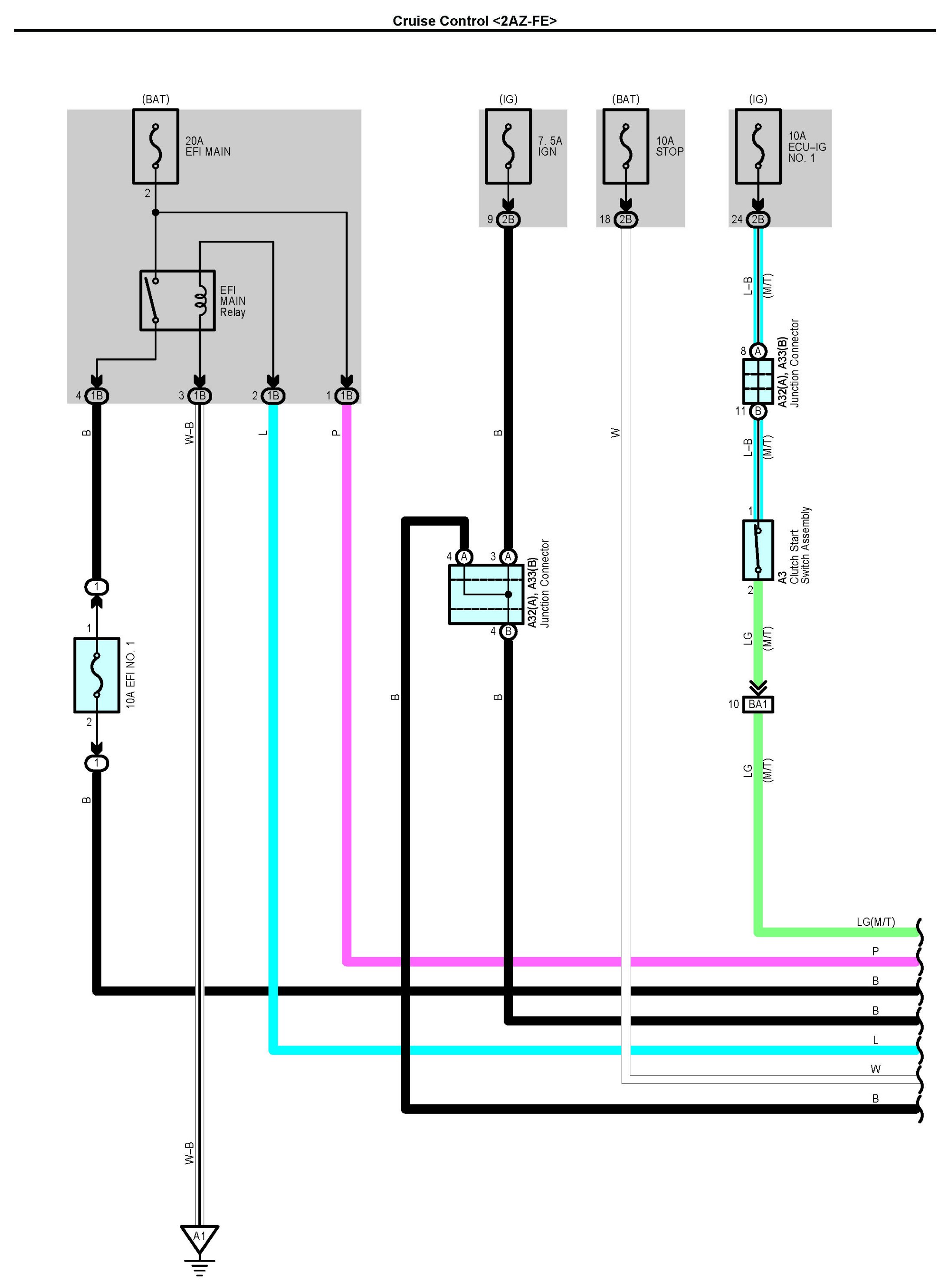

Cruise Control Part 5:

Cruise Control Part 6:

Cruise Control Part 7:

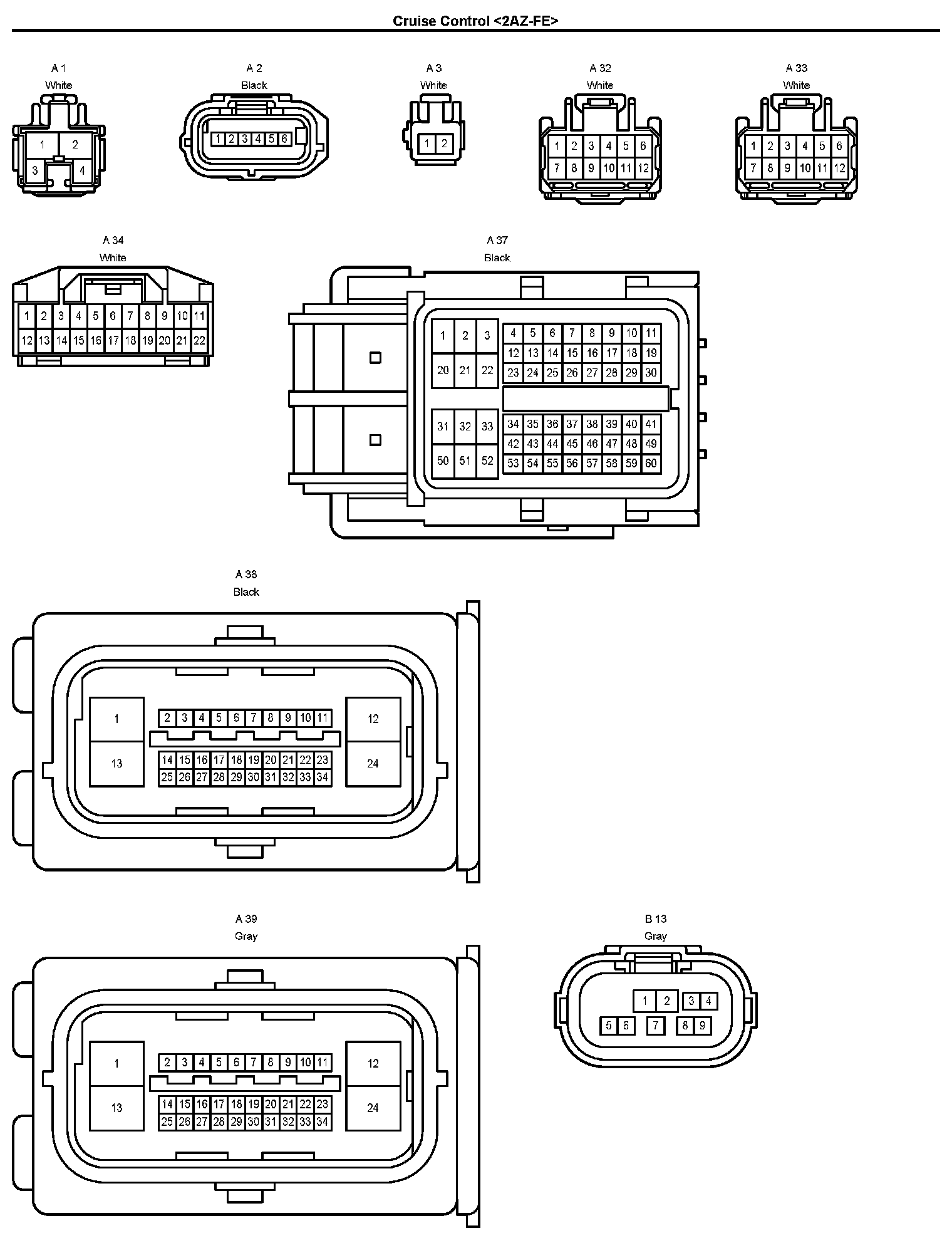

Connectors Part 1:

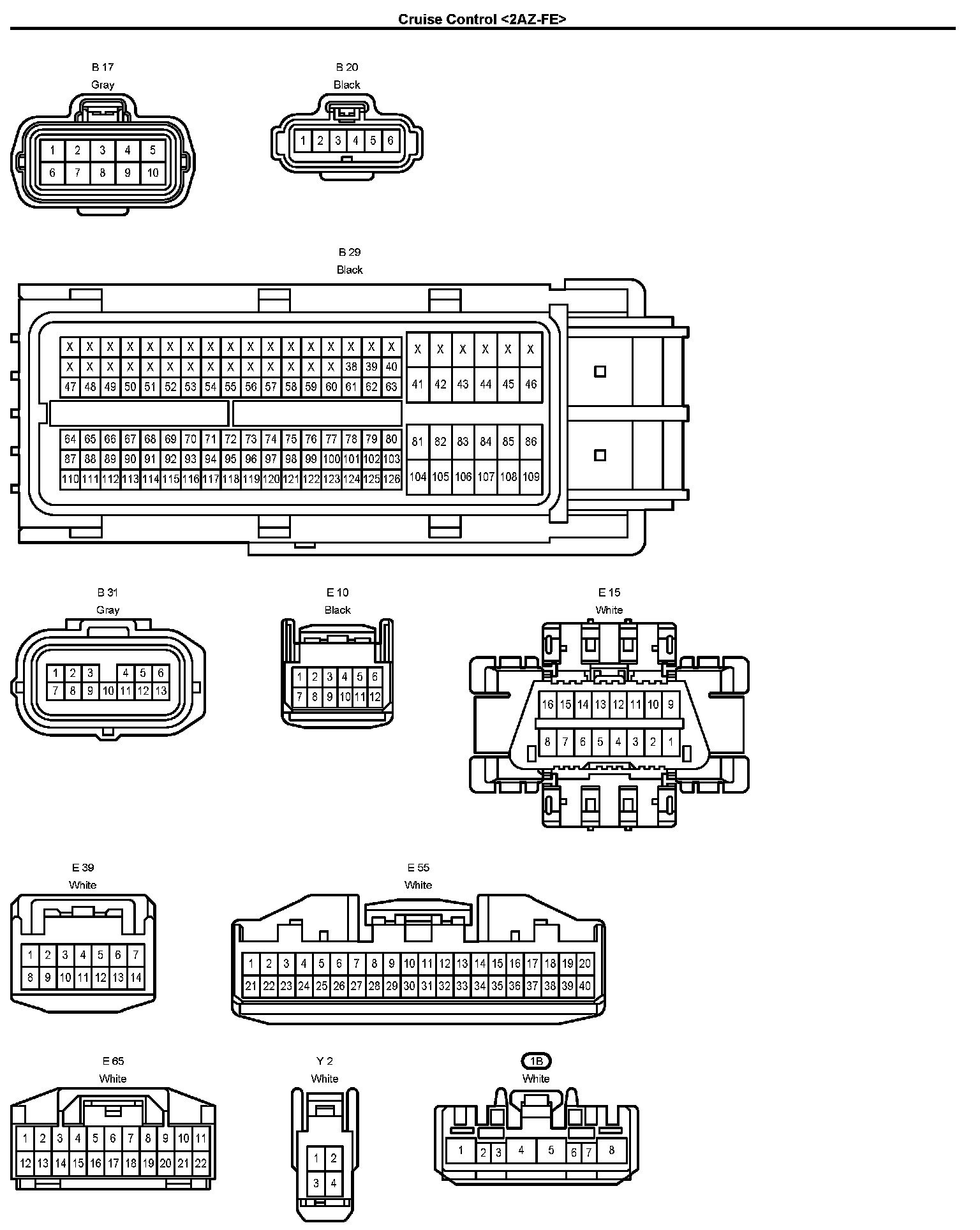

Connectors Part 2:

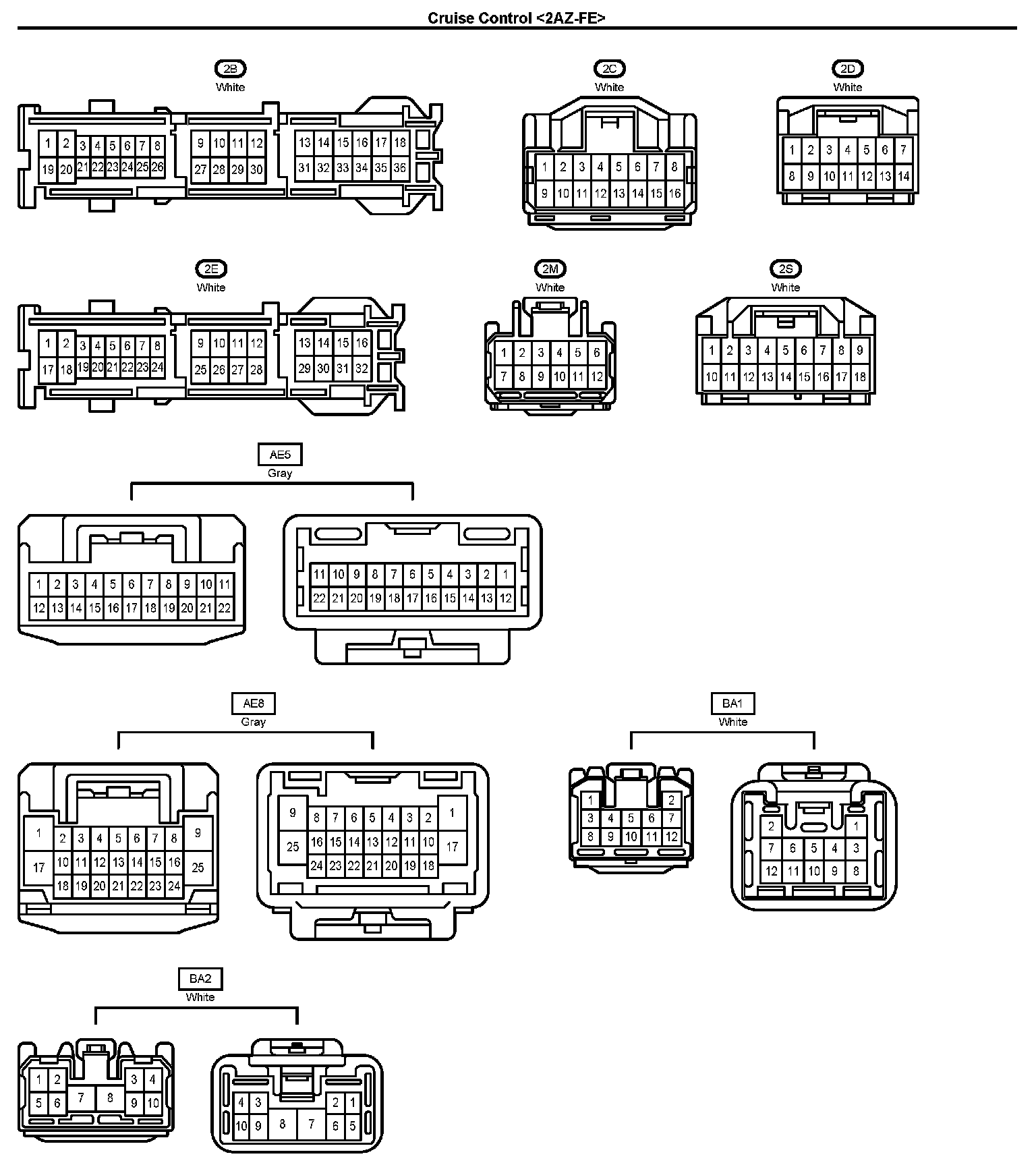

Connectors Part 3:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
