Operation CHARM: Car repair manuals for everyone.
Home >> Toyota >> 2010 >> Matrix AWD L4-2.4L (2AZ-FE) >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Cylinder Head Assembly >> Service and Repair >> Removal and Replacement >> Components

Components

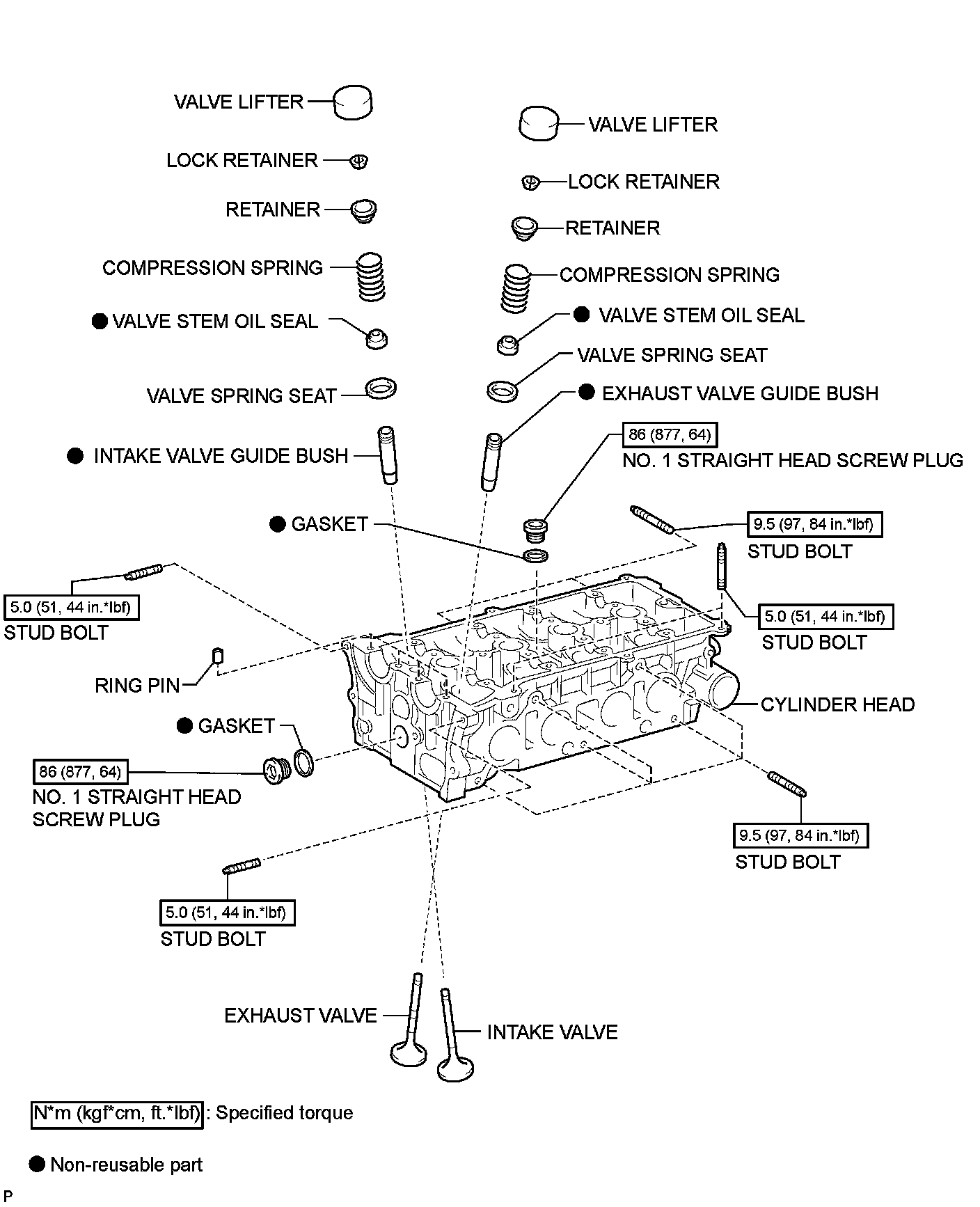

2AZ-FE ENGINE MECHANICAL: CYLINDER HEAD: COMPONENTS
