Disassembly

LIGHTING (EXT): REAR COMBINATION LIGHT ASSEMBLY: DISASSEMBLY

1. REMOVE REAR COMBINATION LIGHT GASKET

(a) Remove the rear combination light gasket.





NOTICE:
* Be sure to remove all traces of the old gasket from the body.
* Do not reuse the removed gasket. Be sure to install a new rear combination light gasket to prevent water ingress.
2. REMOVE REAR TURN SIGNAL LIGHT BULB

(a) Disengage the guide.

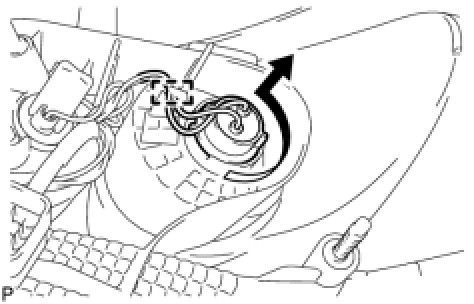

(b) Turn the rear turn signal light bulb and the rear combination light socket and wire in the direction indicated by the arrow and remove them as a unit.

(c) Remove the rear turn signal light bulb from the rear combination light socket and wire.

3. REMOVE BACK UP LIGHT BULB

(a) Turn the back up light bulb and the rear combination light socket and wire in the direction indicated by the arrow and remove them as a unit.





(b) Remove the back up light bulb from the rear combination light socket and wire.

4. REMOVE TAIL AND STOP LIGHT BULB

(a) Turn the tail and stop light bulb and the rear combination light socket and wire in the direction indicated by the arrow and remove them as a unit.





(b) Remove the tail and stop light bulb from the rear combination light socket and wire.

5. REMOVE REAR COMBINATION LIGHT SOCKET AND WIRE

(a) Disengage the claw and remove the rear combination light socket and wire from the rear combination light lens and body.
