Fuel System - Extended High Altitude/Hot Crank Time
T-SB-0069-11July 5, 2011
Extended Crank at High Altitude with High Temperatures
Service Category
Engine/Hybrid System
Section
Fuel System
Market
USA

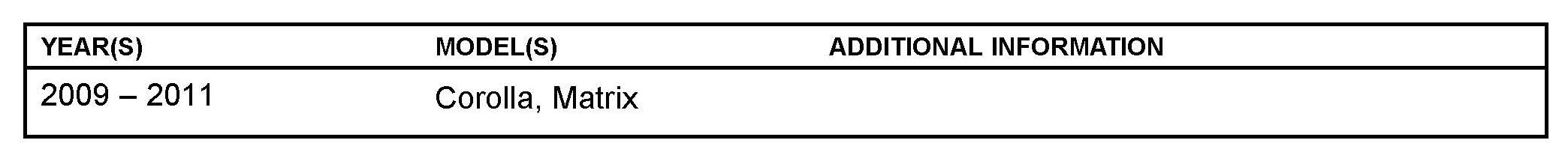

Applicability
Introduction
Some 2009 - 2011 model year Corolla or Matrix vehicles may exhibit a temporary extended crank condition when attempting to start the vehicle following operation in high altitude high temperature and high vehicle load conditions. Replace the fuel pump to address this condition.

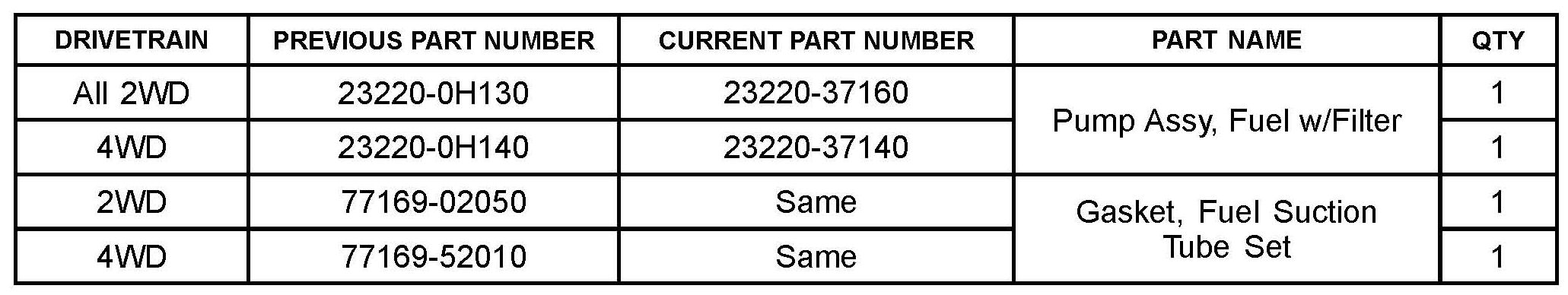

Parts Information

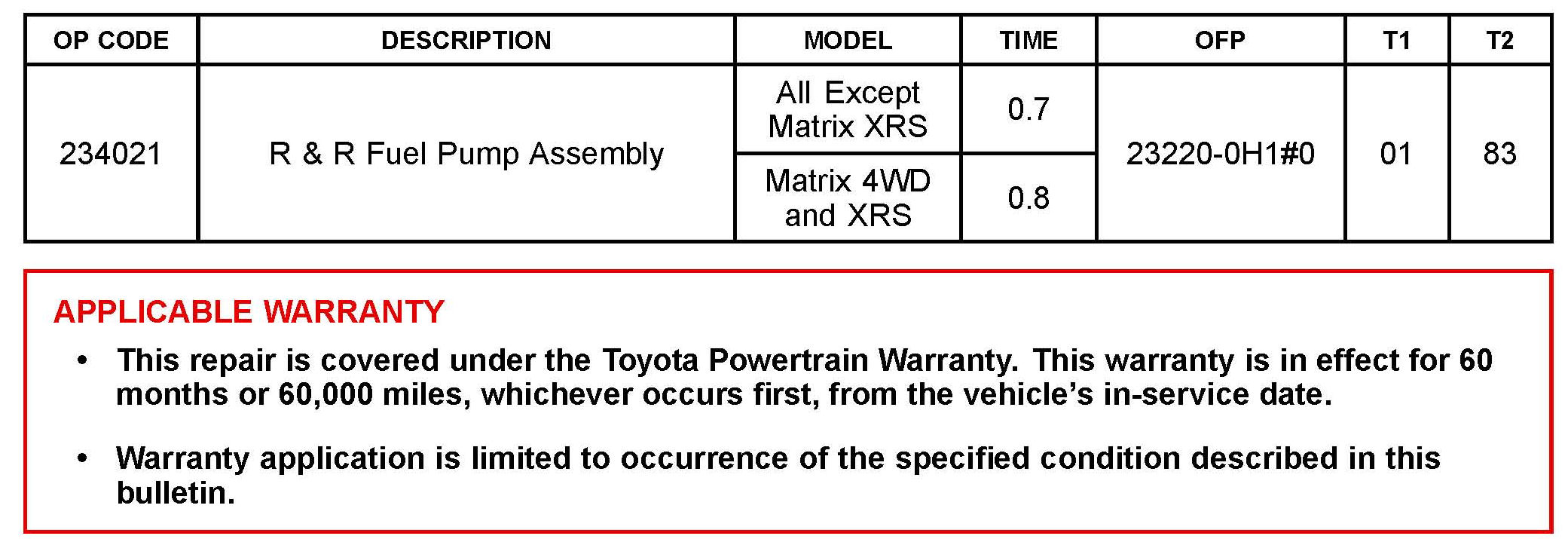

Warranty Information

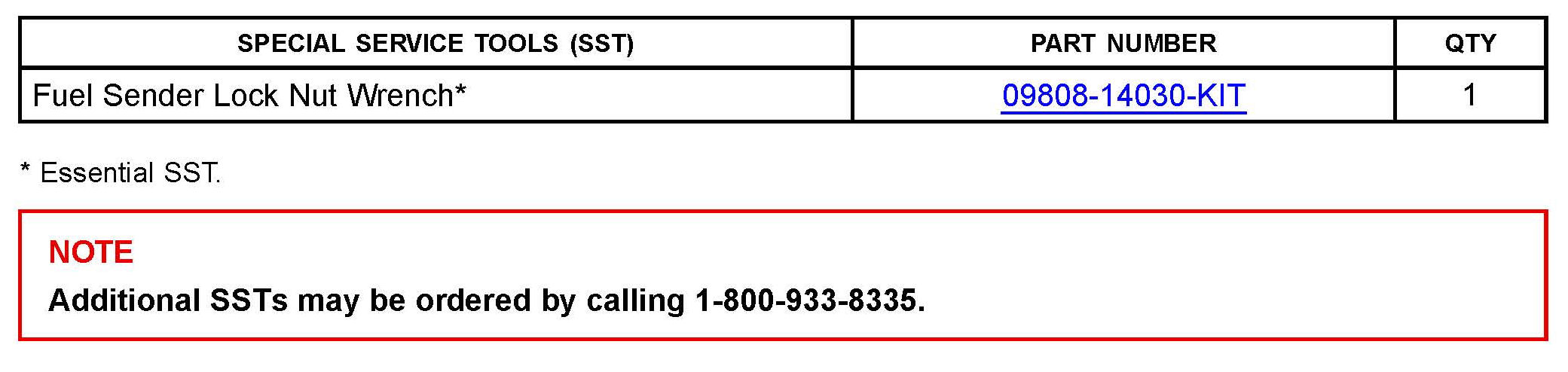

Required Tools & Equipment
Repair Procedure
1. Verify that the condition occurs when operating the vehicle in high altitude high temperature and high vehicle load conditions.
2. Replace the fuel pump.

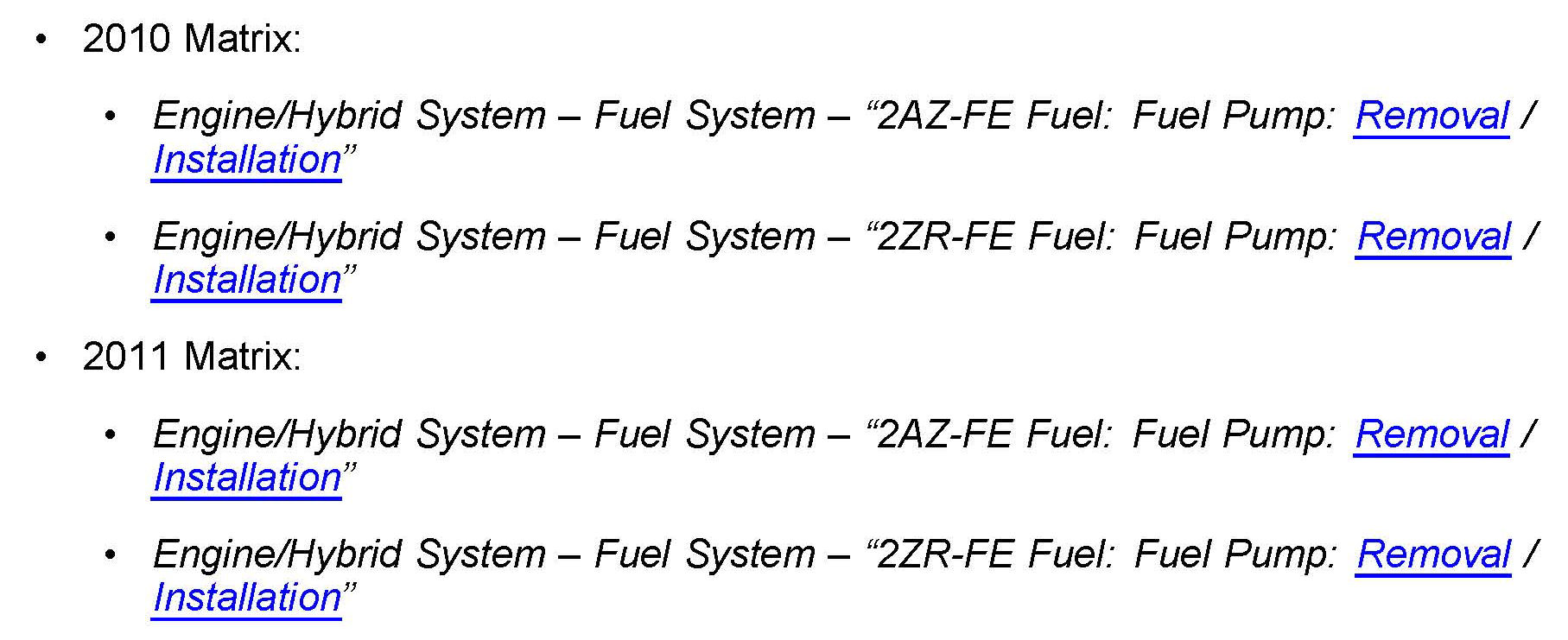

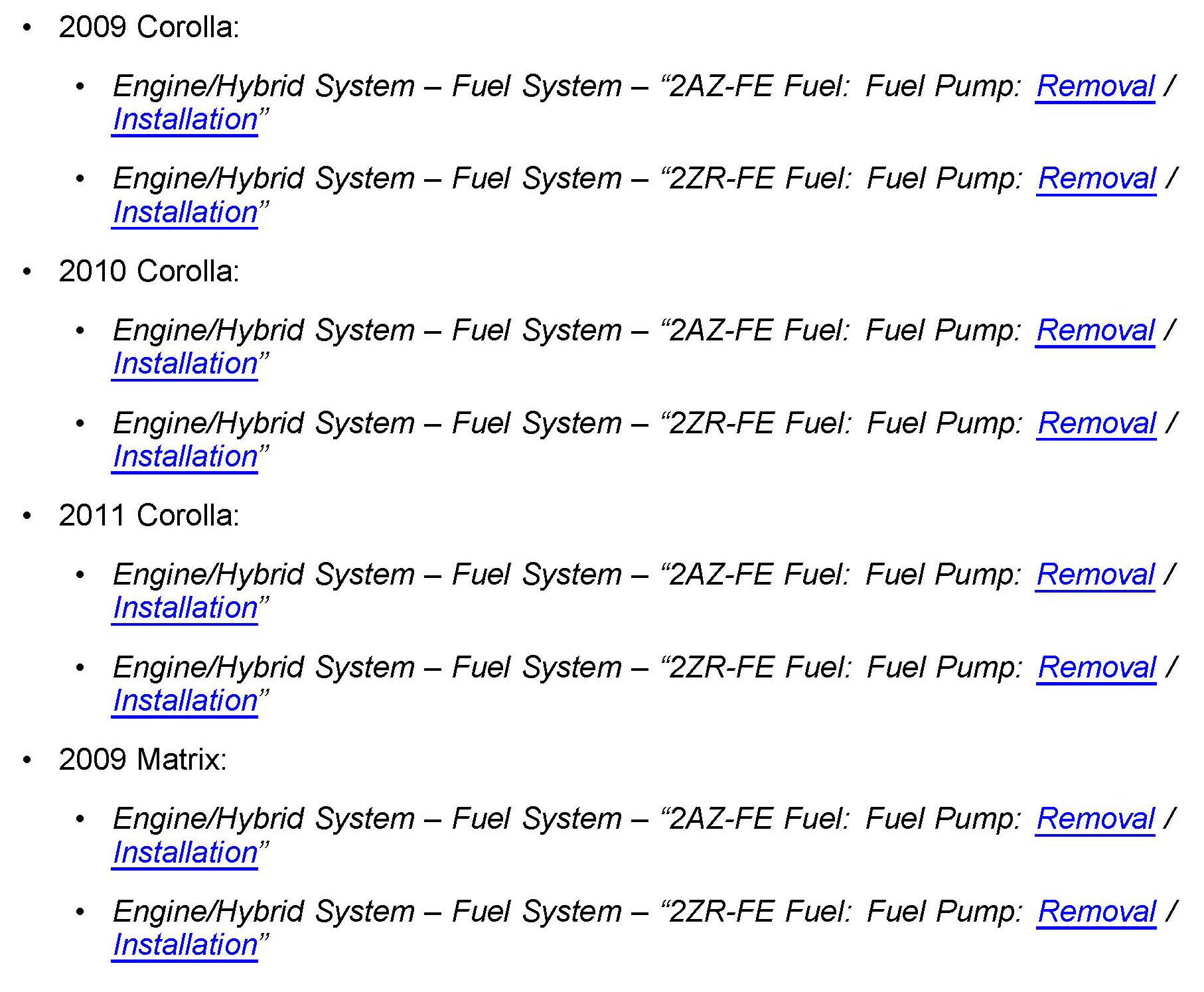

Refer to the Technical Information System (TIS) applicable model and model year Repair Manual:
