Engine Control Part 1

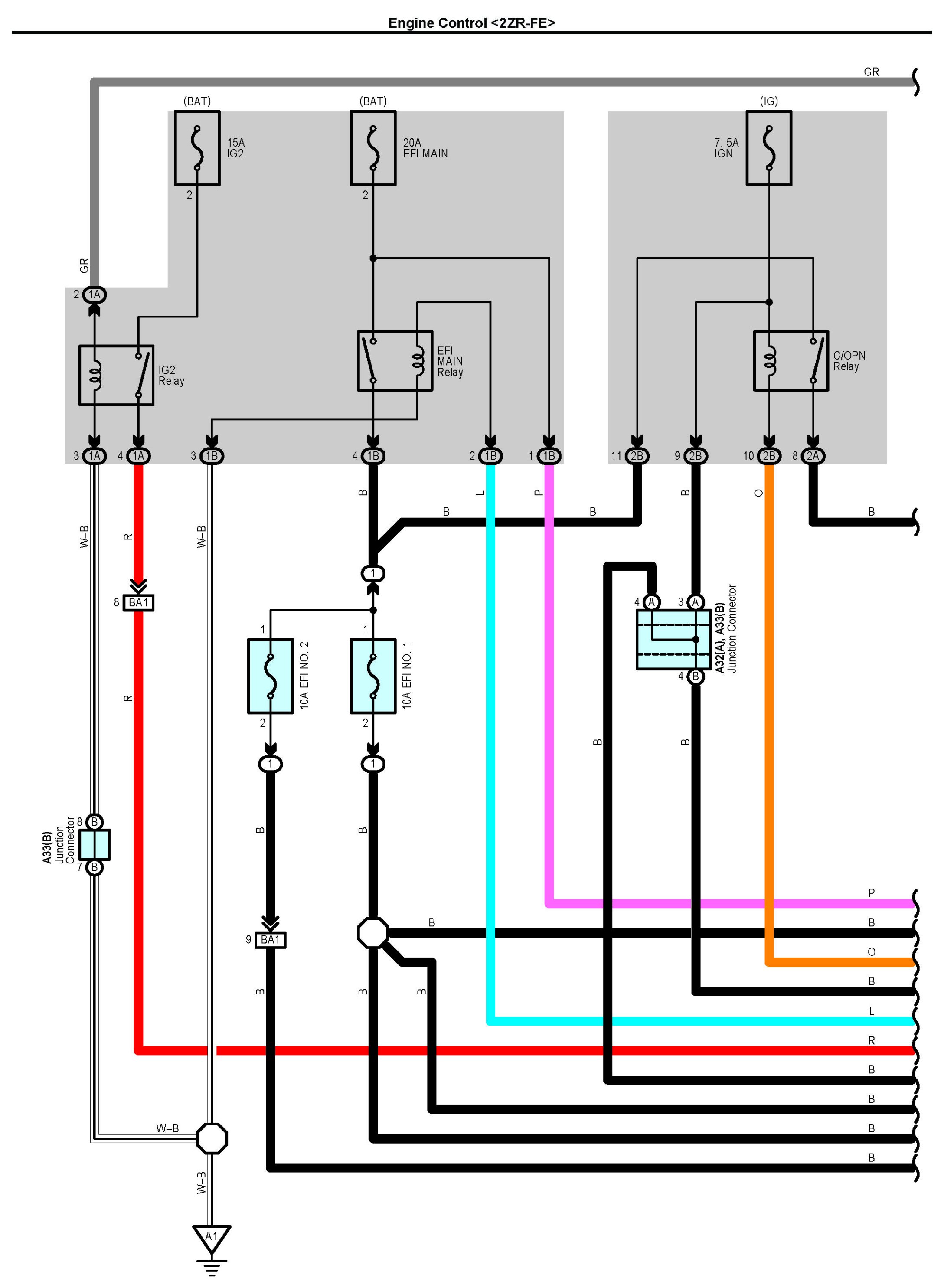

Engine Control Part 1:

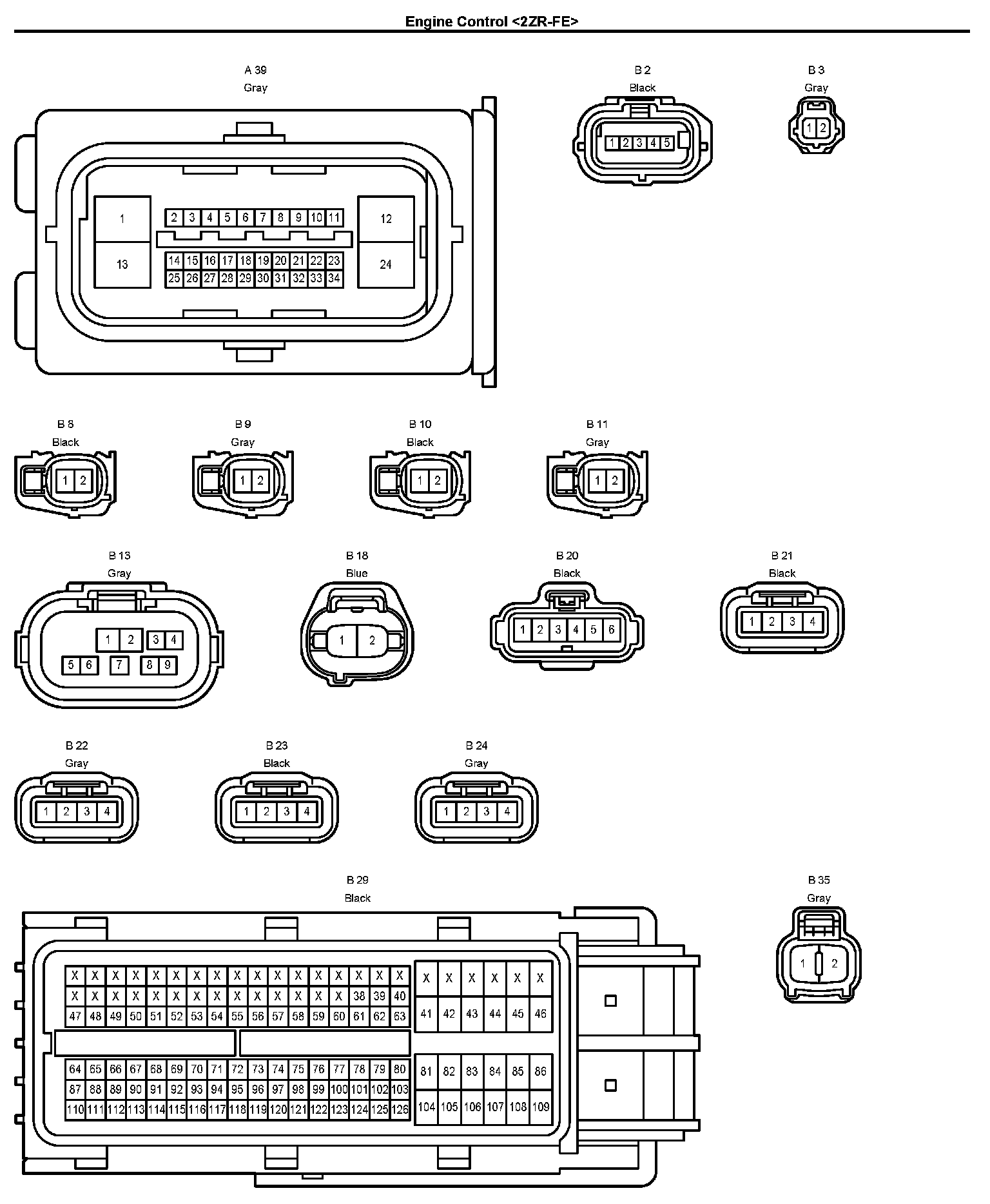

Connectors Part 1:

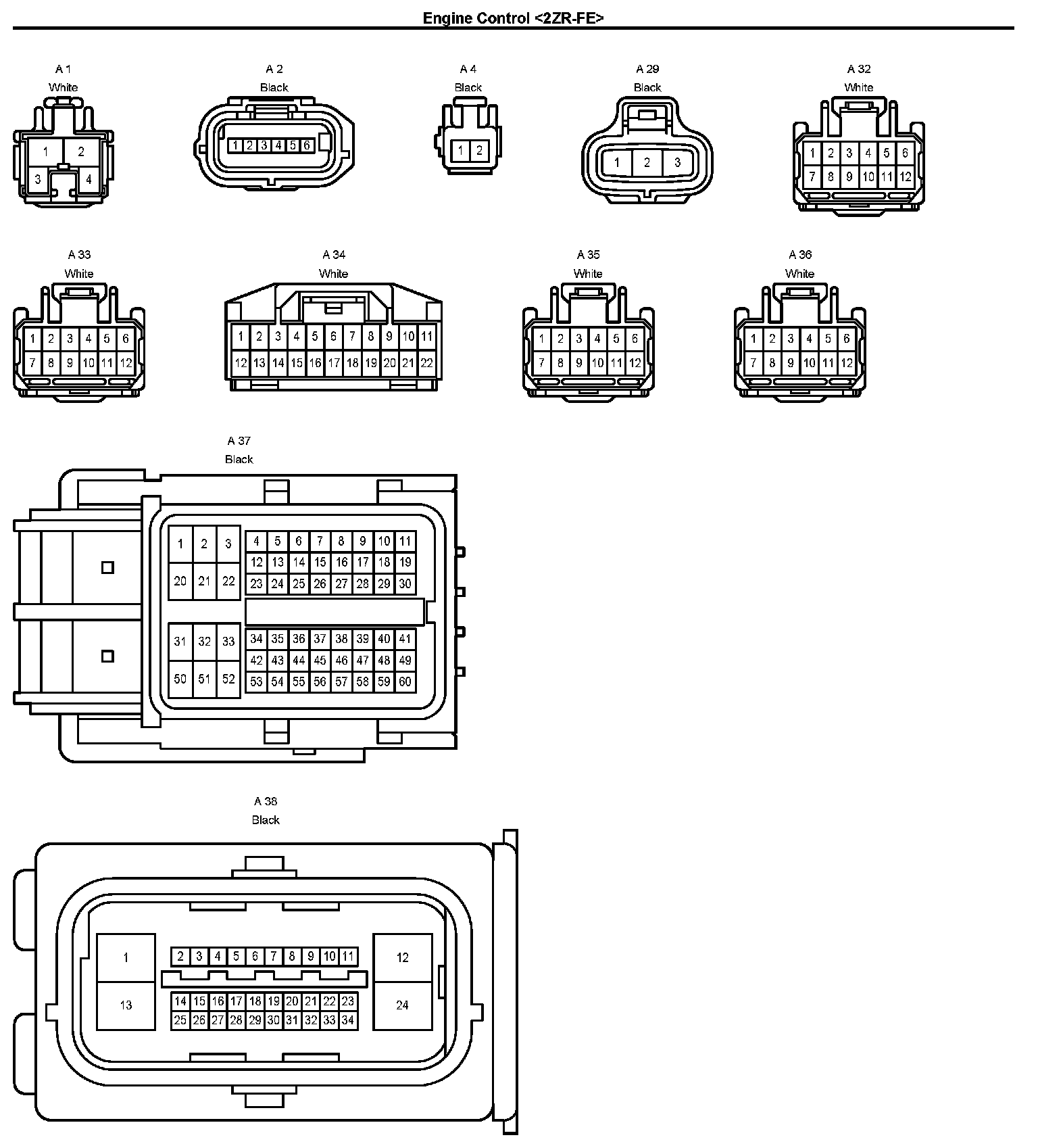

Connectors Part 2:

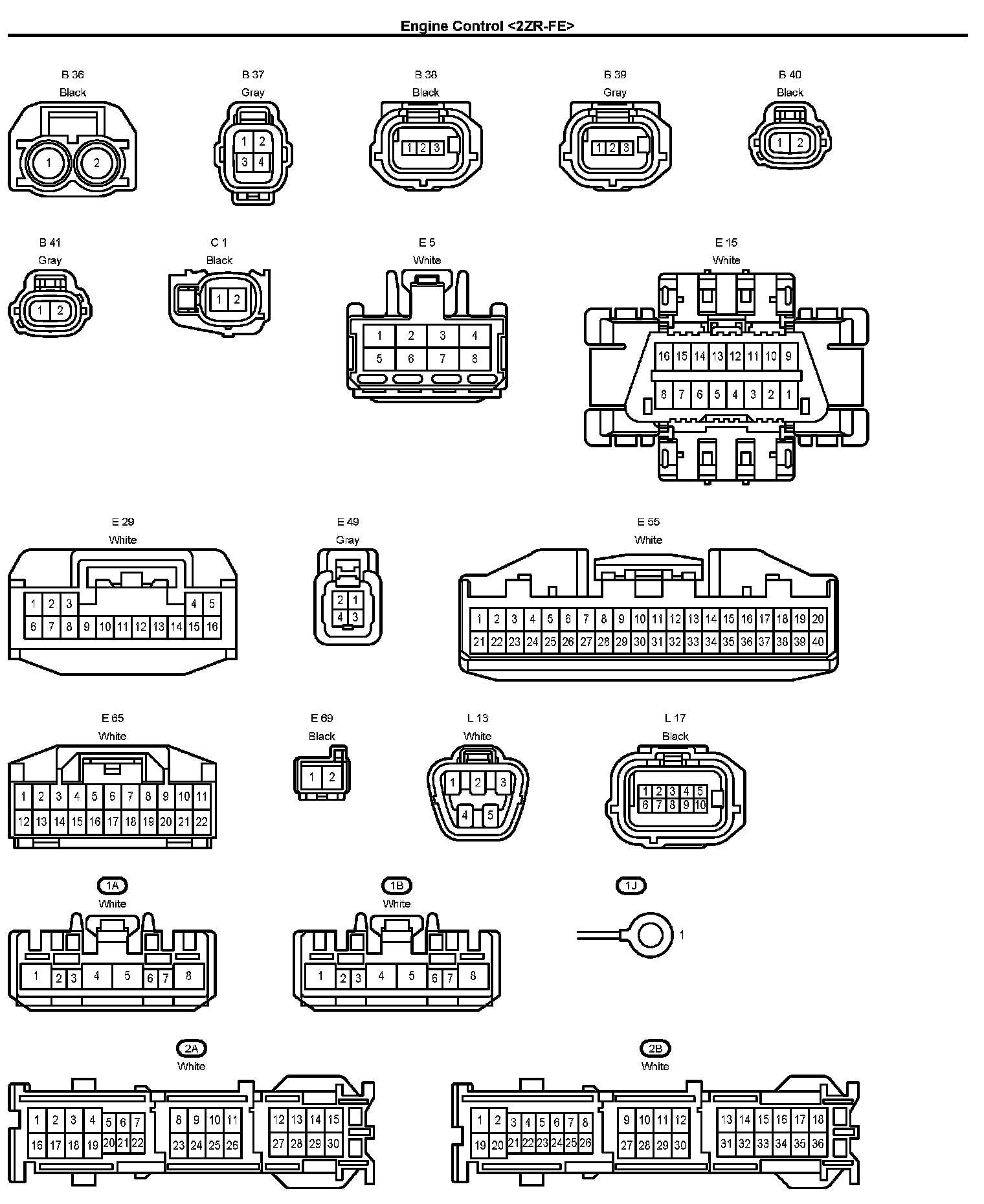

Connectors Part 3:

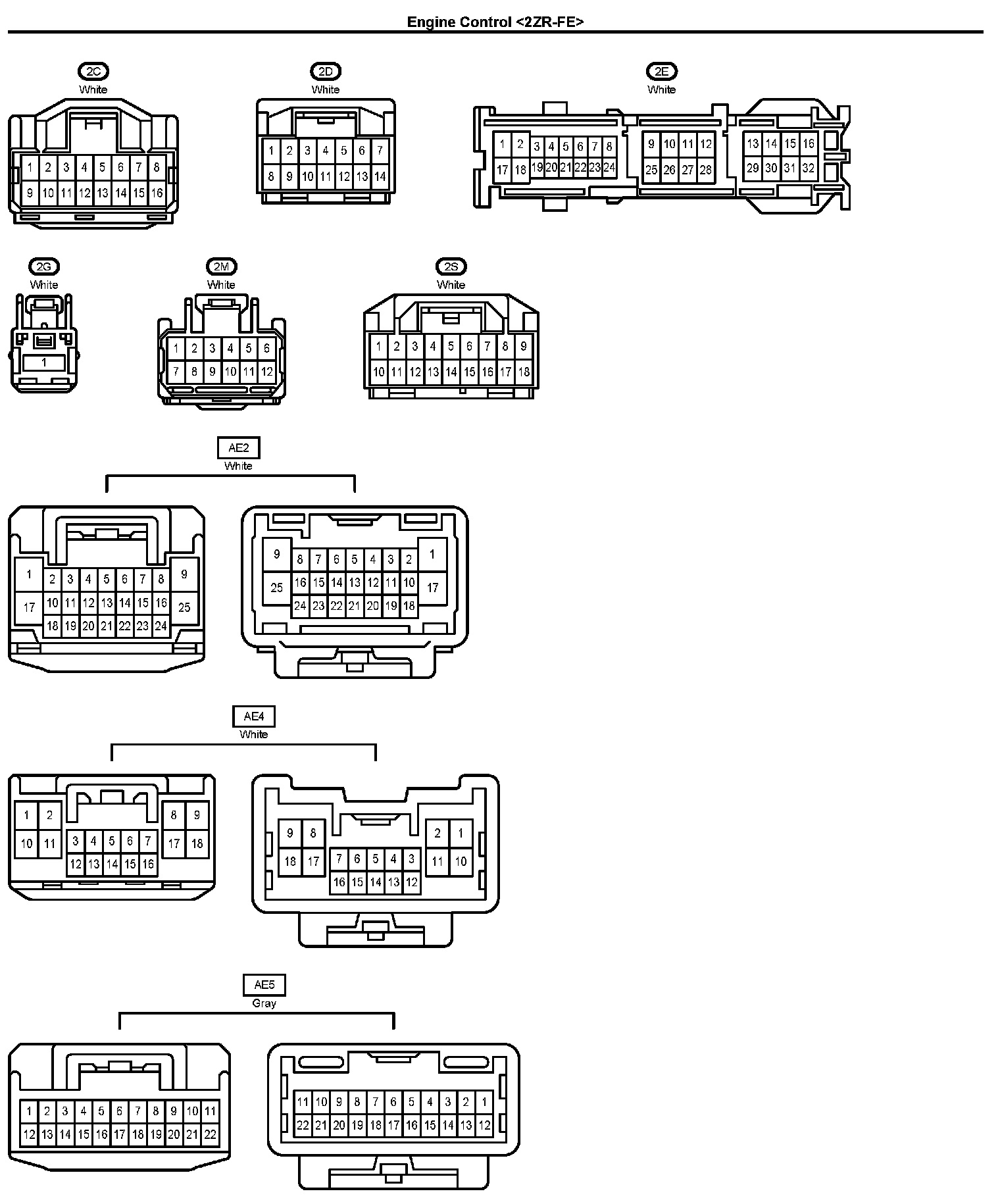

Connectors Part 4:

Connectors Part 5:

Next Diagram Engine Control Part 2

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
