Specifications
>>
Electrical Specifications
Electrical Specifications

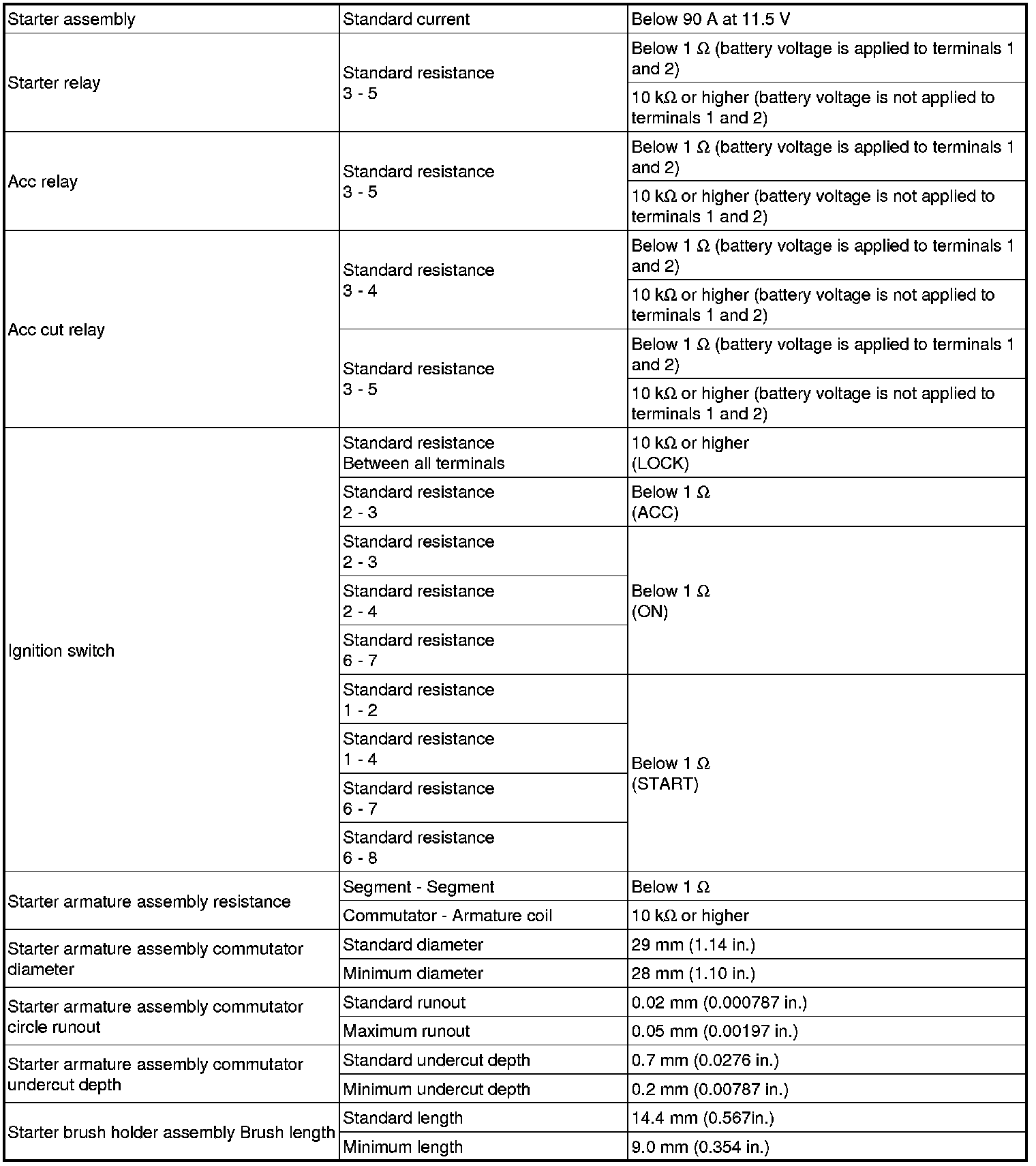

SPECIFICATIONS: 2ZR-FE STARTING: SERVICE DATA
