Operation CHARM
: Car repair manuals for everyone.
Home
>>
Toyota
>>
2010
>>
Matrix FWD L4-2.4L (2AZ-FE)
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Manual Transmission/Transaxle
>>
Service Data
Service Data

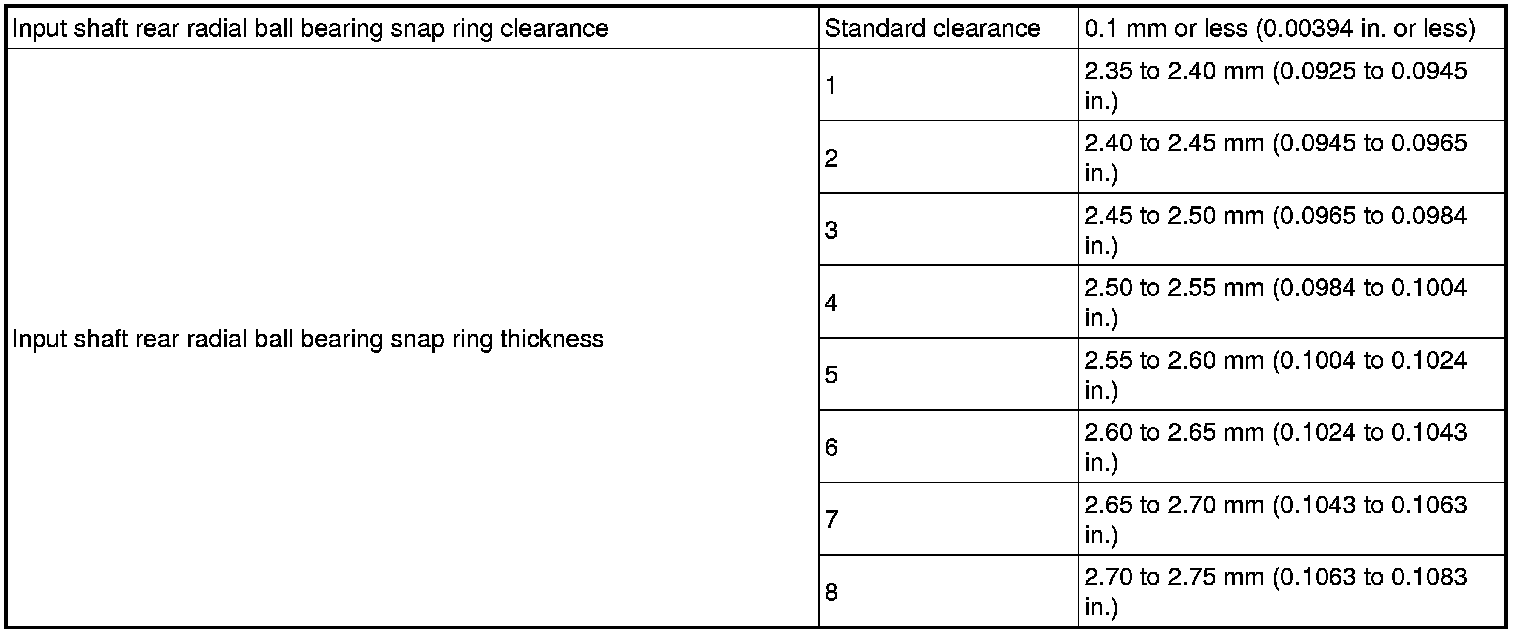

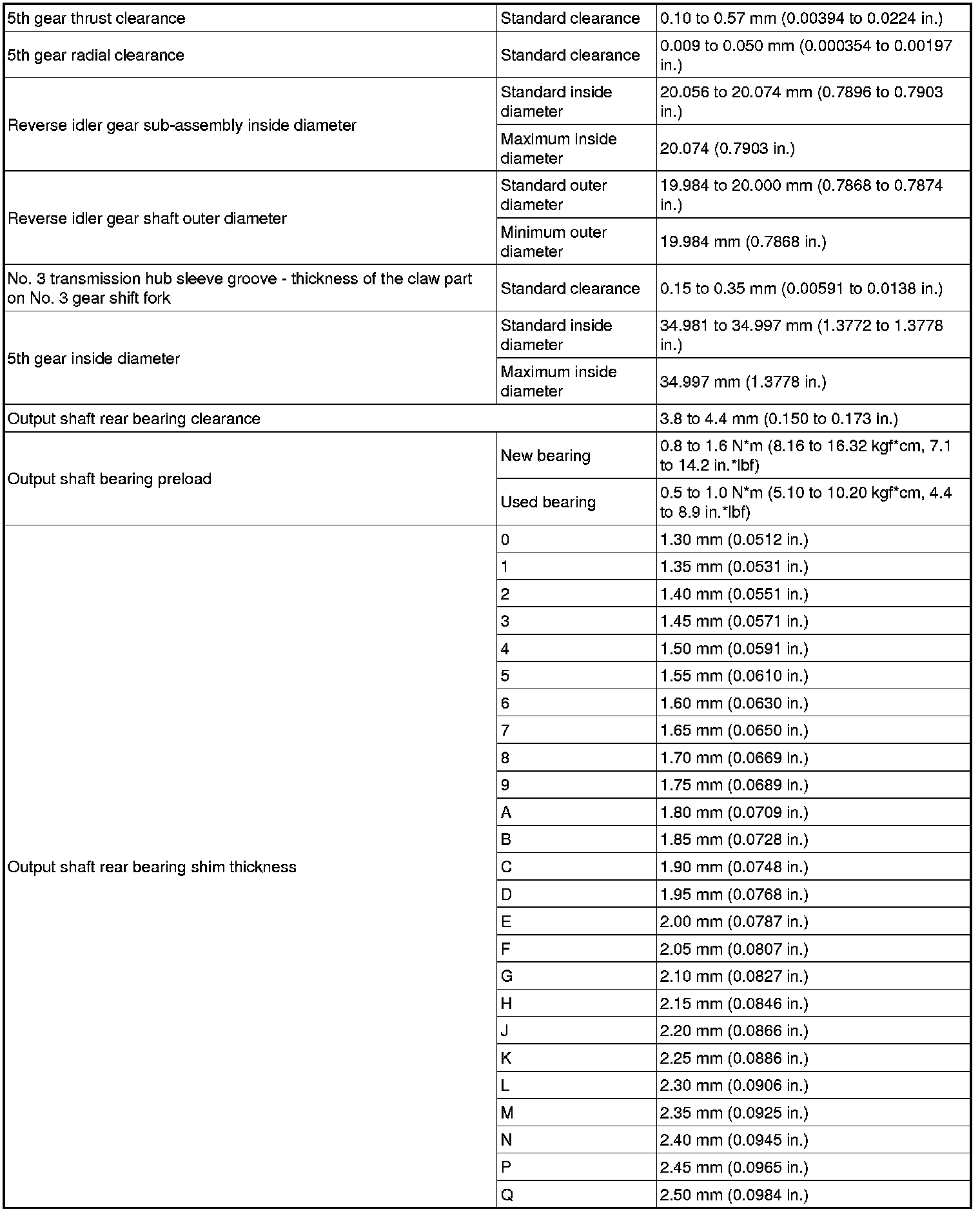

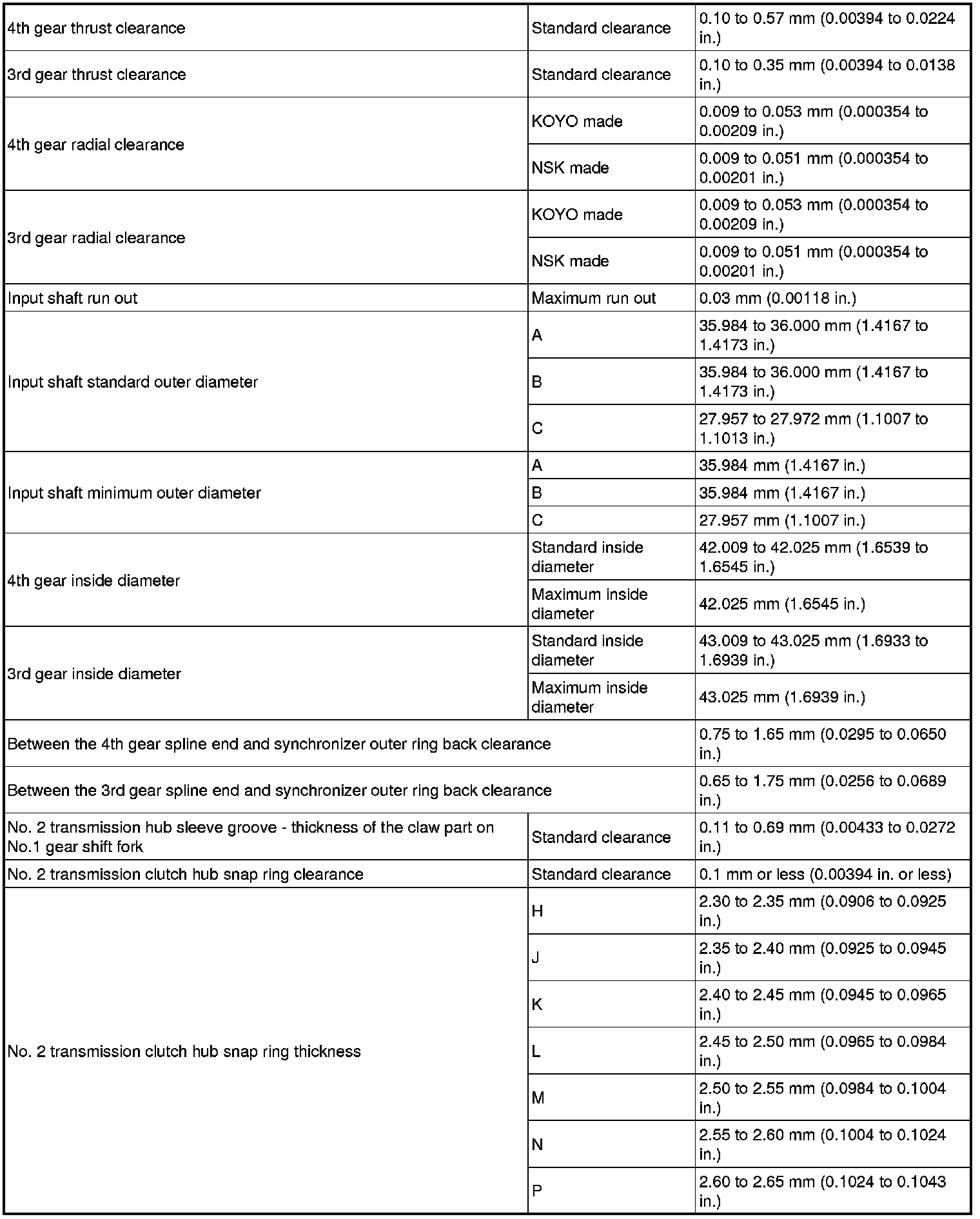

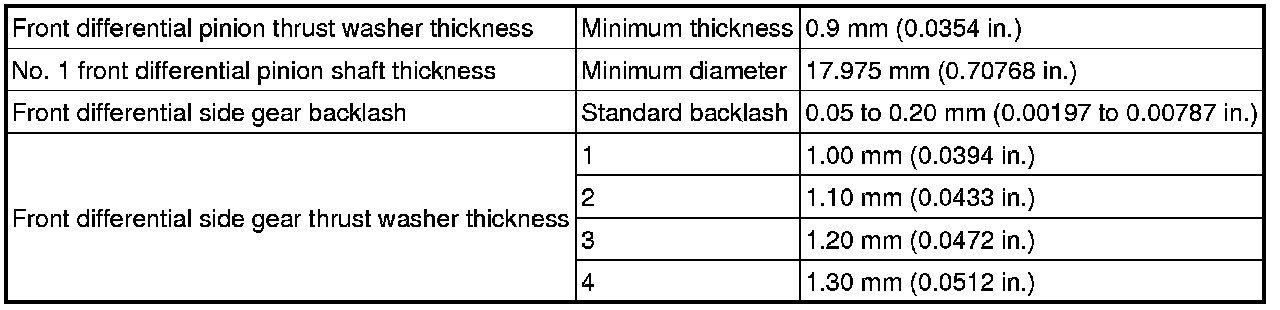

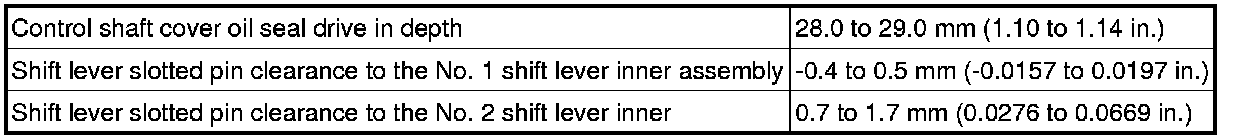

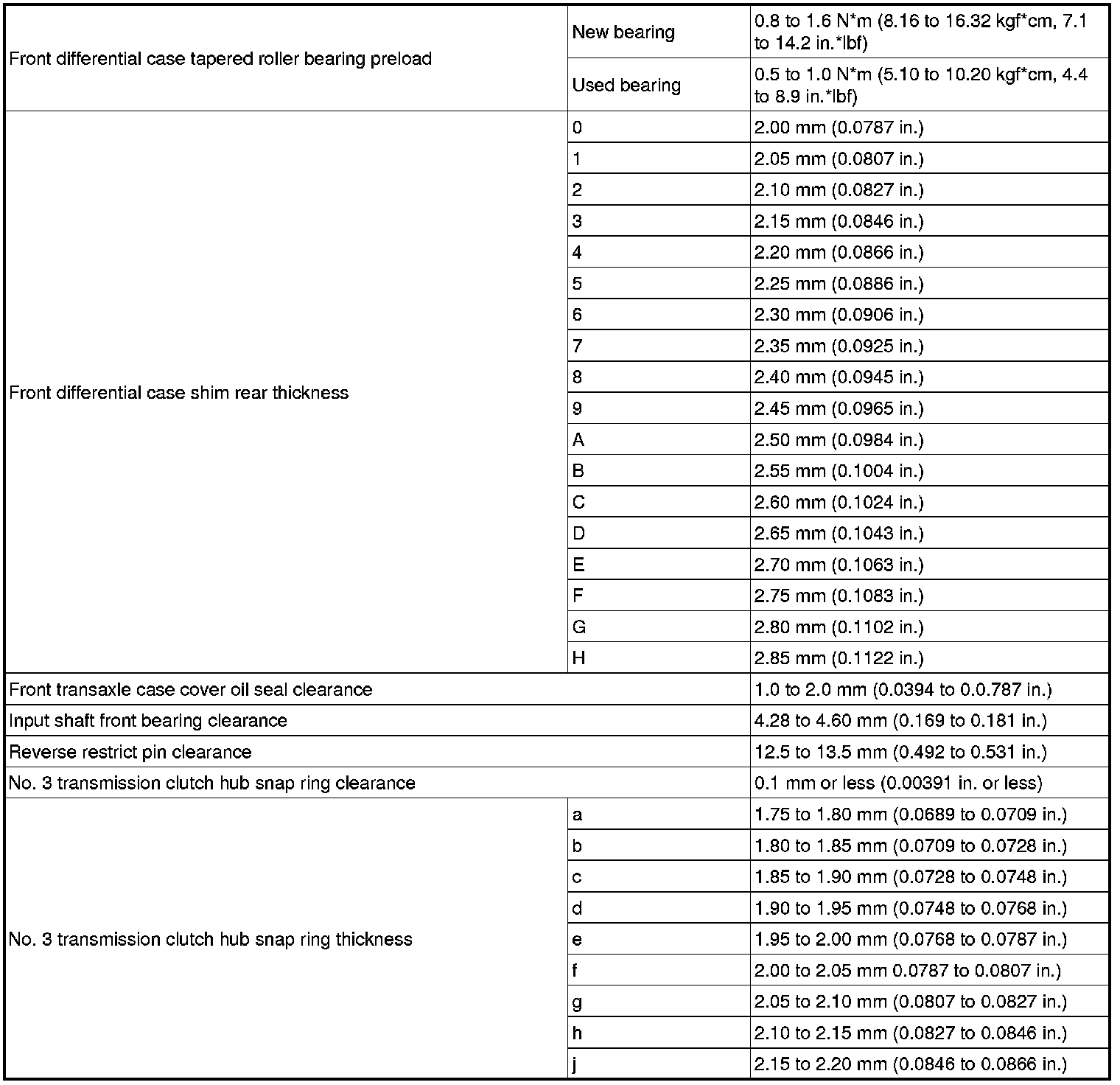

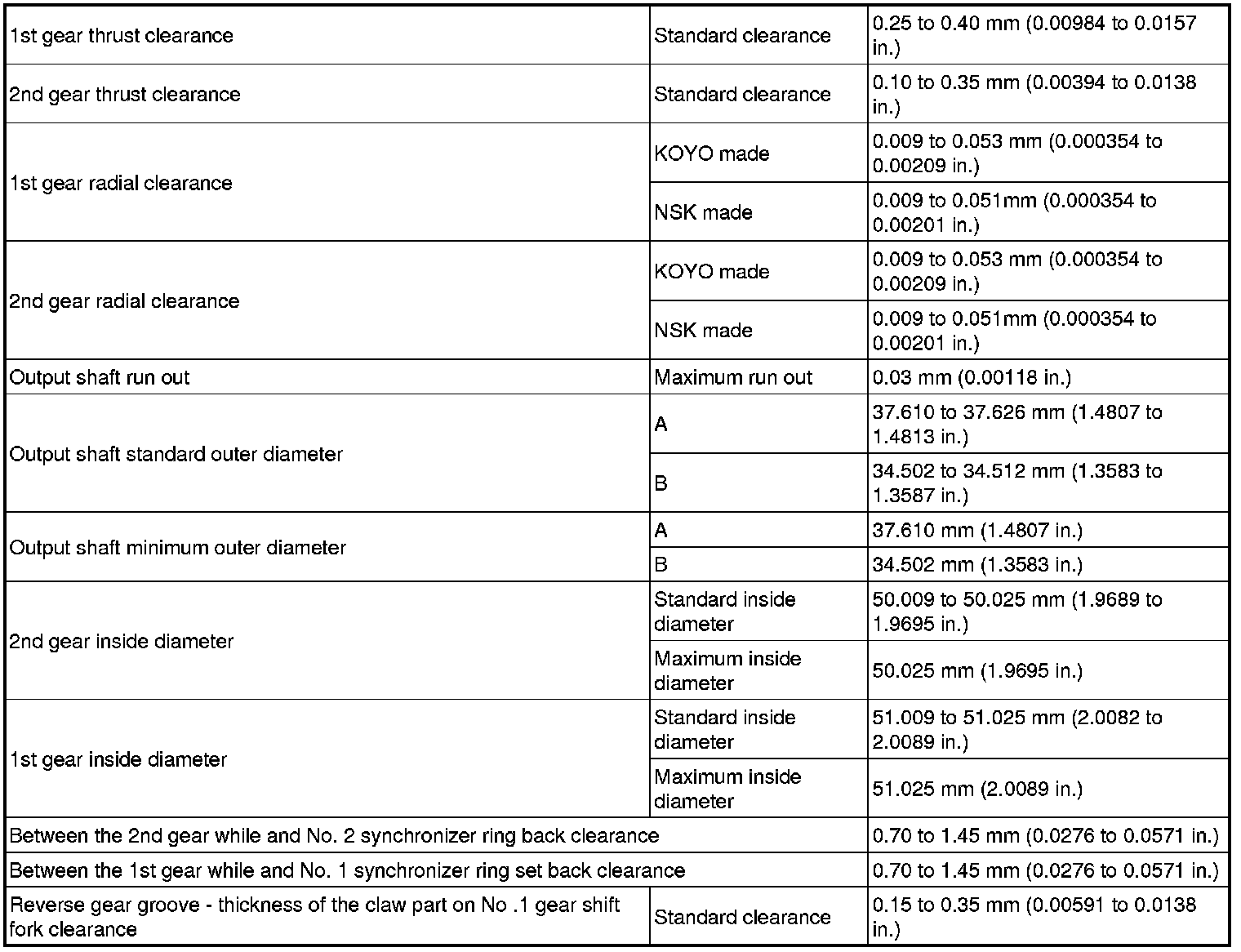

SPECIFICATIONS: E351 MANUAL TRANSMISSION / TRANSAXLE: SERVICE DATA
