Sliding Roof ECU Power Source Circuit

SLIDING ROOF: SLIDING ROOF SYSTEM: Sliding Roof ECU Power Source Circuit
- Sliding Roof ECU Power Source Circuit

DESCRIPTION

If the sliding function and tilt function do not operate, there may be a malfunction in the sliding roof ECU power source circuit.

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. PERFORM ACTIVE TEST USING TECHSTREAM (SLIDING ROOF OPERATION)

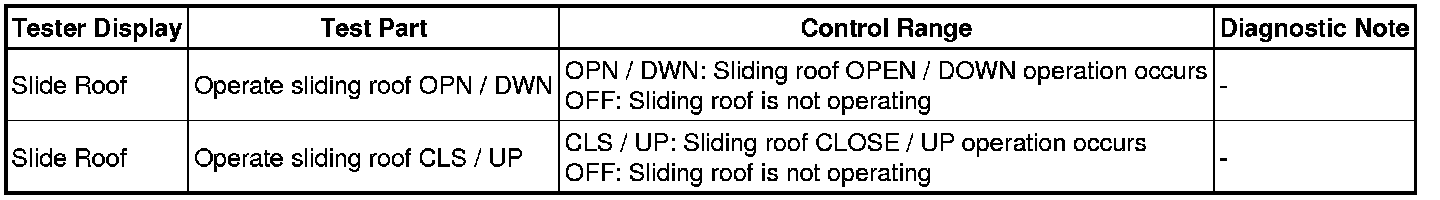

(a) Select the Active Test, use the Techstream to generate a control command, and then check that the sliding roof operates normally.

Slide Roof





OK:

Sliding roof operates normally.

NG -- REPLACE SLIDING ROOF DRIVE GEAR SUB-ASSEMBLY
OK -- Continue to next step.

2. INSPECT FUSE (S/ROOF, ECU-IG1)

(a) Remove the S/ROOF and ECU-IG1 fuses from the instrument panel junction block.

(b) Measure the resistance of the fuses.

Standard resistance:

Below 1 Ohms

NG -- REPLACE FUSE
OK -- Continue to next step.

3. CHECK WIRE HARNESS (SLIDING ROOF DRIVE GEAR - BATTERY BODY GROUND)

(a) Disconnect the P6 ECU connector.





(b) Measure the voltage and resistance of the wire harness side connector.

Standard voltage:





Standard resistance:





NG -- REPAIR OR REPLACE HARNESS AND CONNECTOR

OK -- REPLACE SLIDING ROOF DRIVE GEAR SUB-ASSEMBLY
