U151E AUTOMATIC TRANSAXLE: AUTOMATIC TRANSAXLE SYSTEM: HYDRAULIC TEST

1. PERFORM HYDRAULIC TEST





(a) Measure the line pressure.

NOTICE:
* Perform the test with the ATF at the normal operating ATF temperature: 50 to 80°C (122 to 176°F).
* The line pressure test should always be performed with at least 2 people. One person should observe the condition of the wheels or wheel chocks while the other is performing the test.
* Be careful to prevent SST's hose from interfering with the exhaust pipe.
* This test must be performed after checking and adjusting the engine.
* Perform the test with the A/C off.
* When conducting the stall test, do not continue for more than 10 seconds.
(1) Warm up the ATF (Automatic Transmission Fluid).

(2) Raise the vehicle.

(3) Remove the engine under cover.

(4) Connect Techstream to the DLC3.

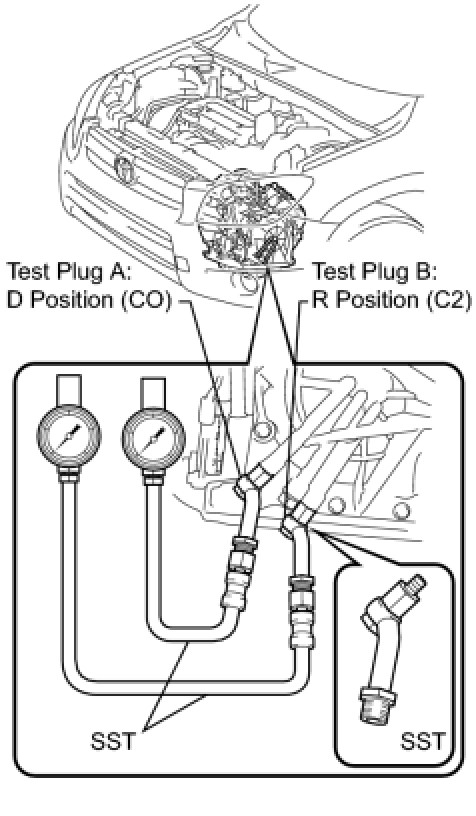

(5) Remove test plug A on the front left side of the transaxle case and install SST.

SST : 09992-00095

09992-00231

09992-00271

NOTICE:
The installation points for the D position and R position are different.

(6) Start the engine.

(7) Using Techstream, shift to the D position and hold 3rd gear using the active test, and then measure the line pressure when the engine is idling.





(8) Turn the ignition switch off.

(9) Disconnect the connector of the transmission wire.

HINT
Disconnect the connector only when performing the D position stall test.

(10) Start the engine.

(11) Firmly depress the brake pedal, shift to the D position, fully depress the accelerator pedal and check the line pressure while the stall test is performed.





(12) Turn the ignition switch off.

(13) Remove SST and install test plug A.

(14) Remove test plug B, install SST and start the engine.

SST : 09992-00095

09992-00231

09992-00271

(15) Connect the transmission wire connector, depress the brake pedal firmly, shift to the R position and check the line pressure while the engine is idling and while performing a stall test.





(16) Remove SST and install test plug B.

(17) Clear the DTCs.
