Part 1
U151E AUTOMATIC TRANSAXLE: AUTOMATIC TRANSAXLE UNIT: DISASSEMBLY
1. REMOVE PARK/NEUTRAL POSITION SWITCH ASSEMBLY
(a) Remove the nut, washer and control shaft lever.
(b) Using a screwdriver, pry off the lock plate.
(c) Remove the nut and lock plate.

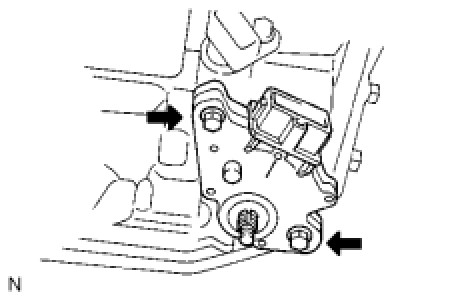

(d) Remove the 2 bolts and pull out the switch.
2. REMOVE BREATHER PLUG HOSE
(a) Remove the breather plug hose from the transaxle case.
3. REMOVE OIL COOLER OUTLET TUBE ELBOW
(a) Remove the elbow.
(b) Remove the O-ring from the elbow.
4. REMOVE OIL COOLER INLET TUBE ELBOW
(a) Remove the elbow.
(b) Remove the O-ring from the elbow.
5. REMOVE SPEED SENSOR
(a) Remove the 2 bolts and the 2 speed sensors from the transaxle.
6. REMOVE SPEEDOMETER DRIVEN HOLE COVER SUB-ASSEMBLY
(a) Remove the bolt and cover.
(b) Remove the O-ring from the cover.

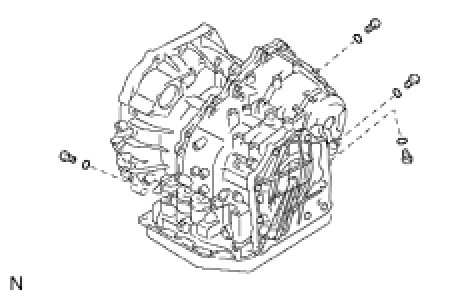

7. REMOVE NO. 1 TRANSAXLE CASE PLUG
(a) Remove the 4 plugs from the transaxle case.
(b) Remove the 4 O-rings from the 4 plugs.
8. FIX AUTOMATIC TRANSAXLE ASSEMBLY
(a) Fix the transaxle.
9. REMOVE AUTOMATIC TRANSAXLE OIL PAN SUB-ASSEMBLY
(a) Remove the 18 bolts, oil pan and gasket.
(b) Remove the 2 magnets from the oil pan.
10. INSPECT TRANSMISSION OIL CLEANER MAGNET
(a) Remove the magnets and use them to collect any steel chips. Examine the chips and particles in the pan and on the magnet to determine what type of wear has occurred in the transaxle.
Result:
Steel (magnetic)
Wear of the bearing, gear and plate
Brass (non-magnetic)
Wear of the bush
11. REMOVE VALVE BODY OIL STRAINER ASSEMBLY
(a) Remove the 3 bolts and oil strainer.

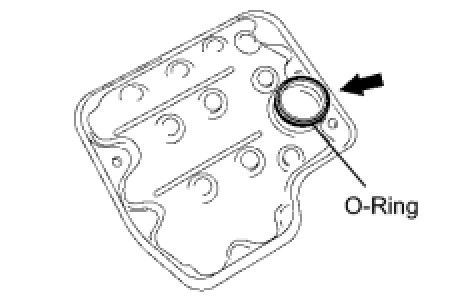

(b) Remove the O-ring from the oil strainer.
12. REMOVE TRANSMISSION WIRE
(a) Remove the 7 connectors from the shift solenoid valves.
(b) Remove the bolt, lock plate and temperature sensor.
(c) Remove the bolt and transmission wire from the transaxle case.
13. REMOVE TRANSMISSION VALVE BODY ASSEMBLY

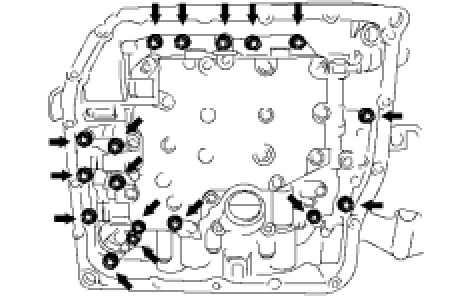

(a) Support the valve body and remove the 17 bolts and valve body.
14. REMOVE NO. 1 GOVERNOR APPLY GASKET
(a) Remove the gasket from the transaxle case.
15. REMOVE TRANSAXLE CASE 2ND BRAKE GASKET
(a) Remove the gasket from the transaxle case.
16. REMOVE BRAKE DRUM GASKET
(a) Remove the gasket from the transaxle case.
17. REMOVE CHECK BALL BODY
(a) Remove the check ball body and spring from the transaxle case.
18. REMOVE C-3 ACCUMULATOR PISTON

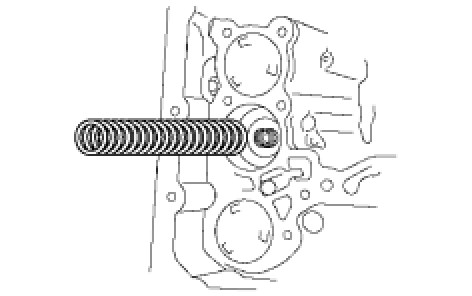

(a) Remove the spring from the C-3 accumulator piston.
(b) Apply compressed air (392 kPa, 4.0 kgf/cm2, 57 psi) to the oil hole and remove the C-3 accumulator piston.
NOTICE:
* Applying compressed air may cause the piston to jump out. When removing the piston, hold it using a waste cloth.
* Take care not to splash ATF when applying compressed air.

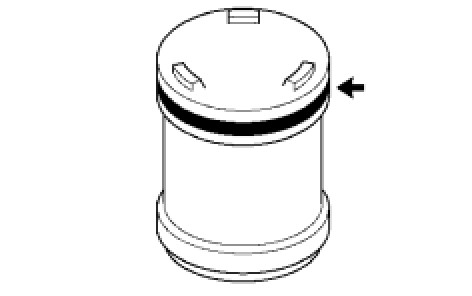

(c) Remove the O-ring from the C-3 accumulator piston.
19. REMOVE REVERSE CLUTCH ACCUMULATOR PISTON
(a) Apply compressed air (392 kPa, 4.0 kgf/cm2, 57 psi) to the oil hole and remove the reverse accumulator piston and spring.
NOTICE:
* Applying compressed air may cause the piston to jump out. When removing the piston, hold it using a waste cloth.
* Take care not to splash ATF when applying compressed air.
(b) Remove the 2 O-rings from the reverse clutch accumulator piston.
20. REMOVE B-3 ACCUMULATOR PISTON
(a) Apply compressed air (392 kPa, 4.0 kgf/cm2, 57 psi) to the oil hole and remove the B-3 accumulator piston and 2 springs.
NOTICE:
* Applying compressed air may cause the piston to jump out. When removing the piston, hold it using a waste cloth.
* Take care not to splash ATF when applying compressed air.
(b) Remove the O-ring from the B-3 accumulator piston.
21. REMOVE MANUAL VALVE LEVER SHAFT RETAINER SPRING
(a) Using needle-nose pliers, remove the manual valve lever shaft retainer spring.
22. REMOVE MANUAL DETENT SPRING SUB-ASSEMBLY
(a) Remove the 2 bolts, manual detent spring and cover.
23. REMOVE PARKING LOCK PAWL BRACKET
(a) Remove the 2 bolts and parking lock pawl bracket.
24. REMOVE MANUAL VALVE LEVER SUB-ASSEMBLY
(a) Using a chisel and hammer, cut off and remove the spacer.
(b) Using a pin punch (dia35 mm) and hammer, drive out the pin.
HINT
Slowly drive out the pin so that it does not fall into the transaxle case.
(c) Remove the manual valve lever shaft and manual valve lever.
25. REMOVE PARKING LOCK ROD SUB-ASSEMBLY
(a) Remove the parking lock rod from the manual valve lever.
26. REMOVE MANUAL VALVE LEVER SHAFT OIL SEAL
(a) Using a screwdriver, pry out the oil seal from the transaxle case.
NOTICE:
Do not apply excessive force when removing the oil seal.
27. FIX AUTOMATIC TRANSAXLE ASSEMBLY
(a) Fix the transaxle case in place with the oil pump side facing up.
28. INSPECT INPUT SHAFT ENDPLAY Transaxle Unit
29. REMOVE TRANSAXLE HOUSING
(a) Remove the 18 bolts.
(b) Tap on the circumference of the transaxle housing with a plastic-faced hammer to remove the transaxle housing from the transaxle case.
NOTICE:
The differential may be accidentally removed when the transaxle housing is removed.
30. REMOVE OIL PUMP ASSEMBLY

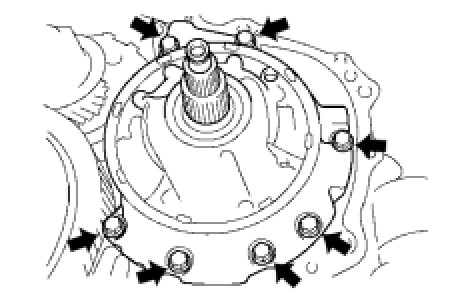

(a) Remove the 7 bolts and oil pump from the transaxle case.
