Automatic Air Conditioning, Clock [w/ Automatic Air Conditioning]

NOTE: In diagram 1 the magnetic clutch is represented for the V6 only, in diagram 2 the flow control valve system can be used for the V6 and only for the 4 Cylinder.

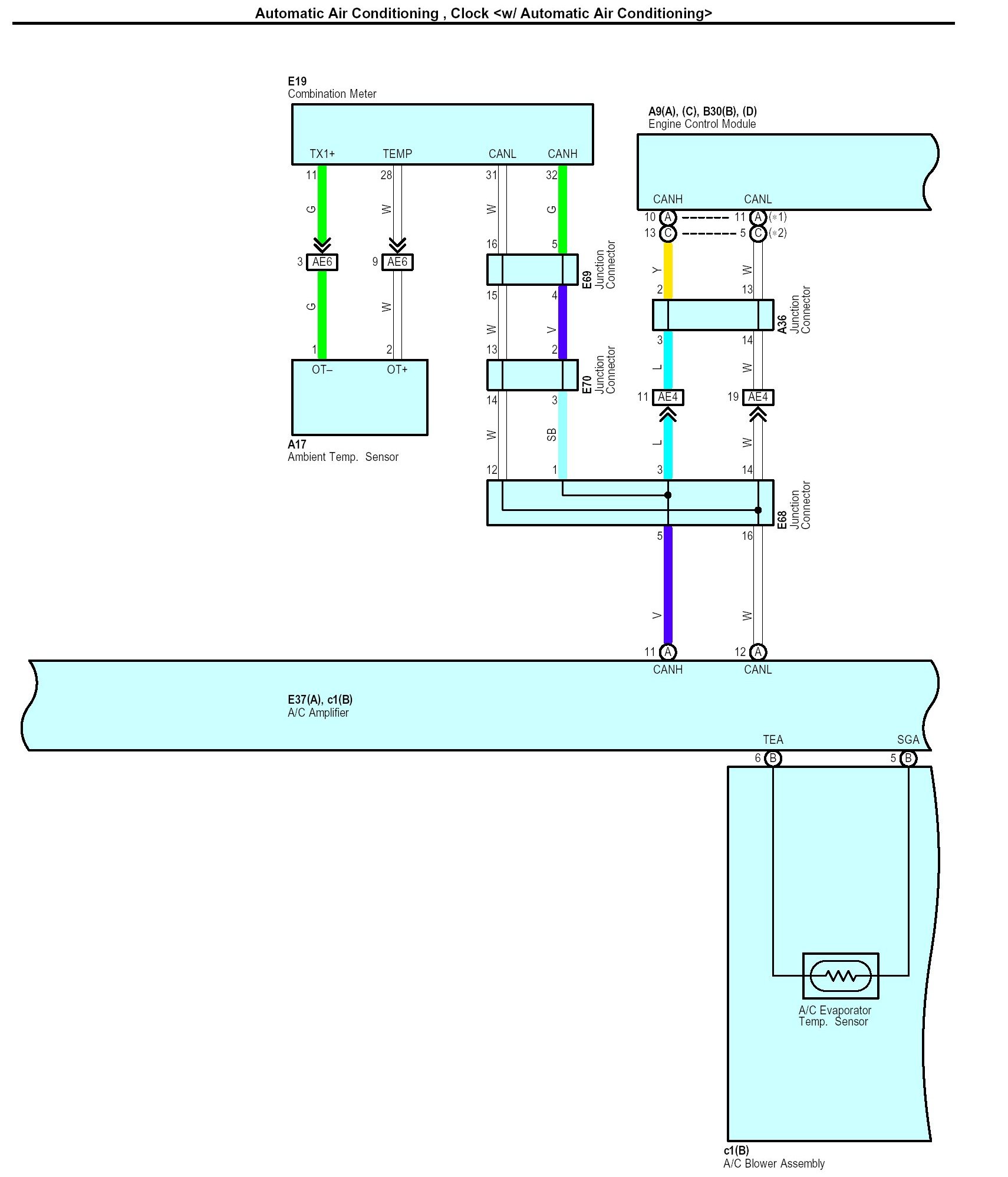

Automatic Air Conditioning, Clock [w/ Automatic Air Conditioning] Part 1:

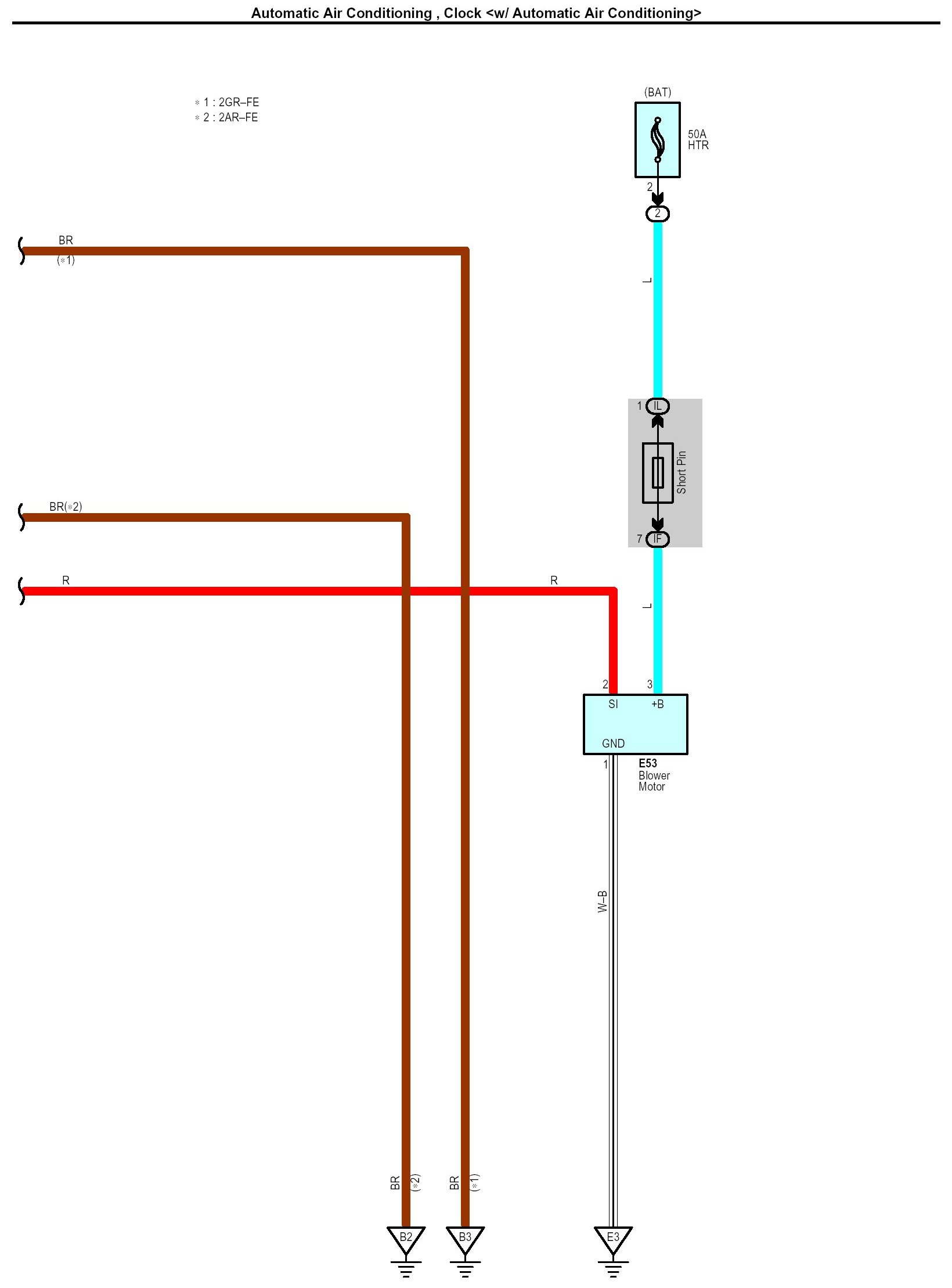

Automatic Air Conditioning, Clock [w/ Automatic Air Conditioning] Part 2:

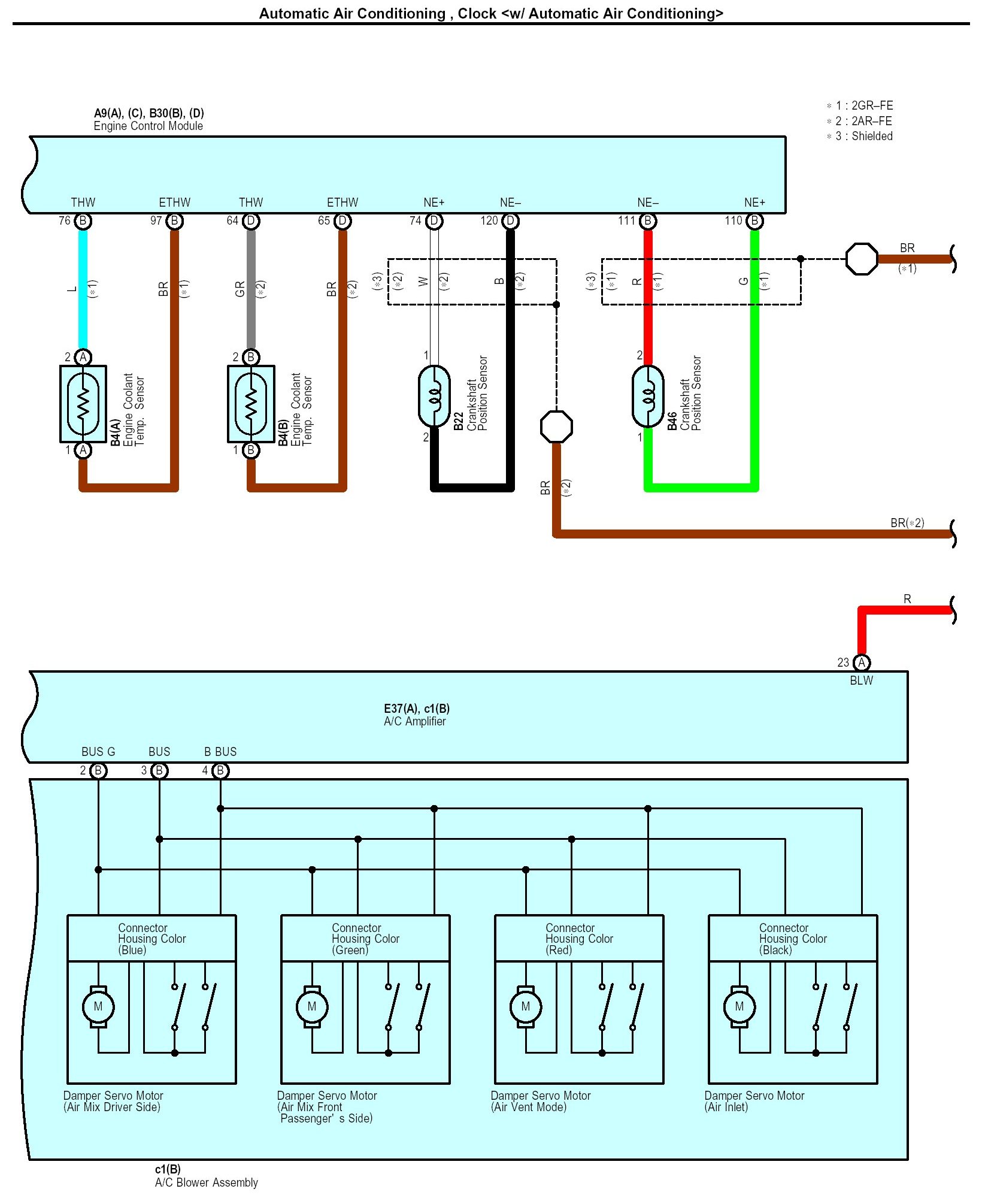

Automatic Air Conditioning, Clock [w/ Automatic Air Conditioning] Part 3:

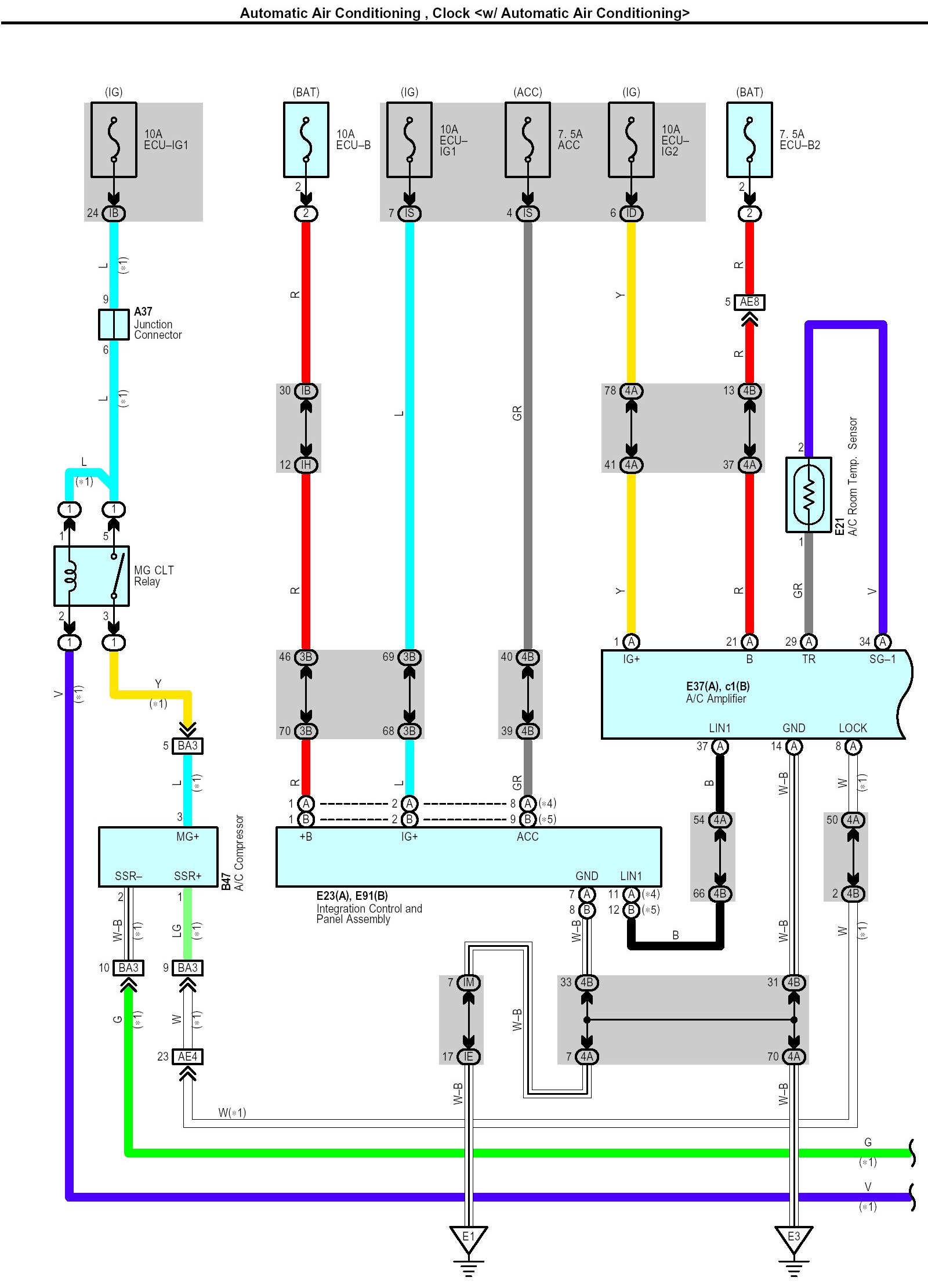

Automatic Air Conditioning, Clock [w/ Automatic Air Conditioning] Part 4:

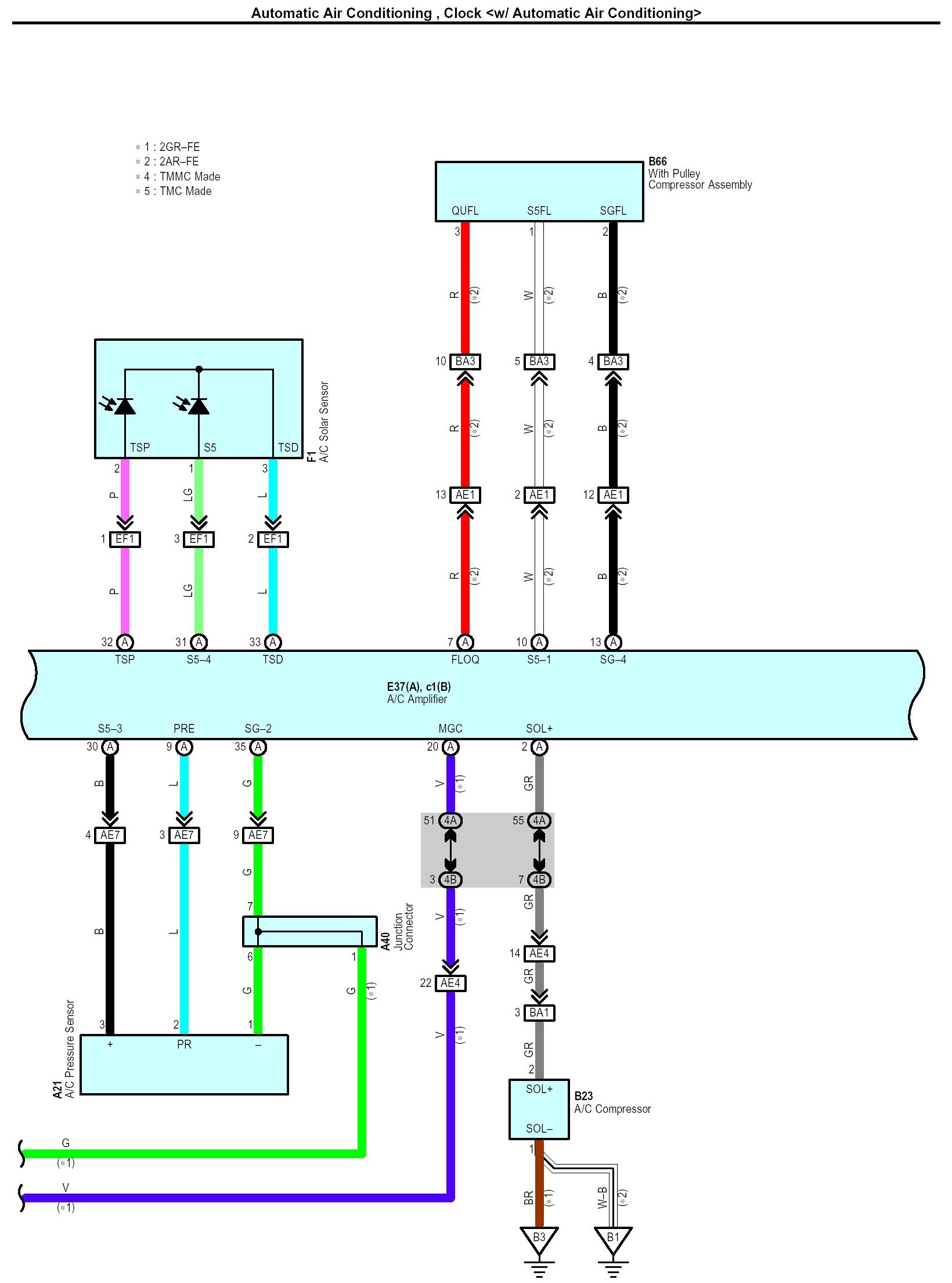

Automatic Air Conditioning, Clock [w/ Automatic Air Conditioning] Part 5:

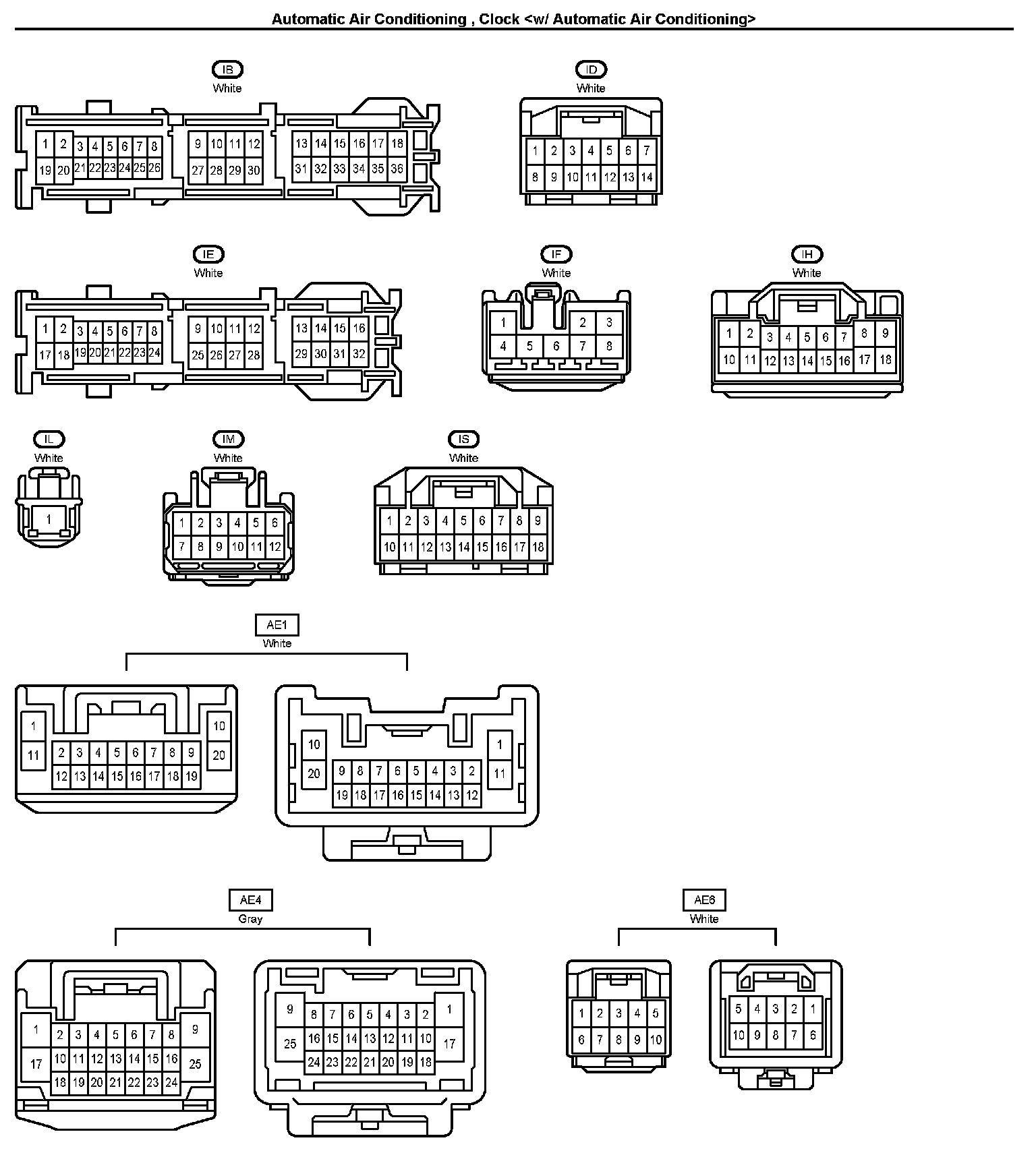

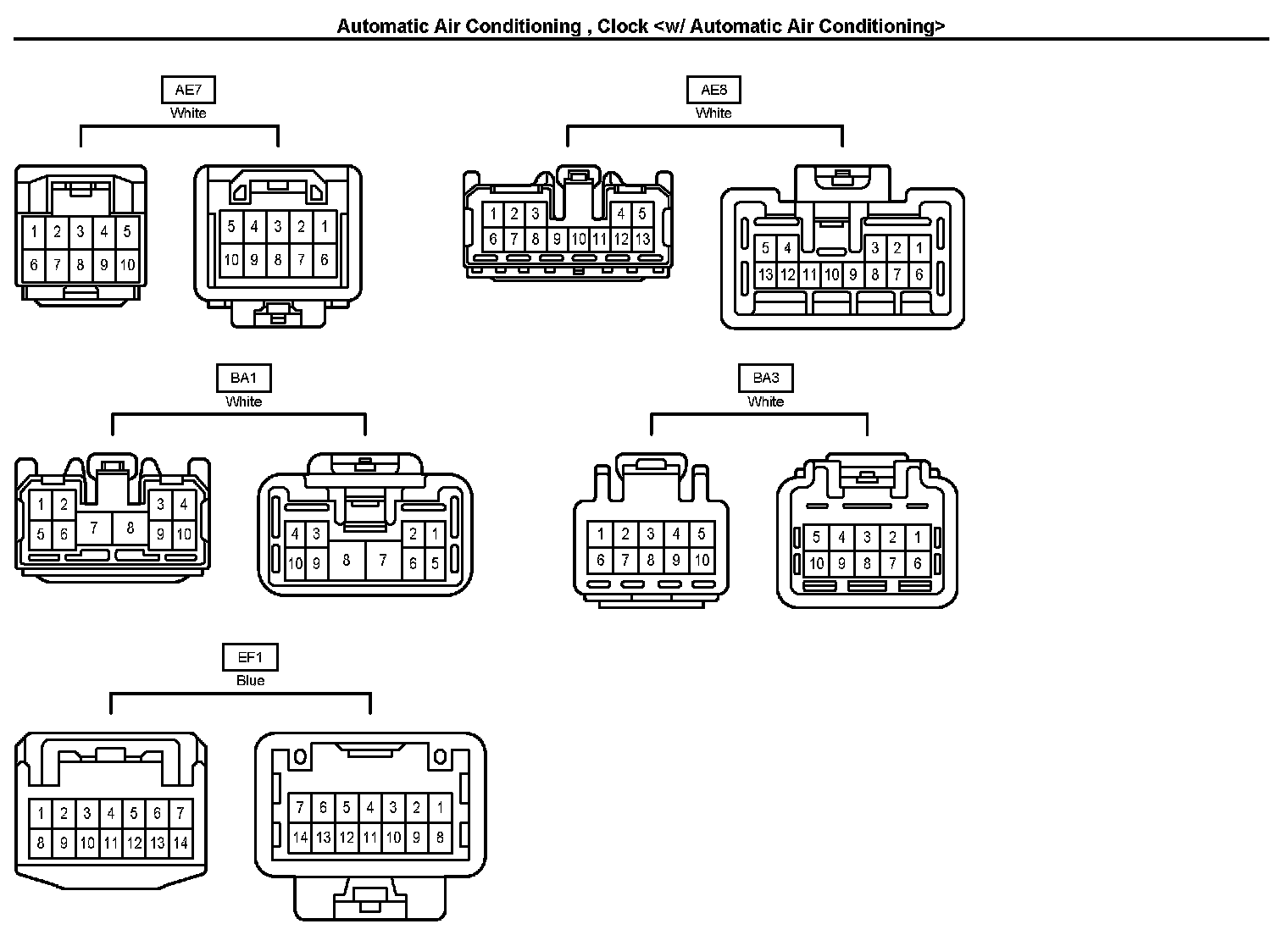

Connectors Part 1:

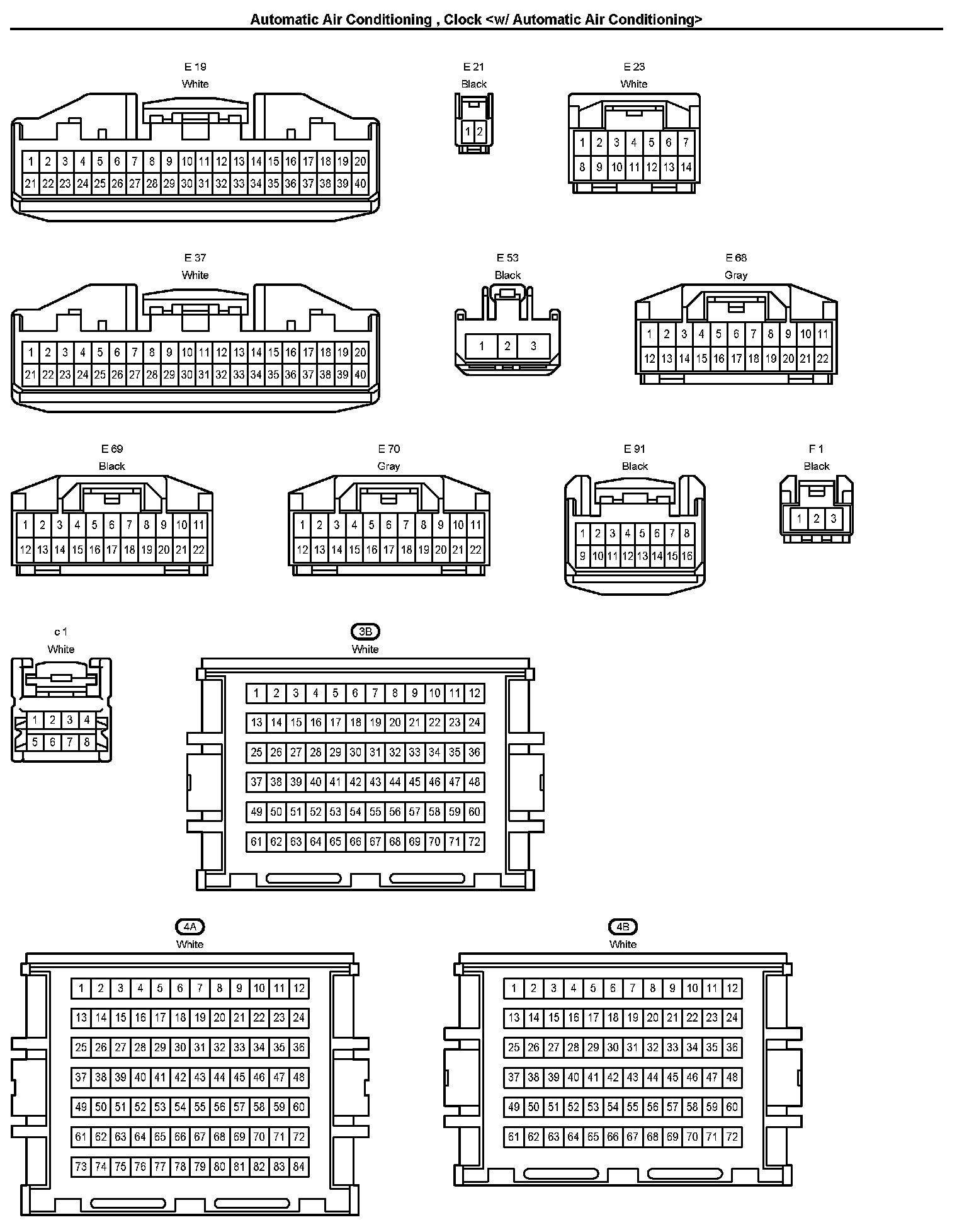

Connectors Part 2:

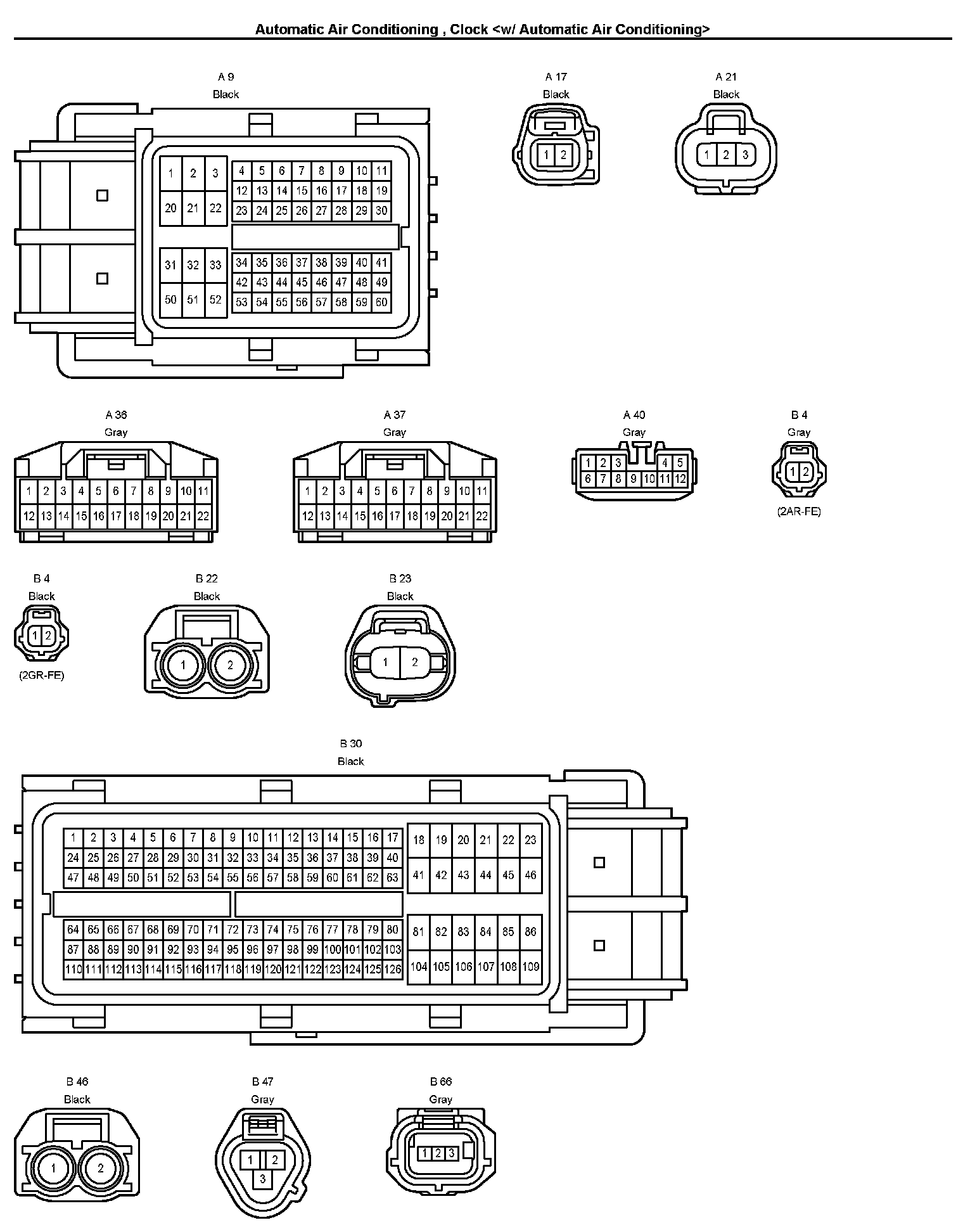

Connectors Part 3:

Connectors Part 4:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
