Definition of Terms
Definition of Terms

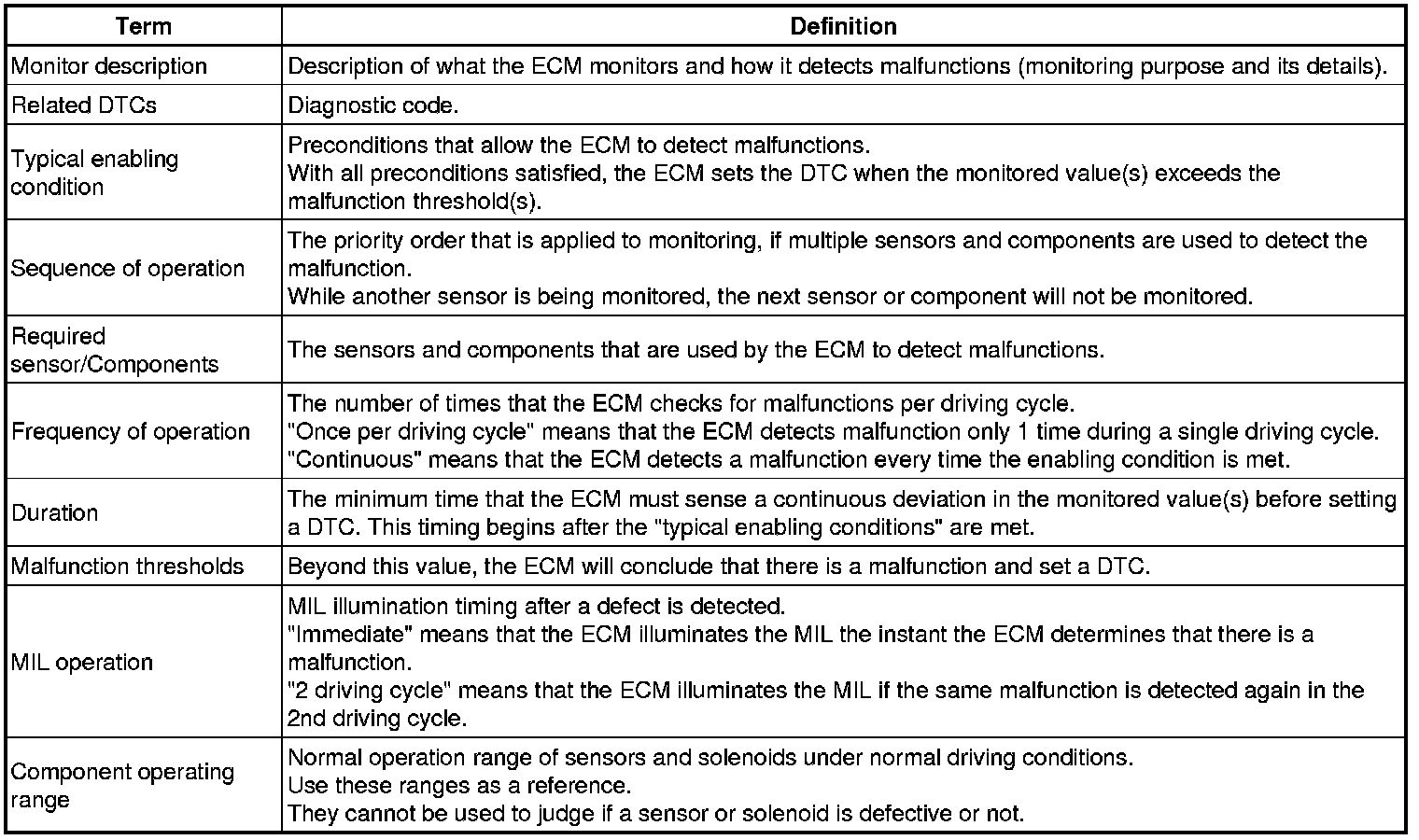

U140F AUTOMATIC TRANSAXLE: AUTOMATIC TRANSAXLE SYSTEM: DEFINITION OF TERMS
