Operation CHARM
: Car repair manuals for everyone.
Home
>>
Toyota
>>
2010
>>
RAV4 4WD L4-2.5L (2AR-FE)
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Automatic Transmission/Transaxle
>>
System Specifications
>>
Torque Specifications
Torque Specifications

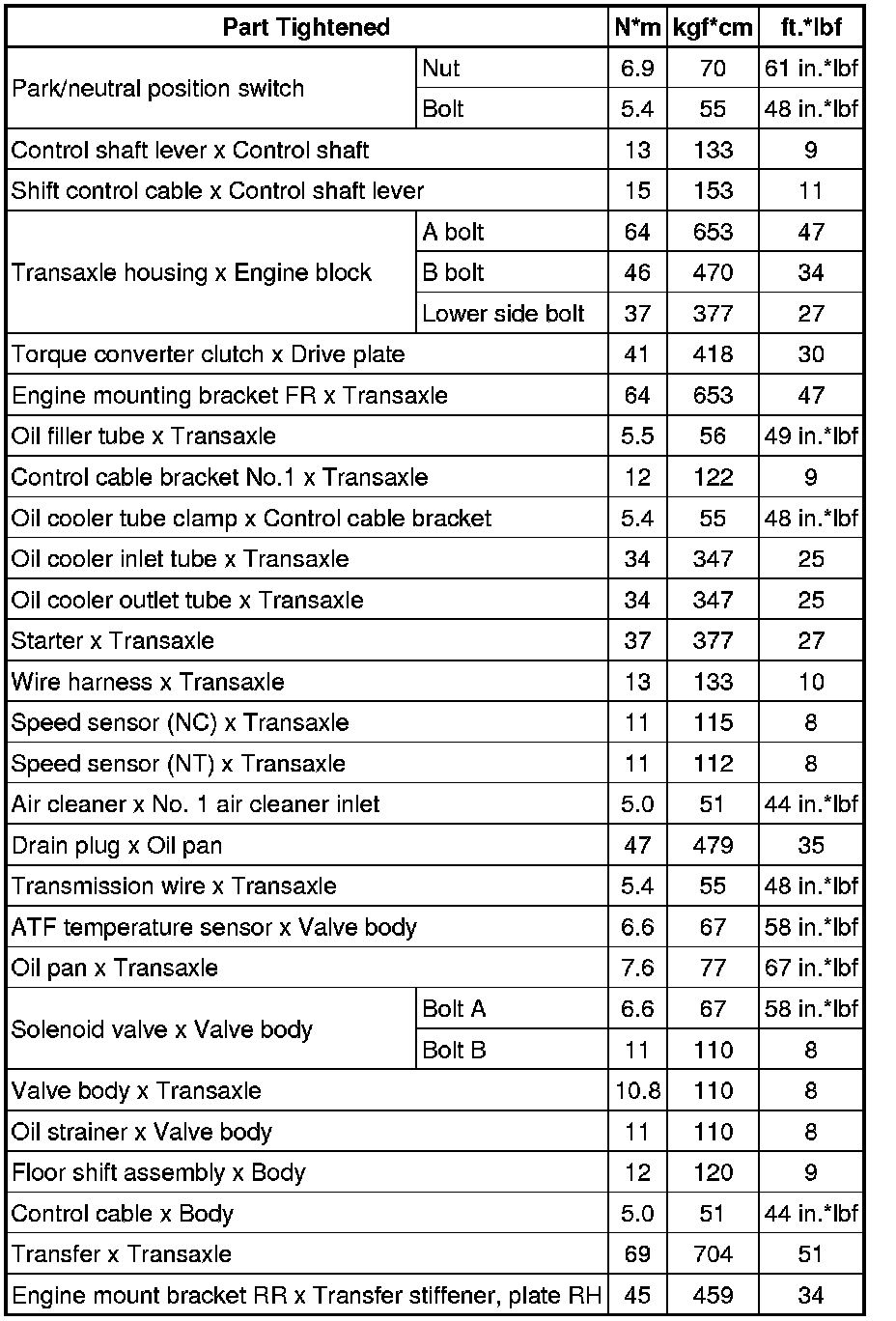

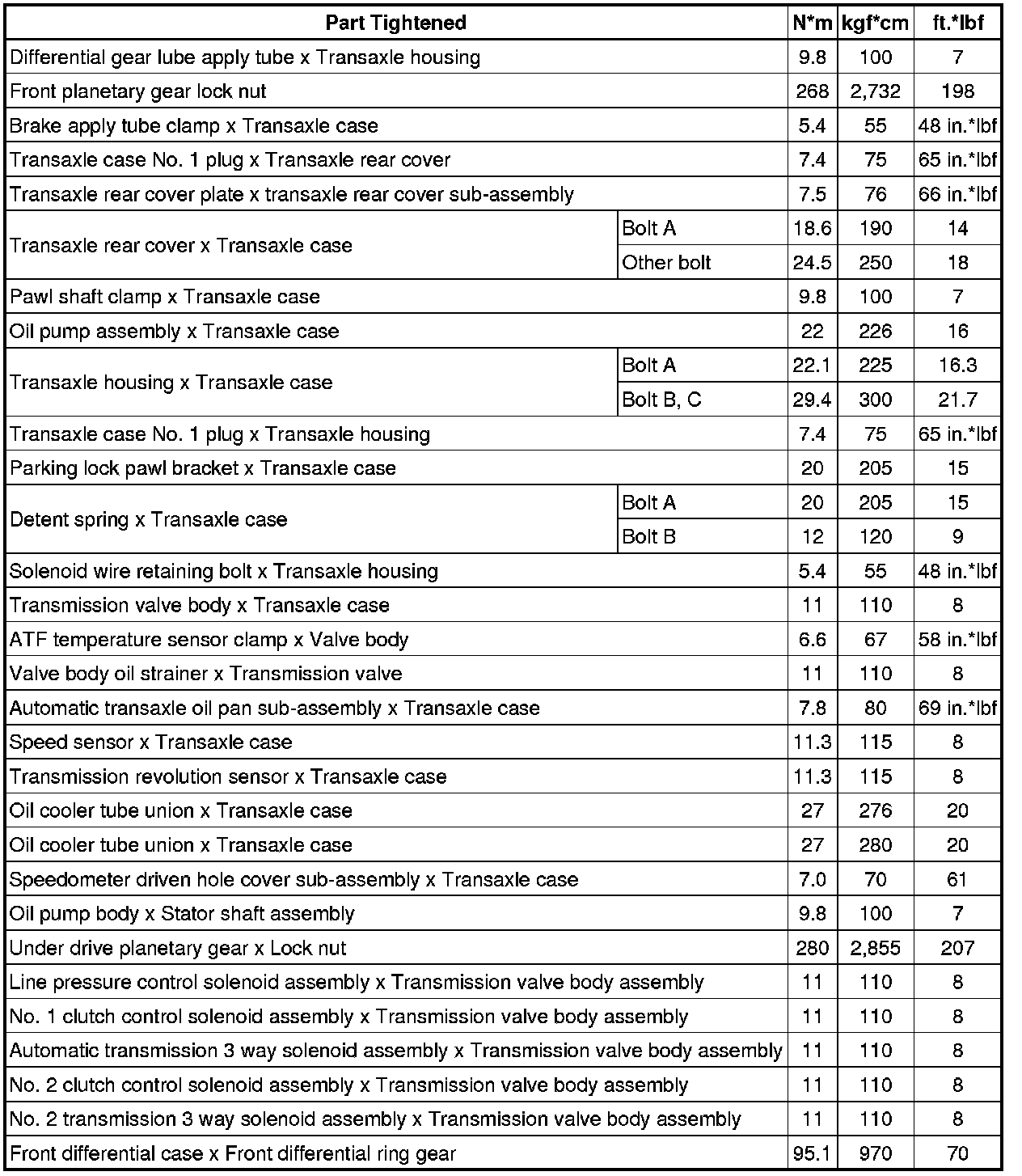

SERVICE SPECIFICATIONS: U140F AUTOMATIC TRANSAXLE: TORQUE SPECIFICATIONS
