Shift Interlock Control Module
>>
Locations
>>
U151F Automatic Transaxle
U151F Automatic Transaxle

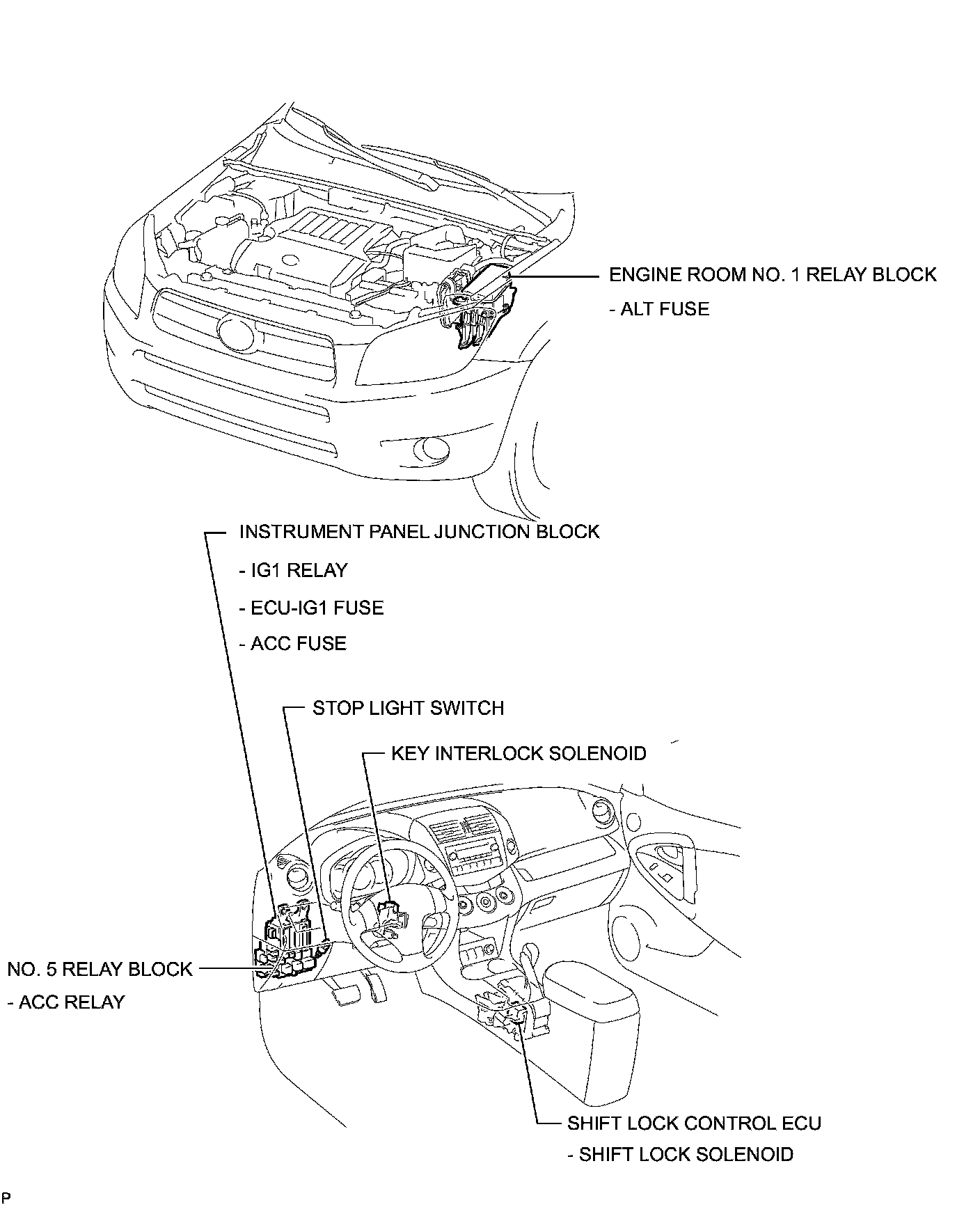

U151F AUTOMATIC TRANSAXLE: SHIFT LOCK SYSTEM: PARTS LOCATION
