Customize Parameters

DOOR LOCK: WIRELESS DOOR LOCK CONTROL SYSTEM: CUSTOMIZE PARAMETERS

HINT
The following items can be customized.

NOTICE:
* After confirming whether the items requested by the customer are applicable or not for customization, perform customizing operations.
* Be sure to record the current settings before customization.
* When troubleshooting, make sure that the item in question is not set to "OFF" as a result of customization (Example: For the system, "the wireless function does not operate", first check that the wireless function is not set to "OFF", then perform troubleshooting).
1. CUSTOMIZE

(a) Connect the Techstream to the DLC3.

(b) Turn the ignition switch to ON.

(c) Turn the Techstream on.

(d) Enter the following menus: Customize Setting / Wireless Door Lock

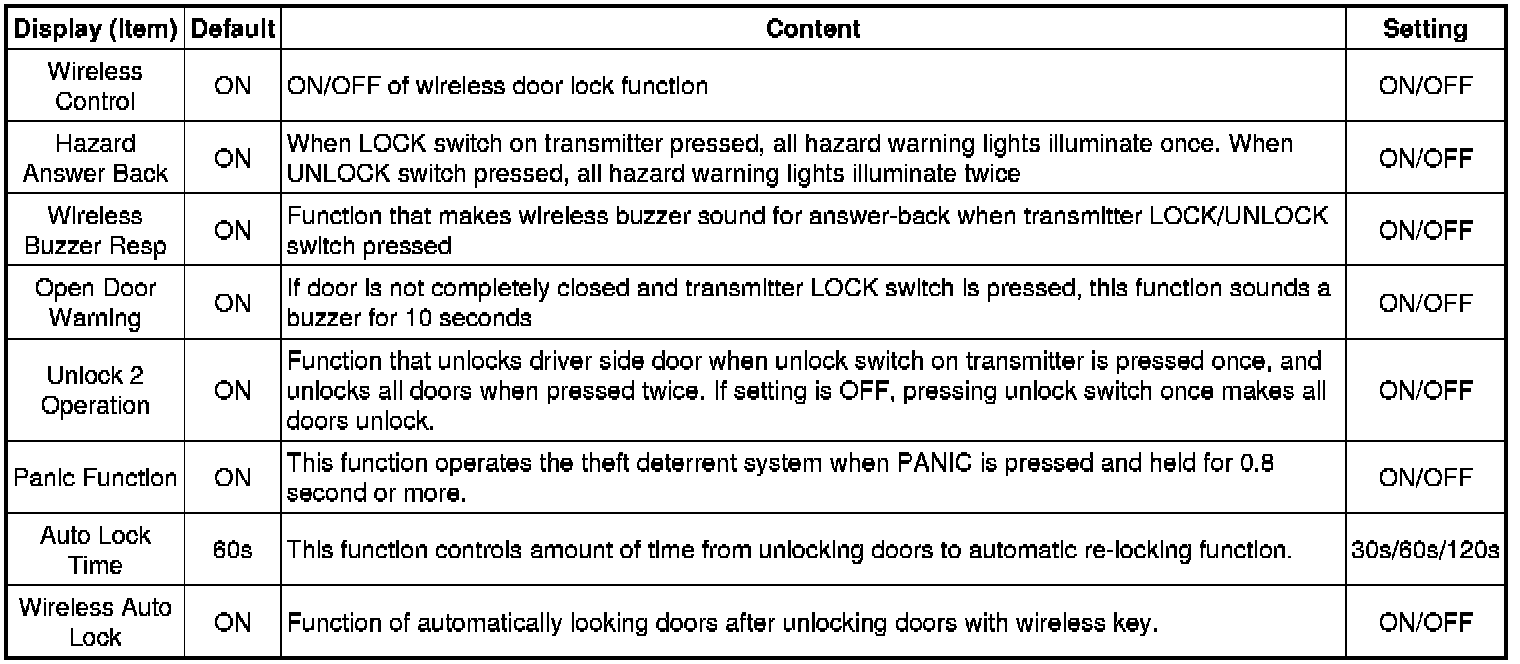

(e) Select the setting by referring to the table below.
