Removal

CRUISE CONTROL: LASER SENSOR: REMOVAL

1. REMOVE FRONT BUMPER COVER

(a) Remove the front bumper cover Removal.

2. REMOVE LASER RADAR SENSOR





(a) Disconnect the connector.

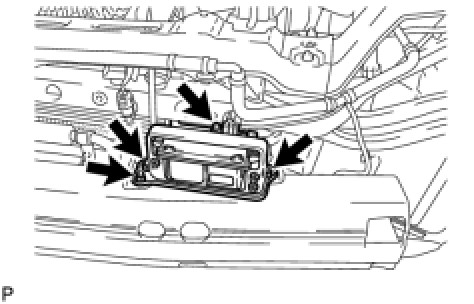

(b) Remove the 3 nuts and the laser radar sensor.
