Fuel System
Fuel System

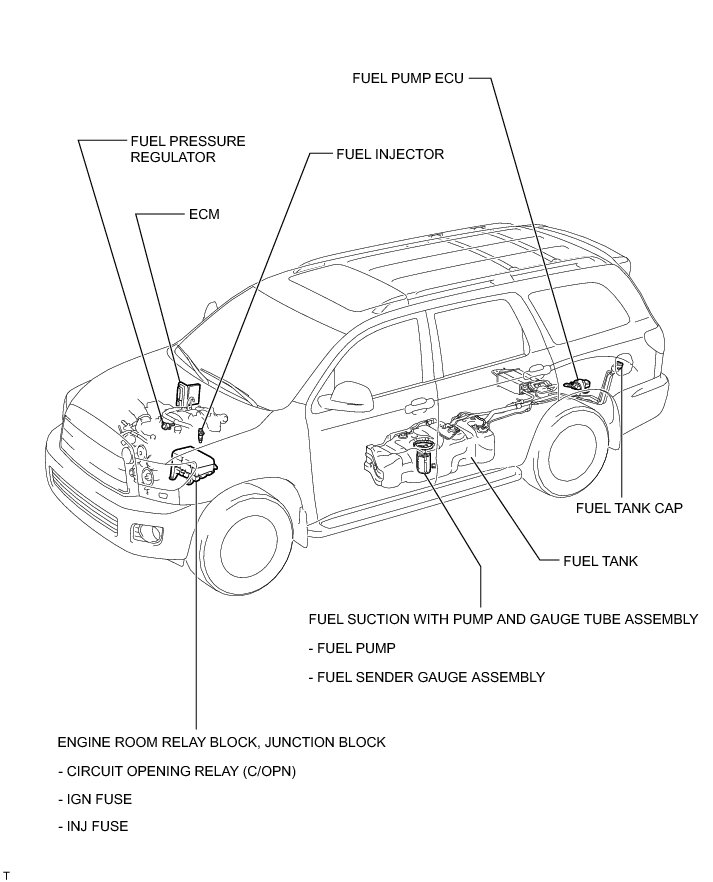

1UR-FE FUEL: FUEL SYSTEM: PARTS LOCATION
Engine Room R/B, J/B - Engine Compartment Left:
