Main Relay (Computer/Fuel System)
>>
Locations
>>
Engine Control - SFI System
Engine Control - SFI System
1UR-FE ENGINE CONTROL: SFI SYSTEM: PARTS LOCATION

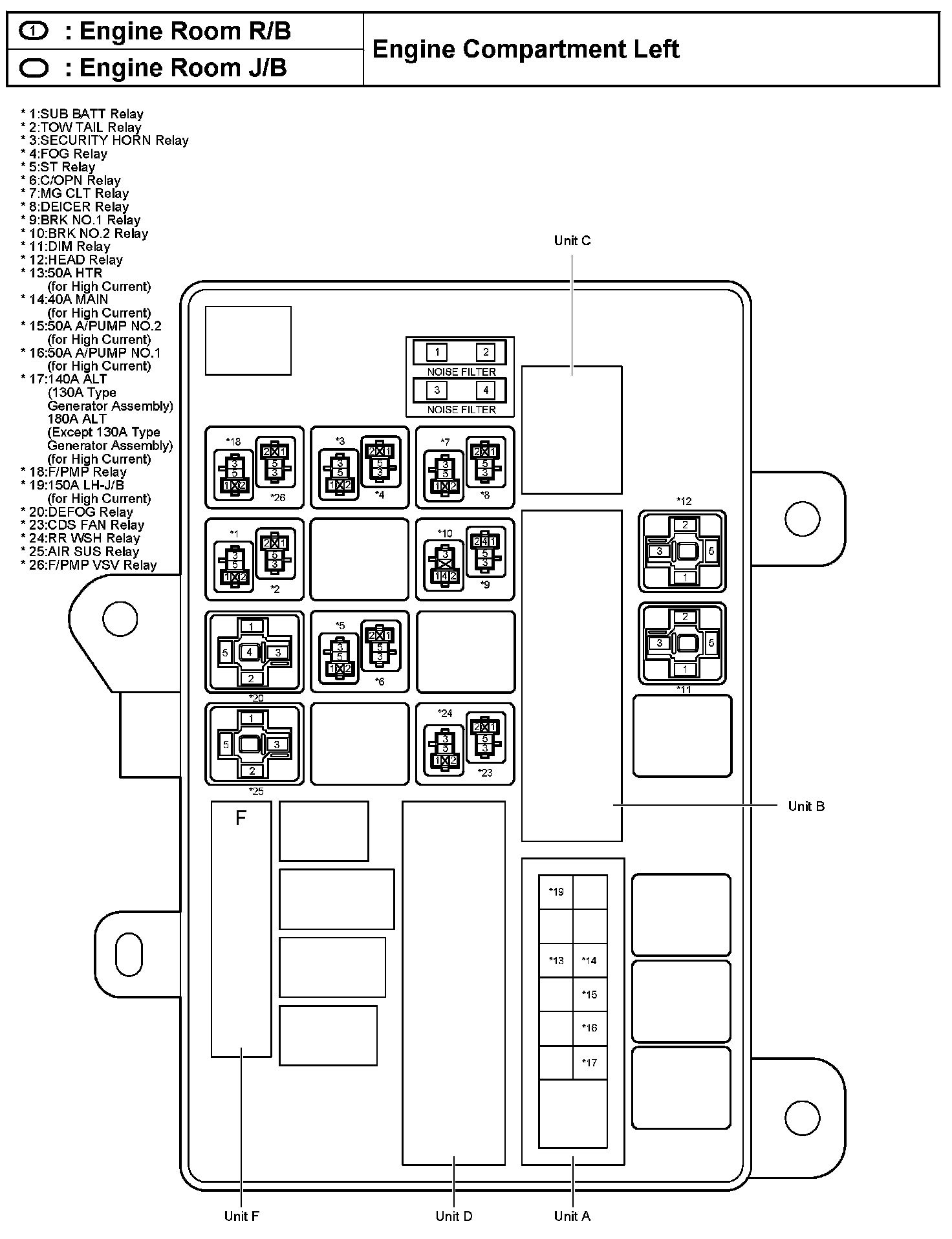

Engine Room R/B, J/B - Engine Compartment Left:
