Power Distribution Module: Locations

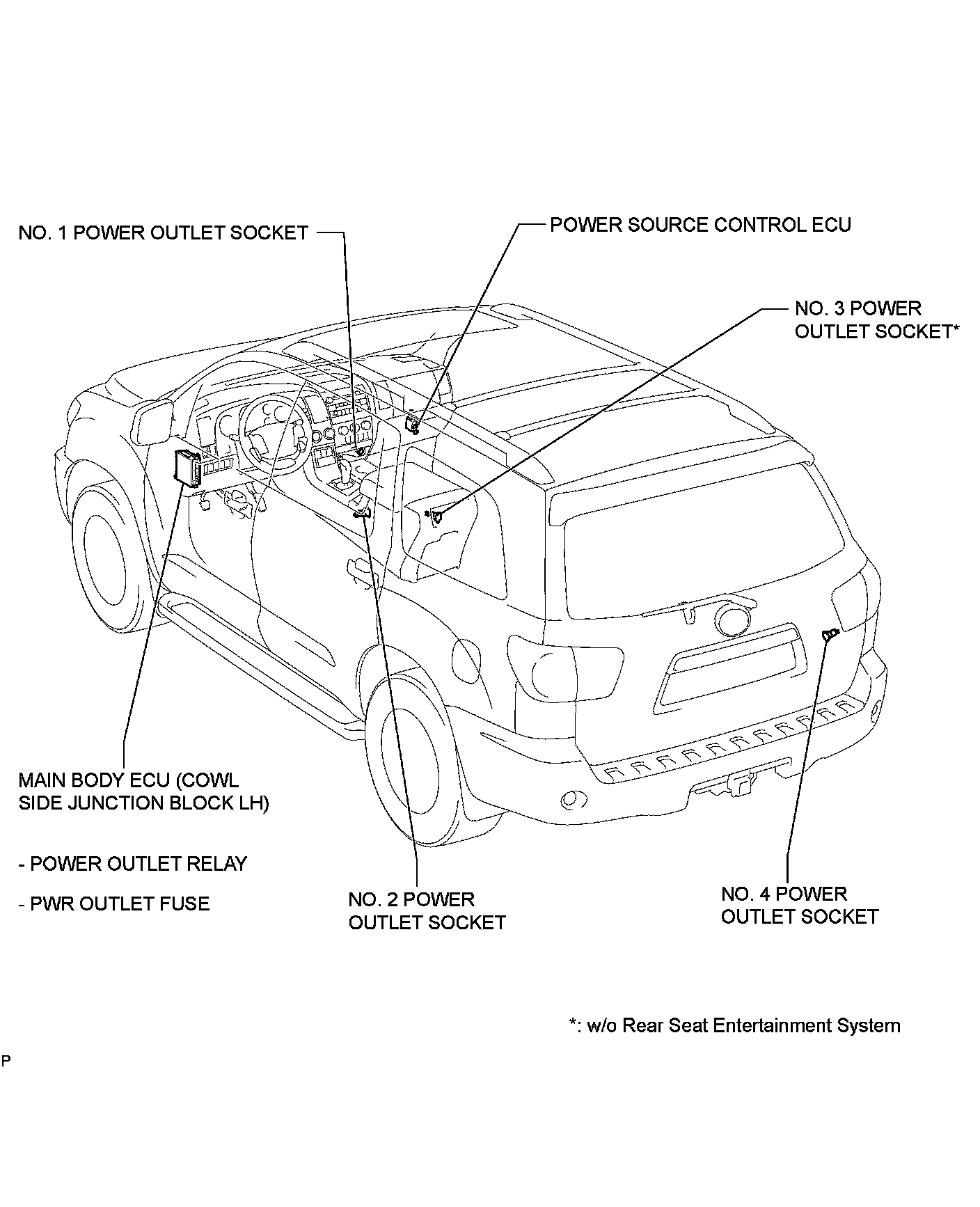

POWER OUTLETS (INT): ACCESSORY SOCKET SYSTEM: PARTS LOCATION

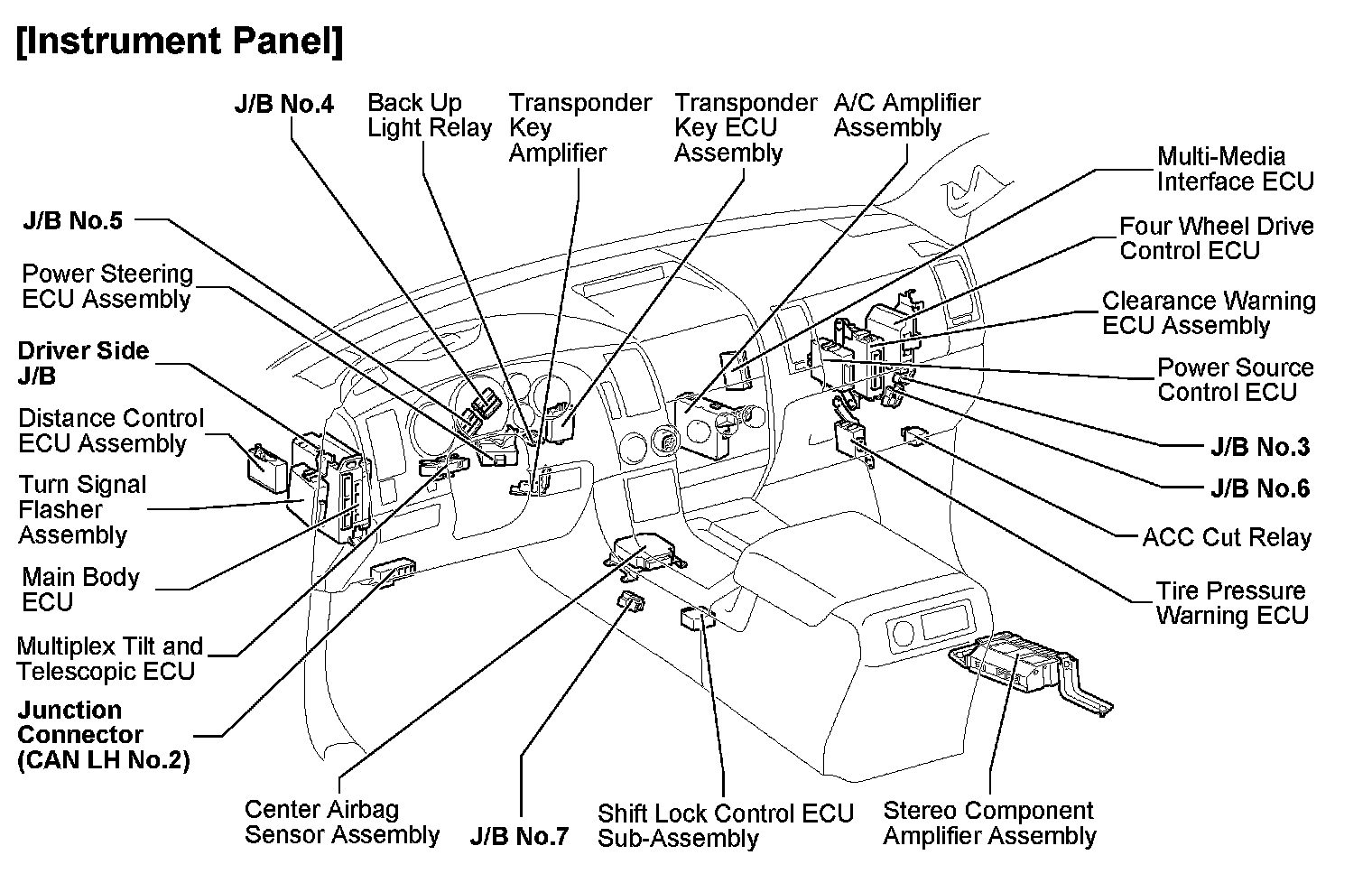

Instrument Panel:
