Electrical Diagrams

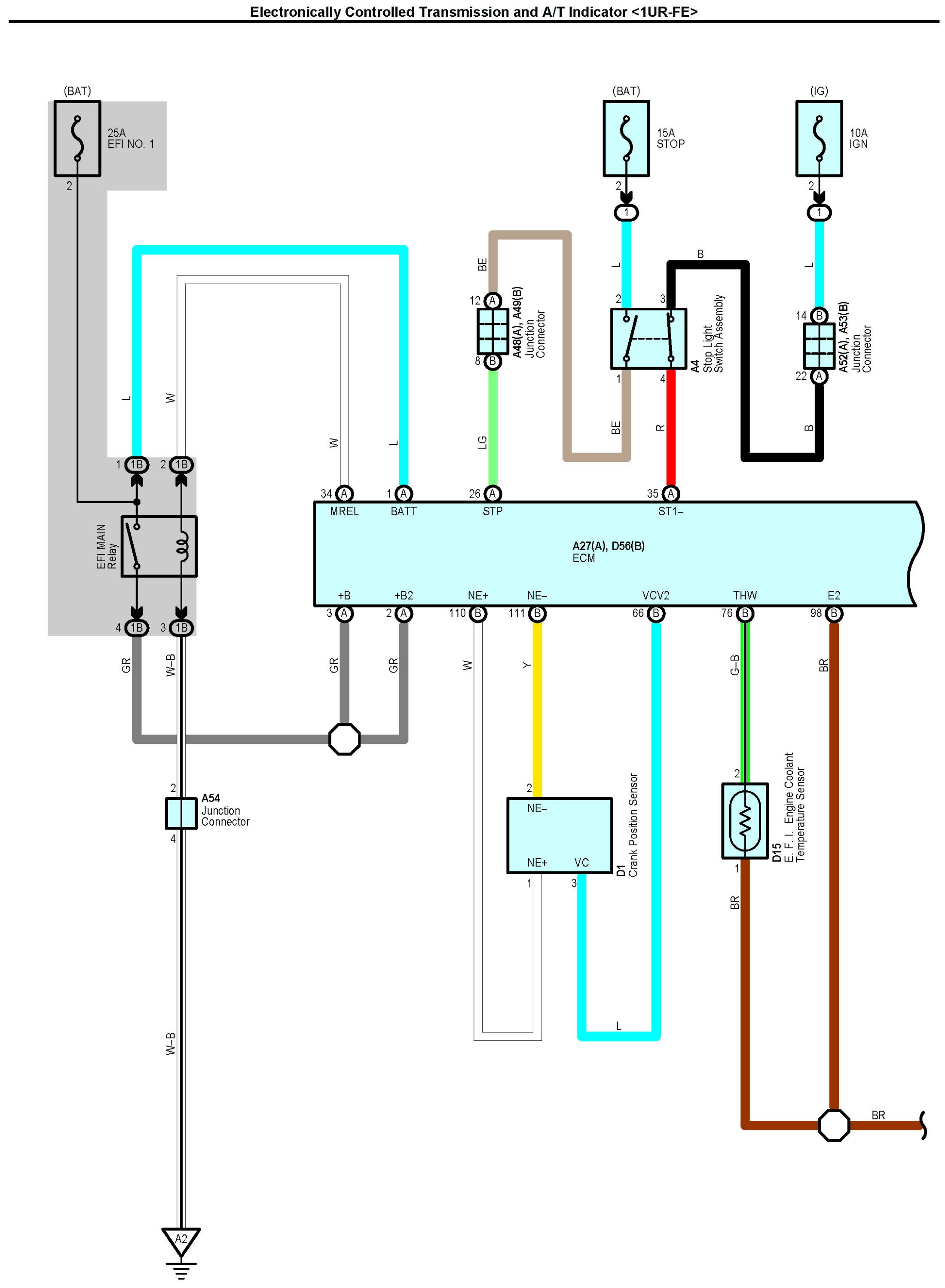

Electronically Controlled Transmission and A/T Indicator Part 1:

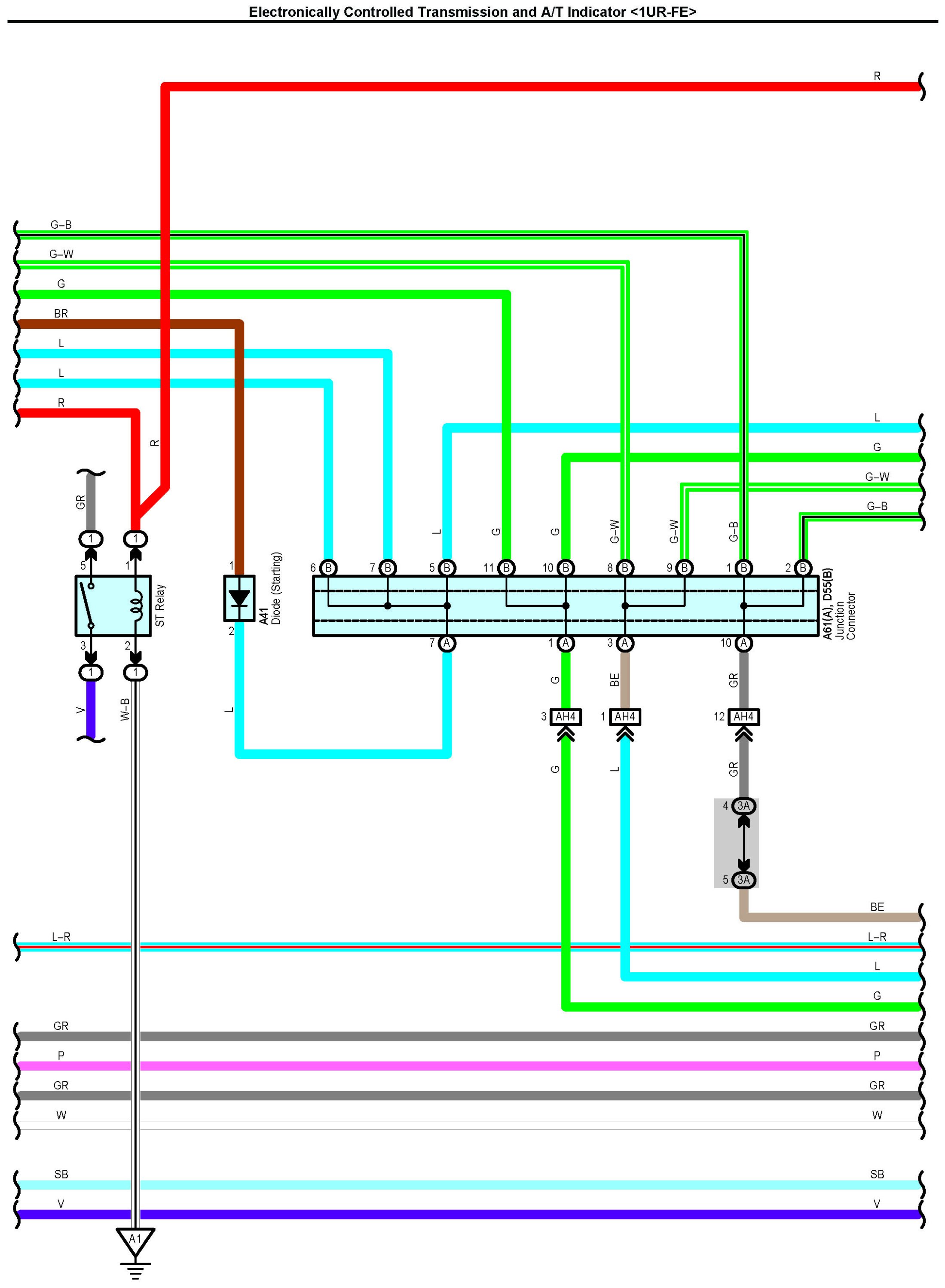

Electronically Controlled Transmission and A/T Indicator Part 2:

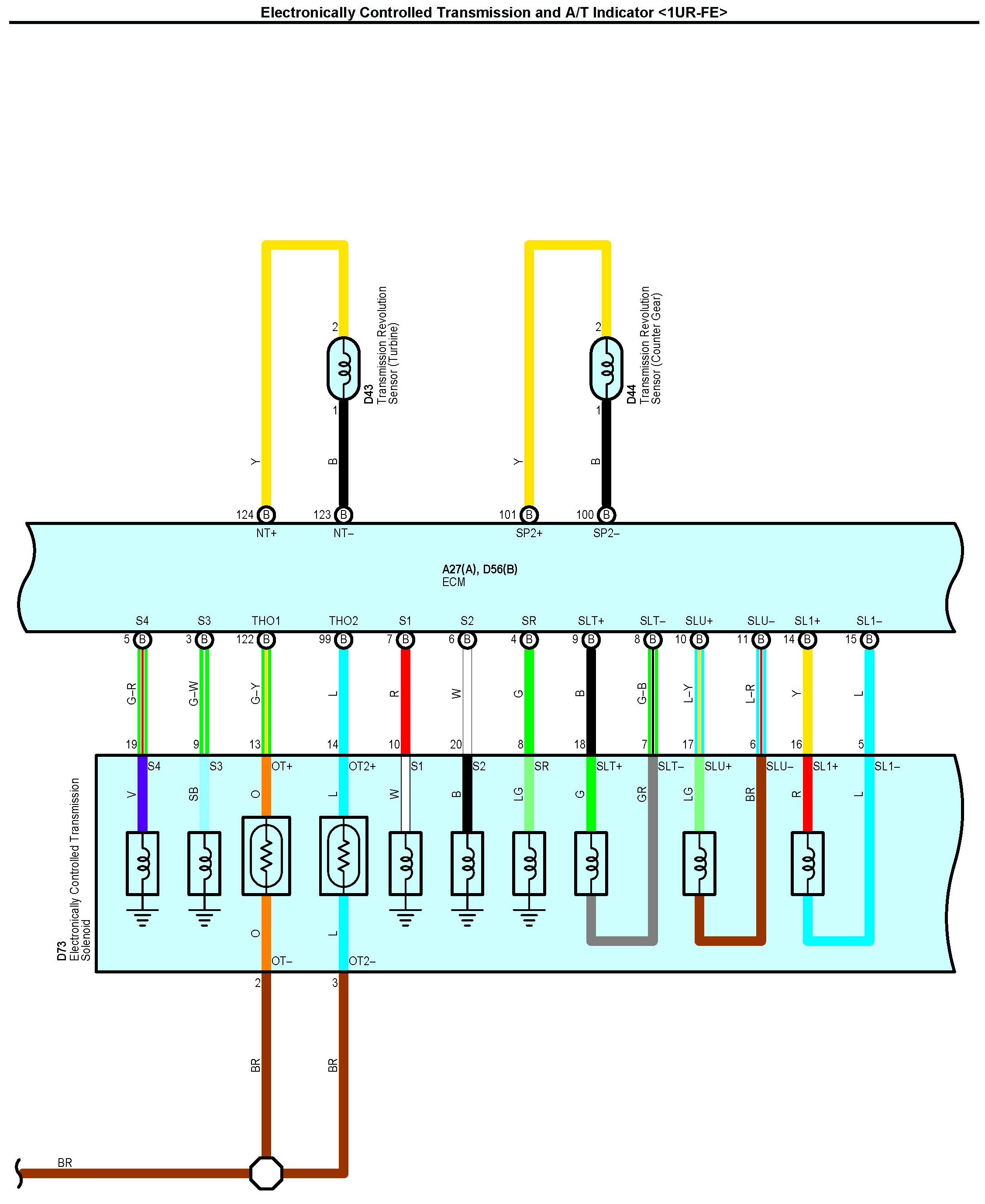

Electronically Controlled Transmission and A/T Indicator Part 3:

Electronically Controlled Transmission and A/T Indicator Part 4:

Electronically Controlled Transmission and A/T Indicator Part 5:

Electronically Controlled Transmission and A/T Indicator Part 6:

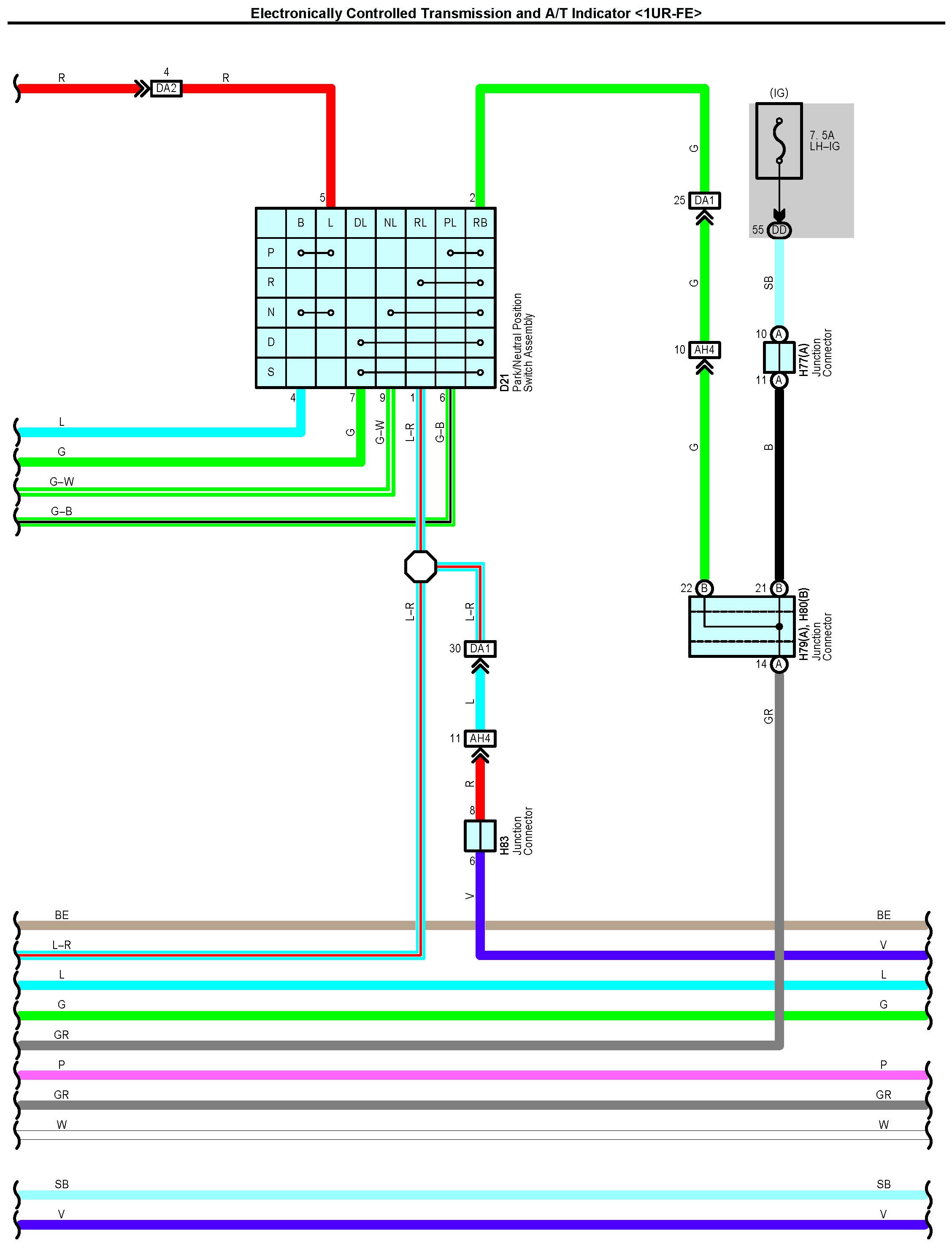

Electronically Controlled Transmission and A/T Indicator Part 7:

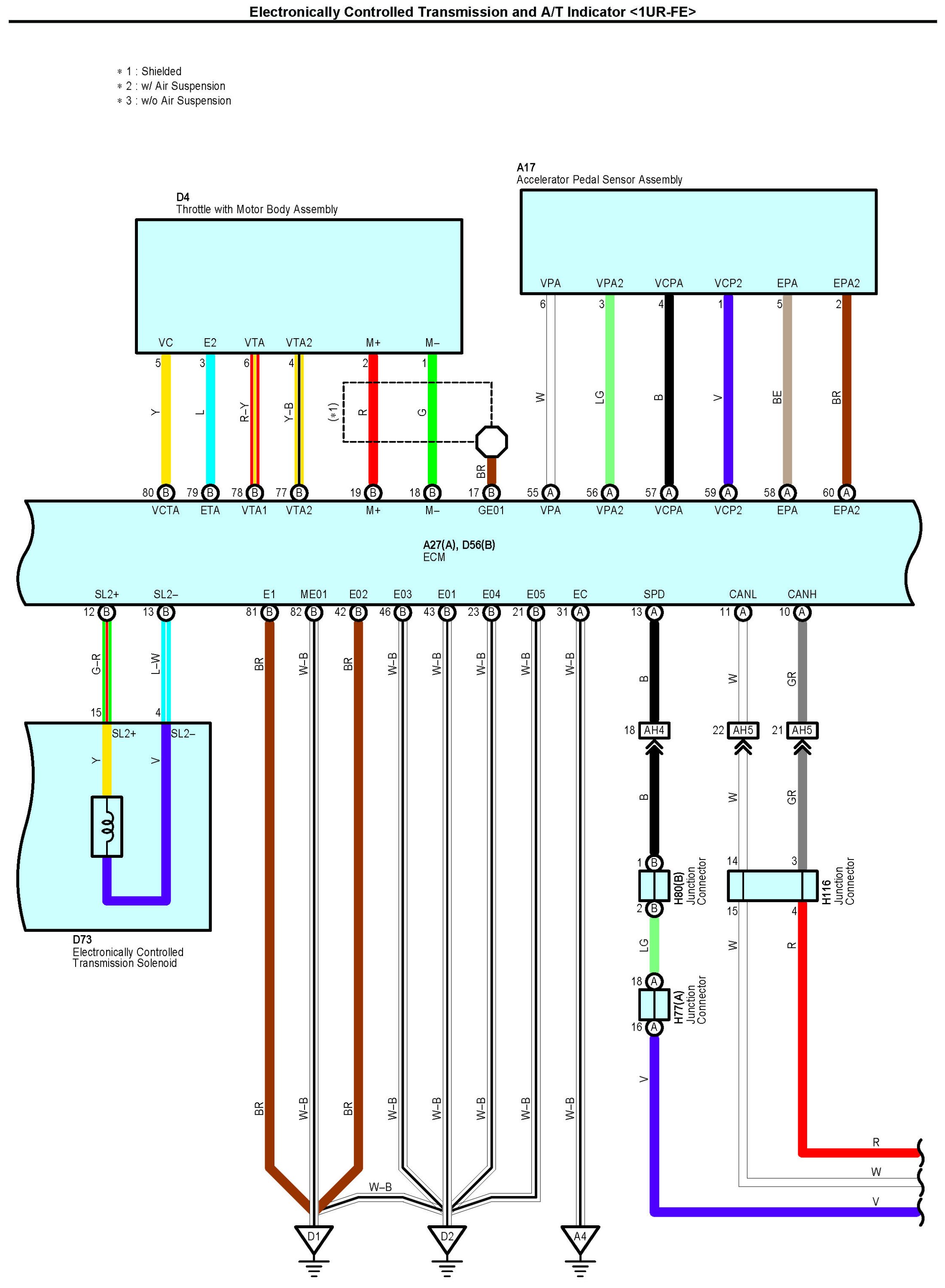

Electronically Controlled Transmission and A/T Indicator Part 8:

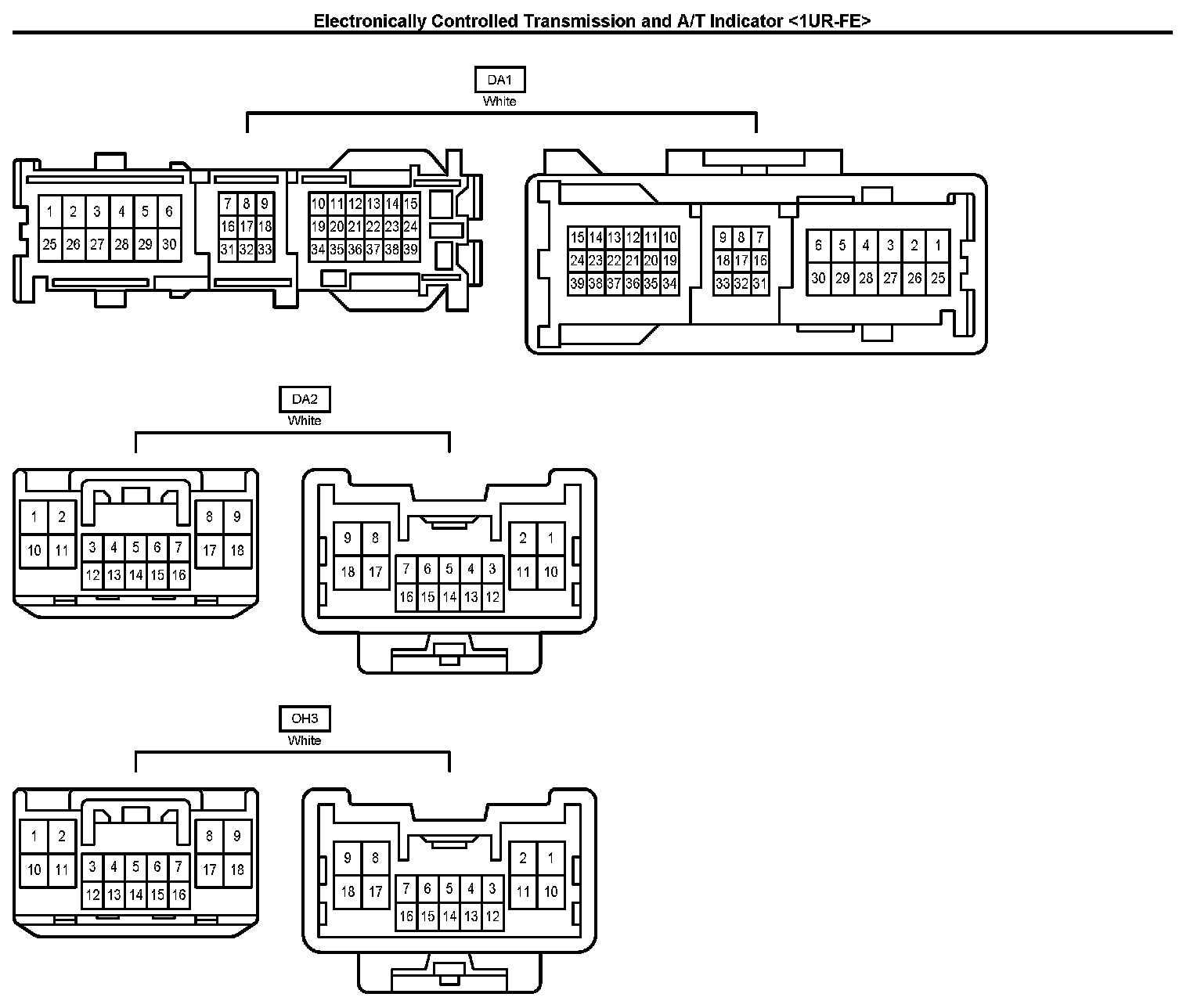

Connectors Part 1:

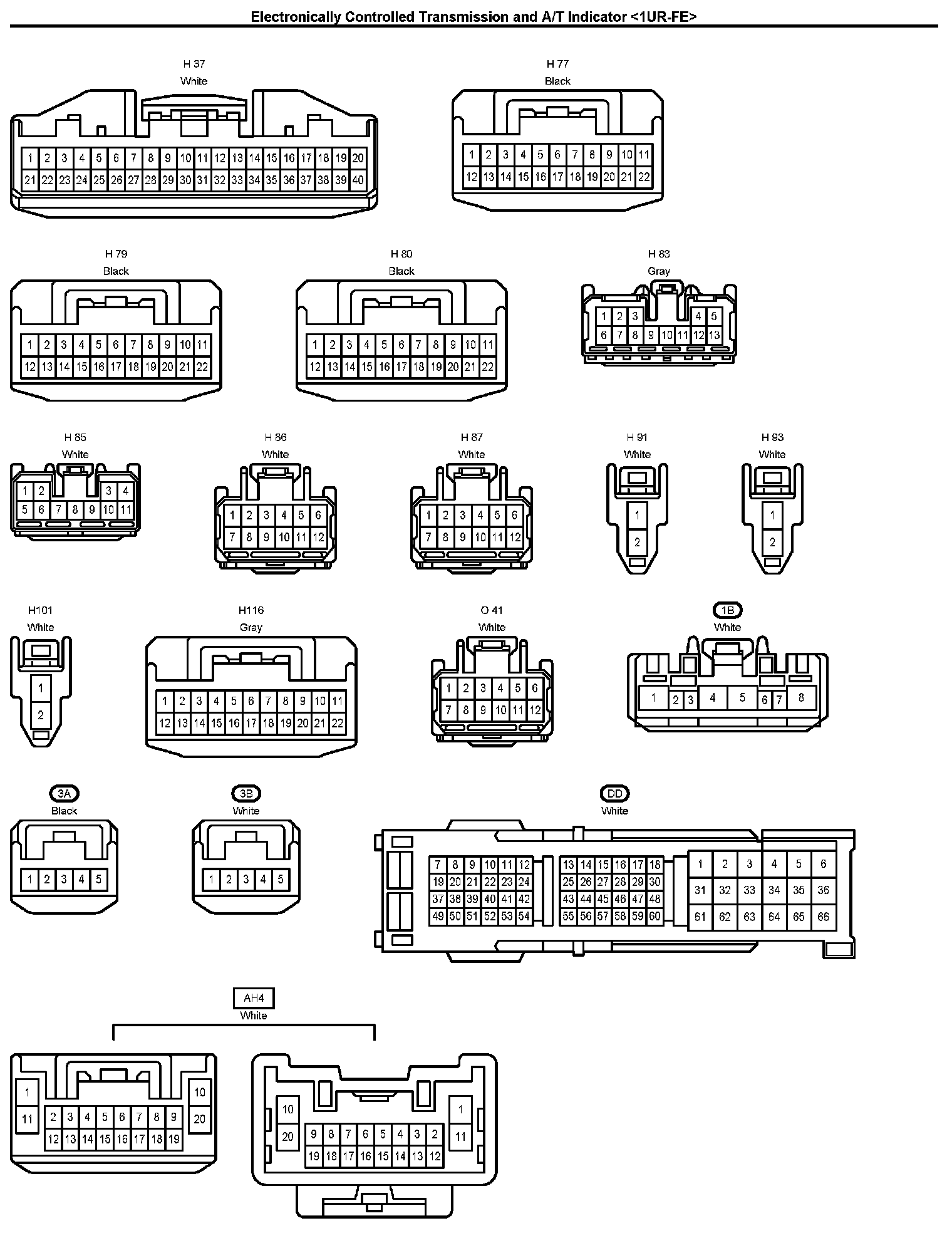

Connectors Part 2:

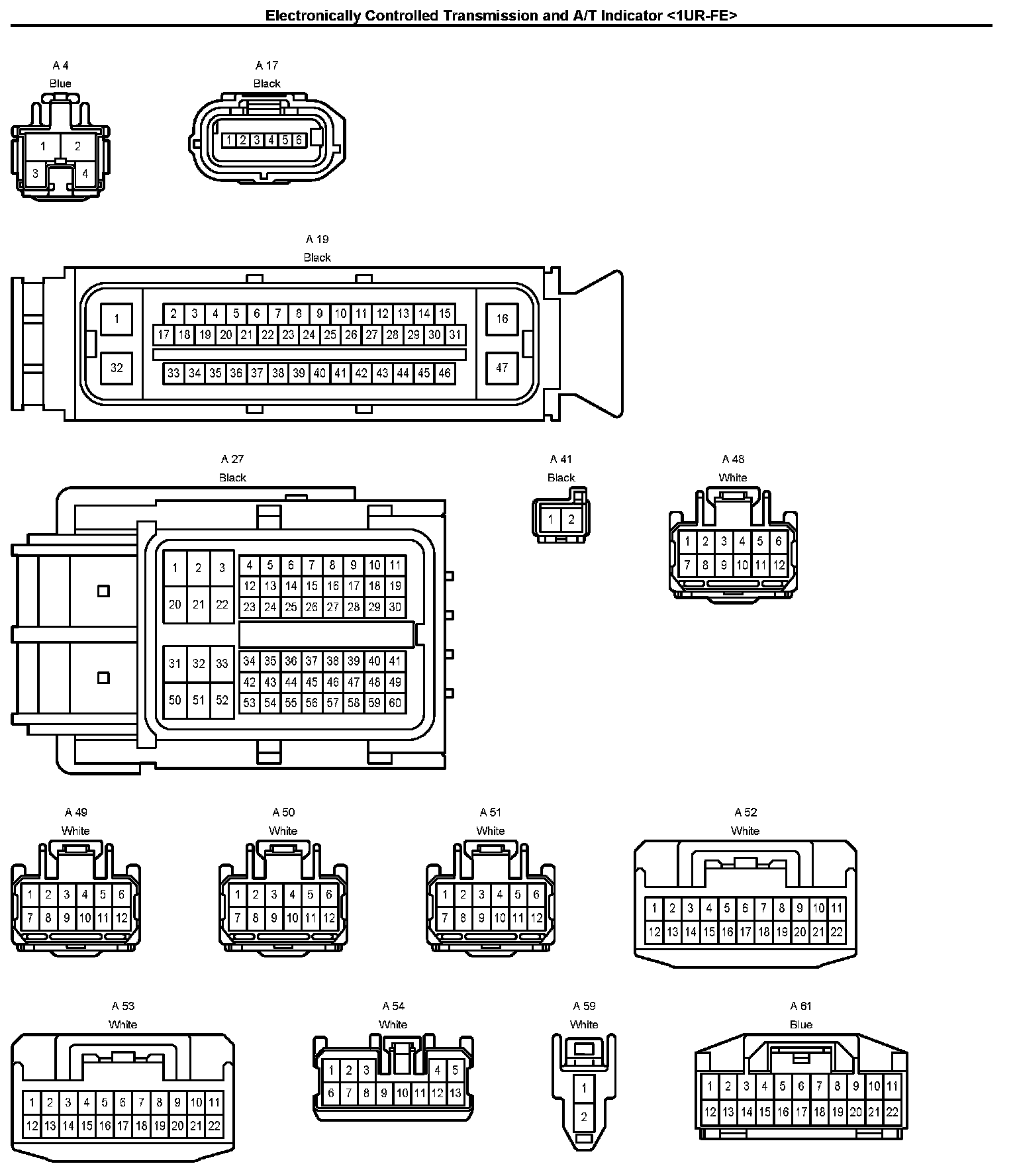

Connectors Part 3:

Connectors Part 4:

Connectors Part 5:
