Body - Rear Bumper Cover Is Deformed Near Exhaust Pipe
T-SB-0334-10November 24, 2010
Rear Bumper Cover Deformed
Service Category
Vehicle Exterior
Section
Exterior Panels/Trim
Market
USA

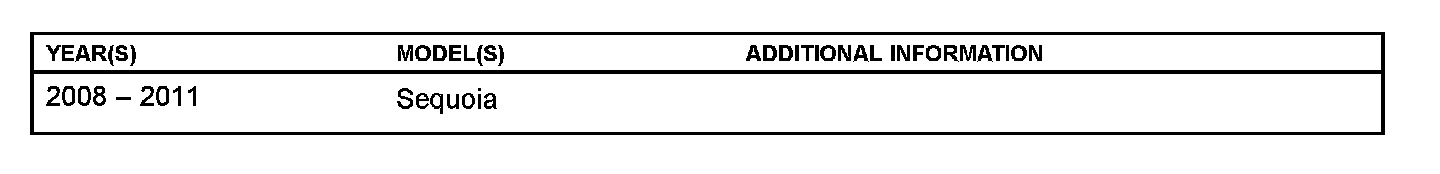

Applicability
Introduction
Some 2008 - 2011 Sequoia vehicles may exhibit a condition where the rear bumper cover is deformed around the cutout portion for the exhaust tailpipe. A new tailpipe assembly has been designed to correct this condition. Please follow the repair procedures outlined in this bulletin.

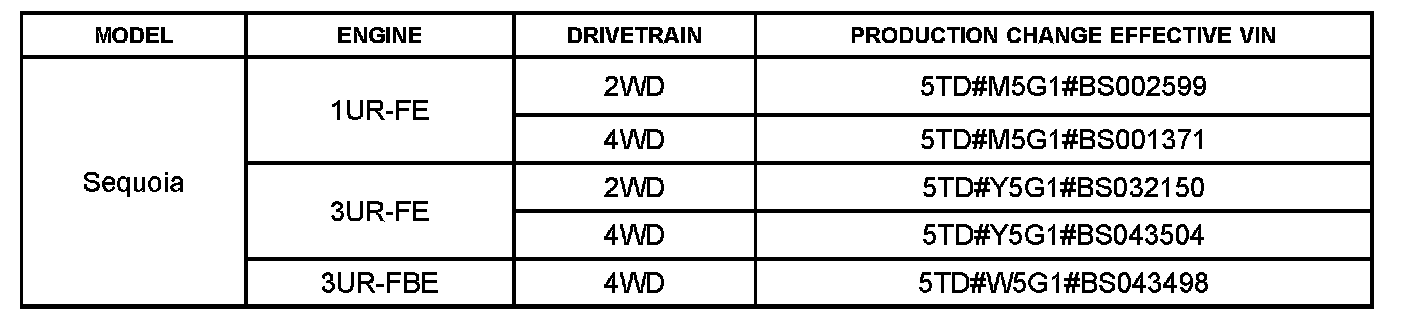

Production Change Information
This TSB applies to vehicles produced BEFORE the Production Change Effective VINs shown.

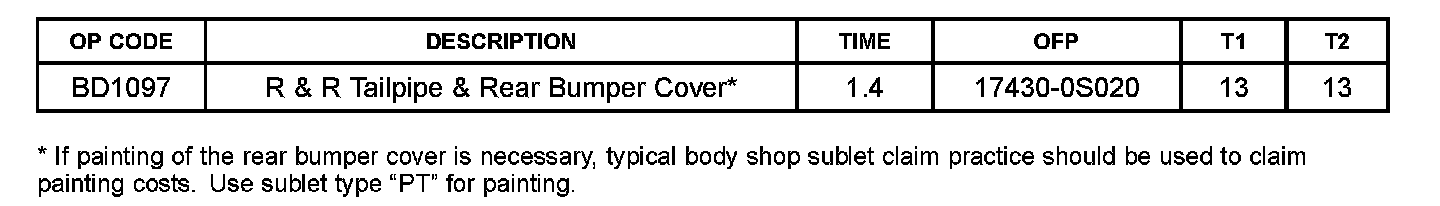

Warranty Information
APPLICABLE WARRANTY
^ This repair is covered under the Toyota Comprehensive Warranty. This warranty is in effect for 36 months or 36,000 miles, whichever occurs first, from the vehicle's in-service date.
^ Warranty application is limited to occurrence of the specified condition described in this bulletin.

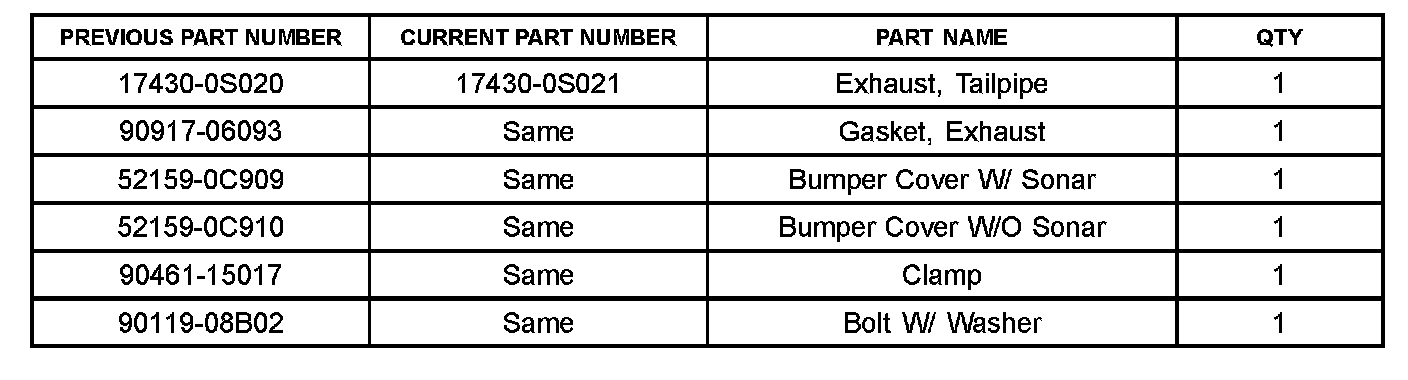

Parts Information
Repair Procedure

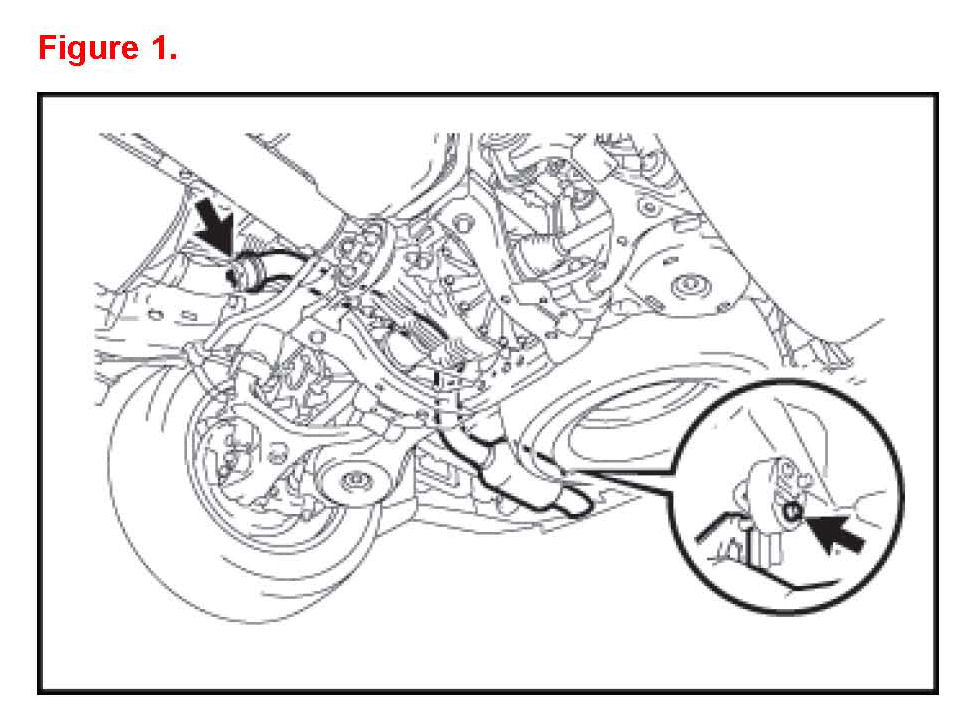

1. Remove tailpipe assembly.
CAUTION
^ Wear protective gloves when removing the exhaust pipe.
^ The exhaust pipe is extremely hot immediately after the engine has stopped. Confirm that the exhaust pipe has cooled down before removing it.
A. Remove the bolt clamp and gasket.
B. Disconnect the tailpipe assembly from the exhaust pipe support.
2. Install tailpipe assembly.
A. Connect the tailpipe to the exhaust pipe support.
B. Install a NEW gasket to the center exhaust pipe.
C. Connect the tailpipe to the center exhaust pipe.
D. Attach a NEW clamp to the tailpipe and center exhaust pipe. Then install the NEW bolt to the clamp.
Torque: 2 N*m (326 kgf*cm, 24 ft*lbf)
HINT

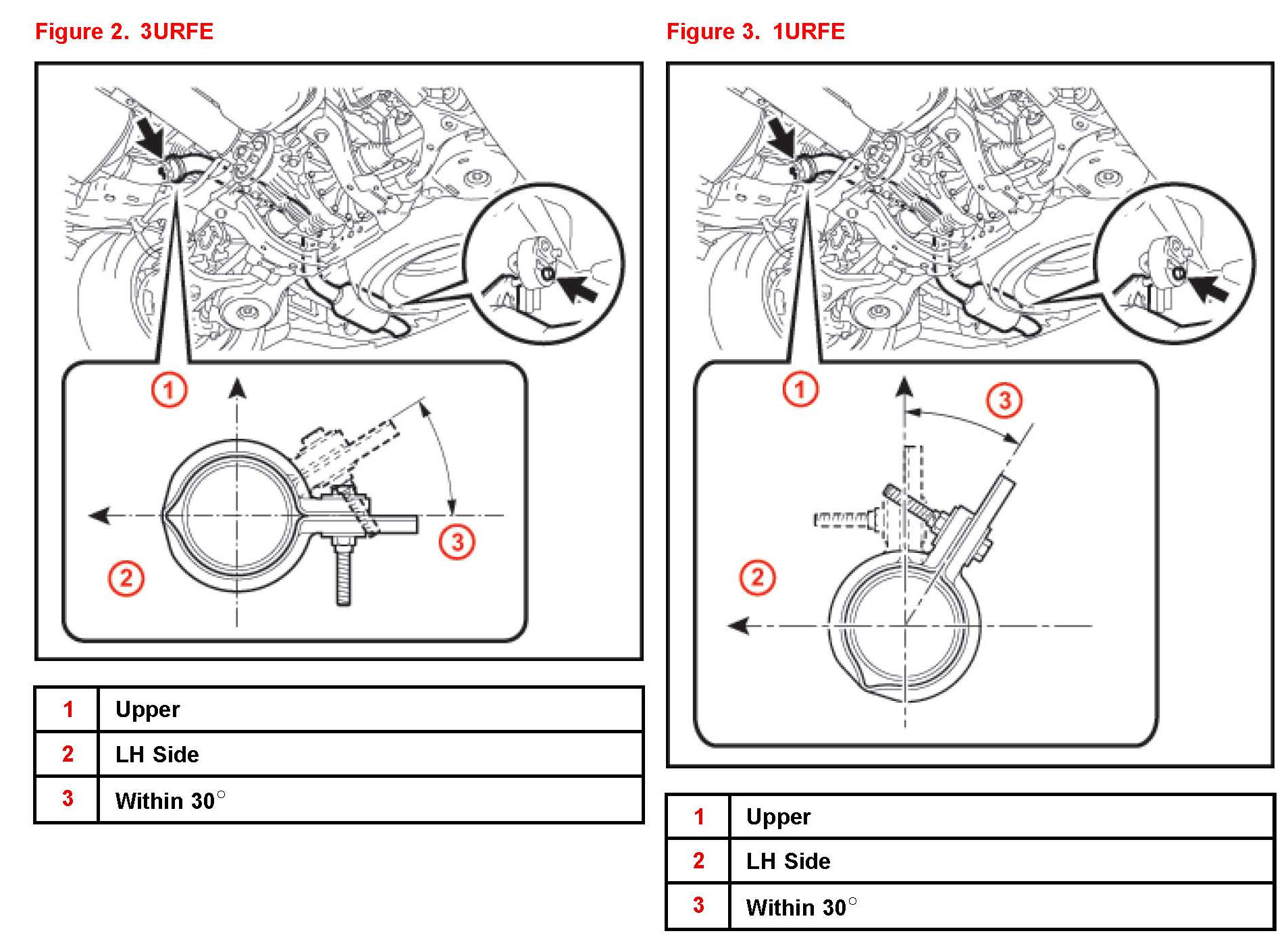

Install the clamp within the angle range shown in the illustration.
E. Inspect for exhaust gas leak.
3. Replace bumper cover.

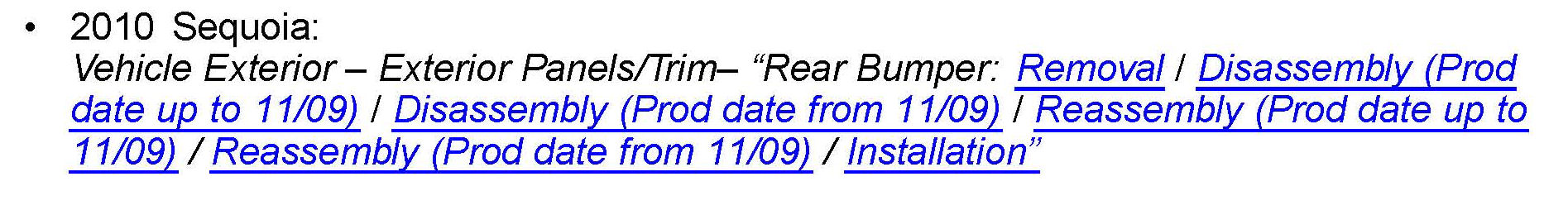

Refer to the Technical Information System (TIS) applicable model and model year Repair Manual:
